Standalone Sensors

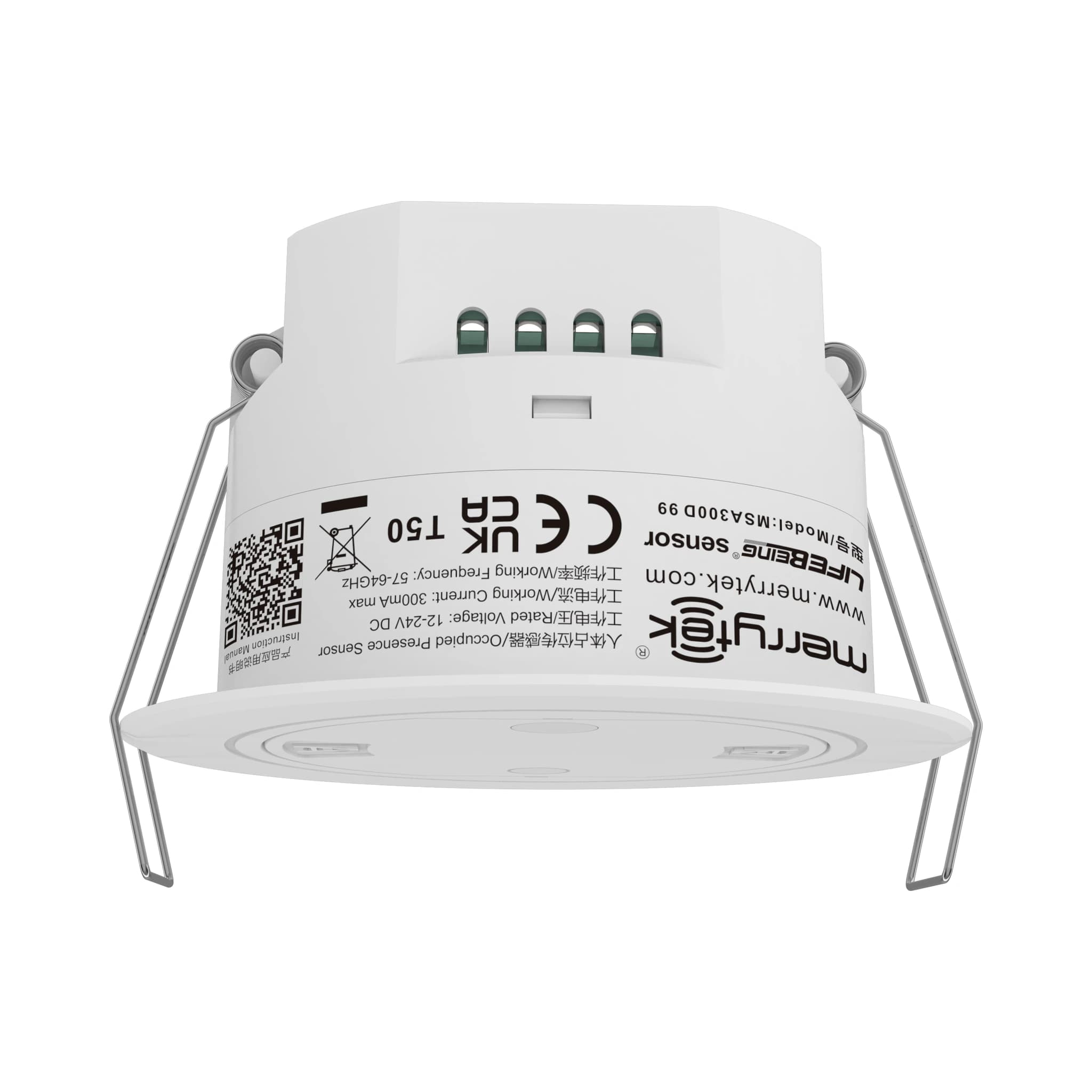

MSA300D 99
Standalone Sensors
MSA300D 99 is designed for professional lighting-control and building-automation applications. Supported technologies: Presence, Dry contact.
Verified product data
Specifications
Input / Output
- Input voltage
- 12-24V DC
- Working current
- 300mA maximum
- Working power
- <=1W at 24V DC
- Output signal
- NO/NC dry contact
Sensor
- Radar frequency
- 60-64G Hz ISM band
- Transmit power
- 5mW maximum
- Detection area
- 25-100% via MH10
- Hold time
- 5s-30min
- Daylight threshold
- 5-150Lux
- Detection radius
- 0.5-1.5m at 3m
Installation
- Mounting height
- 2-3.5m
Mechanical
- Product size
- Diameter 80 x 43.5mm
- Cut-out
- Diameter 70mm
Environment
- Operating temperature
- 0 to +50 C
- IP rating
- IP20
Compliance
- Certification
- FCC / RED / RoHS
