Standalone Sensors

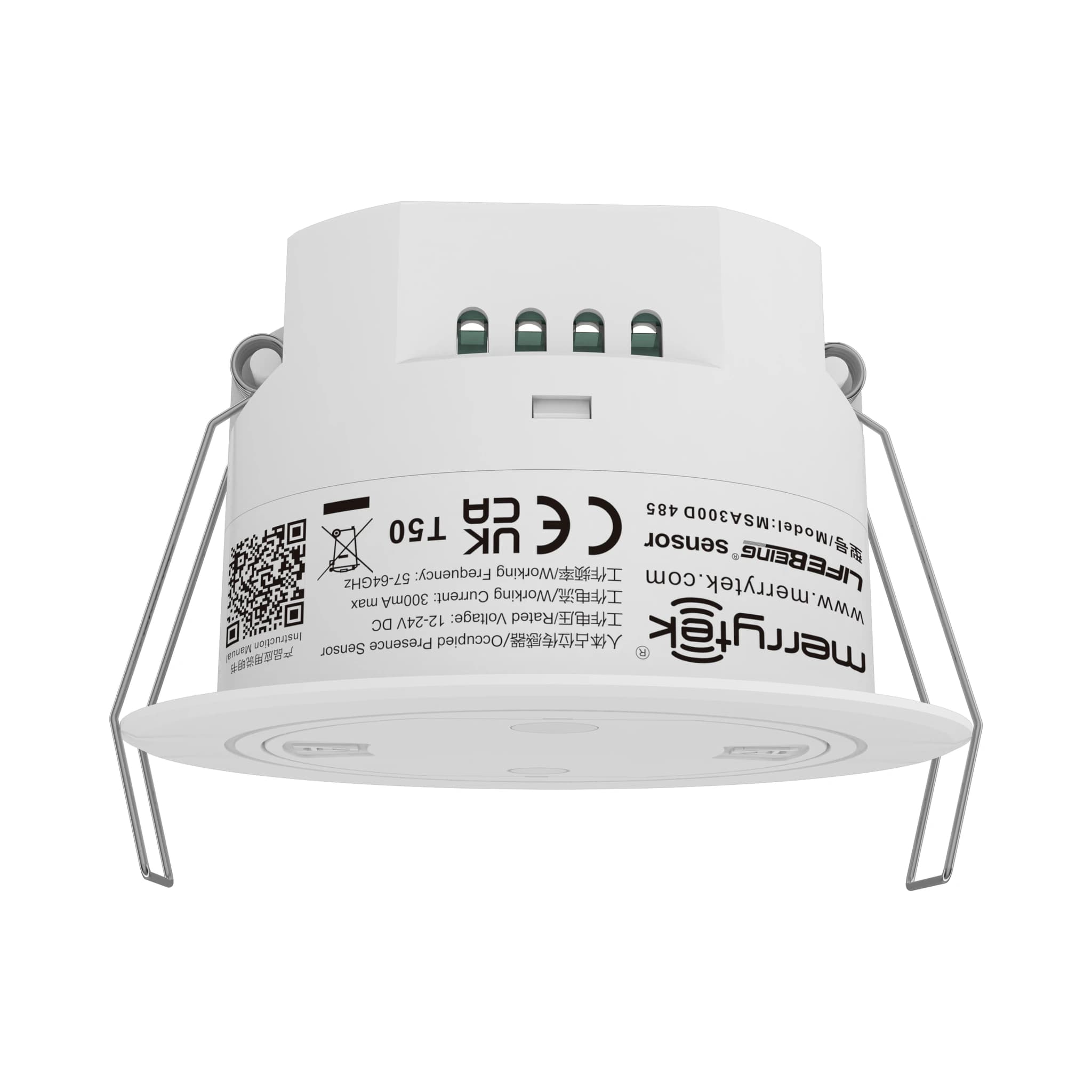

MSA300D 485
Standalone Sensors
MSA300D 485 is designed for professional lighting-control and building-automation applications. Supported technologies: Presence, RS485.
Verified product data
Specifications
Input
- Operating voltage
- 12-24V DC
- Working current
- <=300mA
Mechanical
- Product size
- Diameter 80 x 43.5mm
- Cut-out
- Diameter 70mm
Sensor
- Maximum detection radius
- Motion / minor motion / presence: 1m
- Daylight measurement
- 0-1200Lux
- Detection technology
- 60G Hz presence detection and daylight sensing
Control
- Output signal
- RS485
Installation
- Mounting height
- 2-4m (typical 3m)
- Installation mode
- Flush mounting
Environment
- IP rating
- IP20
