Standalone Sensors

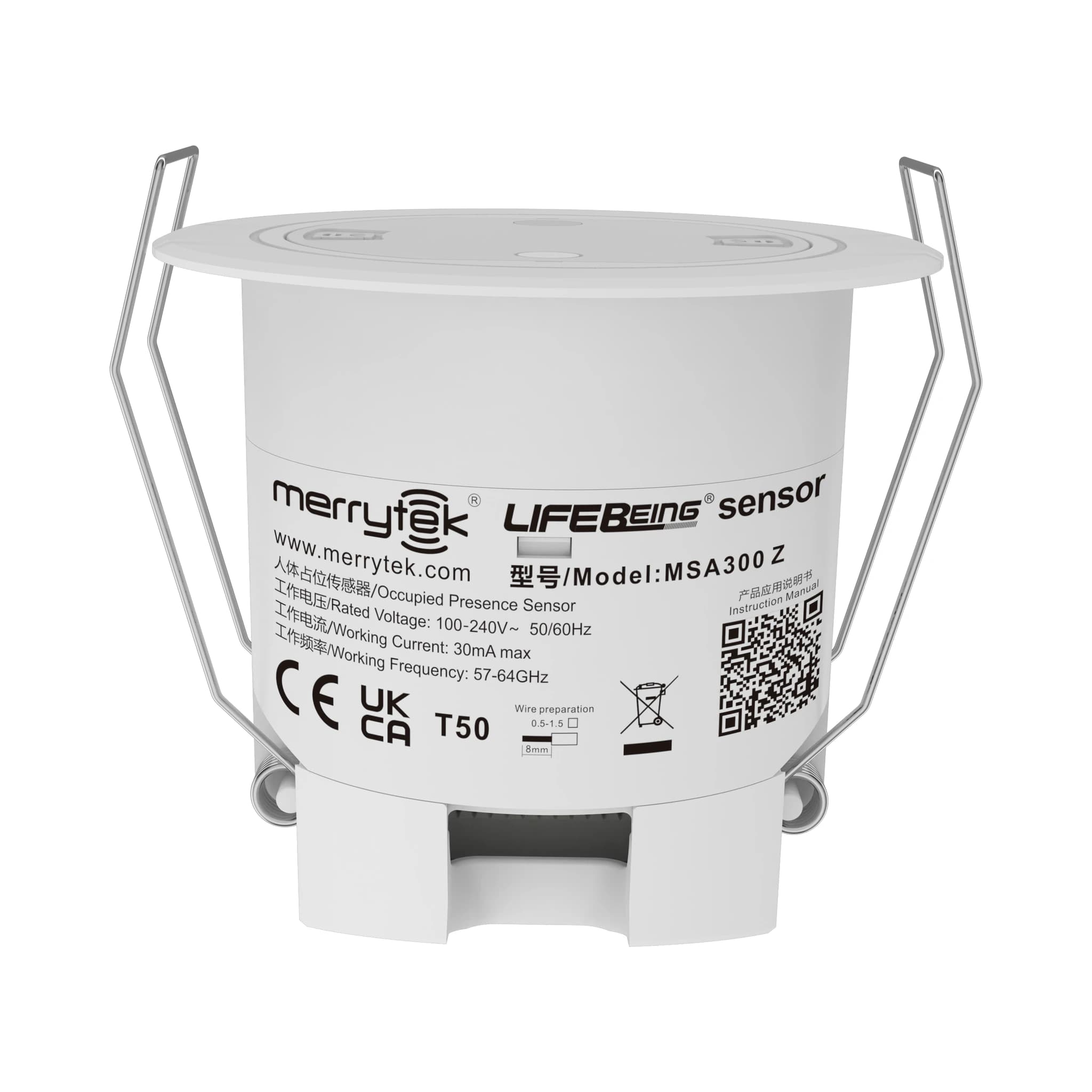

MSA300 Z
Standalone Sensors
MSA300 Z is designed for professional lighting-control and building-automation applications. Supported technologies: Presence, Tuya, Zigbee.
Verified product data
Specifications
Input
- Input voltage
- 100-240VAC, 50/60Hz
- Rated voltage
- 220V AC
- Working current
- 50mA maximum
- Consumption
- <=1W at 220V AC
Wireless
- Frequency
- 2.4-2.484G Hz Zigbee; 10dB transmit; -101+/-2dBm receive sensitivity
Sensor
- Radar frequency
- 60-64G Hz ISM band
- Transmit power
- 5mW maximum
- Detection area
- Tuya app levels 1-12
- Hold time
- 30s / 1 / 2 / 3 / 5 / 10 / 20 / 30min
- Daylight measurement
- 0-1200Lux
- Detection range
- Short side 0.5-1m; long side 1.5-2m for motion, minor motion and presence at 3m
Installation
- Mounting height
- 2.5-4m
- Beam angle
- 30 deg horizontal / 50 deg vertical
Mechanical
- Product size
- Diameter 80 x 66.5mm
- Cut-out
- Diameter 70mm
Environment
- Operating temperature
- 0 to +50 C
- IP rating
- IP20
Compliance
- Certification
- FCC / RED / RoHS
