Standalone Sensors

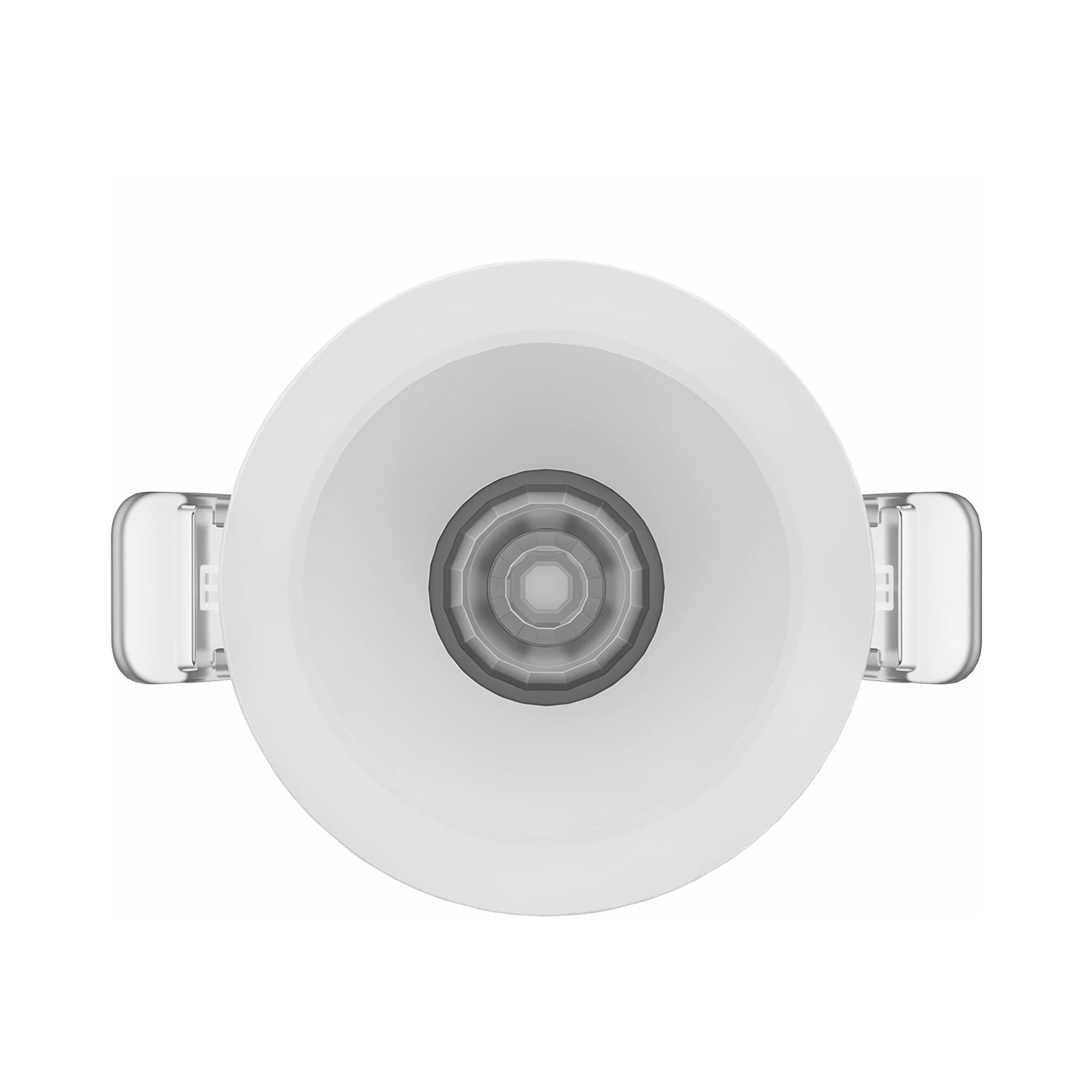

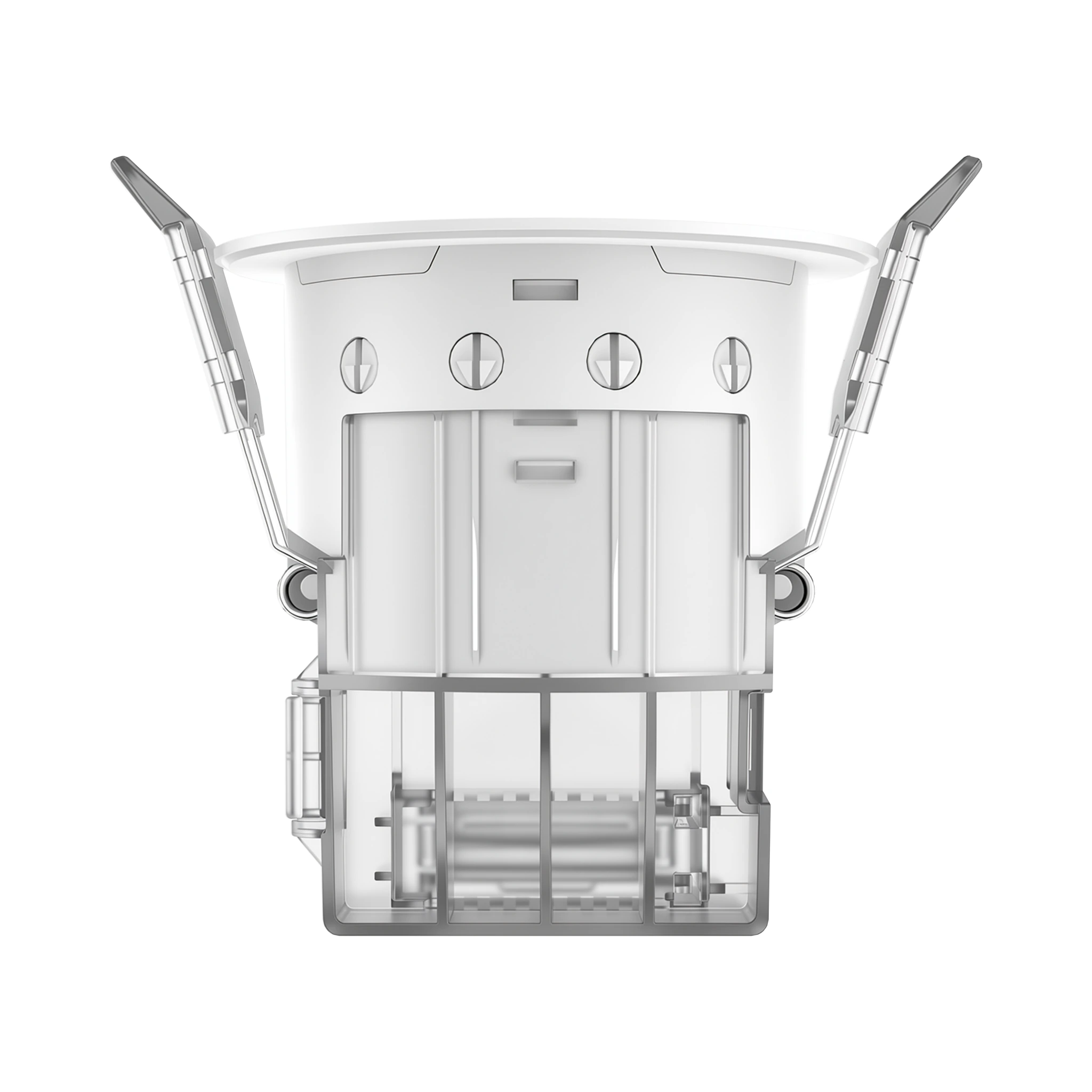

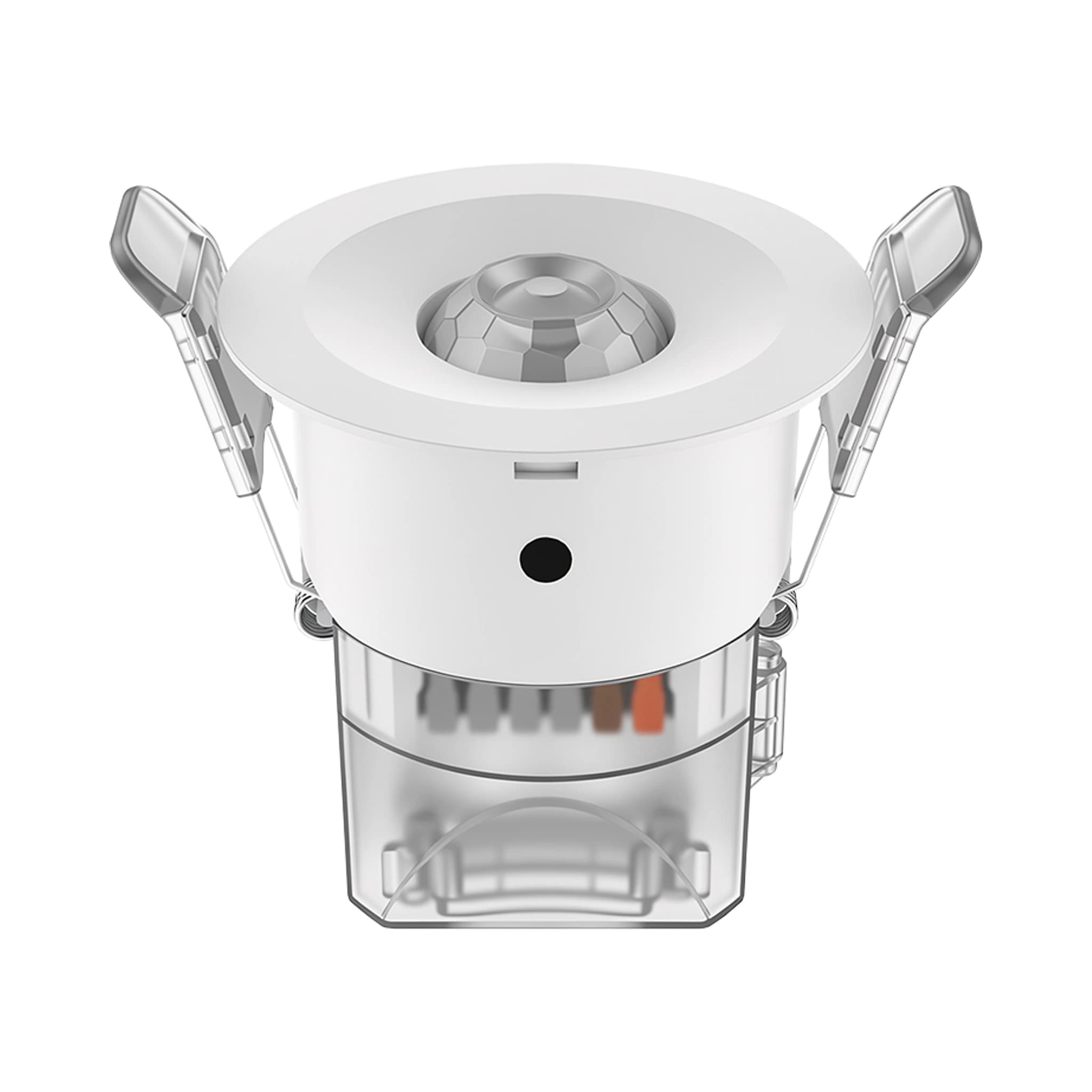

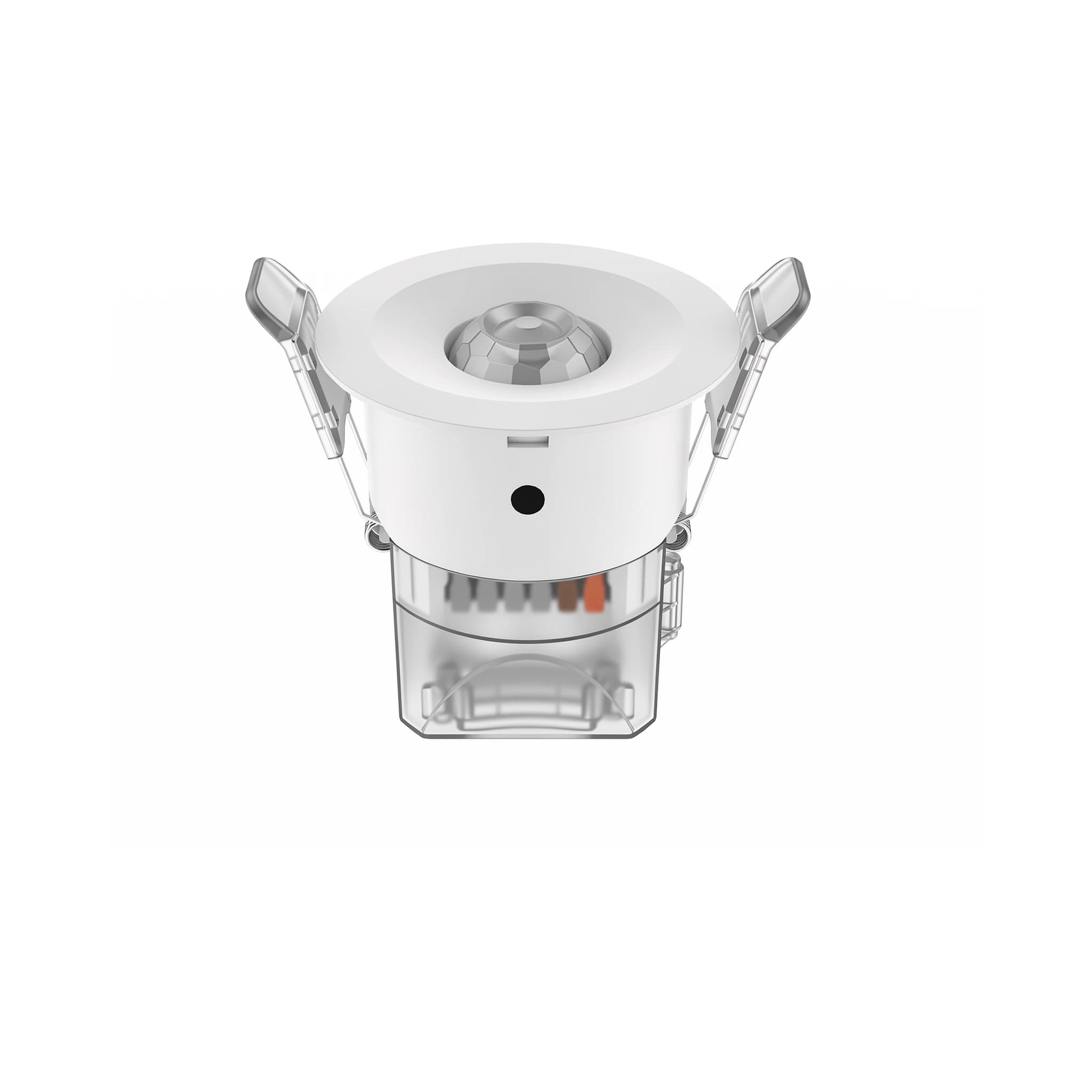

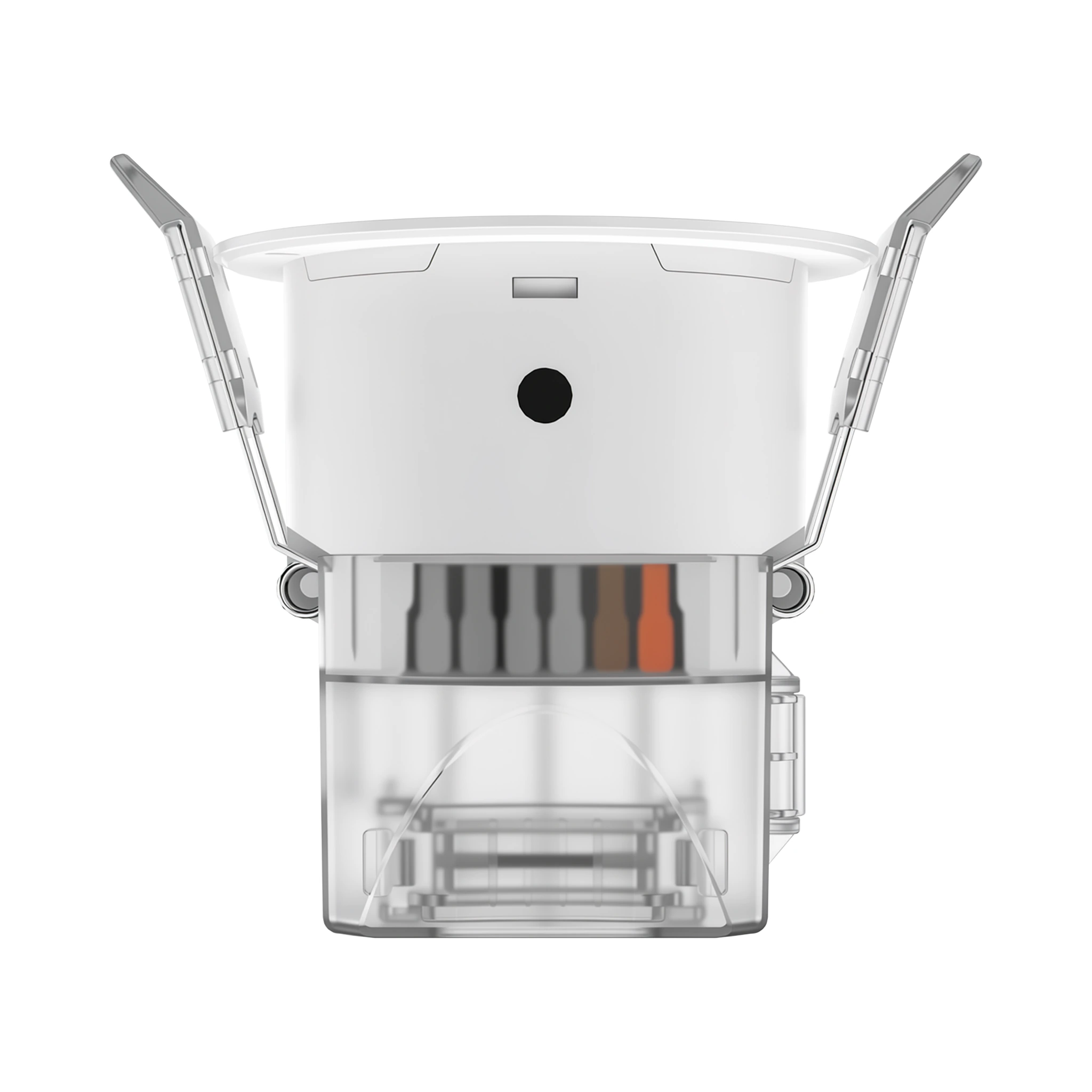

MSA246S IR B1
Standalone Sensors
MSA246S IR B1 is designed for professional lighting-control and building-automation applications. Supported technologies: PIR, Motion, ON/OFF.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240V AC
- Rated voltage
- 230V AC
- Operating current
- 20mA max
- Operating power consumption
- ≤0.5W @230V AC
- Output signal
- ON/OFF switch (16A relay) + Casambi Bluetooth signal
- Lightning surge
- 2KV (L/N,EN61000-4-5)
- Load surge current limit
- 30A (tested at 50% Ipeak, twidth 500us @220Vac, cold start at full load)
- Load type
- 1200w resistive load, 600w capacitive load
Sensing parameters
- Sensing method
- PIR infrared pyroelectric + light detection
- Detection range
- Casambi app settings:
- (Detection Area)
- 100%/75%/50%/25%
- Delay setting (Hold Time)
- Sensor fixed delay 2s + Casambi app set Linger time
- Daylight Sensor
- Casambi app is set under close loop
- Detection range (100% sensitivity, radius)
- Installation 3m high: tangential 1m/s speed movement: 4-5m @25℃ Radial 1m/s speed movement: 2-3m @25℃ Installation 6m height: tangential 1m/s speed movement: 4-5m @25℃ Radial 1m/s speed movement: 2-4m @25℃
- APP control
- Support Casambi app
- Installation height
- 2.5-6m Typical value: 3m
Usage environment
- Hole size
- Φ65mm
- Working environment temperature
- -25℃...+50℃ (the lower the temperature, the sensing distance may become farther, the higher the temperature, the sensing distance may become closer)
- Storage environment
- -25℃~+50℃, humidity ≤60% (non-condensation)
- Warranty
- 5 years (only for quality problems of the product itself)
Certification Standard
- Comply with certification
- CE ROHS
- Environmental protection requirements
- Comply with EU ROHS requirements
- Protection level
- IP20
