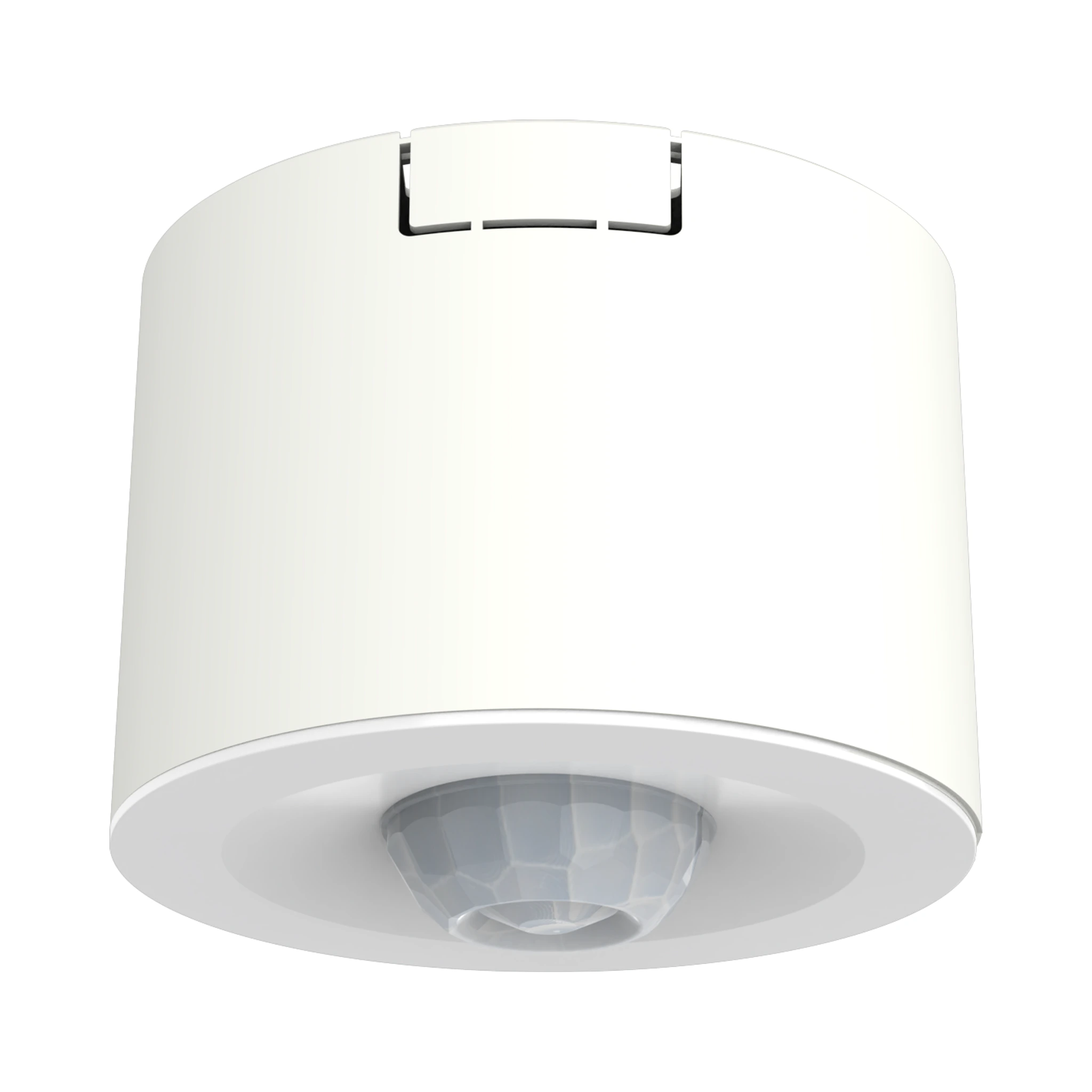

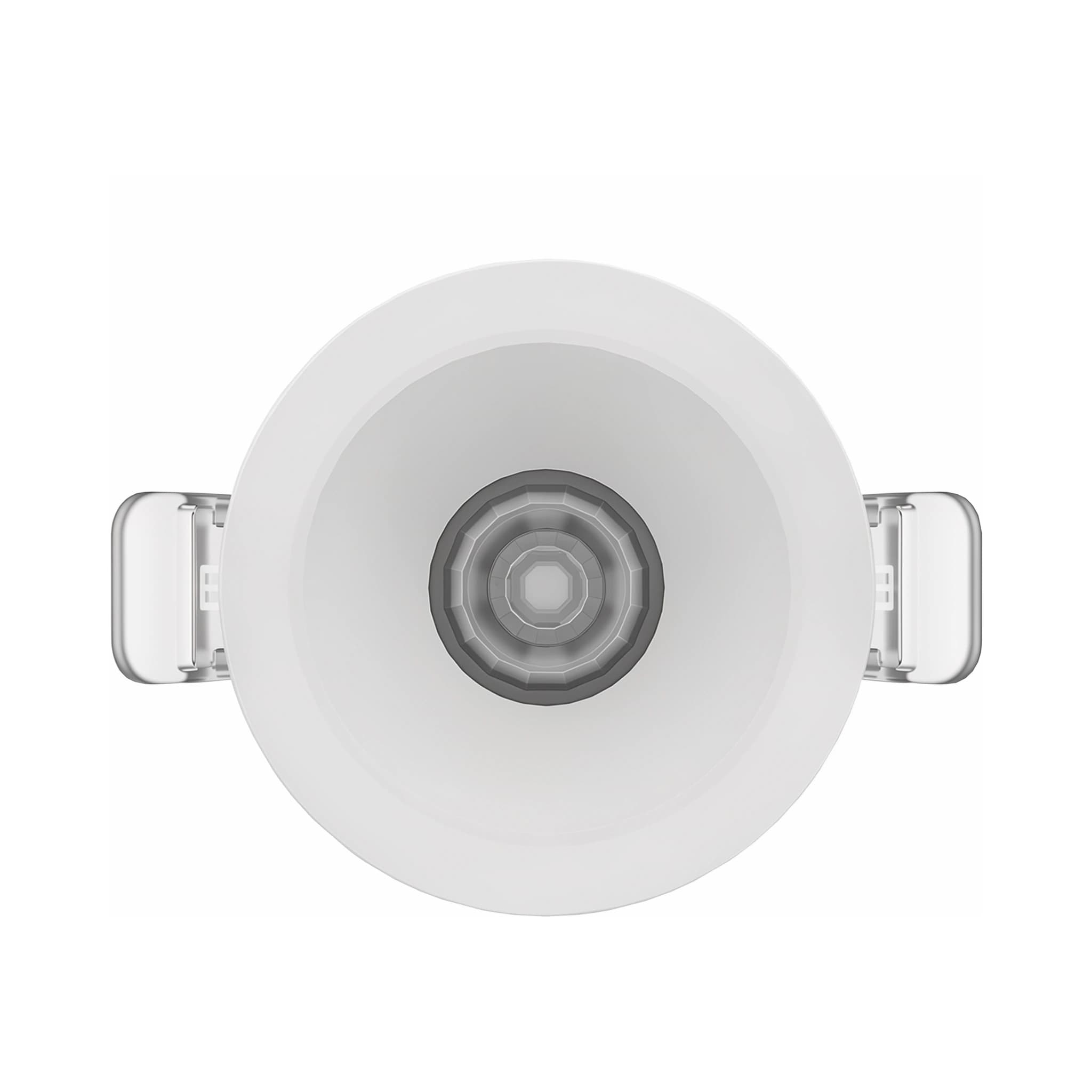

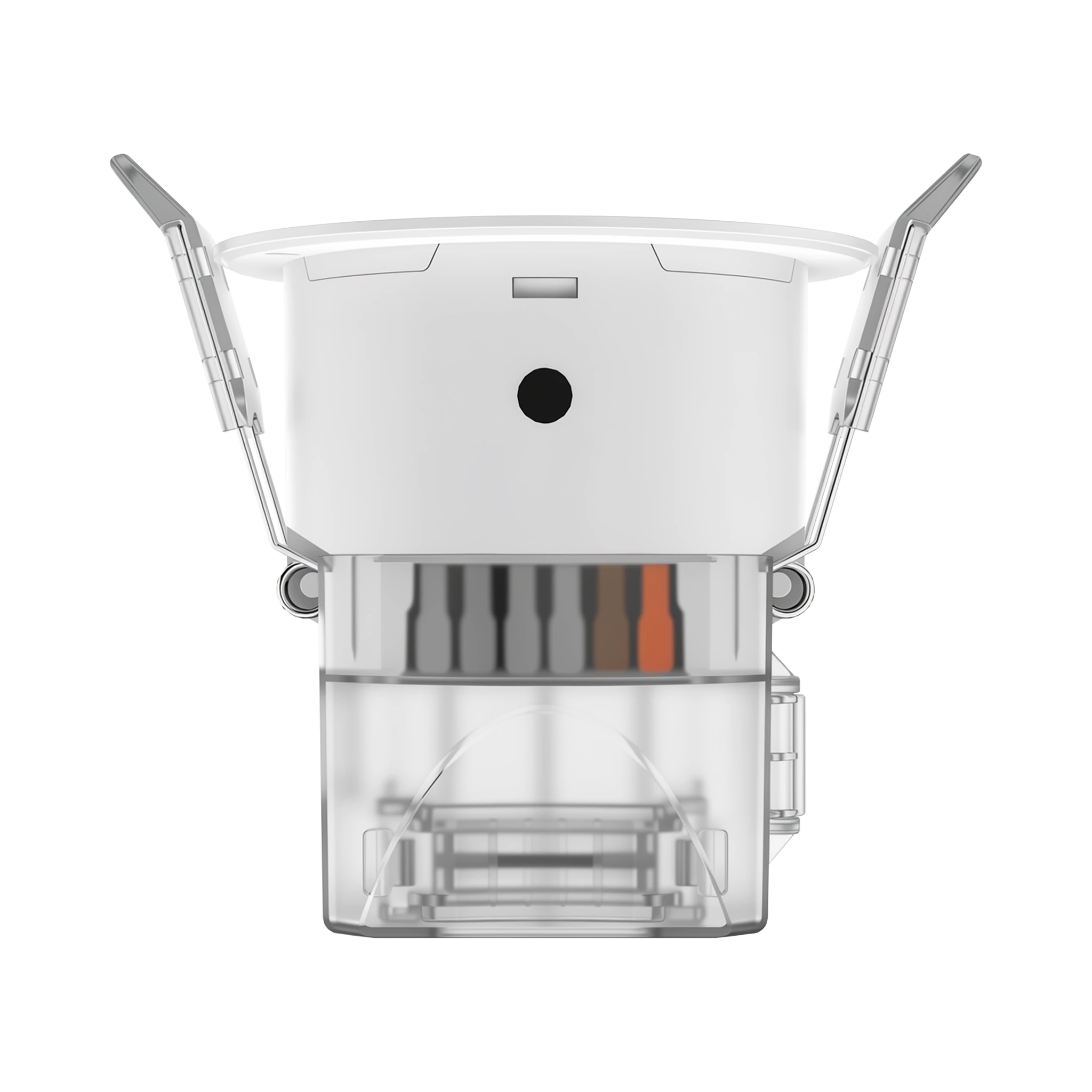

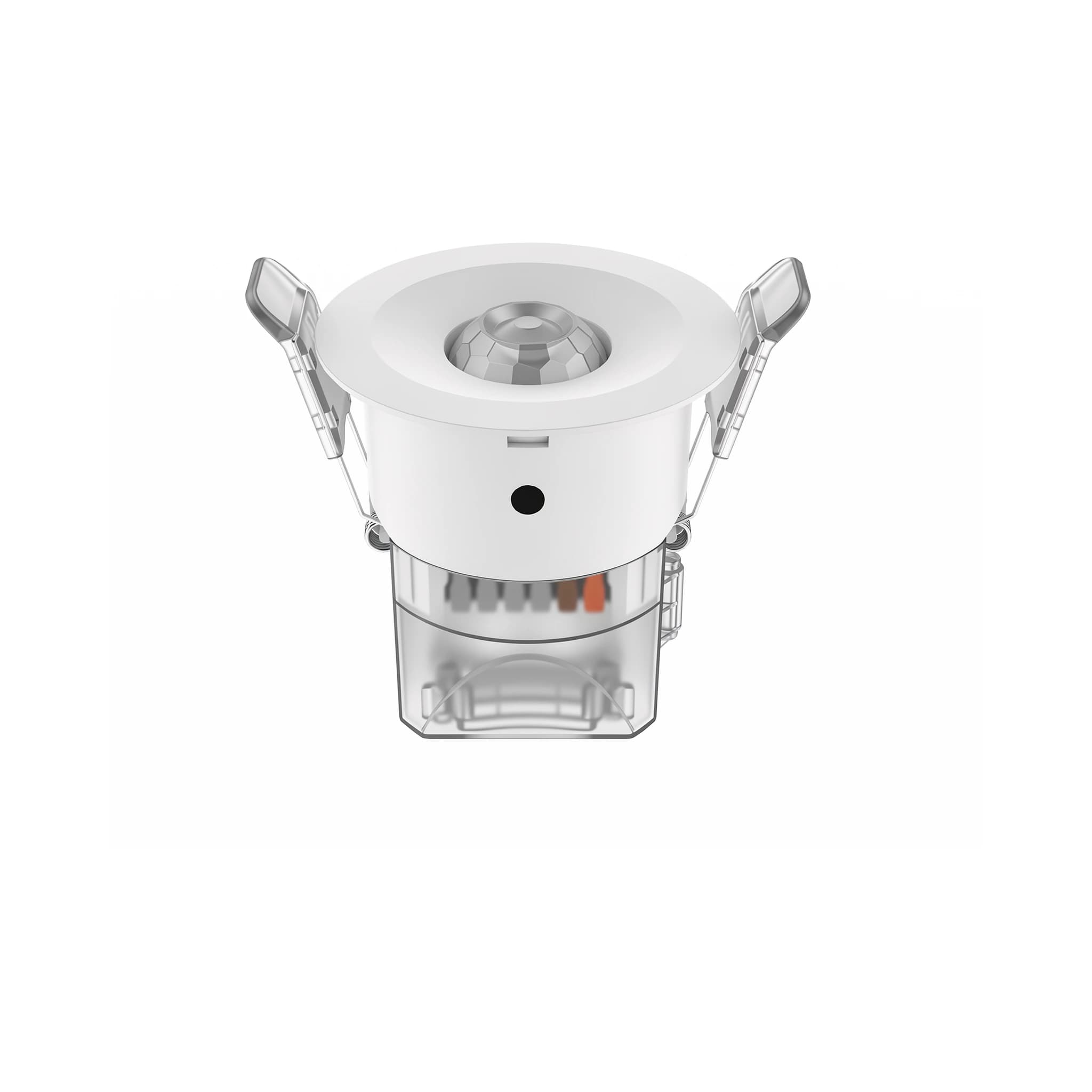

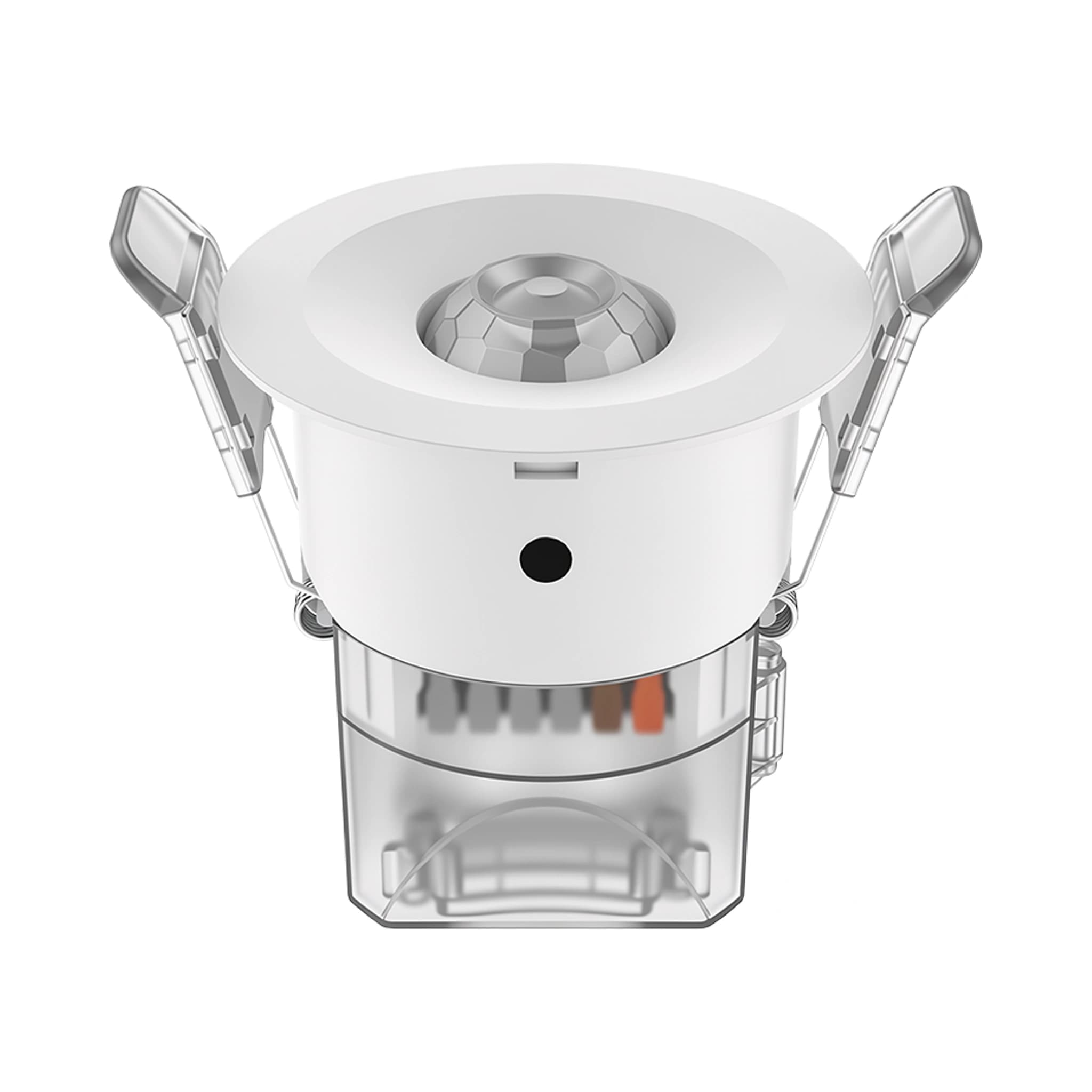

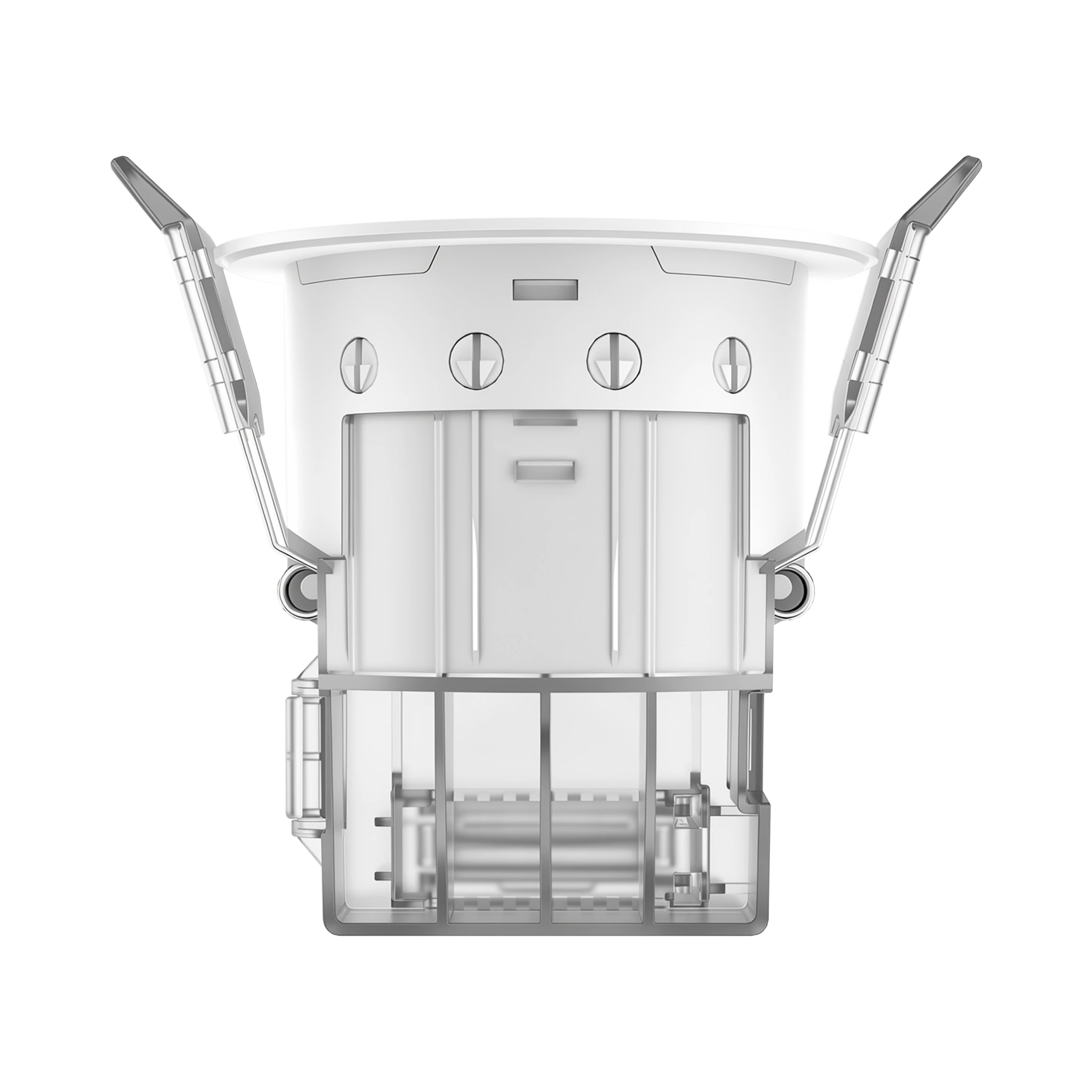

MSA246S IR A
Standalone Sensors
MSA246S IR A is designed for professional lighting-control and building-automation applications. Supported technologies: PIR, Motion, ON/OFF.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240V AC
- Rated voltage
- 230V AC
- Operating current
- 20mA max
- Operating power consumption
- ≤0.5W @230V AC
- Output signal
- ON/OFF switch (16A relay)
- Lightning surge
- 2KV (L/N,EN61000-4-5)
- Load surge current limit
- 50A (tested at 50% Ipeak, twidth 500us @220Vac, cold start at full load)
- Load type
- 1200w resistive load, 800w capacitive load
Sensing parameters
- Sensing method
- PIR infrared pyroelectric + light detection
- Detection Area
- Knob potentiometer/MH18 remote control/MH10 remote control setting: 100%/75%/50%/25%
- Delay setting (Hold Time)
- Knob potentiometer/MH10 remote control/MH18 remote control setting: Test 2s/30s/1min/3min/5min/10min/30min
- Daylight Sensor
- Knob potentiometer/MH10 remote control/MH18 remote control setting: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable
- Light sensitivity threshold learning mode
- When the sensor enters the light sensitivity threshold learning mode, the sensor will learn the illumination value of the current environment and use it as the light sensitivity threshold.
- Daylight Priority
- 50lux turns on the lights, 400lux turns off the lights; 100lux turns on the lights, 500lux turns off the lights; 150lux turns on the lights, 600lux turns off the lights; 200lux turns on the lights, 700lux turns off the lights
- IQ mode
- When the sensor enters IQ mode: the delay time can change the current delay time according to the number of consecutive triggers of the sensor. Delay time: 10s-10min. If the sensor triggers for the first time after setting this mode, the current delay is set to 10s, triggers 3 times within 10s, sets the current delay to 20s, triggers 6 times within 20s, and sets the current delay to 3 0s, trigger 10 times within 30s, set the current delay to 1min, trigger 20 times within 1min, set the current delay to 3min, trigger 40 times within 3min, set the current delay to 5min, trigger 80 times within 5min, set the current delay to 10min, the sensor will restart after power off or no one turns off the light, and the counting delay starts from 10 seconds
- Pulse mode
- When the sensor enters IQ mode: the sensor senses human movement, the load light turns on for 2 seconds, and then the sensing function is disabled for 8 seconds.
- PUSH switch
- Support
- SYNC synchronization function
- Multiple sensor s can be connected to each other through the SYNC synchronization port to achieve group control: when the sensor triggers whether there is someone or no one, the lights can be turned on or off synchronously (lights are turned on when the first sensor triggers all the lights, and lights are off when there is no one after the last delay).
- Detection range (100% sensitivity, radius)
- Installation 3m high: tangential 1m/s speed movement: 4-5m @25℃; radial 1m/s speed movement: 2-3m @25℃ Installation 6m high: tangential 1m/s speed movement: 4-5m @25℃; radial 1m/s speed movement: 2-4m @25℃
- Remote control function
- Support (MH18 remote control/MH10 remote control)
- Installation height
- 2.5-6m Typical value: 3m
Usage environment
- Hole size
- Φ65mm
- Working environment temperature
- -25℃...+50℃ (the lower the temperature, the sensing distance may become farther, the higher the temperature, the sensing distance may become closer)
- Storage environment
- -25℃~+50℃, humidity ≤60% (non-condensation)
- Warranty
- 5 years (only for quality problems of the product itself)
Certification Standard
- Comply with certification
- CE ROHS
- Environmental protection requirements
- Comply with EU ROHS requirements
- Protection level
- IP20
