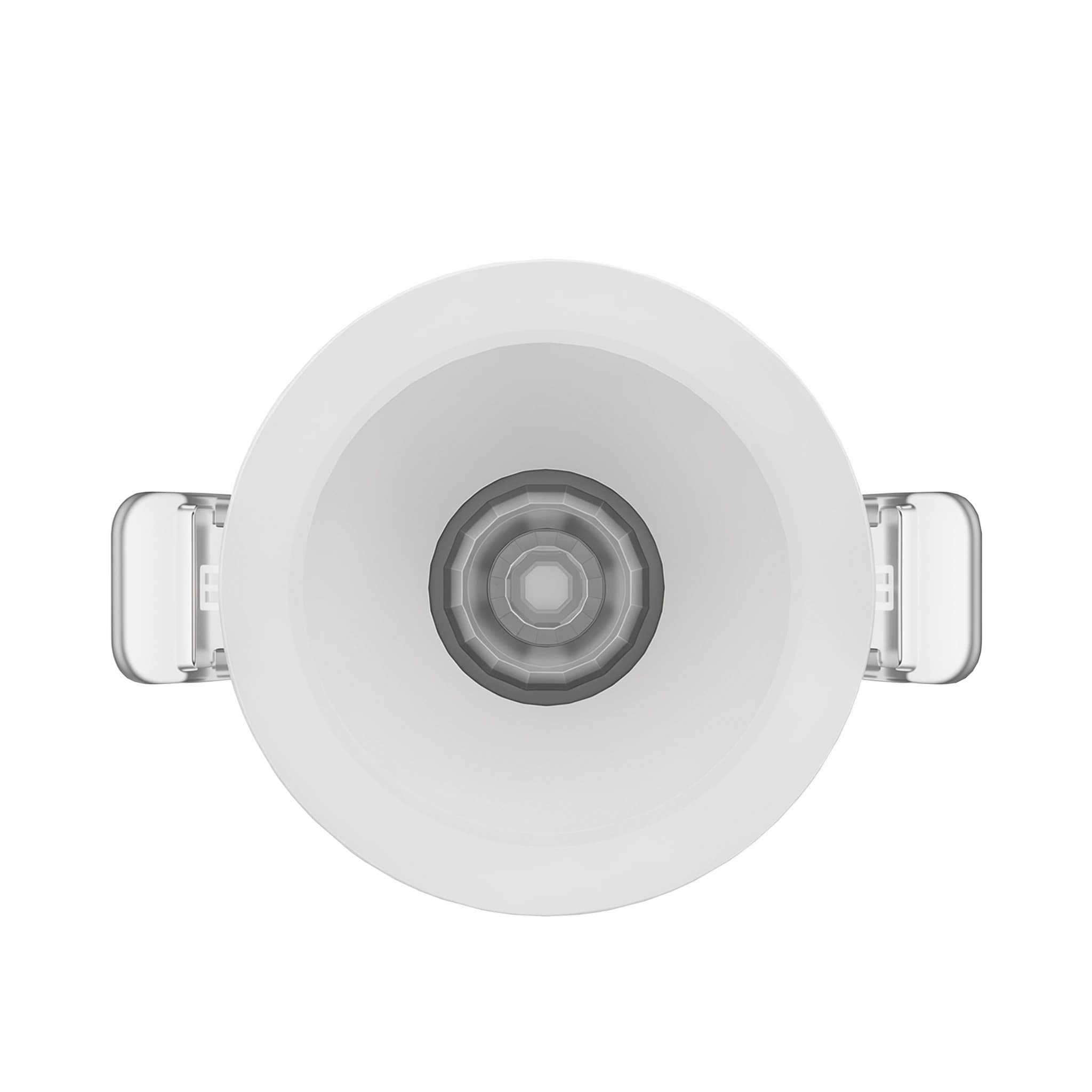

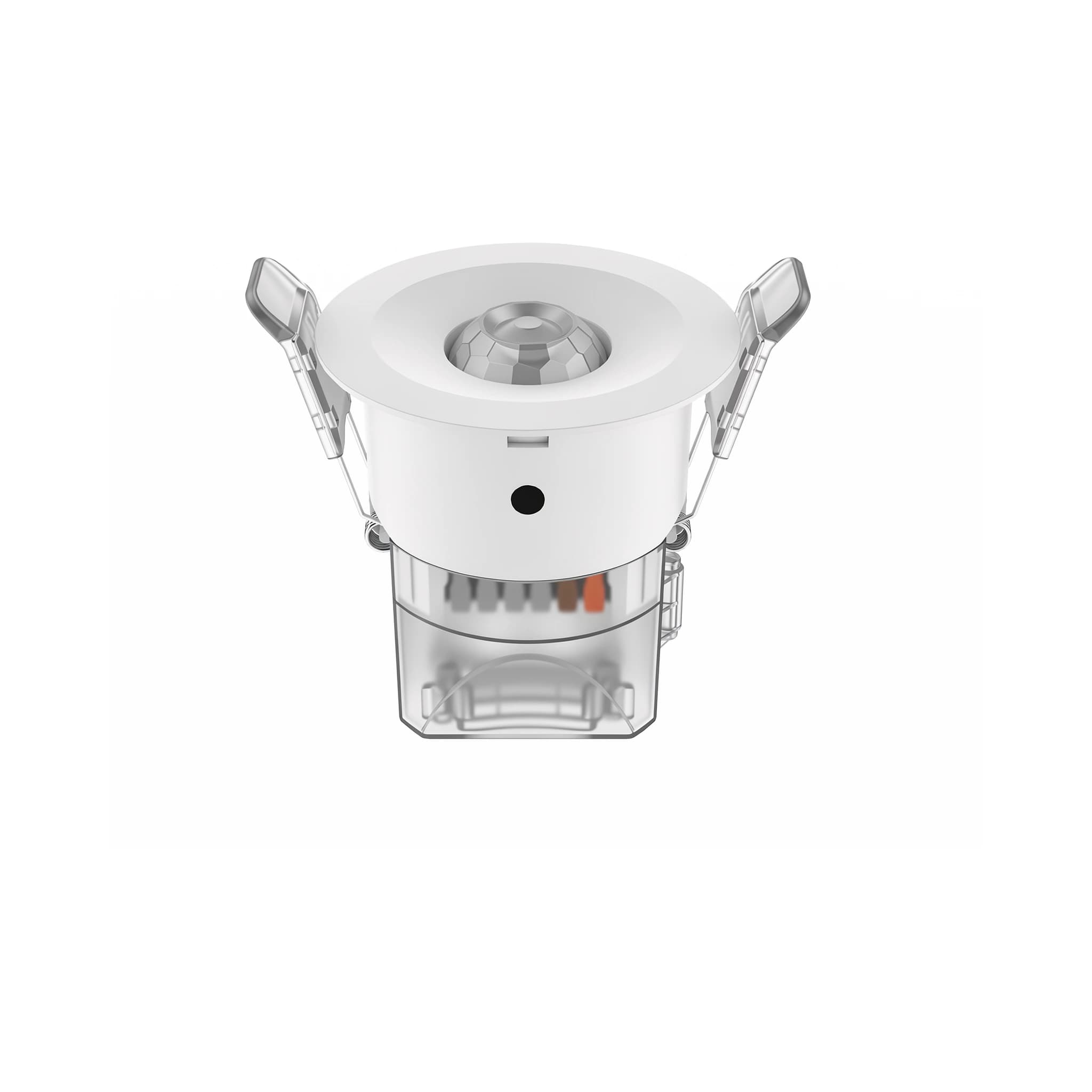

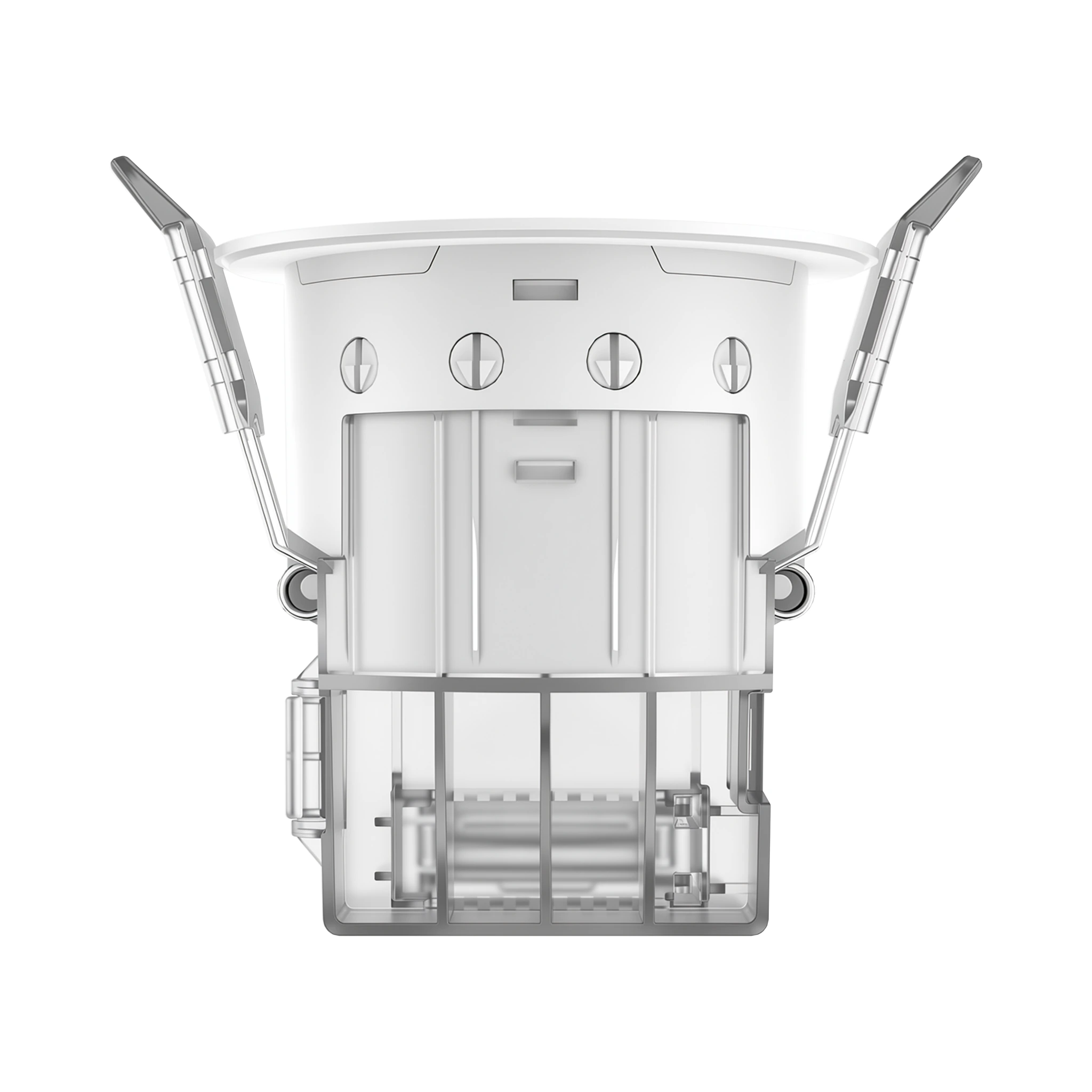

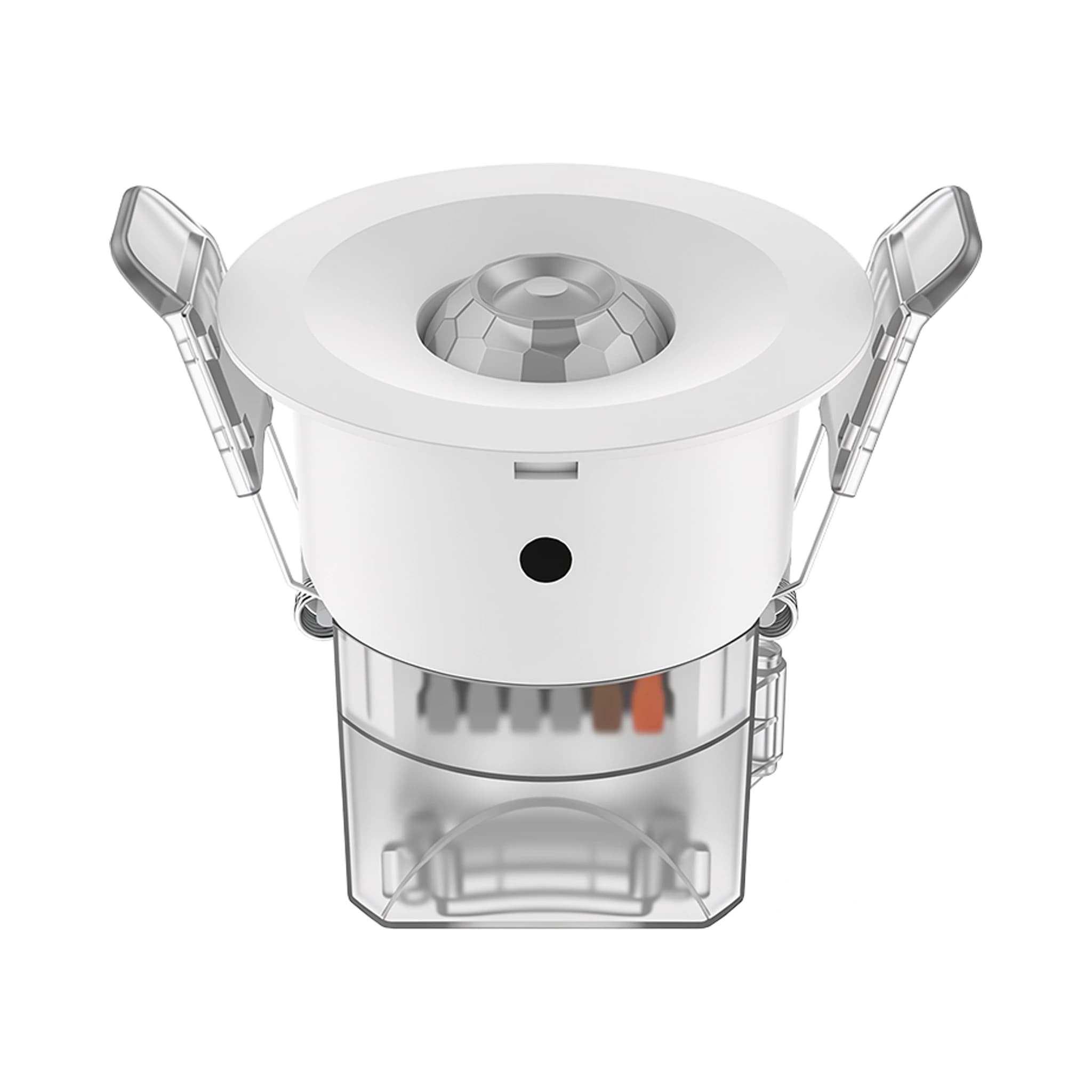

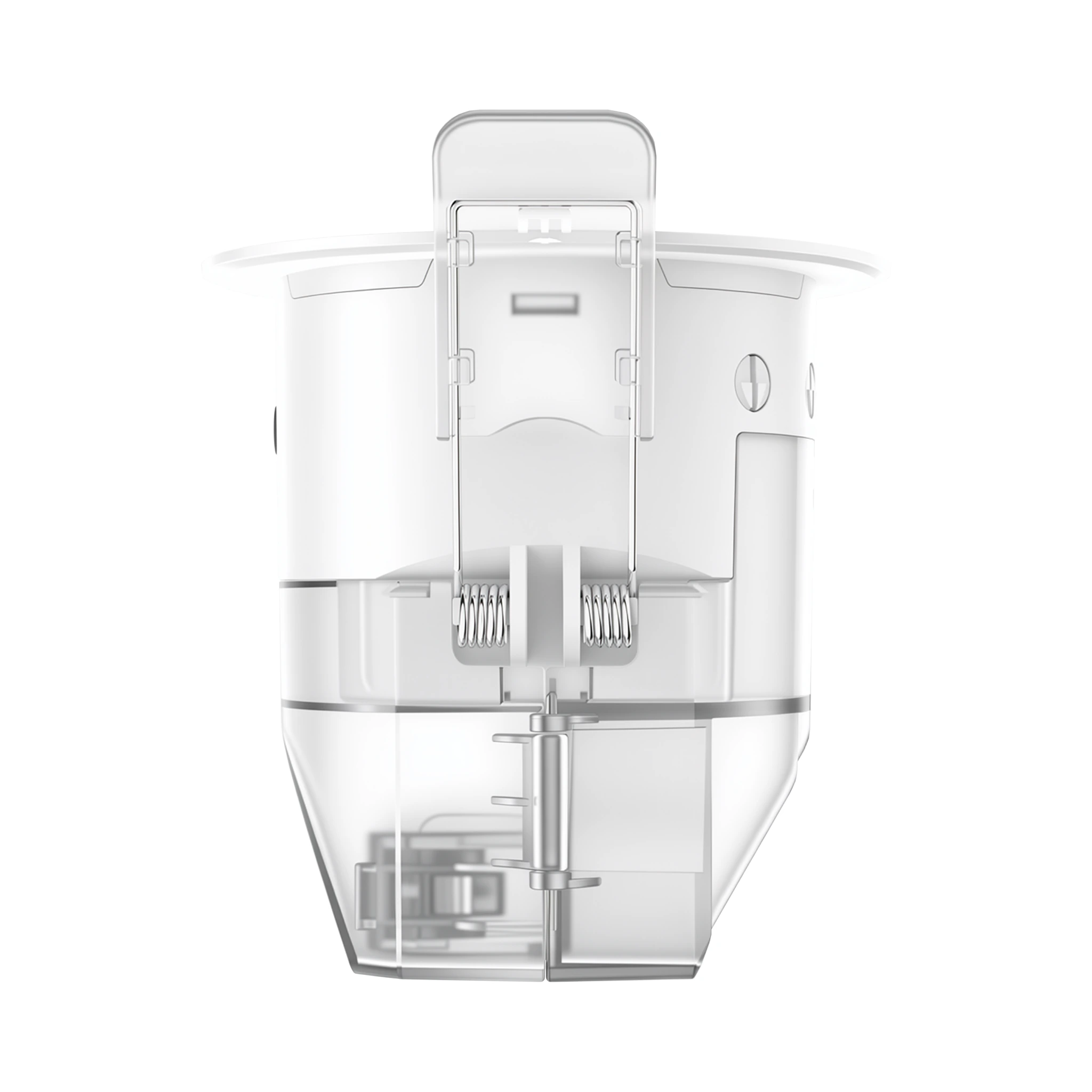

MSA246 IR B1
Standalone Sensors
MSA246 IR B1 is designed for professional lighting-control and building-automation applications. Supported technologies: PIR, Motion, DALI.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240V AC
- Rated voltage
- 230V AC
- Operating current
- 20mA max
- Operating power consumption
- ≤0.5W @230V AC
- Output signal
- DALI+Casambi Bluetooth signal
Sensing parameters
- Sensing method
- PIR infrared pyroelectric + light detection
- Detection range
- Casambi app settings:
- (Detection Area)
- 100%/75%/50%/25%
- Delay setting (Hold Time)
- Sensor fixed delay 2s + Casambi app set Linger time
- Daylight Sensor
- Casambi app is set under close loop
- Detection range (100% sensitivity, radius)
- Installation 3m high: tangential 1m/s speed movement: 4-5m @25℃ Radial 1m/s speed movement: 2-3m @25℃ Installation 6m height: tangential 1m/s speed movement: 4-5m @25℃ Radial 1m/s speed movement: 2-4m @25℃
- APP control
- Support casambi app
- Installation height
- 2.5-6m Typical value: 3m
Usage environment
- Hole size
- Φ65mm
- Working environment temperature
- -25℃...+50℃ (the lower the temperature, the sensing distance may become farther, the higher the temperature, the sensing distance may become closer)
- Storage environment
- -25℃~+50℃, humidity ≤60% (non-condensation)
- Warranty
- 5 years (only for quality problems of the product itself)
Certification Standard
- Comply with certification
- CE ROHS
- Environmental protection requirements
- Comply with EU ROHS requirements
- Protection level
- IP20
