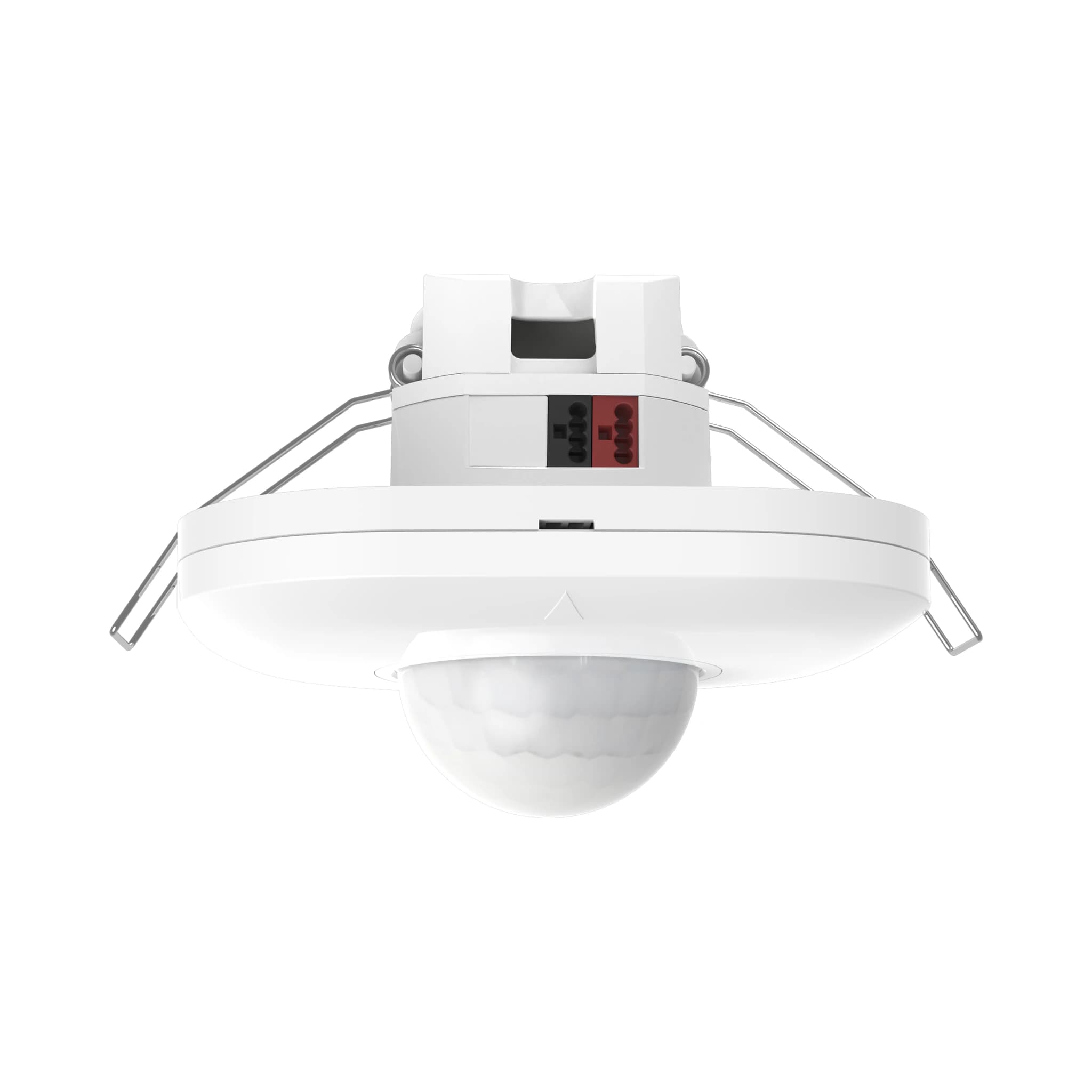

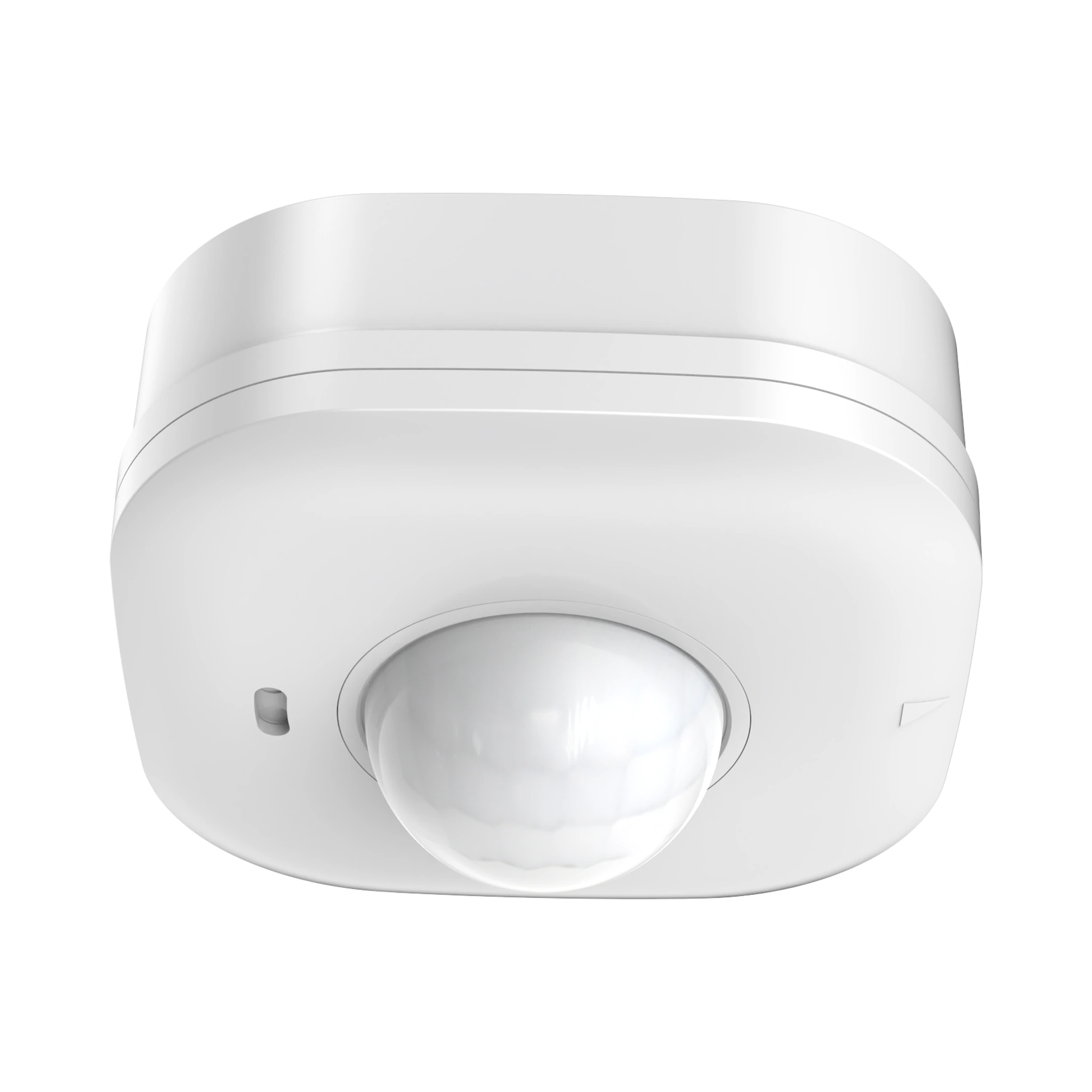

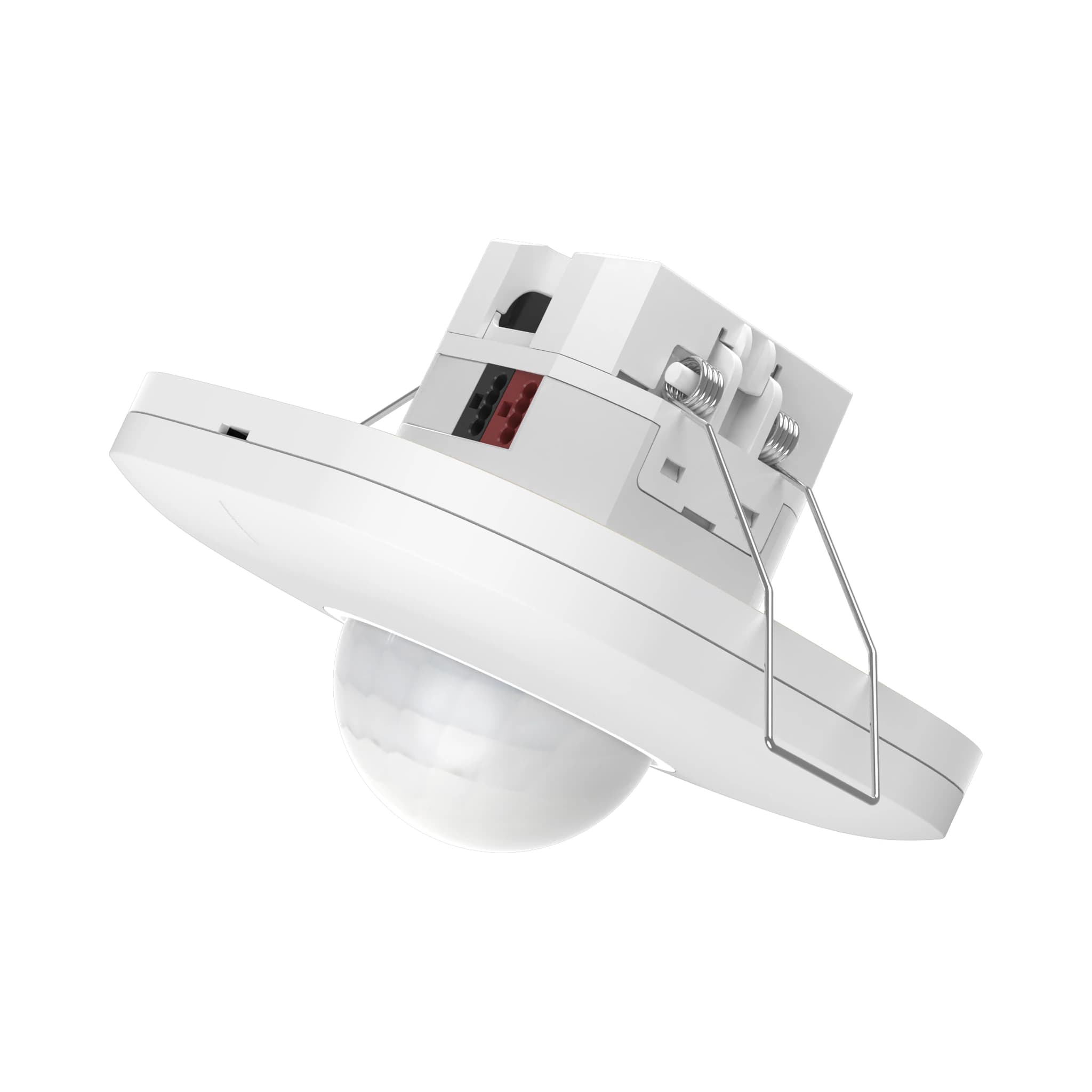

MSA237K 99 IR
Standalone Sensors
MSA237K 99 IR is designed for professional lighting-control and building-automation applications. Supported technologies: PIR, Motion, KNX.
Verified product data
Specifications
Input/Output
- KNX terminal voltage
- 21-30V DC
- KNX terminal current
- 3±1mA
- Operating power consumption
- ≤1W @24V DC
Sensing parameters
- Sensing method
- PIR infrared pyroelectric + light detection
- Detection Area
- ETS setting: 1%-100%
- Delay setting (Hold Time)
- ETS setting: 3S-7200S
- Detection range (4m sensitivity, radius)
- Mobile (8m high): 4-5m (based on indoor open space test of 41㎡, the sensing distance may fluctuate slightly in different environments)
- Remote control function
- Support
- Installation height
- 2.5-10m Typical value: 8m
- Sensing angle
- 120°
Usage environment
- Inline installation opening size
- Φ55mm
- Working environment temperature
- -25℃...+50℃ (the lower the temperature, the sensing distance may become farther, the higher the temperature, the sensing distance may become closer)
- Storage temperature
- -40℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20 (ceiling-mounted) IP54 (ceiling-mounted)
- Warranty
- 5 years (only for product quality issues)
