Standalone Sensors

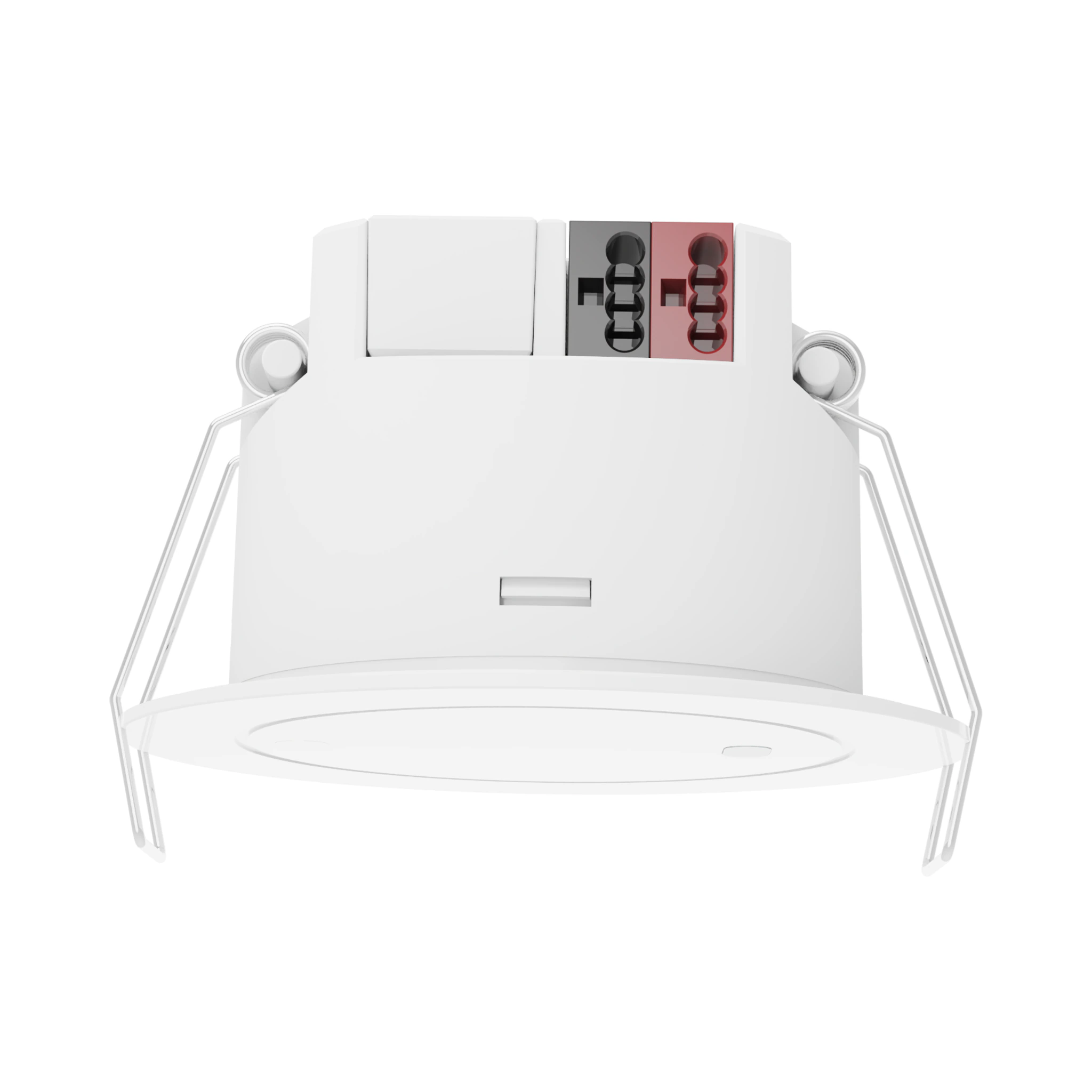

MSA237K 99 E
Standalone Sensors
MSA237K 99 E is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Motion, KNX.
Verified product data
Specifications
Input/Output
- KNX bus power supply terminal voltage
- 21-30V DC
- KNX bus power supply terminal current
- 8±1mA
Sensing parameters
- Working frequency
- 5.8G Hz±75MHz
- Transmit power
- 5mW Max
- Detection range
- ETS setting: 1%-100%
- Delay setting (Hold Time)
- ETS setting: 3S-7200S
- Remote control function
- Support
- Installation height
- 2-4m, typical value: 3m
- 3dB beam angle
- 90° (XZ plane) 95° (YZ plane)
Usage environment
- Inline installation opening size
- Φ50-55mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -40℃...80℃ Humidity: ≤85% (non-condensation)
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
- Warranty
- 3 years (only for quality issues of the product itself)
