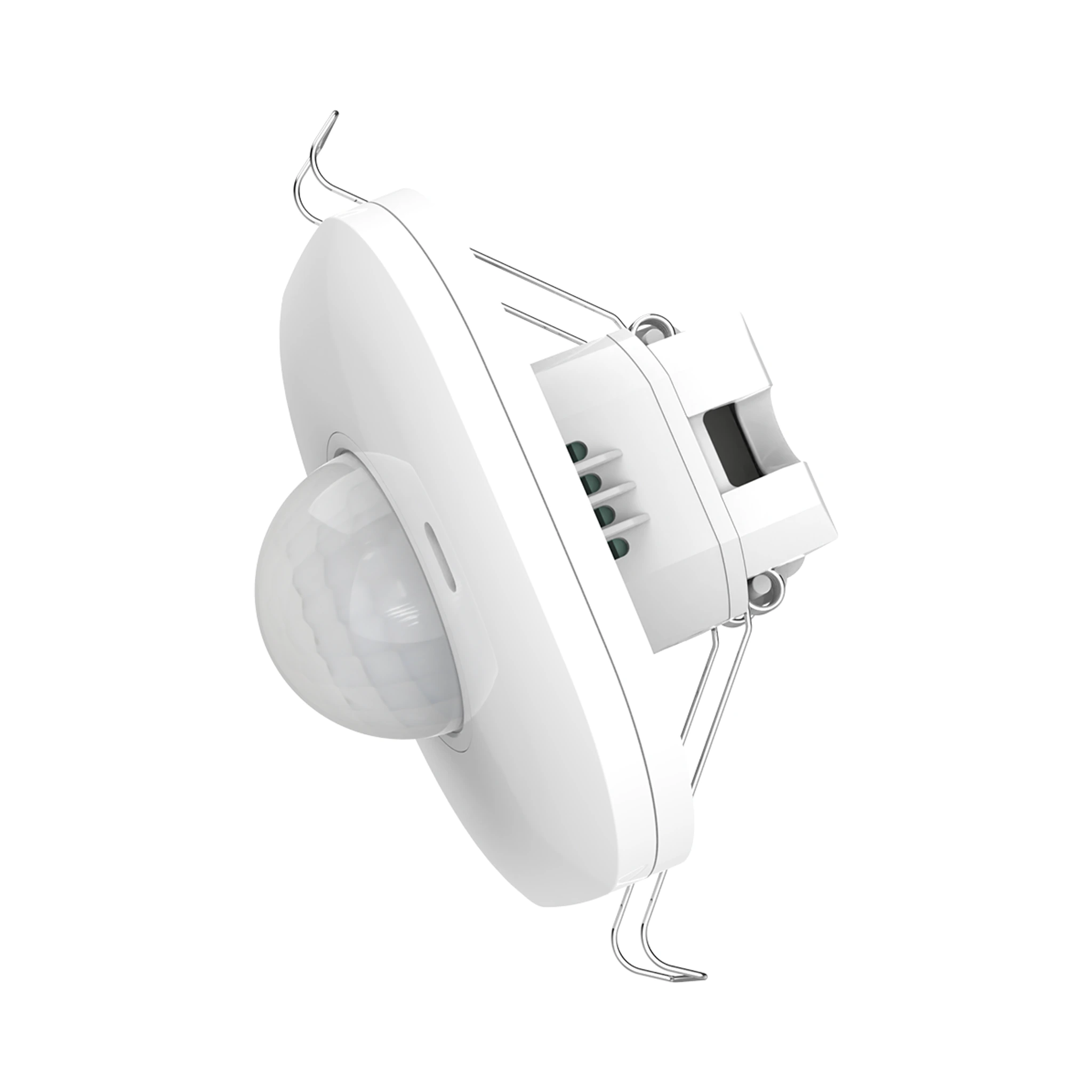

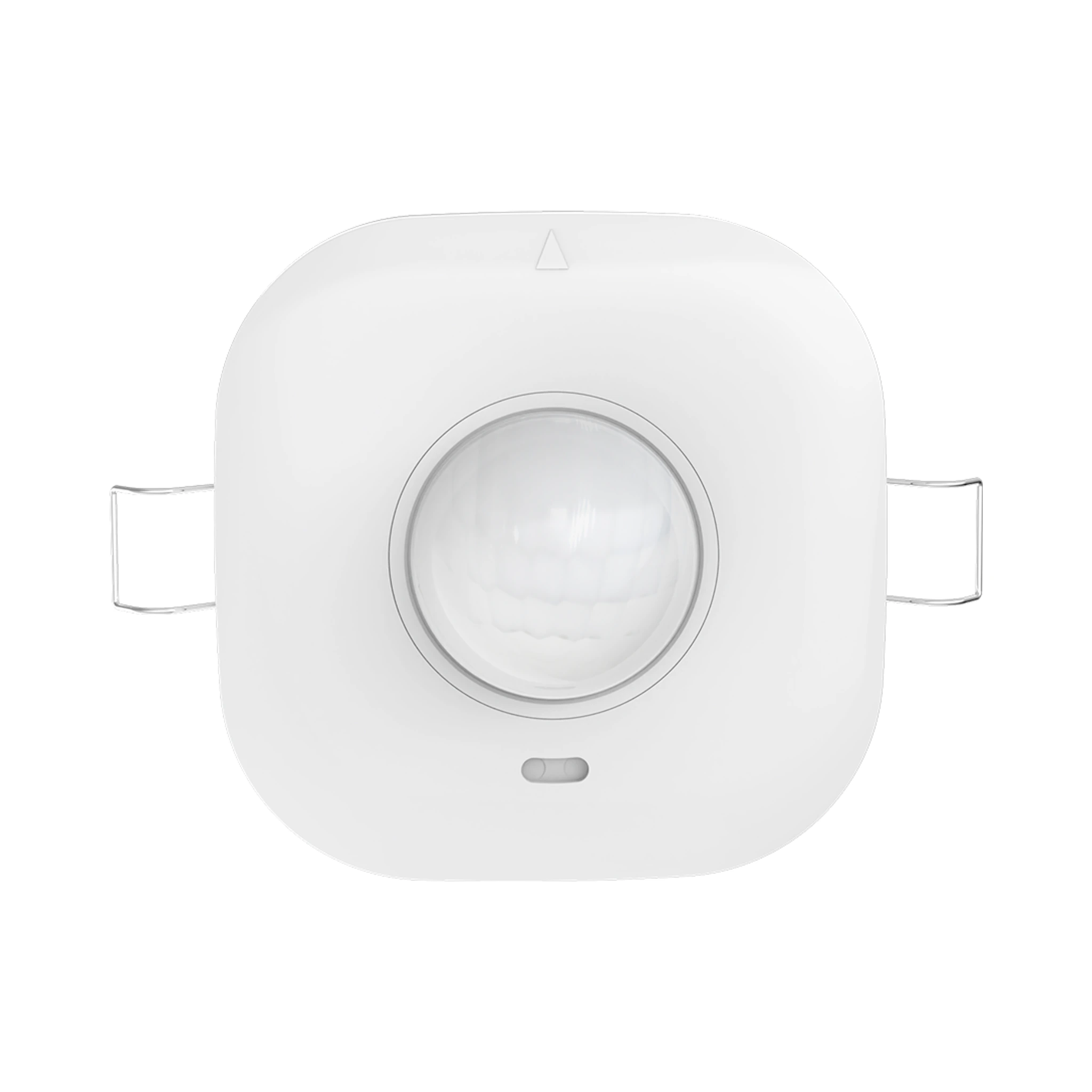

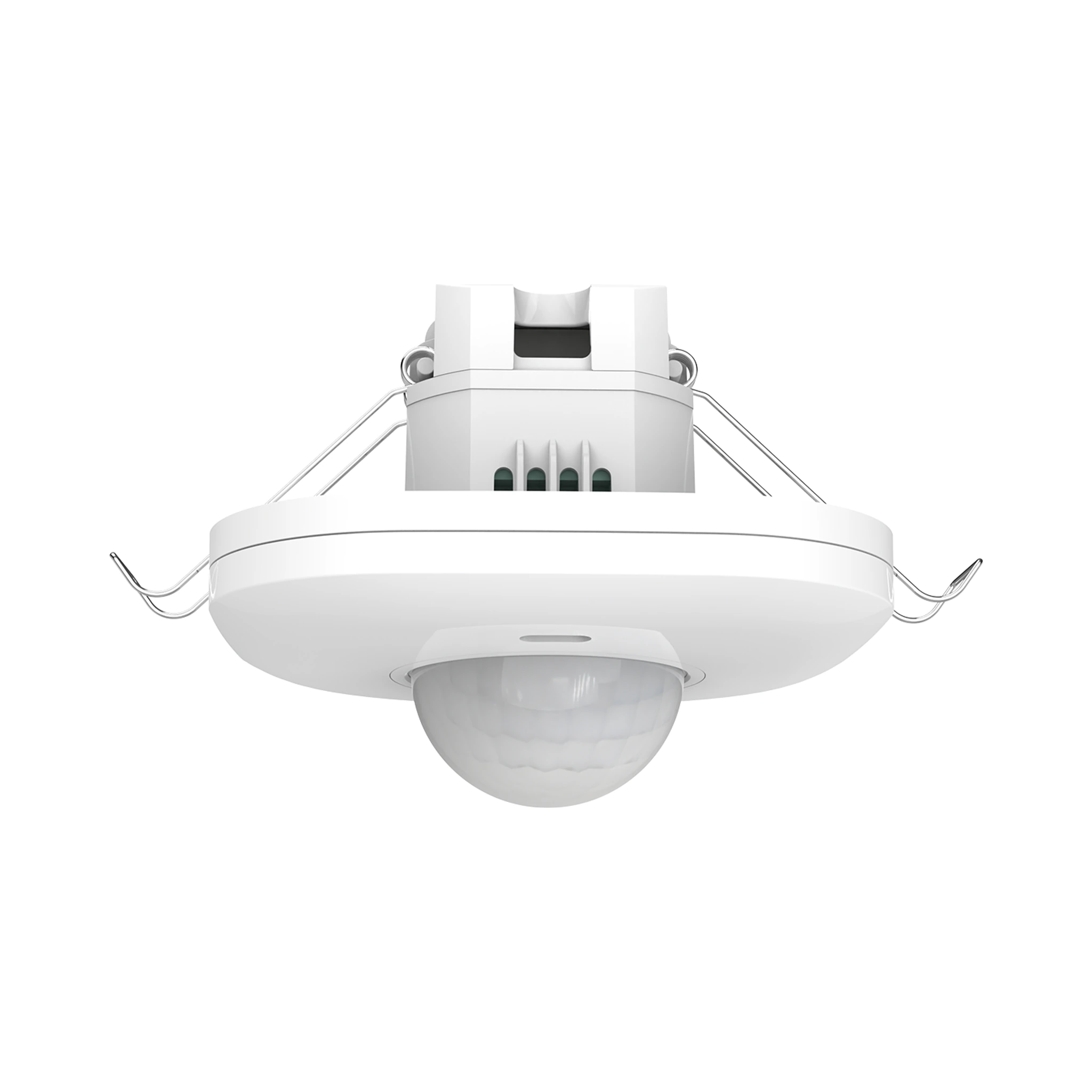

MSA227S IR B1
Standalone Sensors
MSA227S IR B1 is designed for professional lighting-control and building-automation applications. Supported technologies: PIR, Motion, ON/OFF.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240V AC
- Rated voltage
- 220V AC
- Operating current
- 20mA max
- Operating power consumption
- ≤0.5W @220/230V AC
- Output signal
- Relay switch+casambi
- Load surge current
- 50A tested at 50% Ipeak twidth 200us @230Vac cold start at full load
Sensing parameters
- Sensing method
- PIR infrared pyroelectric + light detection
- Detection Area
- Casambi app/MH10 remote control settings: 100%/75%/50%/25%
- Delay setting (Hold Time)
- MH10 remote control settings: 2S/30S/60S/3Min/5Min/20Min/30Min
- Light sensor reporting range (Daylight Sensor)
- 0-1200lux
- Detection range (100% sensitivity, radius)
- Movement (6m high): tangential walking 4-5m@25℃ (the sensing distance will be closer when the human body moves radially than when moving tangentially)
- Remote control function
- Support
- Installation height
- 2.5-10m Typical value: 8m
Usage environment
- Hole size
- Φ55mm
- Working environment temperature
- -25℃...+50℃ (the lower the temperature, the sensing distance may become farther, the higher the temperature, the sensing distance may become closer)
- Storage temperature
- -40℃~+80℃
- Warranty period
- 5 years (only for indoor use due to product quality issues)
Certification Standard
- Comply with certification
- CE SAA
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level

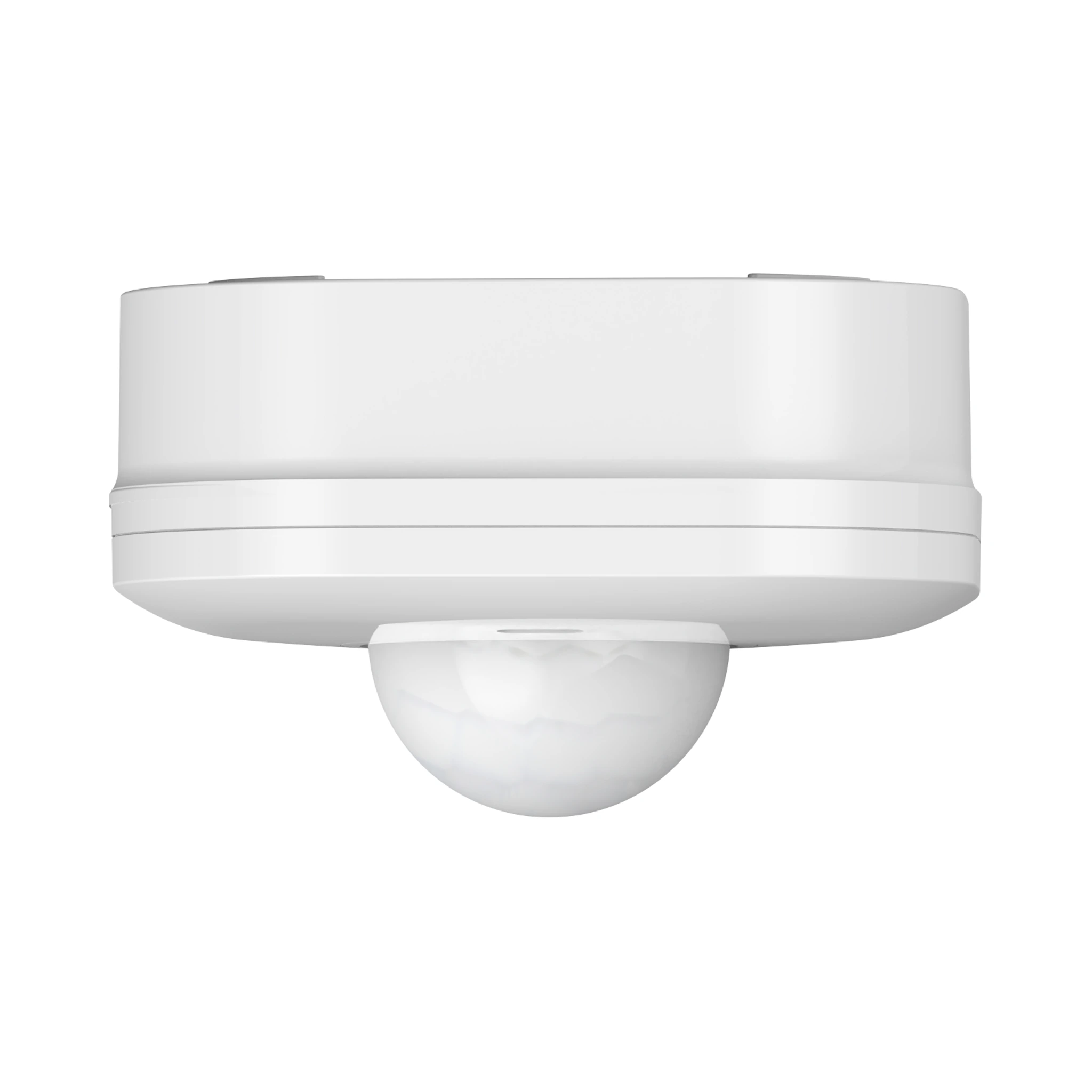

- IP20 (ceiling mounted) IP54 (ceiling exposed)
