Standalone Sensors
MSA227 99 B1

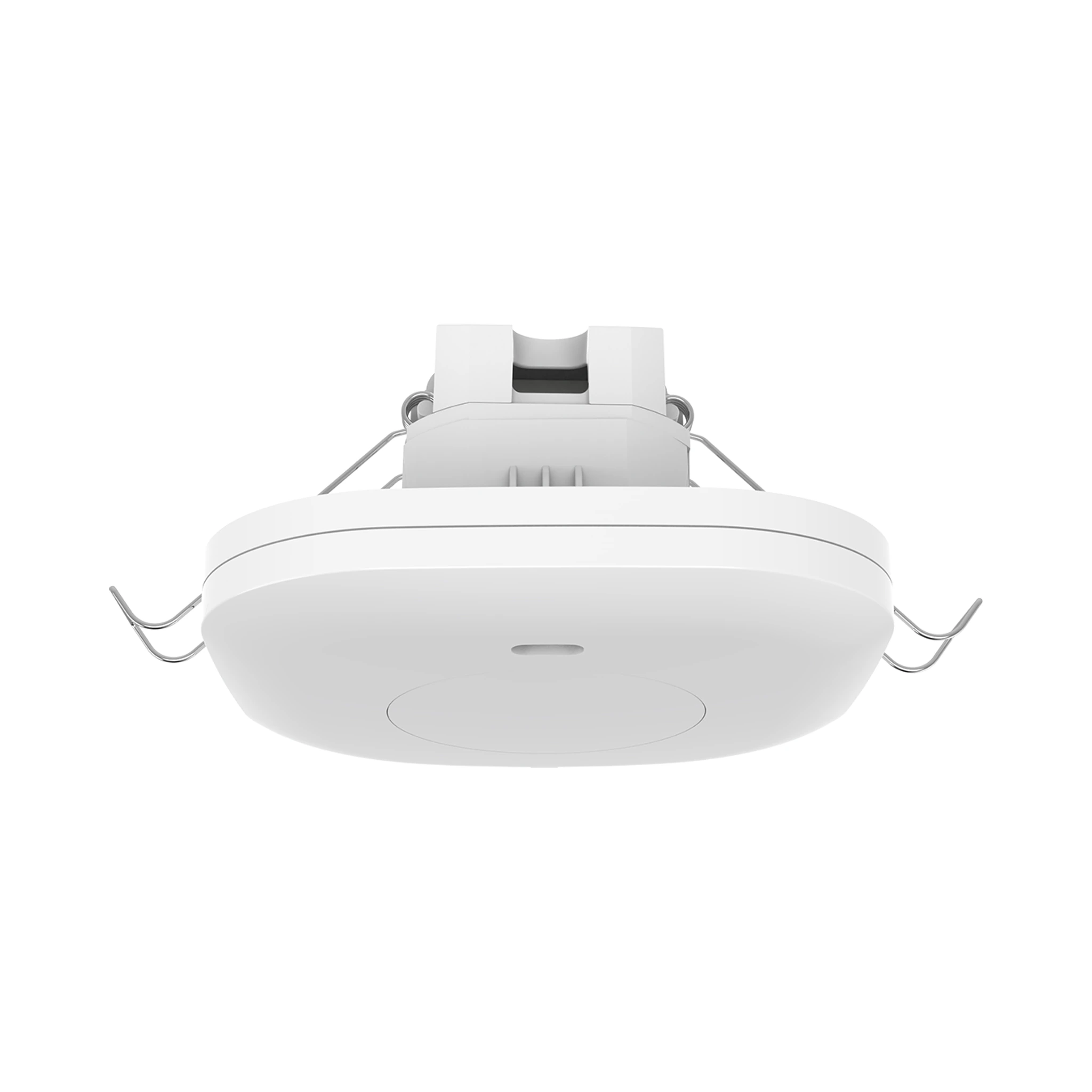

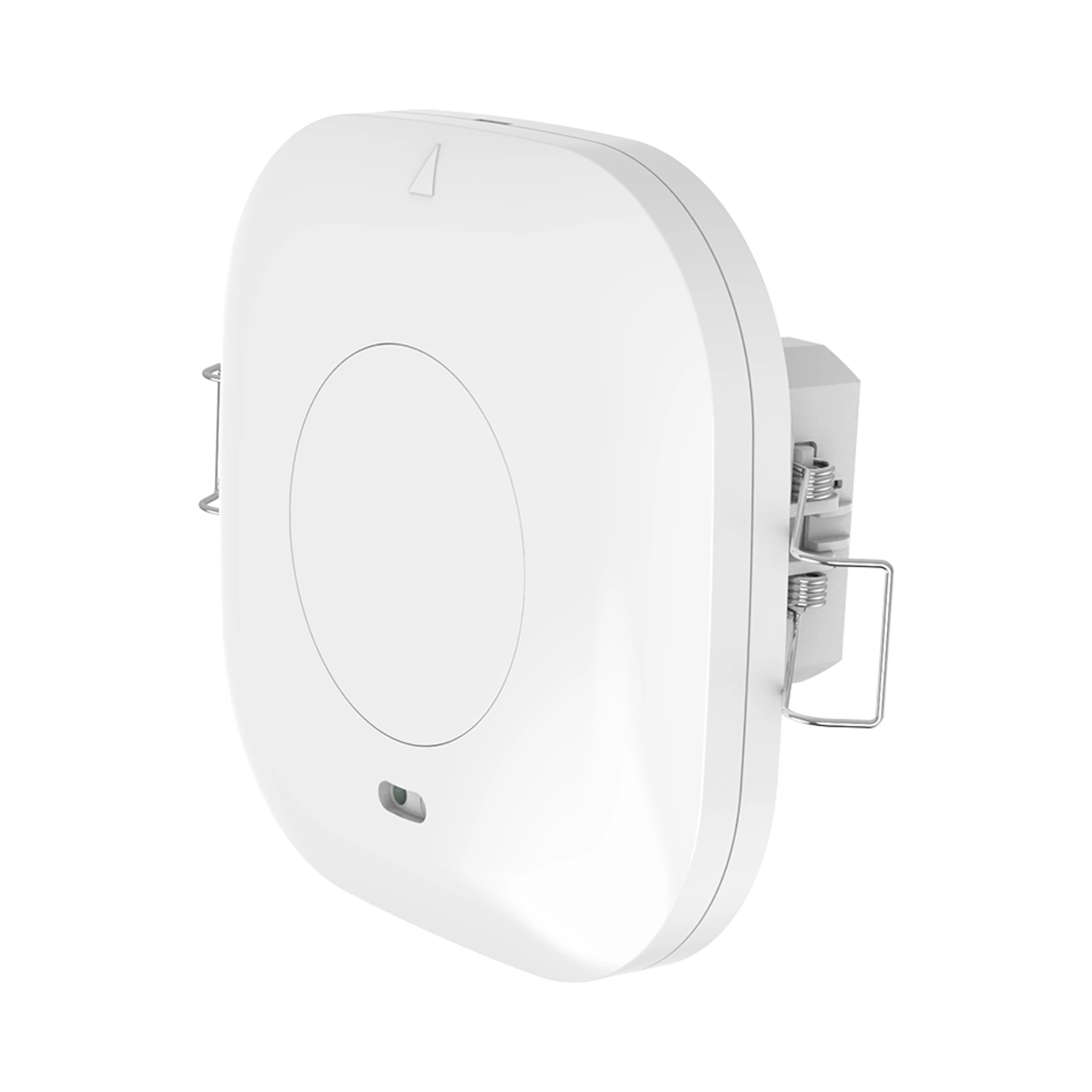

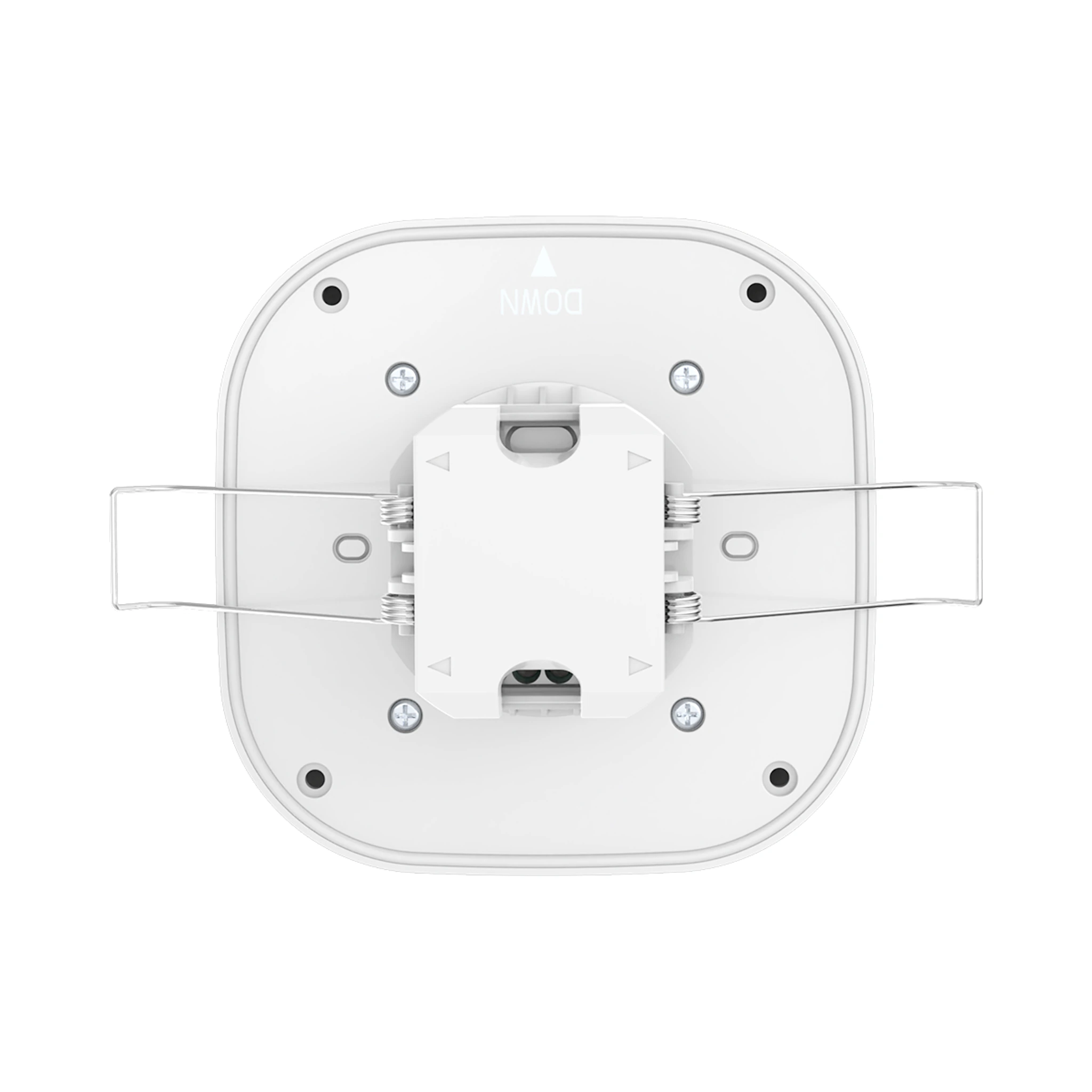

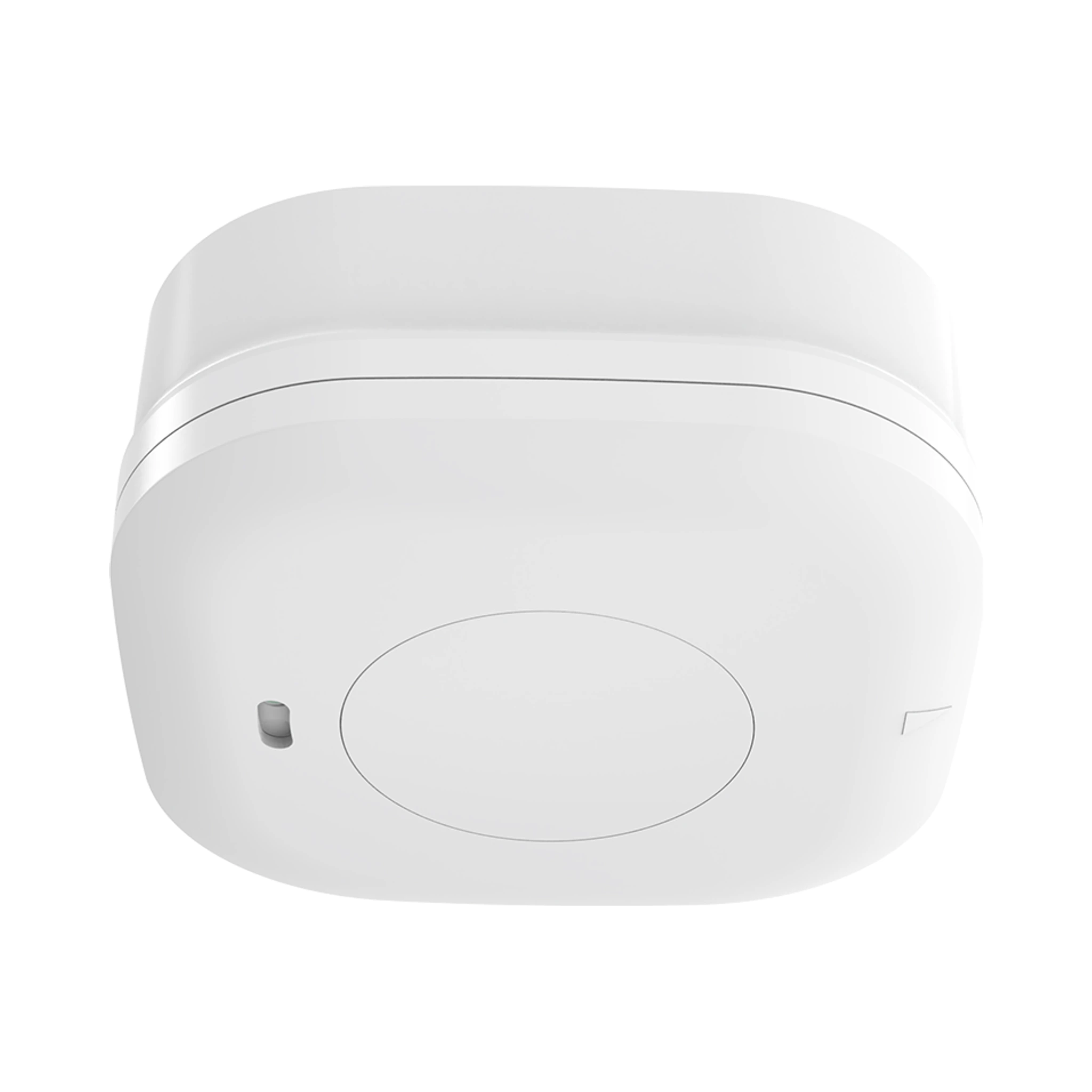

24GHz space presence sensor (Casambi+DALI version)
MSA227 99 B1 is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240V AC
- Rated voltage
- 220V AC
- Operating current
- 50mA max
- Operating power consumption
- ≤1W @220/230V AC
- Output signal
- DALI+PUSH+casambi
Sensing parameters
- Sensing method
- 24G h millimeter wave radar + light detection
- Detection Area
- Casambi app: 0.5-4m
- Delay setting (Hold Time)
- Casambi app: 10S/30S/1Min/3Min
- Light sensor reporting range (Daylight Sensor)
- 0-1200lux
- Detection range (100% sensitivity, radius)
- Movement/micromotion/existence (3m high): 3-4m
- Sensitivity
- High/Medium/Low
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle
- 100° (XZ plane) 100° (YZ plane)
Usage environment
- Hole size
- Φ55mm
- Working environment temperature
- -25℃...+50℃
- Storage temperature
- -40℃~+80℃
- Warranty period
- 3 years (only for quality problems of the product itself)
Certification Standard
- Comply with certification
- CE SAA
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP54
