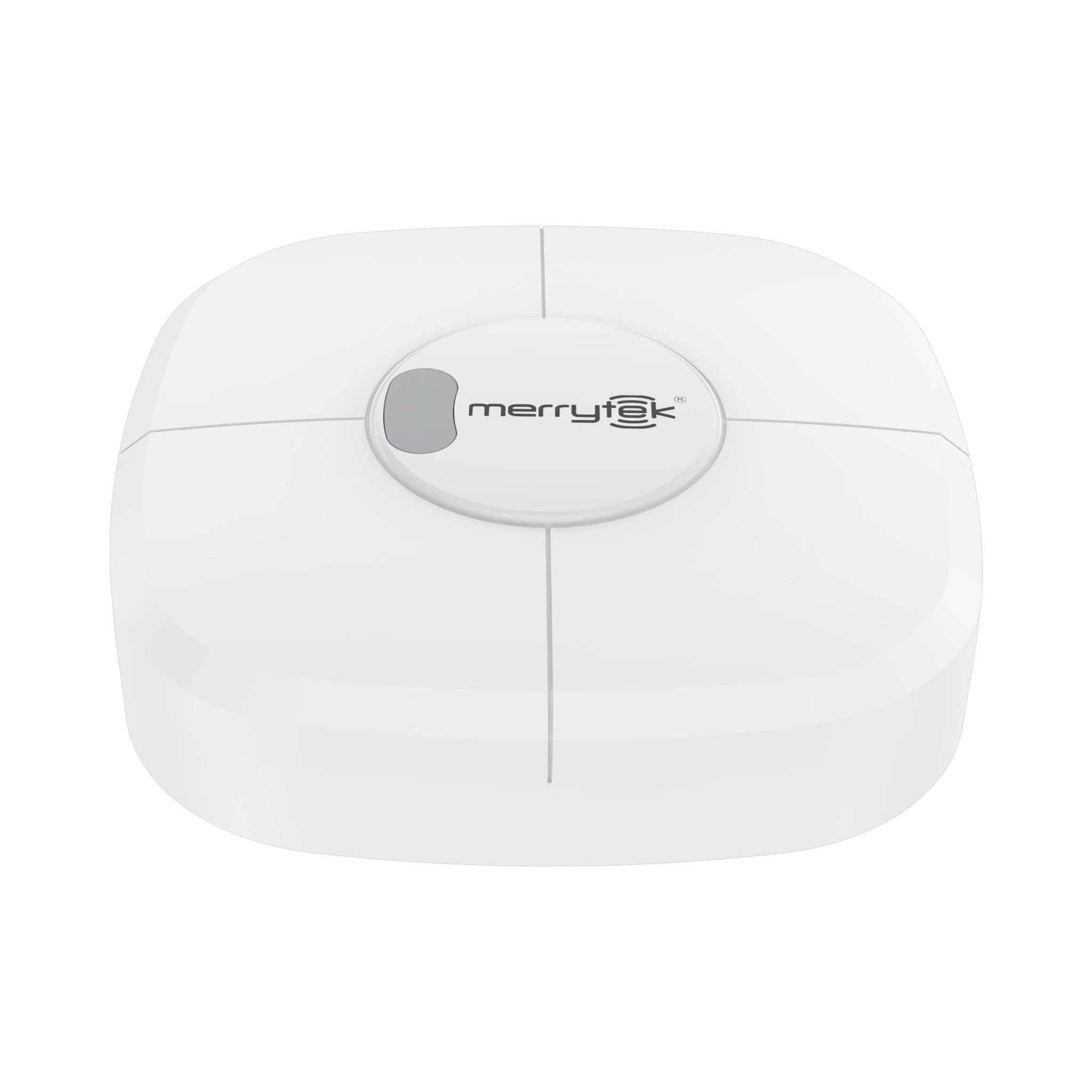

MSA224 RF
Standalone Sensors
MSA224 RF is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, 5.8GHz, Presence.
Verified product data
Specifications
Input/Output
- Voltage range
- 100-240Vac 50Hz/60Hz
- Rated voltage
- 220V AC
- Operating current
- 50mA max
- ON/OFF port load power
- Resistive load: 800W Capacitive load: 400w
- Operating power consumption
- ≤1W 220V AC
Wireless module
- Communication module frequency
- 2.4G Hz RF
Sensing parameters
- Microwave RF operating frequency
- 5.8G Hz±75MHz ISM band
- Transmit power
- 5mW Max.
- Detection Area
- MH15 remote control adjustment: 25%/50%/100%
- Delay setting (Hold Time)
- MH15 remote control setting: 5s /30s /1min /3min /5min /10min /20min/30min
- Illumination threshold
- MH15 remote control settings: 5Lux /15Lux /30Lux/ 50Lux /100Lux /150Lux/Disable
- Detection range (100% detection range, radius)
- Mobile (12m high): 6-9m
- Remote control function
- Support
- Installation height
- 2.5-4.0m
- 3dB beam angle (XZ plane)
- 80° (XZ plane)
- 3dB beam angle (YZ plane)
- 96° (YZ plane)
Usage environment
- Installation method
- Ceiling surface mounting
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- IP20
