Standalone Sensors

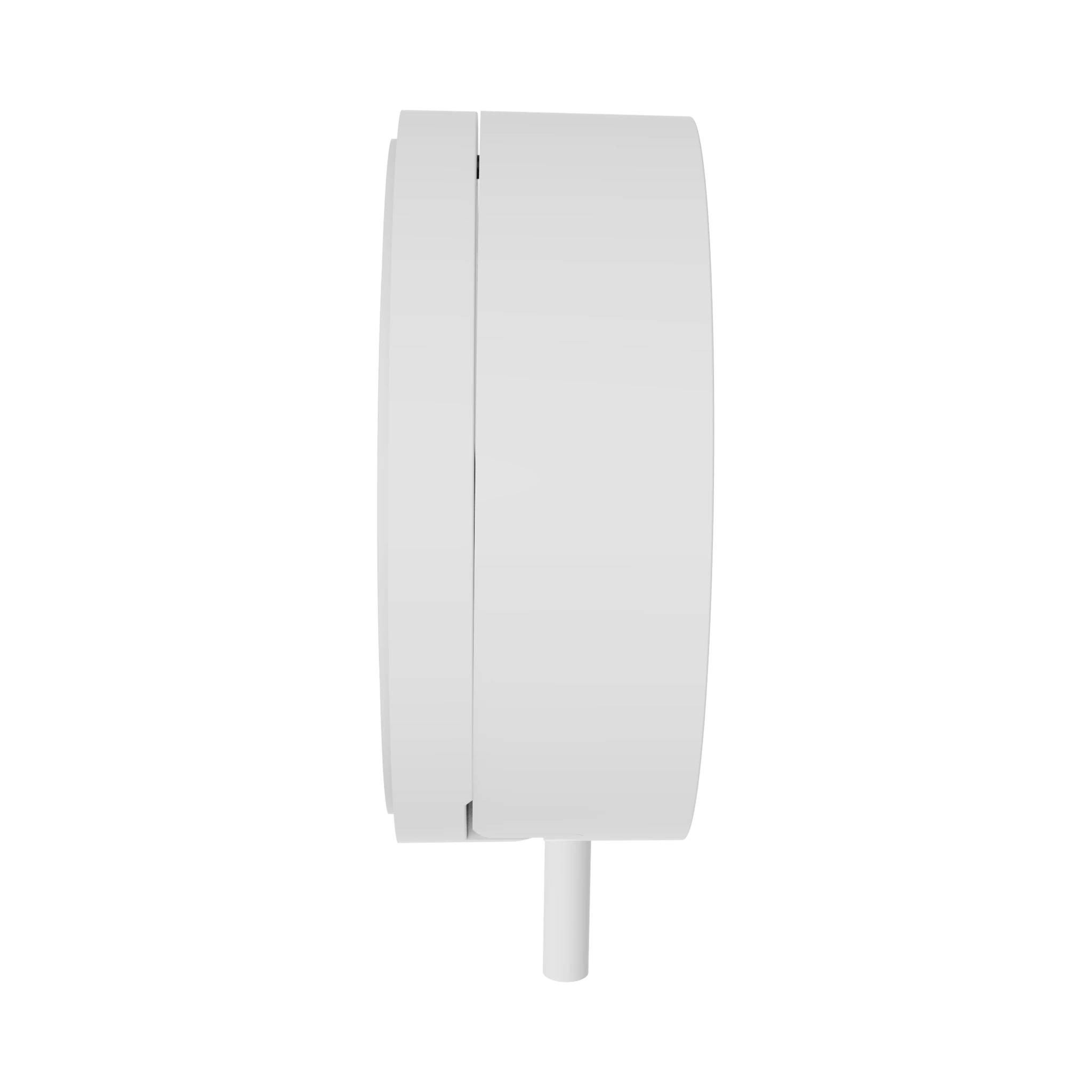

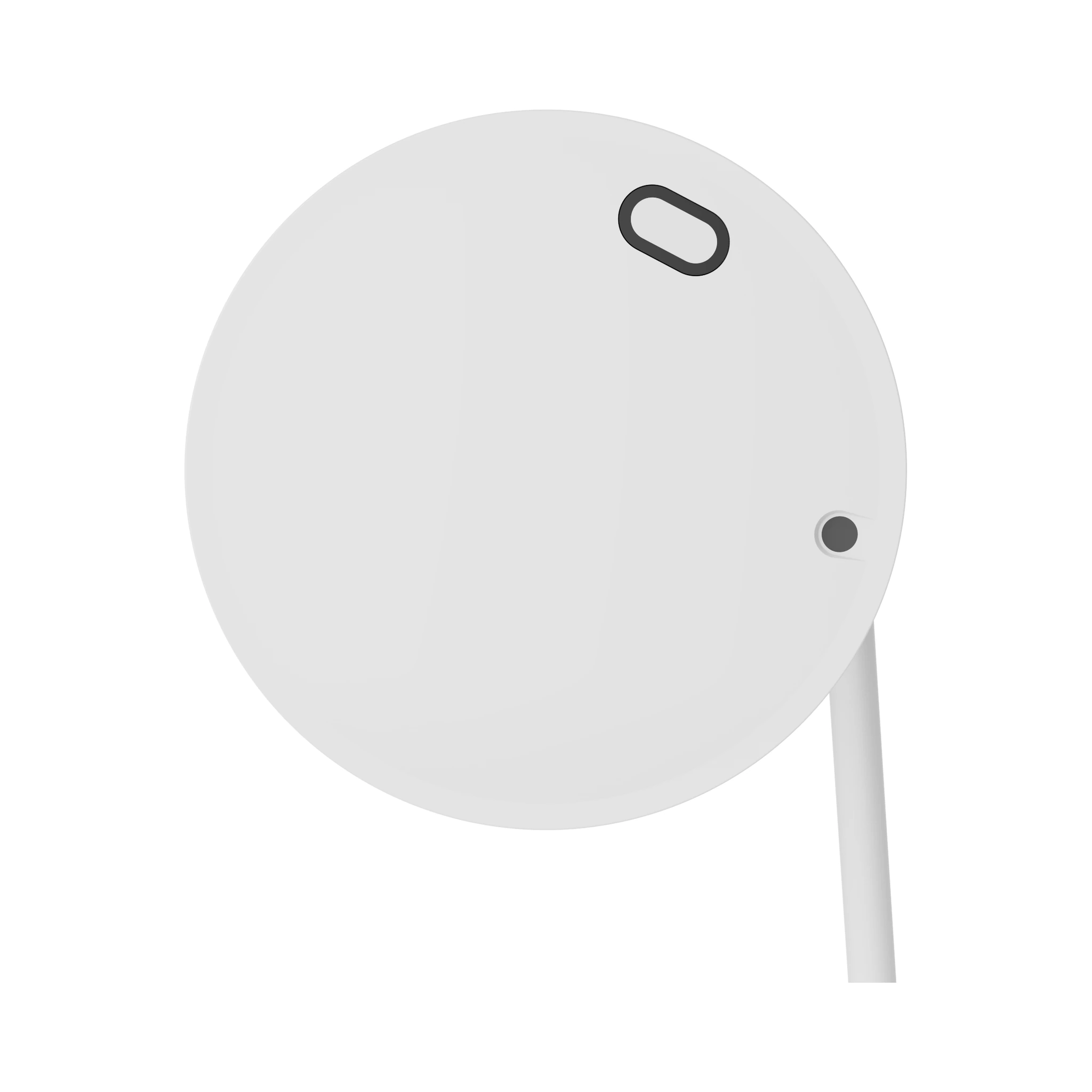

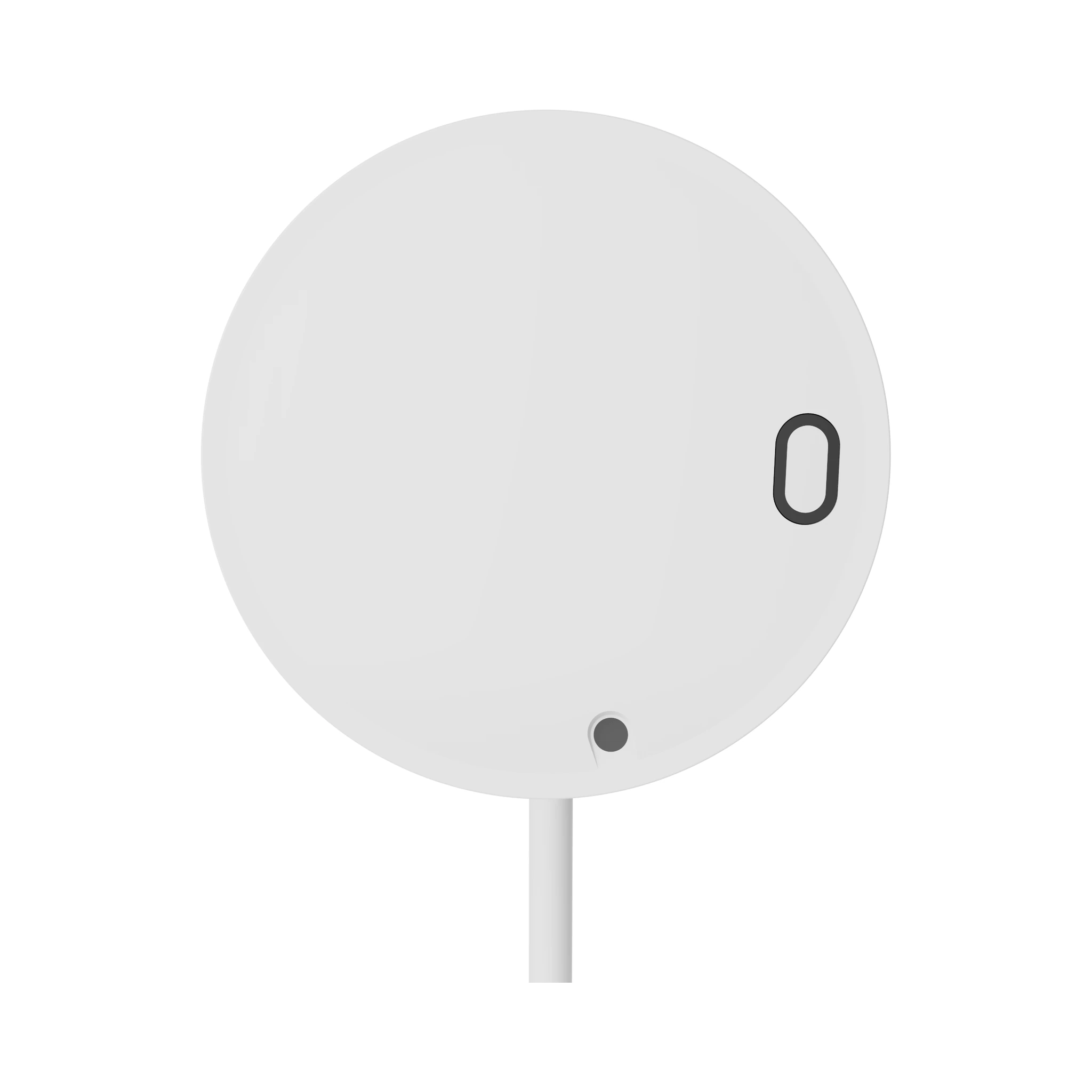

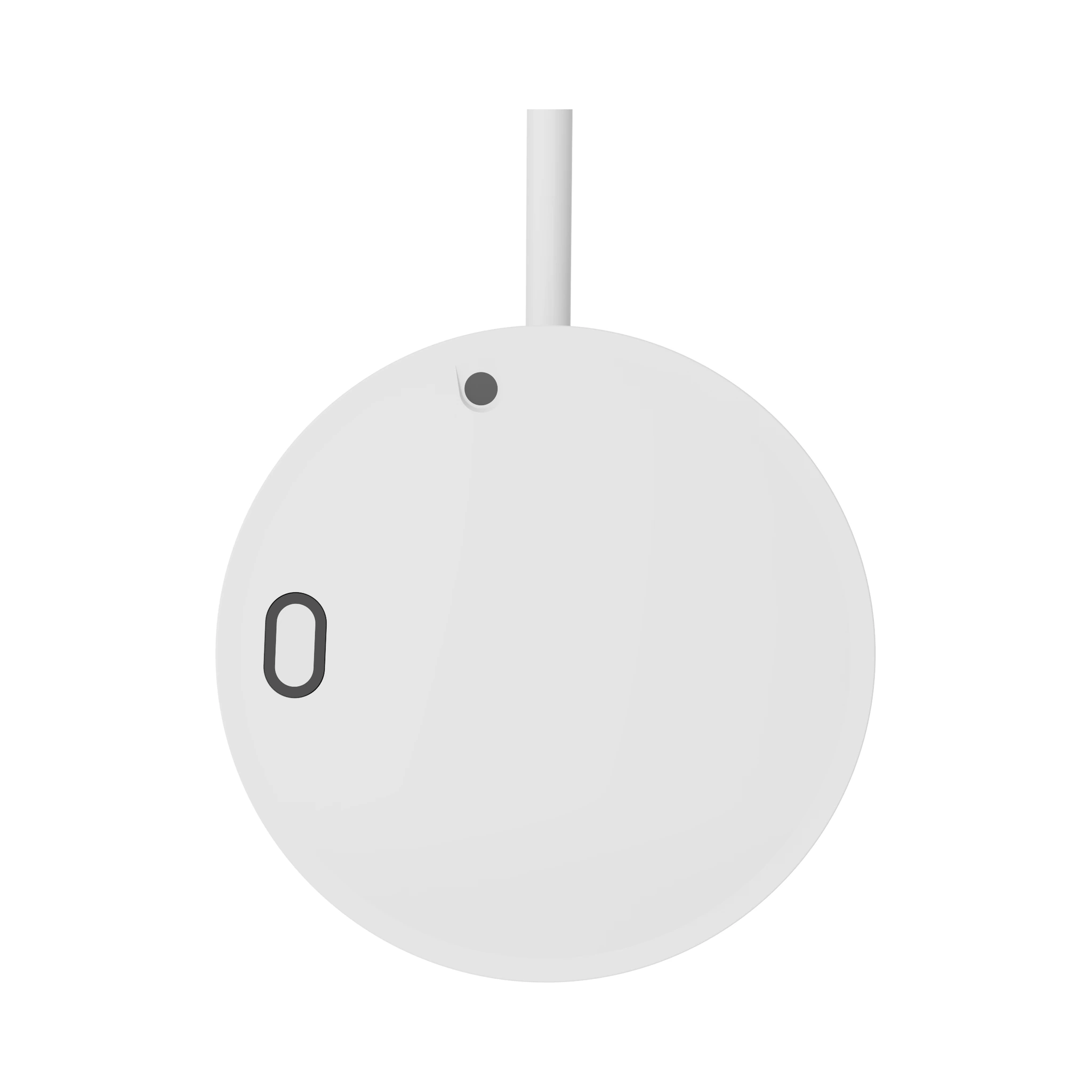

MSA223C
Standalone Sensors
MSA223C is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Bluetooth.
Verified product data
Specifications
Input
- Operating voltage
- 5V DC via USB Type-C
- Working current
- 50mA maximum
Mechanical
- Product size
- Diameter 60 x 25.8mm
Sensor
- Maximum detection radius
- 4m at 1.5m mounting height
- Daylight measurement
- 0-2000Lux / Disable
- Detection technology
- 24G Hz presence detection and daylight sensing
Control
- Output / ecosystem
- Mijia Bluetooth 5.0 / Mesh 1.0
Installation
- Mounting height
- 1-2m (typical 1.5m)
- Installation mode

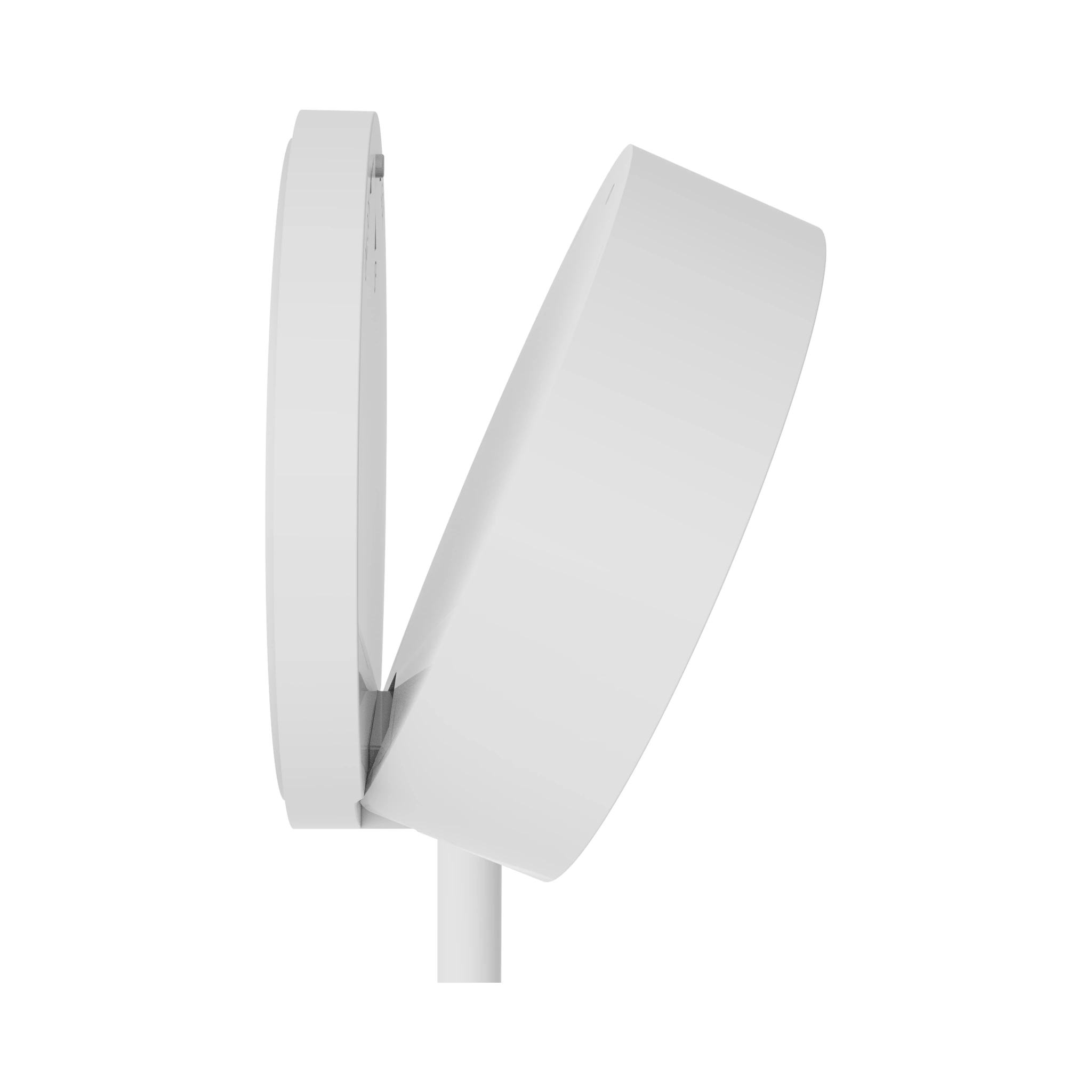

- Wall magnetic, adhesive or screw mounting
Environment
- IP rating
- IP20
