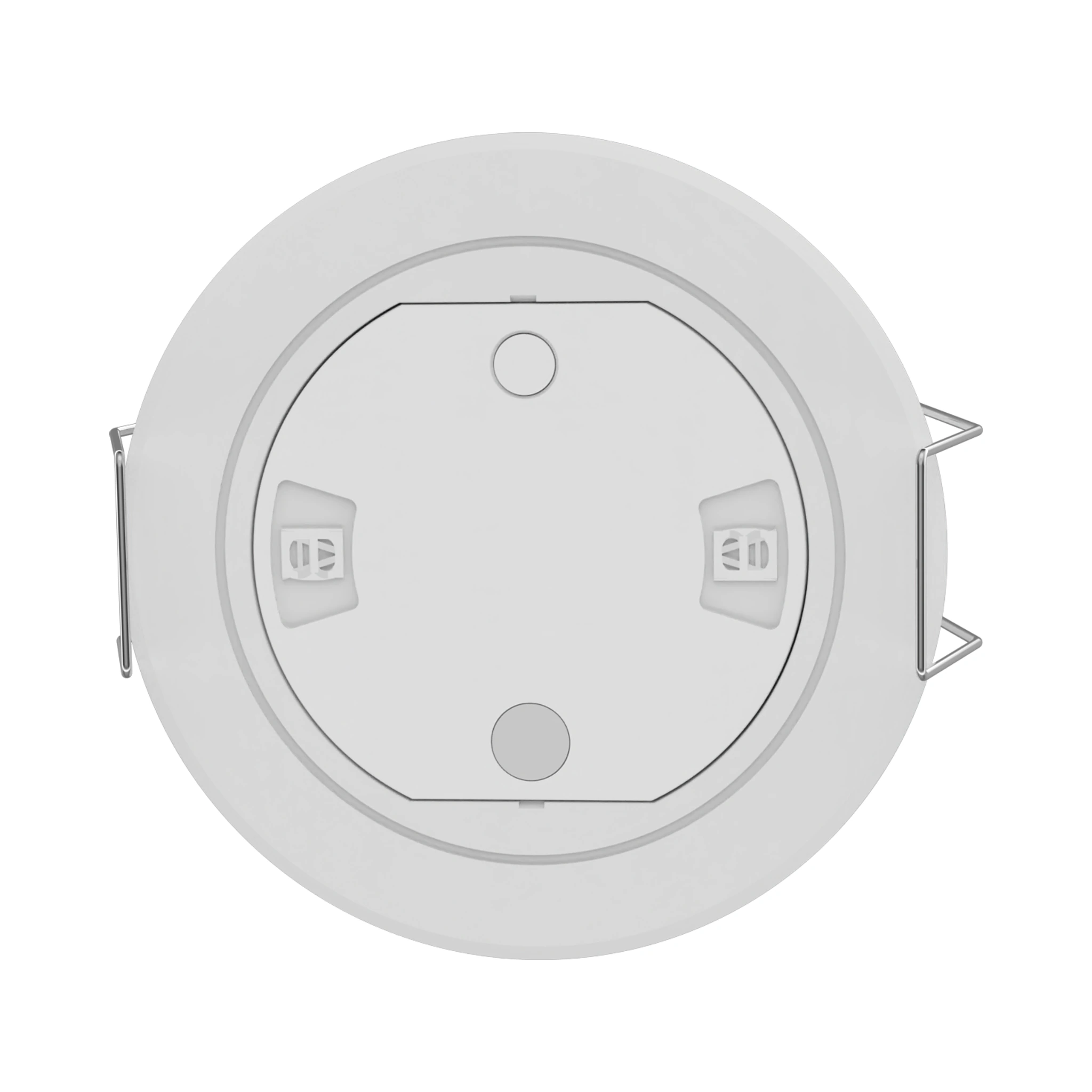

MSA219D 99 A
24G Hz space presence sensor (dry-contact version)
MSA219D 99 A is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 12-24V DC
- Rated voltage
- 12V/24V DC
- Operating current
- @12Vdc: 50±2mA max@24Vdc: 30±2mA max
- Output signal
- Normally open/normally closed dry contact (factory default is normally open)
- Operating power consumption
- ≤0.5W @24V DC
Sensing parameters
- RF operating frequency
- 24G Hz-24.25G Hz ISM band
- Transmit power
- 5mW Max.
- Detection Area
- Remote control adjustment: 25%-100% (supports QS1/QS2/QS3 high, medium and low sensitivity switching)
- Delay setting (Hold Time)
- Remote control setting: 5s/30s/1min/ 3min/5min/10min/20min/30min
- Light sensitivity threshold setting (Daylight Threshold)
- Remote control settings: 5Lux/15Lux/30Lux/50Lux/100Lux /150Lux/Disable
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 100° (XZ plane)
- 3dB beam angle (YZ plane)
- 100° (YZ plane)
Usage environment
- Inline installation opening size
- Φ70mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- IP20
