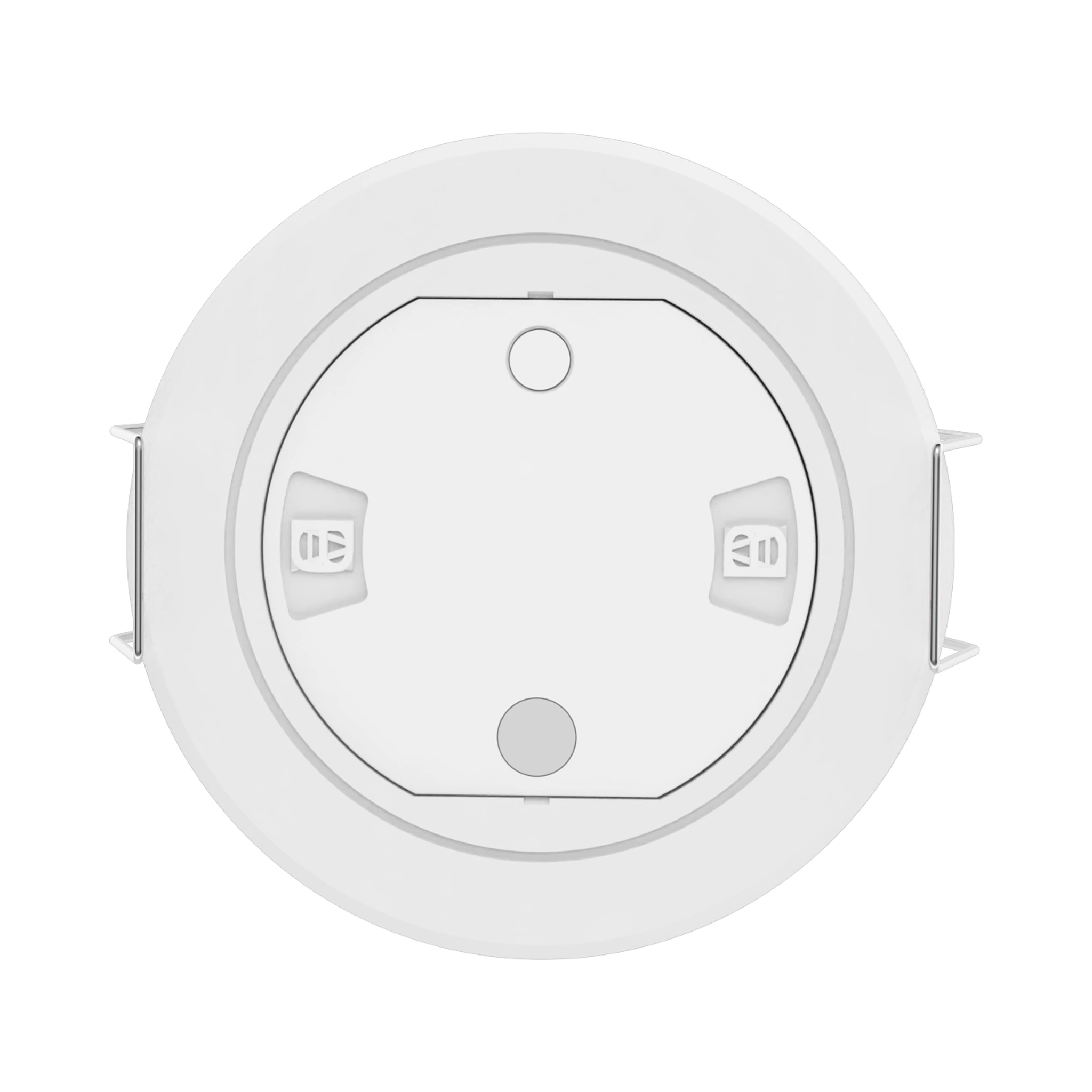

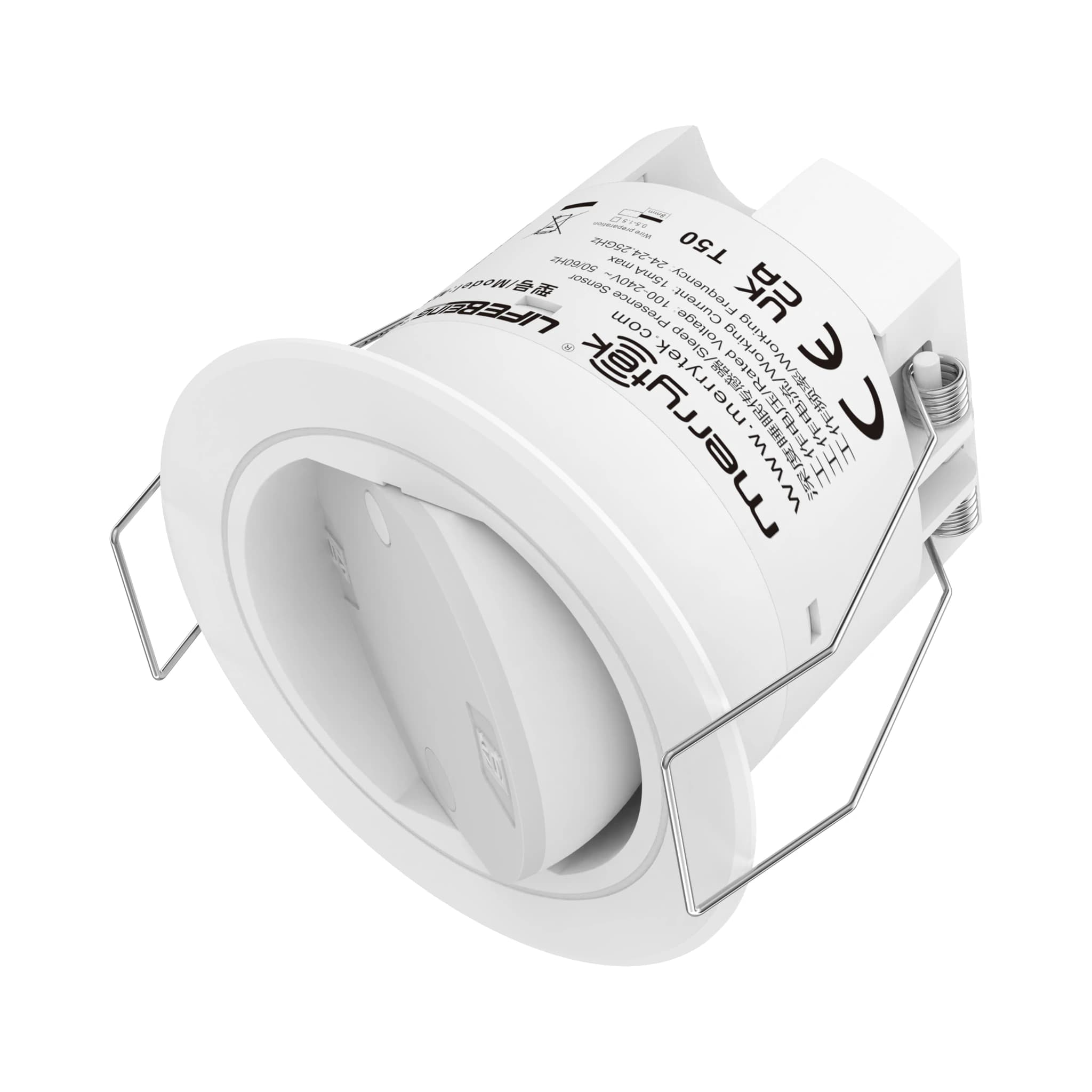

MSA219 Z
Standalone Sensors
MSA219 Z is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 100-240Vac 50Hz/60Hz
- Rated voltage
- 220V AC
- Operating current
- 50mA max
- Operating power consumption
- ≤1W 220V AC
Wireless module
- Communication module frequency
- 2.4G Hz-2.484G Hz ZigBee transmit power: +10dBm receiving sensitivity: -101±2dBm
Sensing parameters
- RF operating frequency
- 24G Hz-24.25G Hz ISM band
- Transmit power
- 5mW Max.
- Detection Area
- APP adjustment: Level 1-12
- Delay setting (Hold Time)
- APP settings: 30s /1min / 2min/3min /5min /10min /20min/30min
- Illumination setting (Daylight)
- When the change in ambient illumination meets the preset illumination difference, the sensor immediately reports the ambient illumination value. The light change difference is 10-100lux and can be set through the APP.
- Illumination detection range
- 0-1200Lux (the product is installed at a height of 3m, and the illumination value reflected from the ground directly below the product is collected)
- Detection range (100% sensitivity, radius)
- Movement (3m high): short side 0.5-1m, long side 1.5-2m Micro-movement (3m high): short side 0.5-1m, long side 1.5-2m Existence (3m high): short side 0.5-1m, long side 1.5-2m
- Remote control function
- Support
- Installation height
- 2-3.5m Typical value: 2.5m
- 3dB beam angle (XZ plane)
- 30° (XZ plane)
- 3dB beam angle (YZ plane)
- 50° (YZ plane)
Usage environment
- Inline installation opening size
- Φ70mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- IP20
