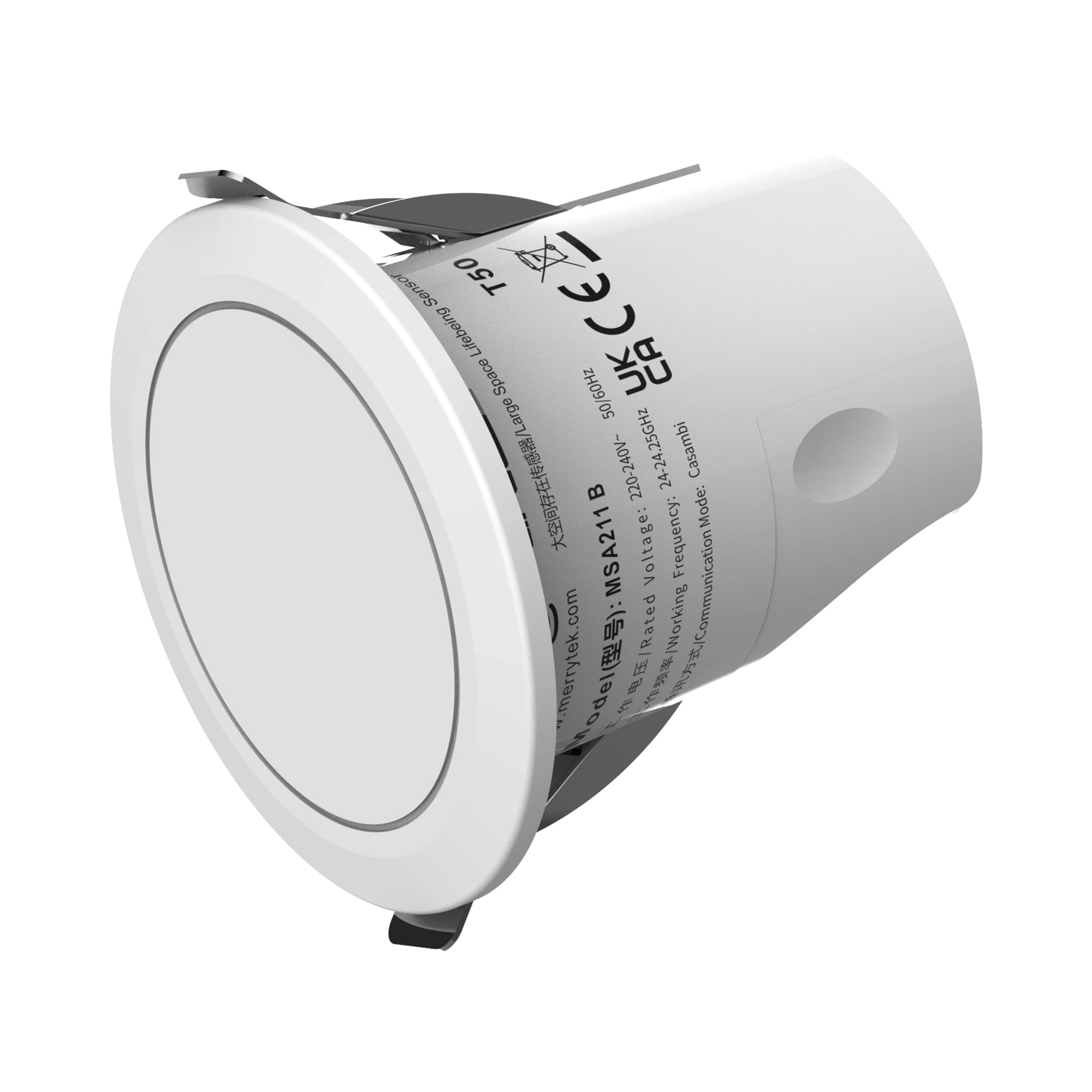

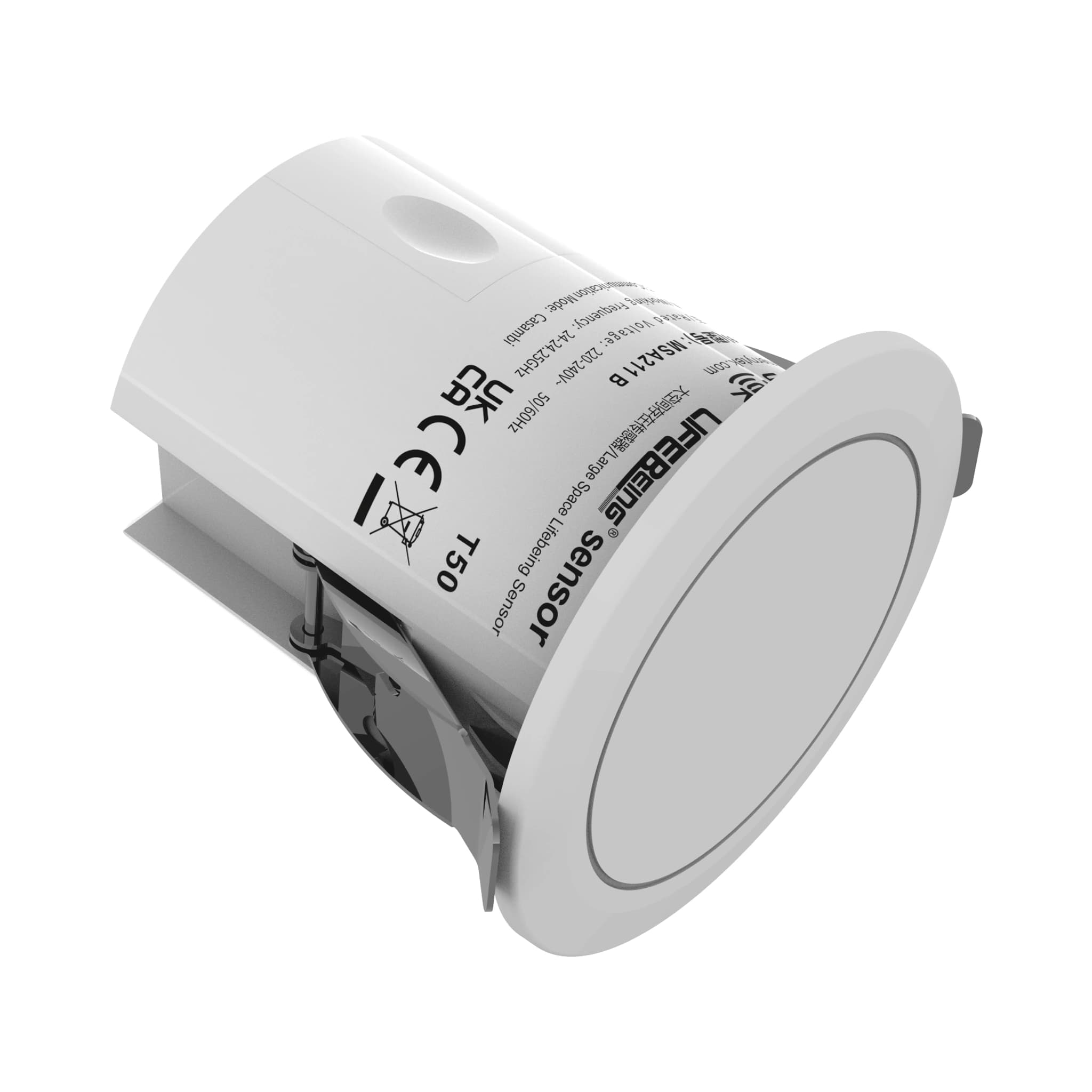

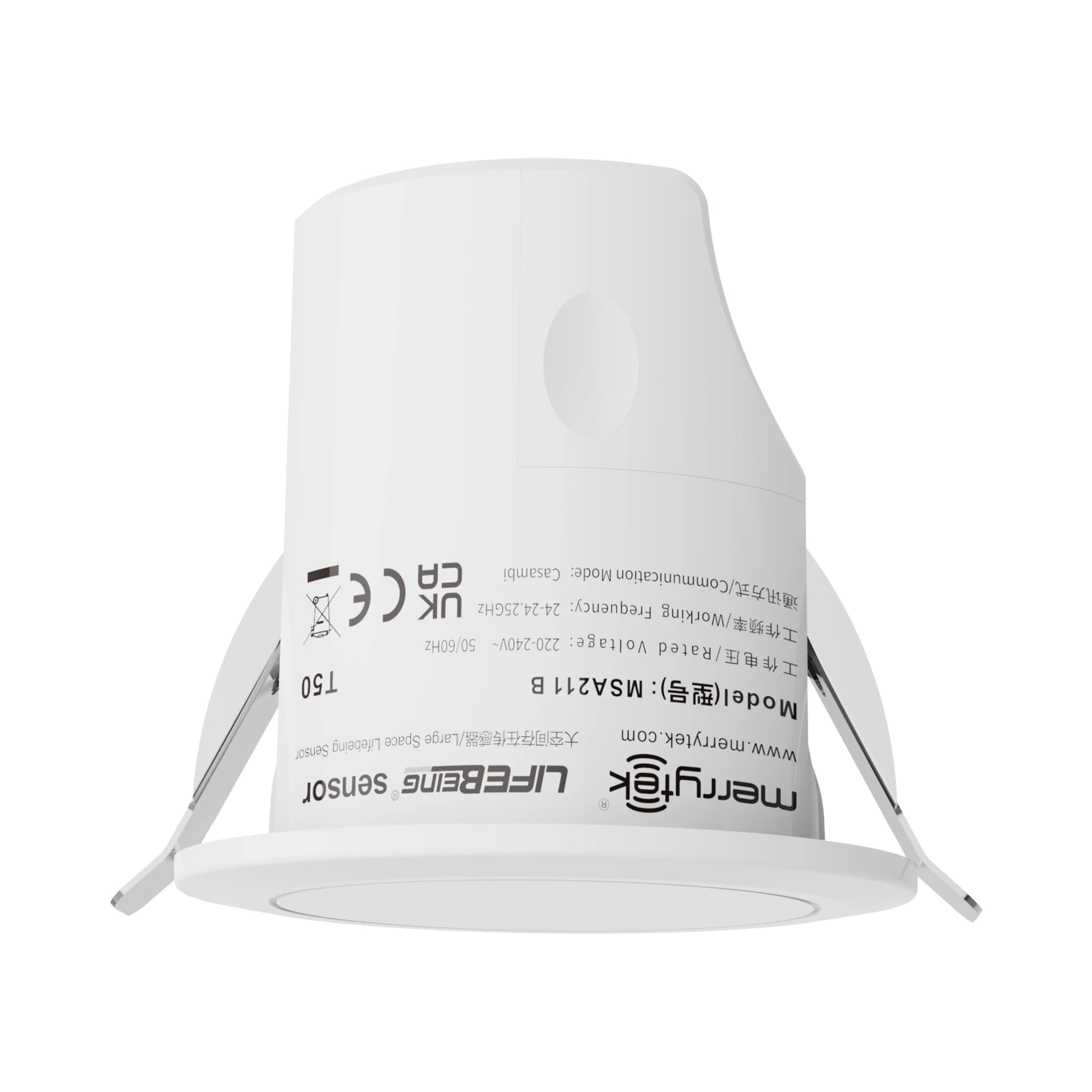

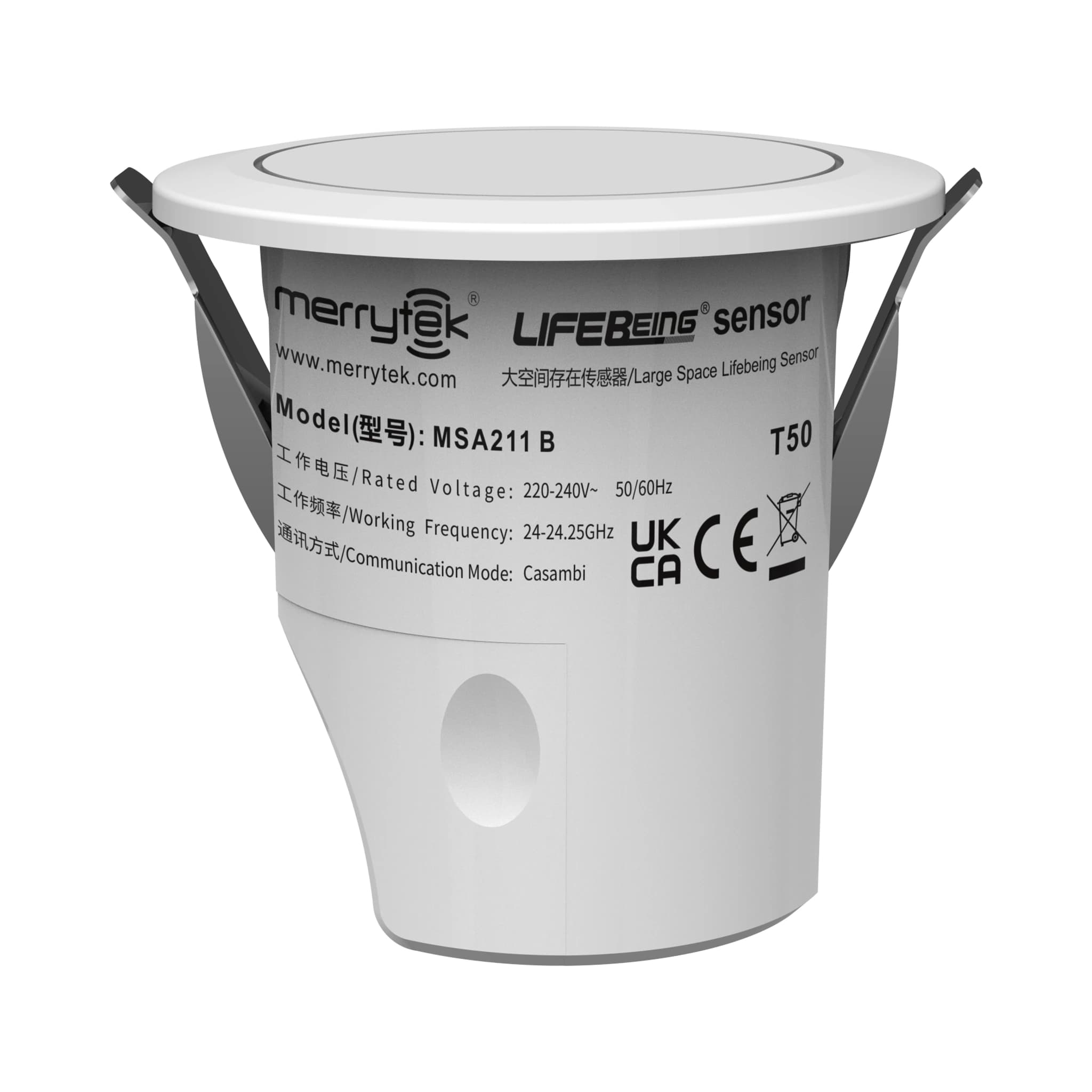

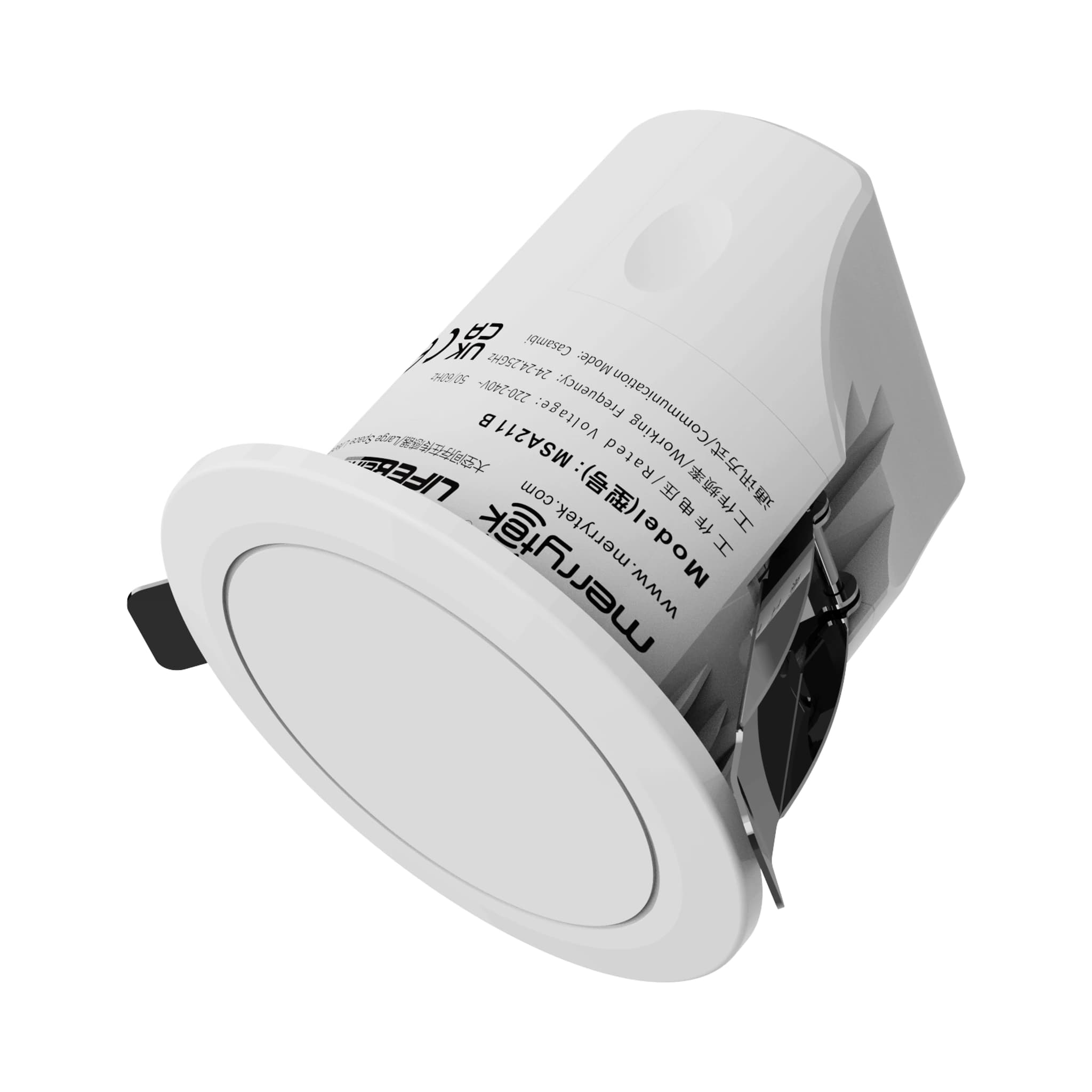

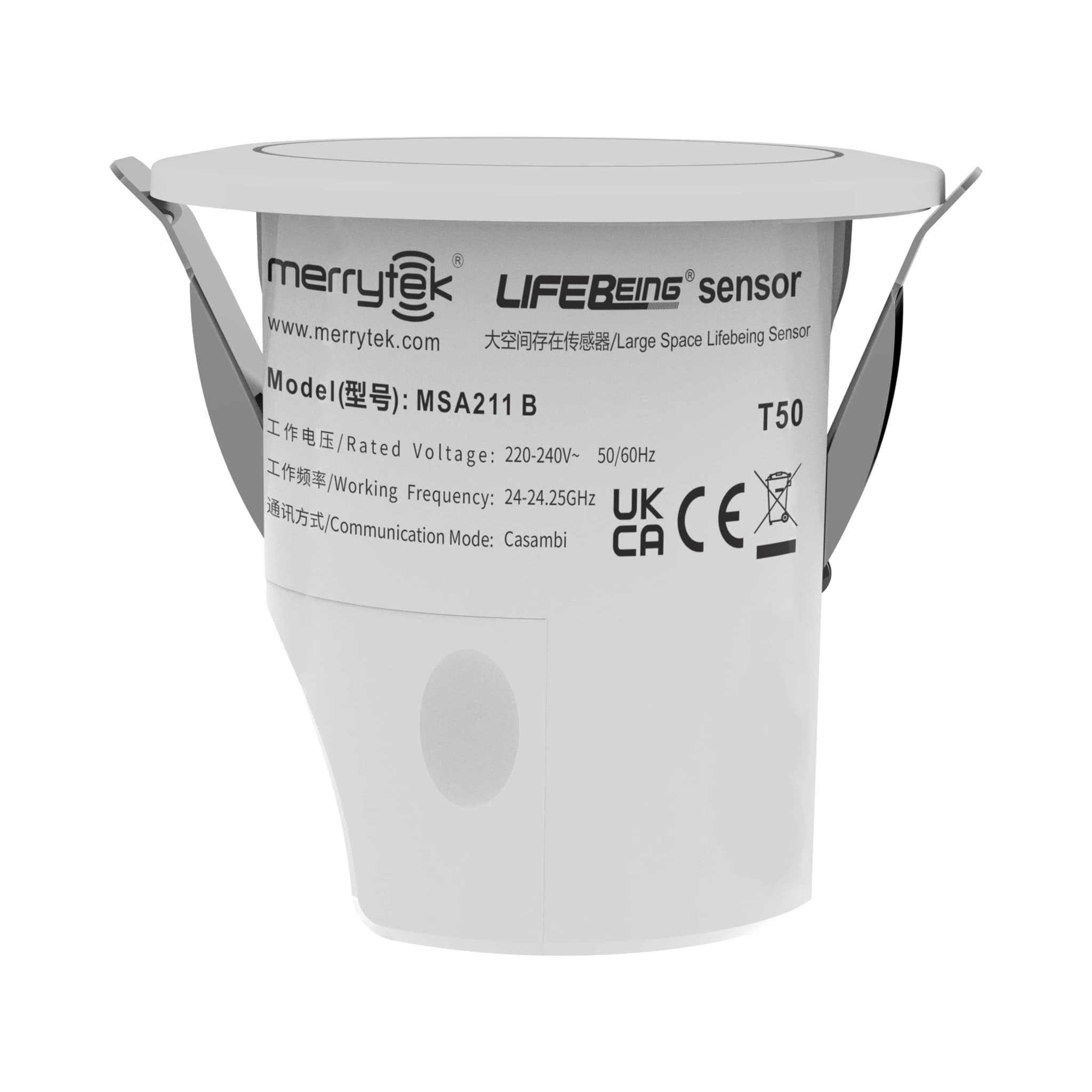

MSA211 B
24G Hz space presence sensor (Casambi version)
MSA211 B is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 100-240Vac 50Hz/60Hz
- Rated voltage
- 220V AC
- Operating current
- 50mA max
- Operating power consumption
- ≤1W 220V AC
Wireless module
- Casambi Bluetooth module frequency
- 2.4G Hz-2.484G Hz Transmitting power: +8dBm Receiving sensitivity: -95±2dBm
Sensing parameters
- RF operating frequency
- 24G Hz-24.25G Hz ISM band
- Transmit power
- 5mW Max.
- Detection range
- APP adjustment: 10%-100%
- Delay setting
- 1min + APP backend delay
- Illumination detection range
- 0-1200Lux (the product is installed at a height of 3m, and the illumination value reflected from the ground directly below the product is collected)
- Detection range (100% detection range, radius)
- Movement/micro-motion/existence (3m high): 2.5-4m
- Remote control function
- Support
- Installation height
- 2.5-4.0m
- 3dB beam angle (XZ plane)
- 100° (XZ plane)
- 3dB beam angle (YZ plane)
- 100° (YZ plane)
Usage environment
- Inline installation opening size
- Φ75mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
