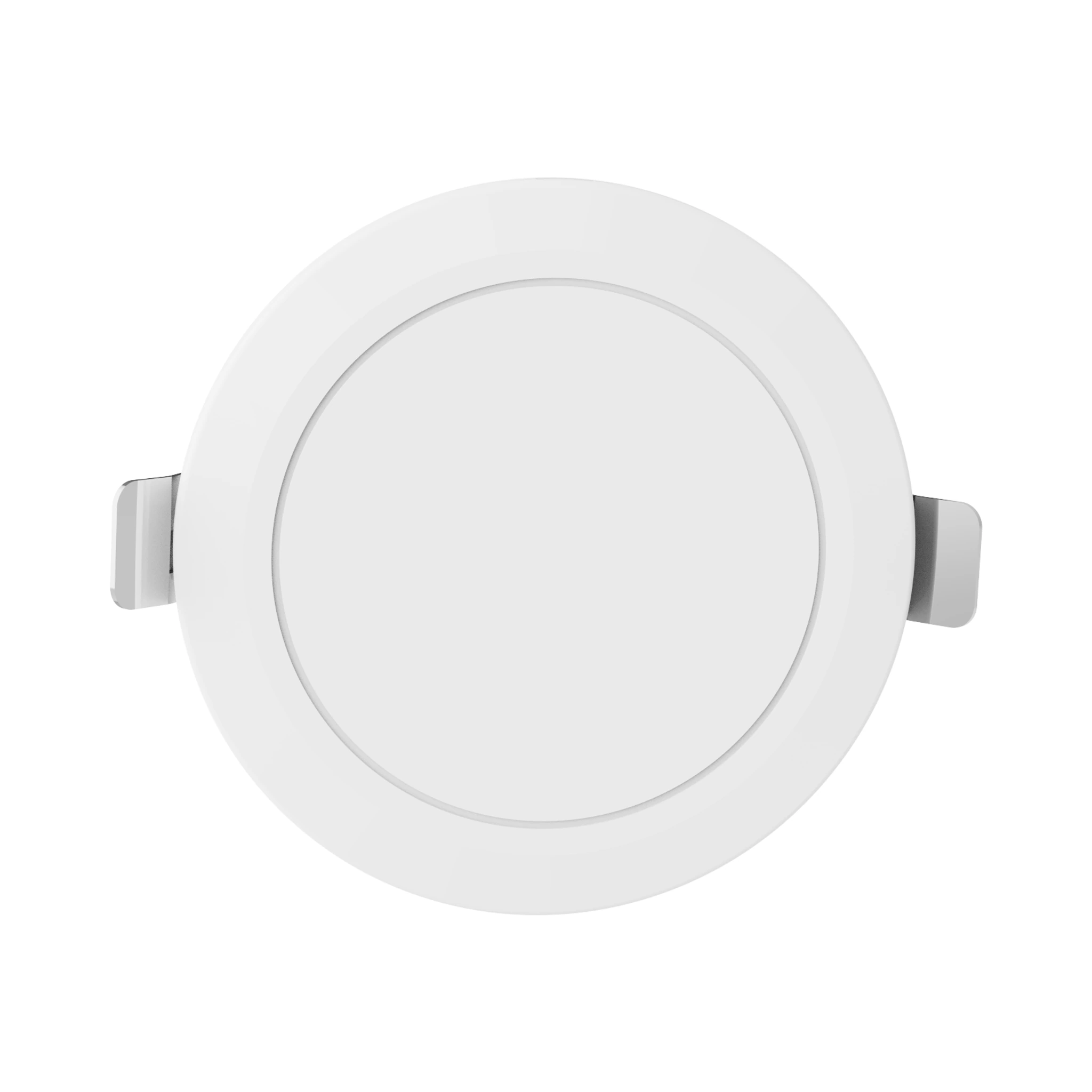

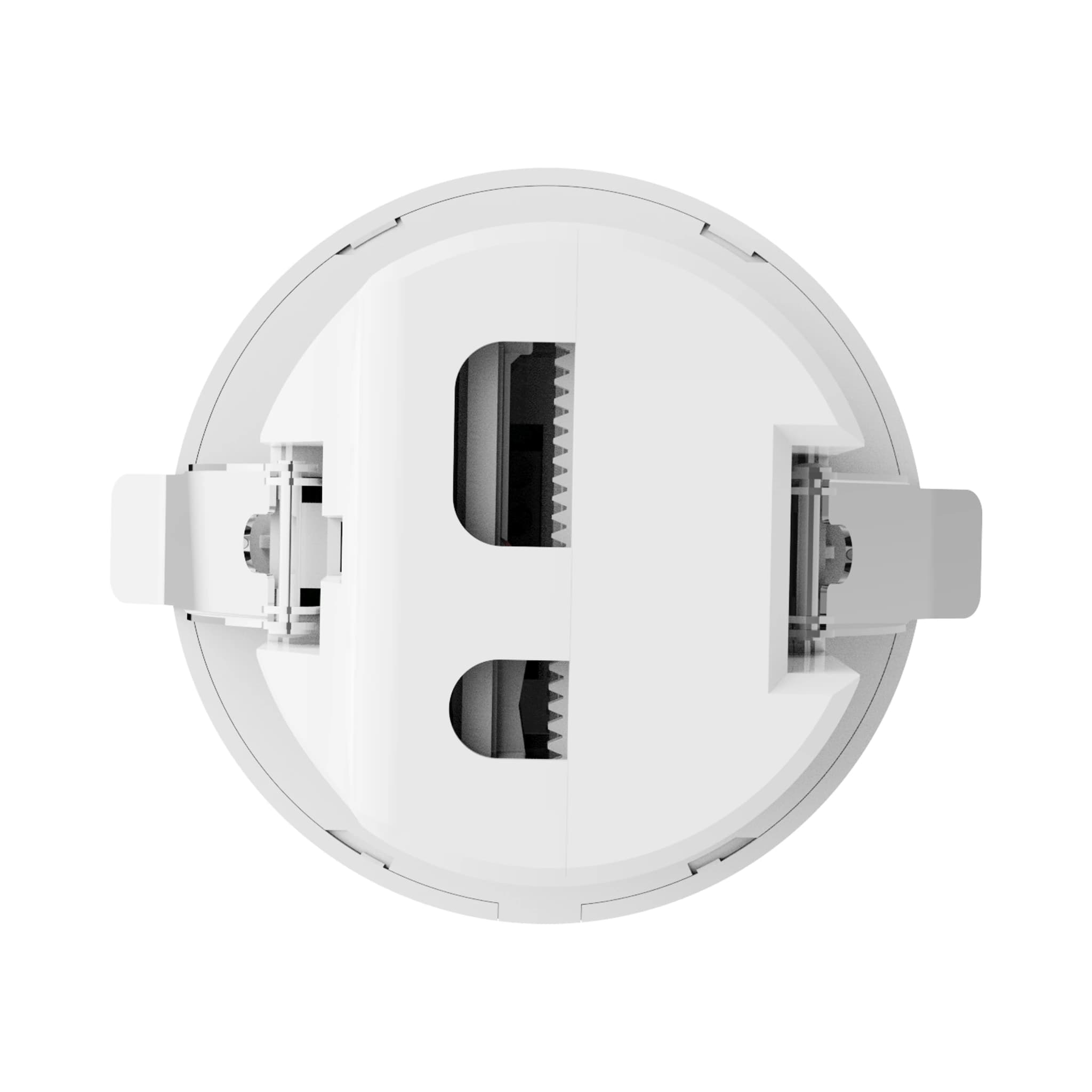

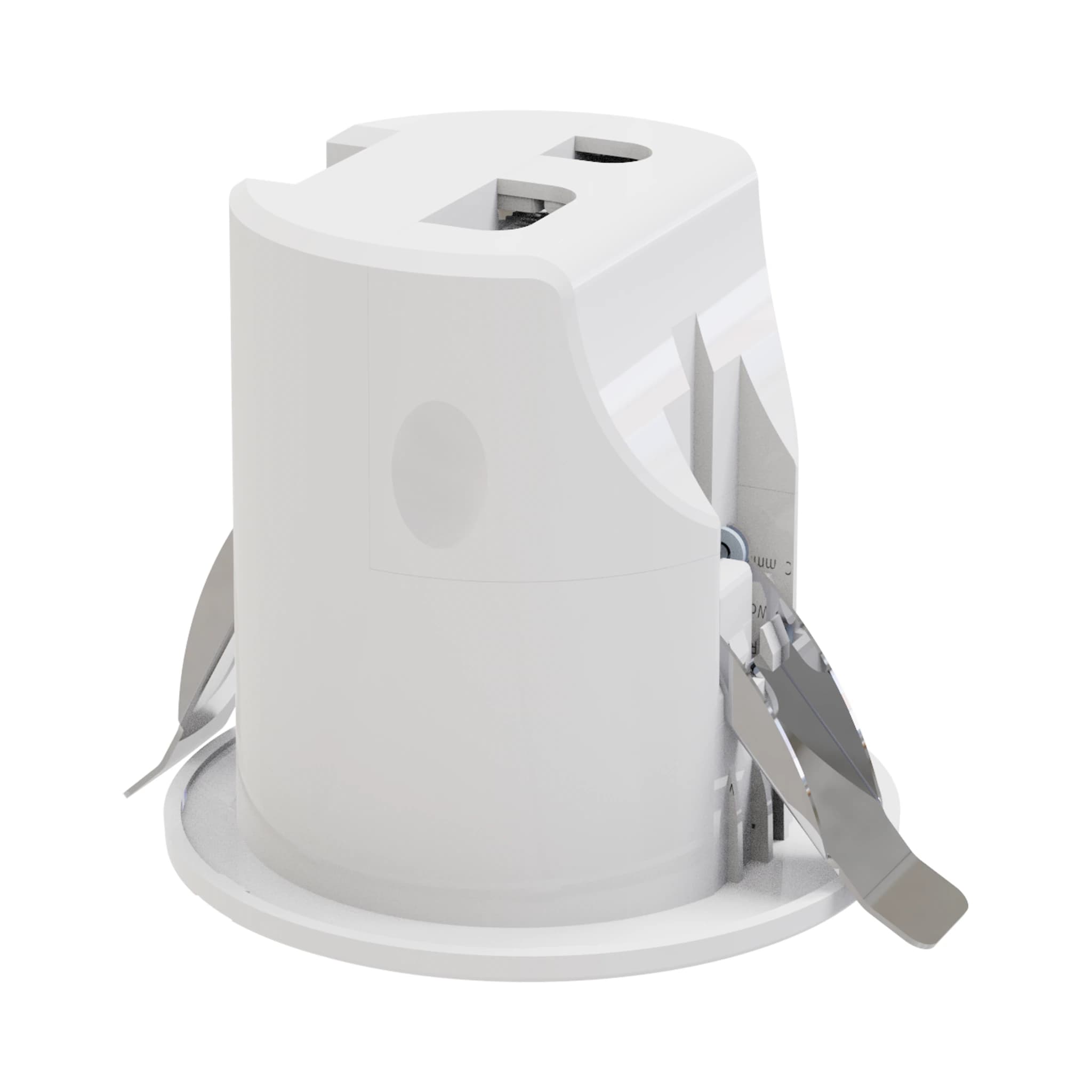

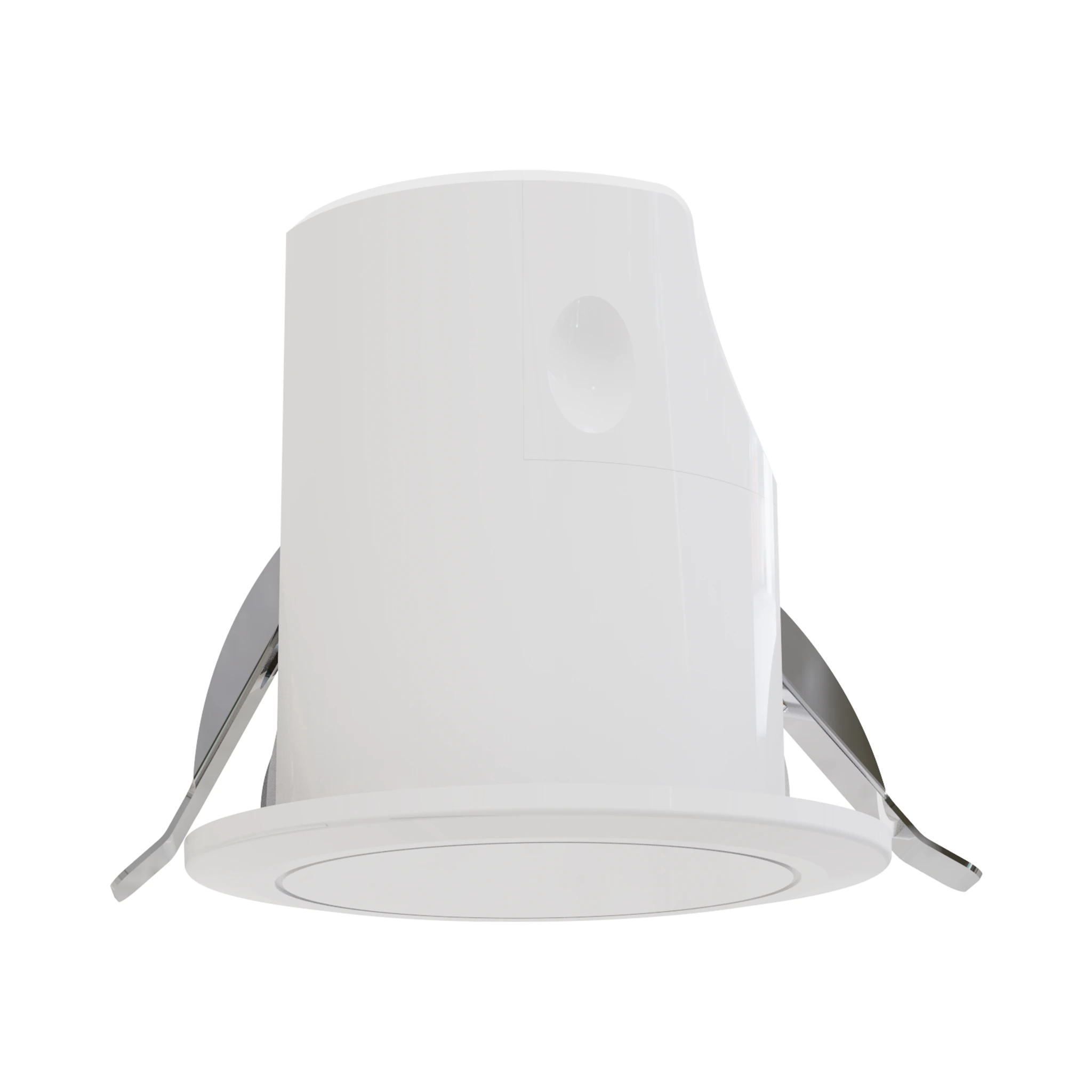

MSA205
24G Hz space presence sensor (DALI 2.0 version)
MSA205 is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240V AC
- Rated voltage
- 230V AC
- Operating power consumption
- ≤1W @230V AC
- Communication method
- DALI bus communication
Sensing parameters
- Working frequency
- 24G Hz -24.25G Hz, ISM frequency band
- Transmit power
- 3dBmMax
- Detection Area

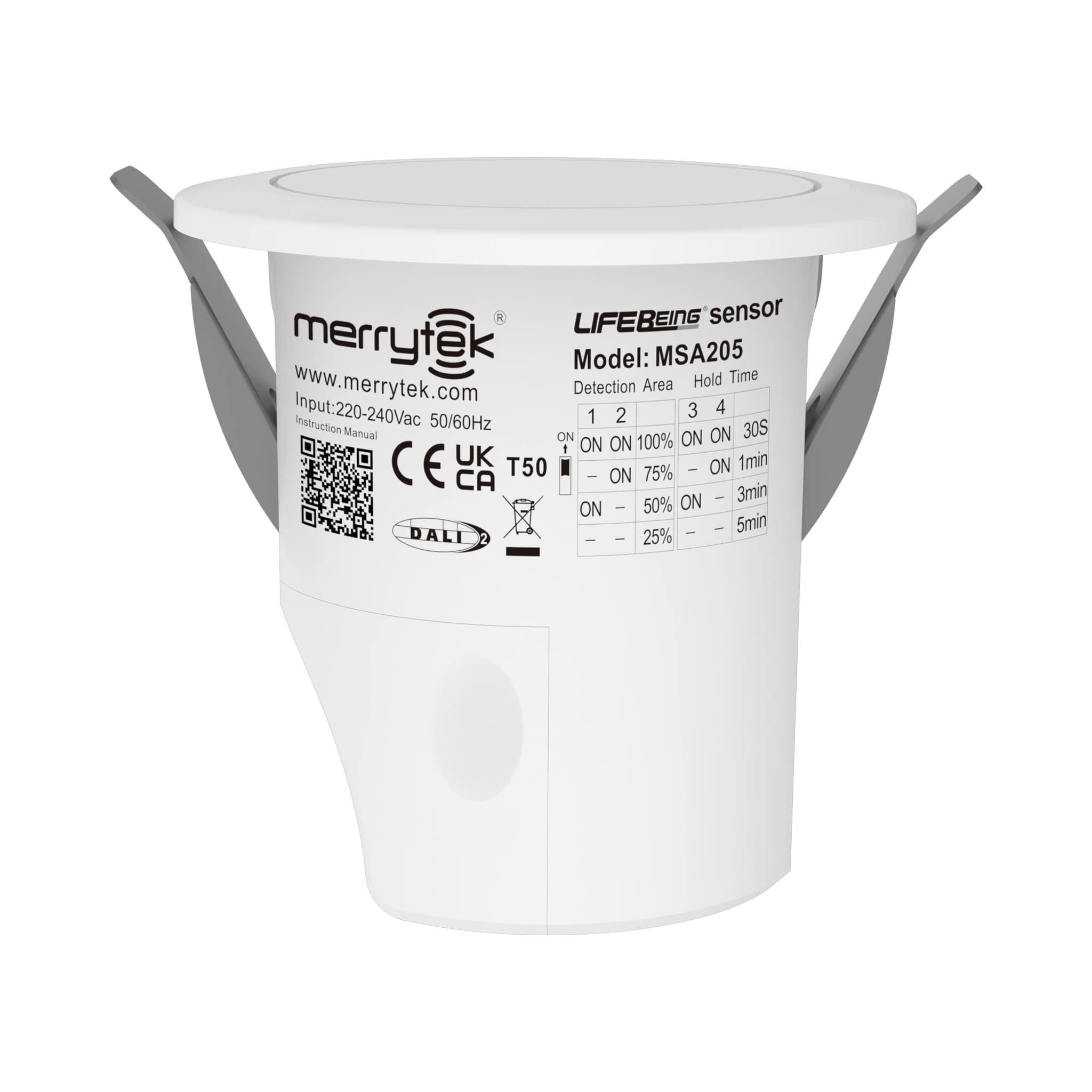

- Dial setting: 100% 75% 50% 25%
- Delay setting (Hold Time)
- Dali host settings: 1s -30min (the front end of this product has a fixed delay of 60s, so when 1s is set, the actual delay will be 61s)
- Ambient light measurement range
- 0-1200Lux (the product is installed at a height of 3m, and the illumination value reflected from the ground directly below the product is collected)
- Detection range (100% sensitivity, radius)
- Movement (3m high): 3-4m Micro movement (3m high): 2.5-3.5m Presence (3m high): 2.5-3.5m
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 80° (XZ plane)
- 3dB beam angle (YZ plane)
- 96° (YZ plane)
Usage environment
- Hole size
- φ75mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -40℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- IP20
