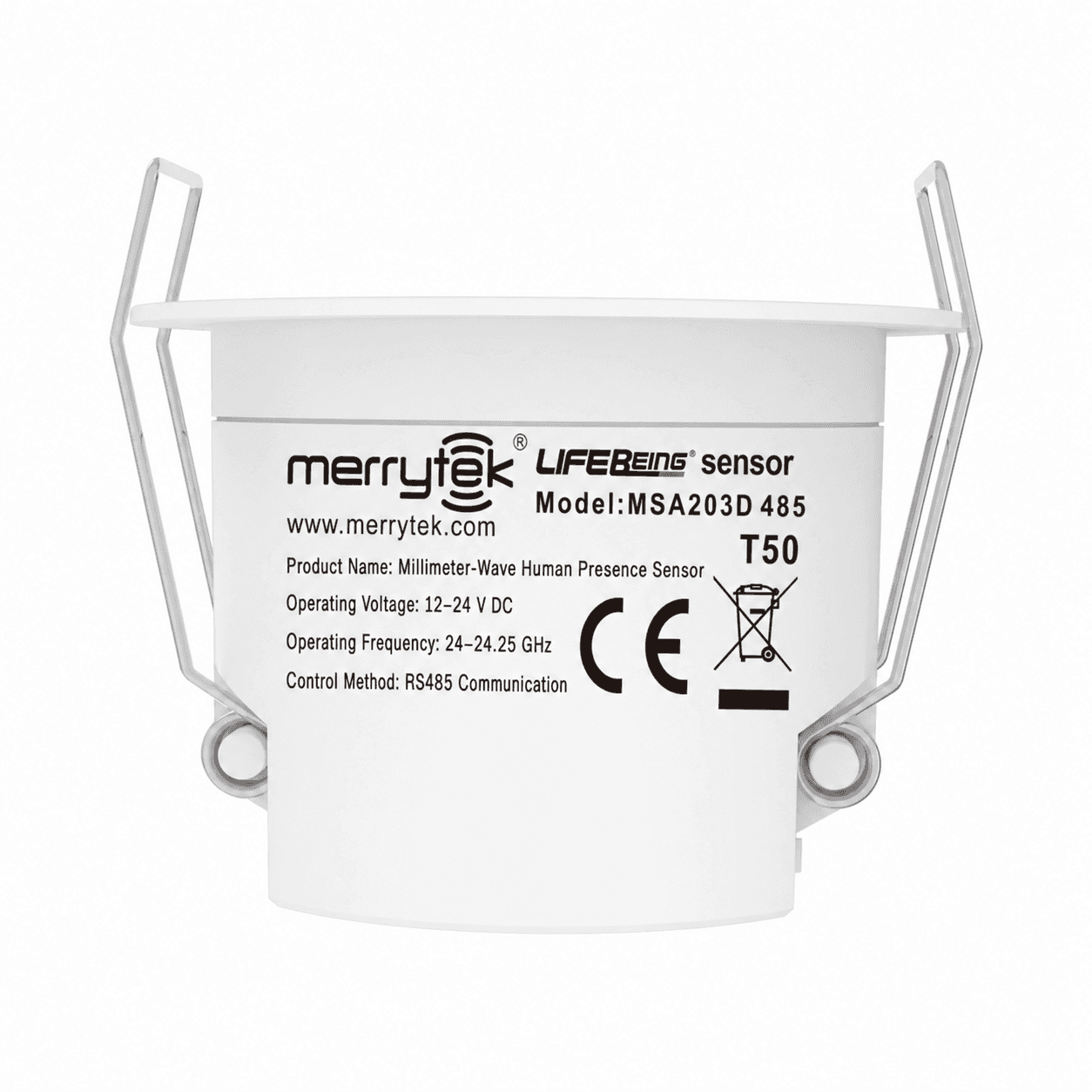

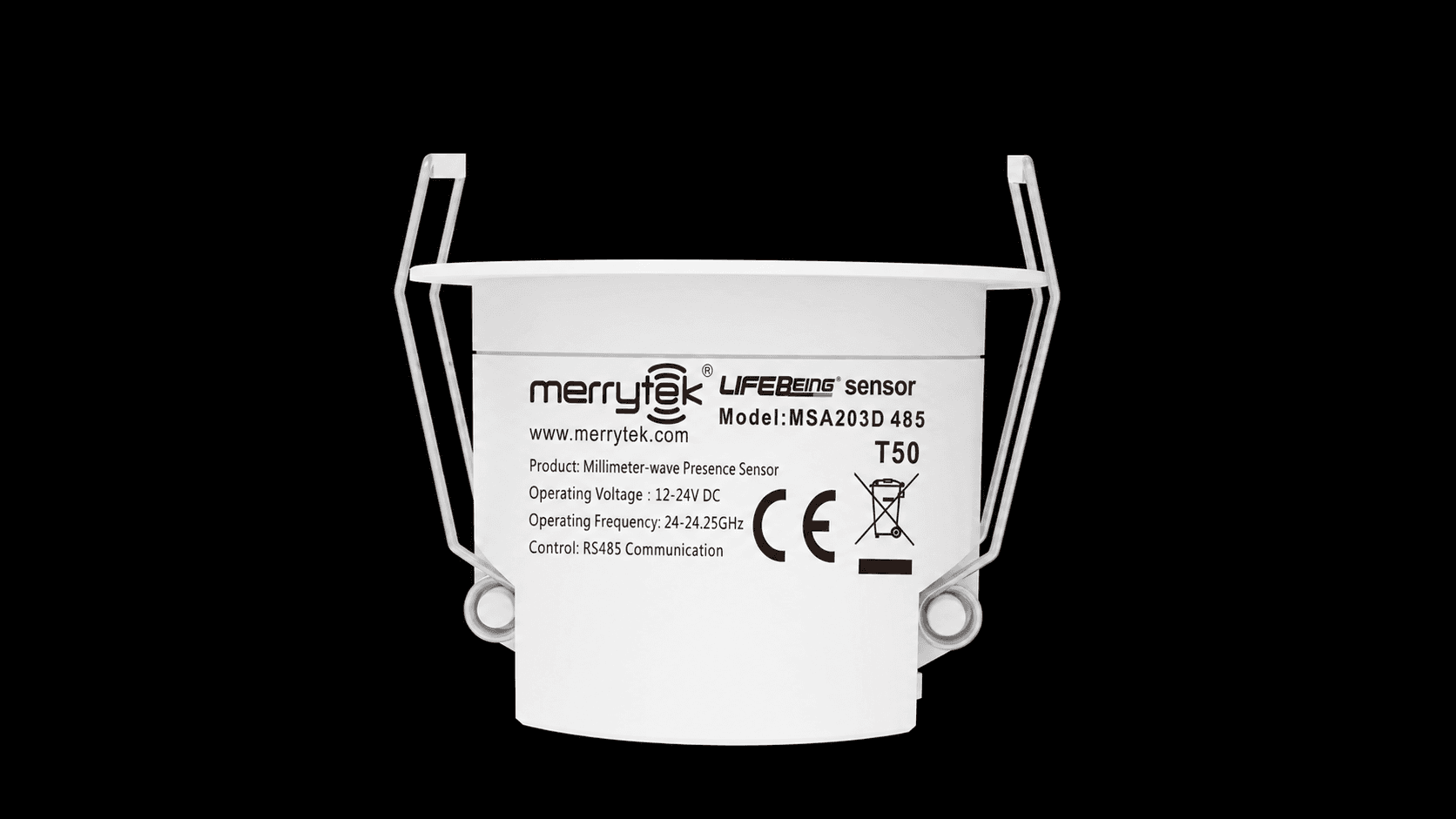

MSA203D 485
24GHz space presence sensor (RS485 version)
MSA203D 485 is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 12-24V DC
- Rated voltage
- 24V DC
- Operating current
- @12Vdc: 53±2mA max@24Vdc: 32±2mA max
- Operating power consumption
- ≤1W @24V DC
- Communication method
- RS485
Sensing parameters
- Working frequency
- 24G Hz -24.25G Hz, IsM frequency band
- Transmit power
- 5mW Max.
- Detection Area
- RS485 protocol adjustment: 0-4m (adjust the step in 0.5m units)
- Delay setting (Hold Time)
- 3s-7200s Note: To implement the presence detection function, a delay setting of ≥15s is required
- Illumination setting (Daylight)
- When the change in ambient illumination meets the preset illumination difference, the sensor immediately reports the ambient illumination value. Sudden change value (10-100lux) can be set through the serial port.
- Ambient light measurement range
- 0-1200Lux (the product is installed at a height of 3m, and the illumination value of the ground directly below the product is collected)
- Detection range (100% sensitivity, radius)
- Movement/micromotion/existence (3m high): 3.5±0.5m (based on indoor open 41㎡ space test, the sensing distance may fluctuate slightly in different environments)
- Remote control function
- Support
- Installation height
- 2-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 100° (XZ plane)
- 3dB beam angle (YZ plane)
- 100° (YZ plane)
Usage environment
- Inline installation opening size
- φ45mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature and humidity
- -25℃~+80℃, humidity: ≤85% (non-condensation)
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Comply with EU RoHs requirements
- Protection level
- IP20
- Warranty
- 5 years (only for product quality issues)
