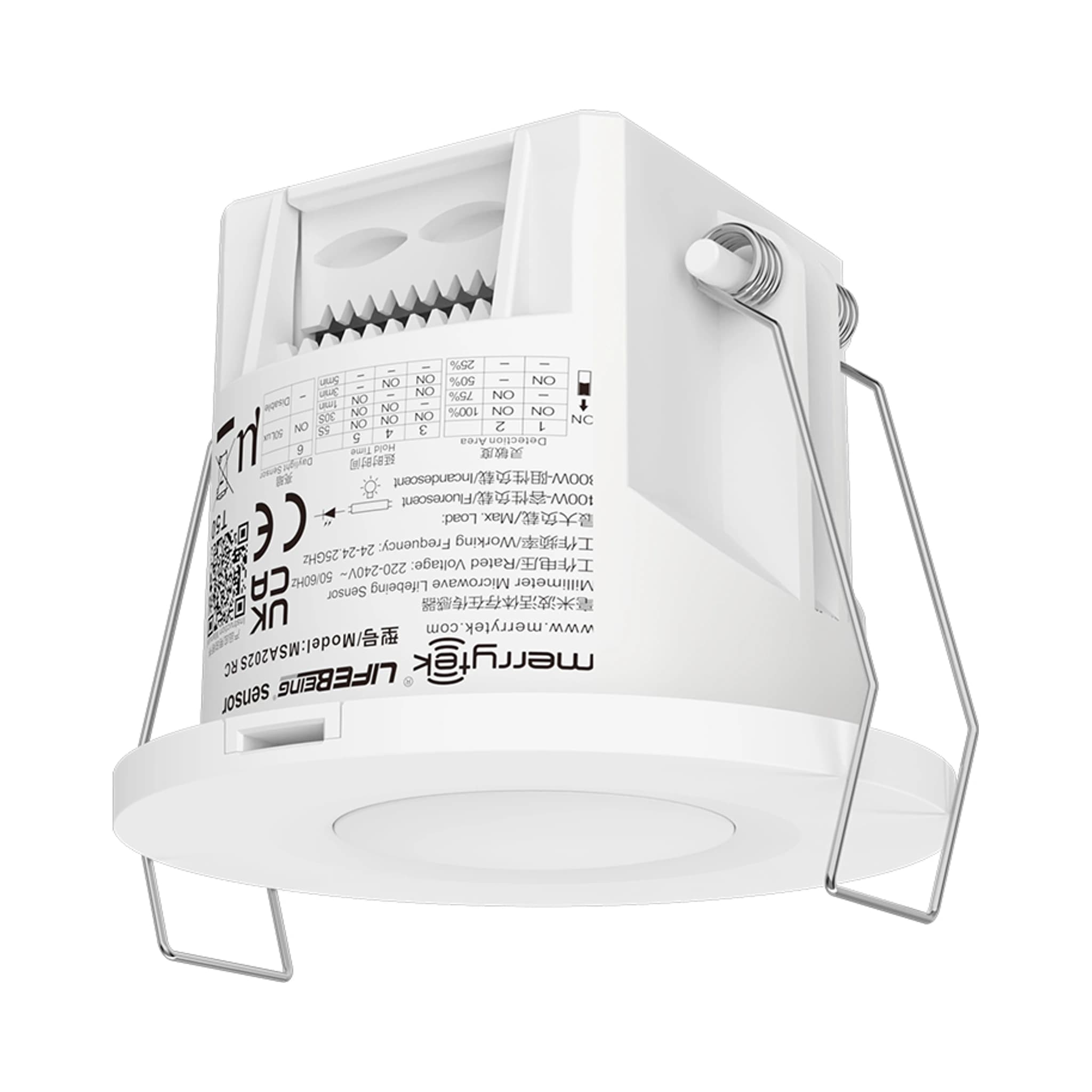

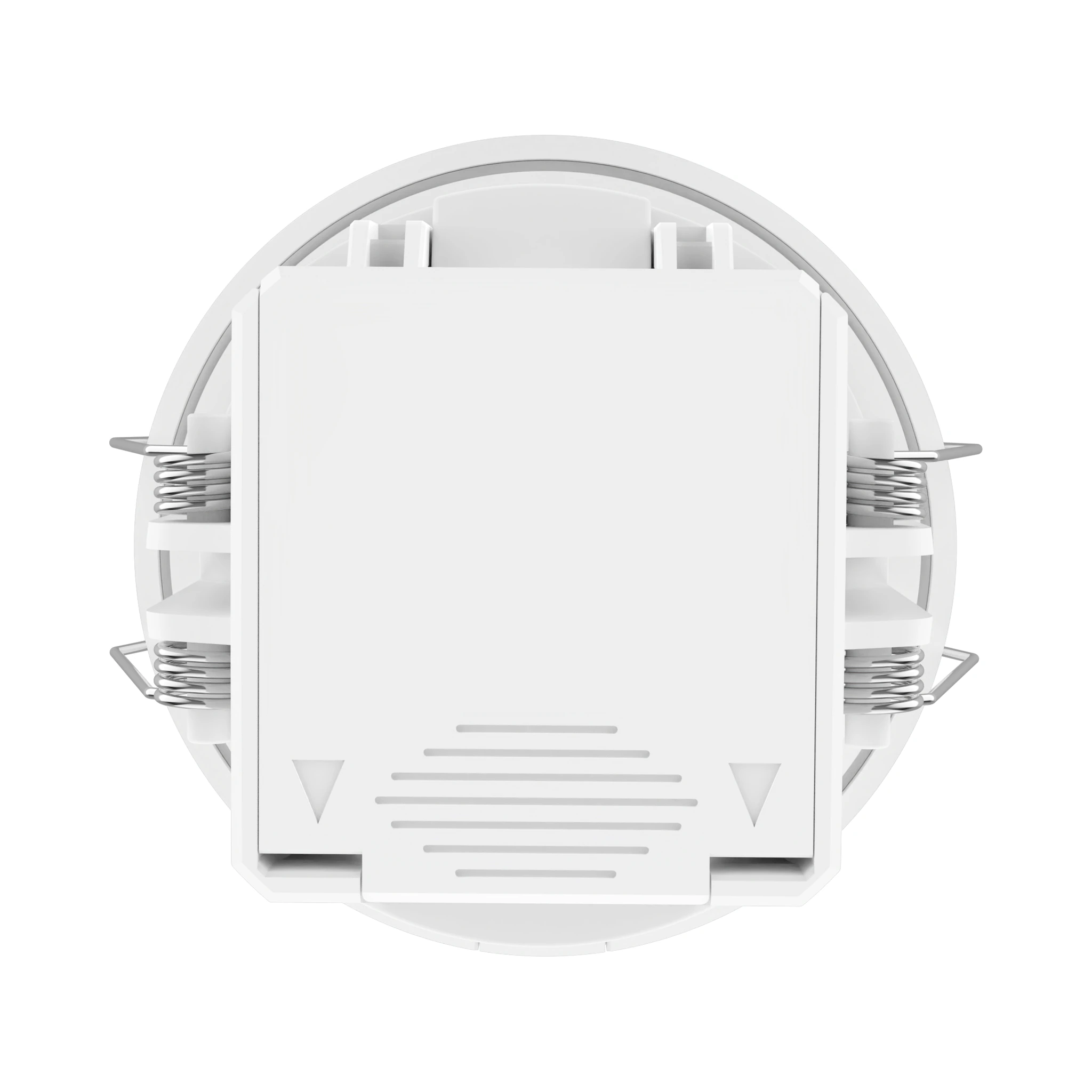

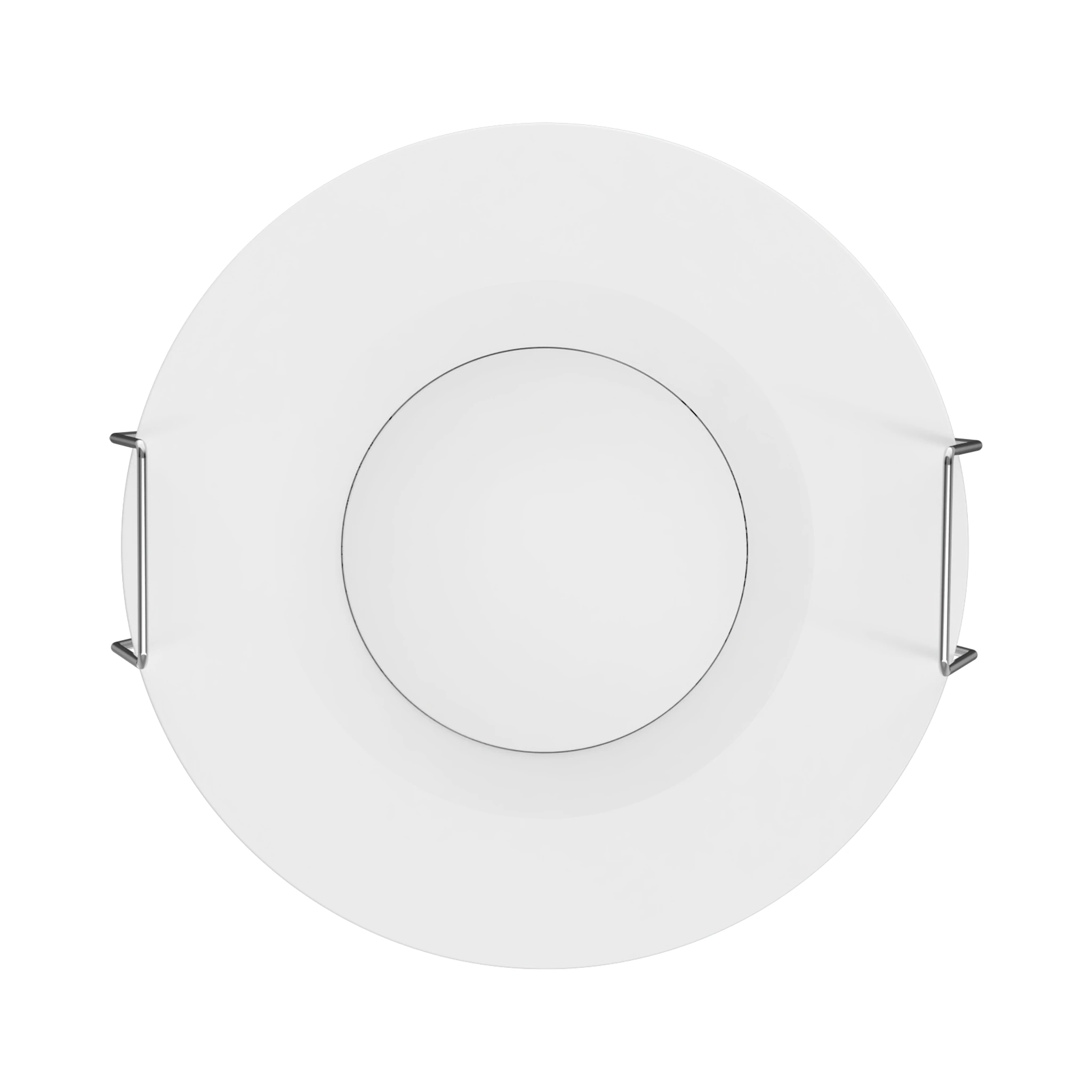

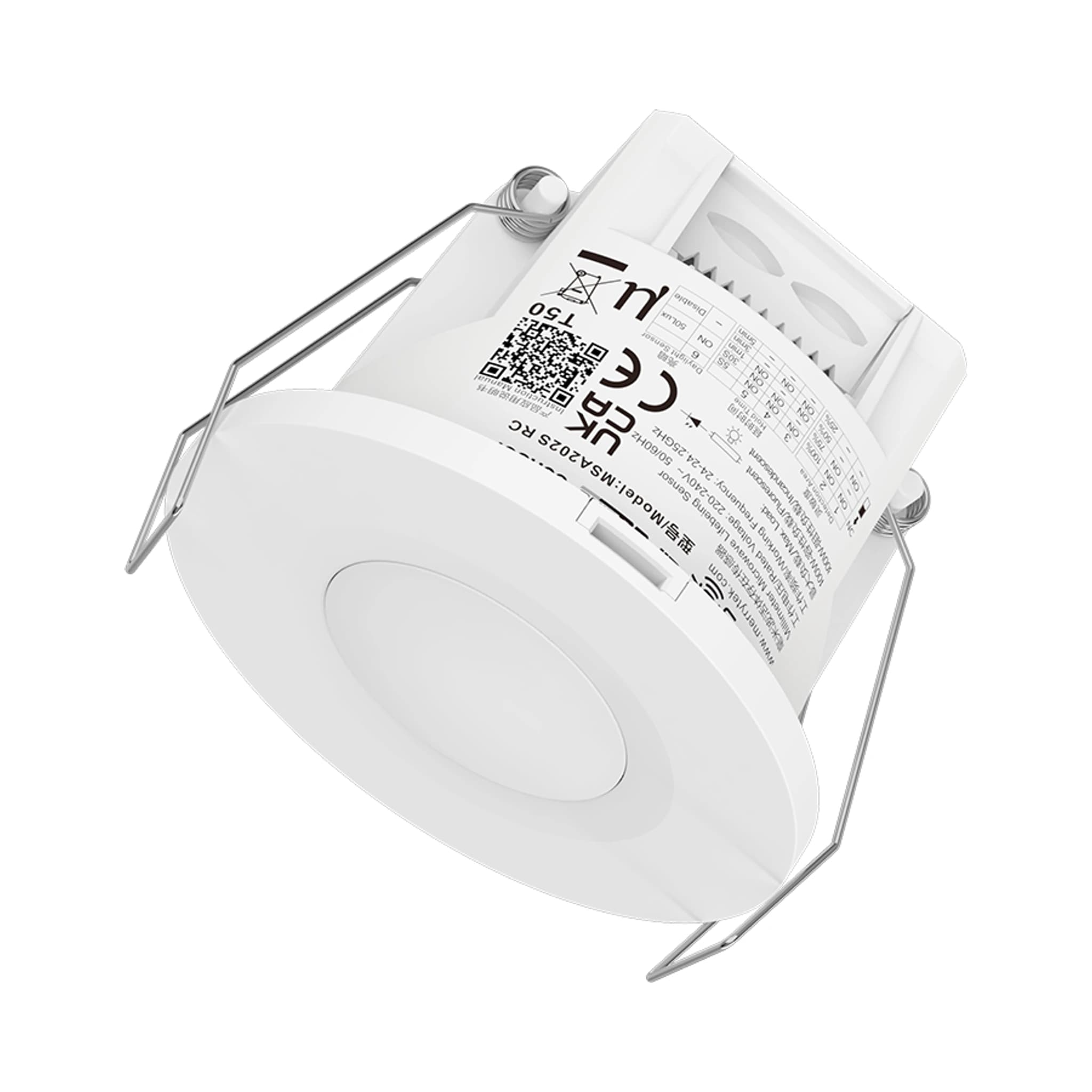

MSA202S RC
24G Hz space presence sensor (ON/OFF version)
MSA202S RC is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240V AC 50Hz
- Rated voltage
- 220V AC
- Rated load power
- Resistive load (incandescent lamp, ventilation fan, etc.): 800W Max Capacitive load (ballast, energy-saving lamp, etc.): 400W Max LED load: 400W Max
- Standby power consumption
- ≤1W
- Load surge current limit
- 50A (tested at 50% Ipeak, twidth 500us @220Vac, cold start at full load)
Sensing parameters
- Working frequency
- 24G Hz -24.25G Hz, ISM frequency band
- Transmit power
- 5mW Max. 3dBm Max.
- Detection Area
- 100% 75% 50% 25% (can be set via remote control MH10 or dial code)
- Delay setting (Hold Time)
- 5s/30s /1min / 3min /5min /10min /20min /30min (remote control MH10 setting) 5s/30s/1min/3min/5min (dial setting)
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 100° (XZ plane)
- 3dB beam angle (YZ plane)
- 100° (YZ plane)
Usage environment
- Hole size
- Φ55mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -40℃...80℃ Humidity: ≤85% (non-condensation)
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- IP20
