Standalone Sensors

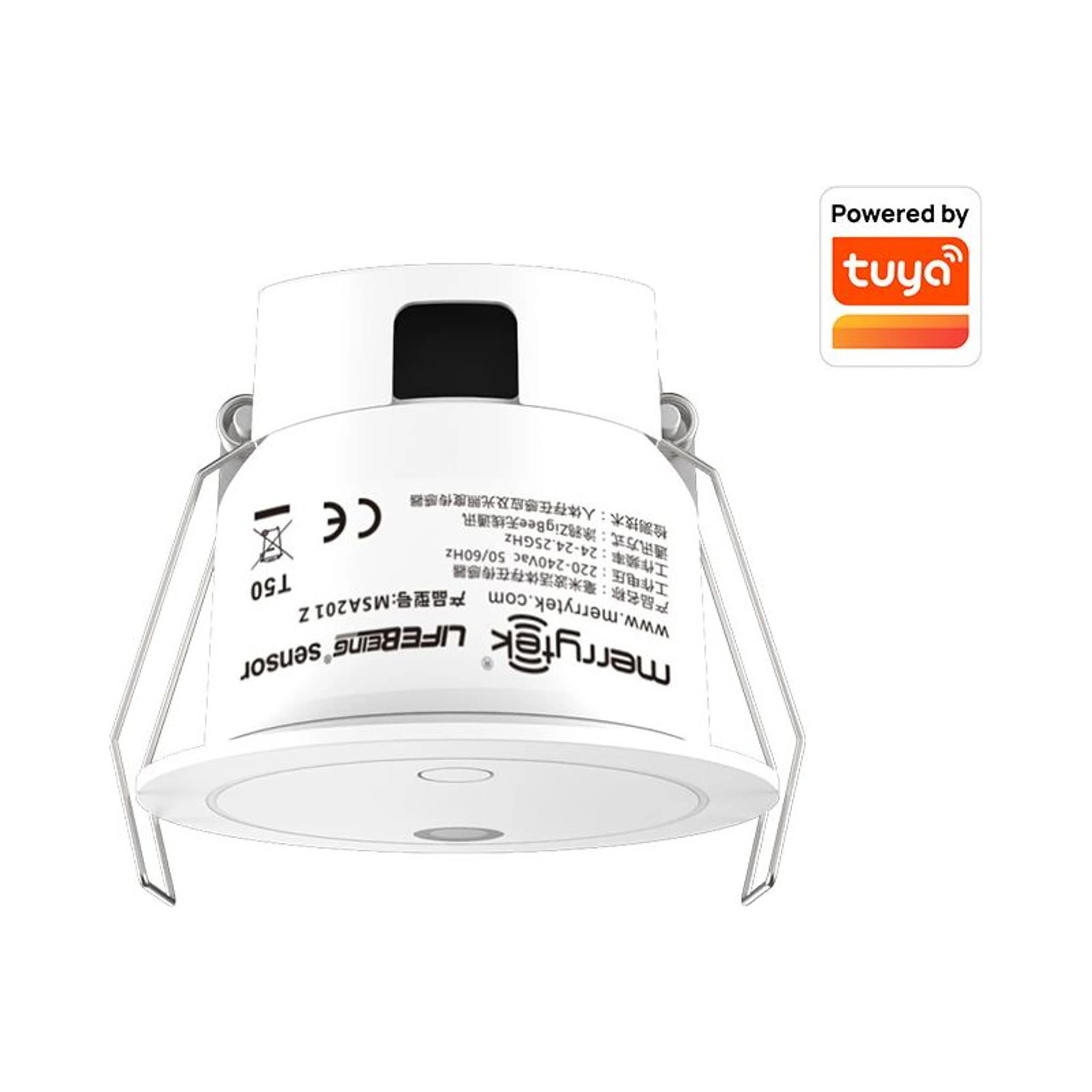

MSA201 Z
24GHz human presence sensor
MSA201 Z is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Technical specifications
- Product model
- MSA201 Z
- Working voltage
- 220-240Vac 50Hz/60Hz
- Operating power consumption
- ≤1W 230V AC
- Wireless communication method
- ZigBee
- Communication module frequency
- 2.4G Hz-2.484G Hz
- Microwave operating frequency
- 24G Hz-24.25G Hz ISM band
- Microwave transmission power
- 3dBM Max
- Detection range (radius)
- Movement/micromotion/breathing sensing distance: 3-4m
- Sensitivity adjustable level
- 0% 25% 50% 75% 100% (APP settings)
- Delay time (Hold time)
- 30s /1min / 2min/ 3min /5min /10min /20min/30min (APP setting)
- Illumination setting (Daylight)
- When the change in ambient illumination meets the preset illumination difference, the sensor immediately reports the ambient illumination value. Sudden change value (10-100lux) can be set through the APP.
- Illumination detection range
- 5-1200Lux
- Installation height
- 2.5-4.0m
- Installation method
- Built-in installation, opening size Φ55mm
- Operating temperature
- 0℃...+50℃
- Storage temperature
- -25℃...+80℃
- Warranty life
- 5-year warranty
