Standalone Sensors

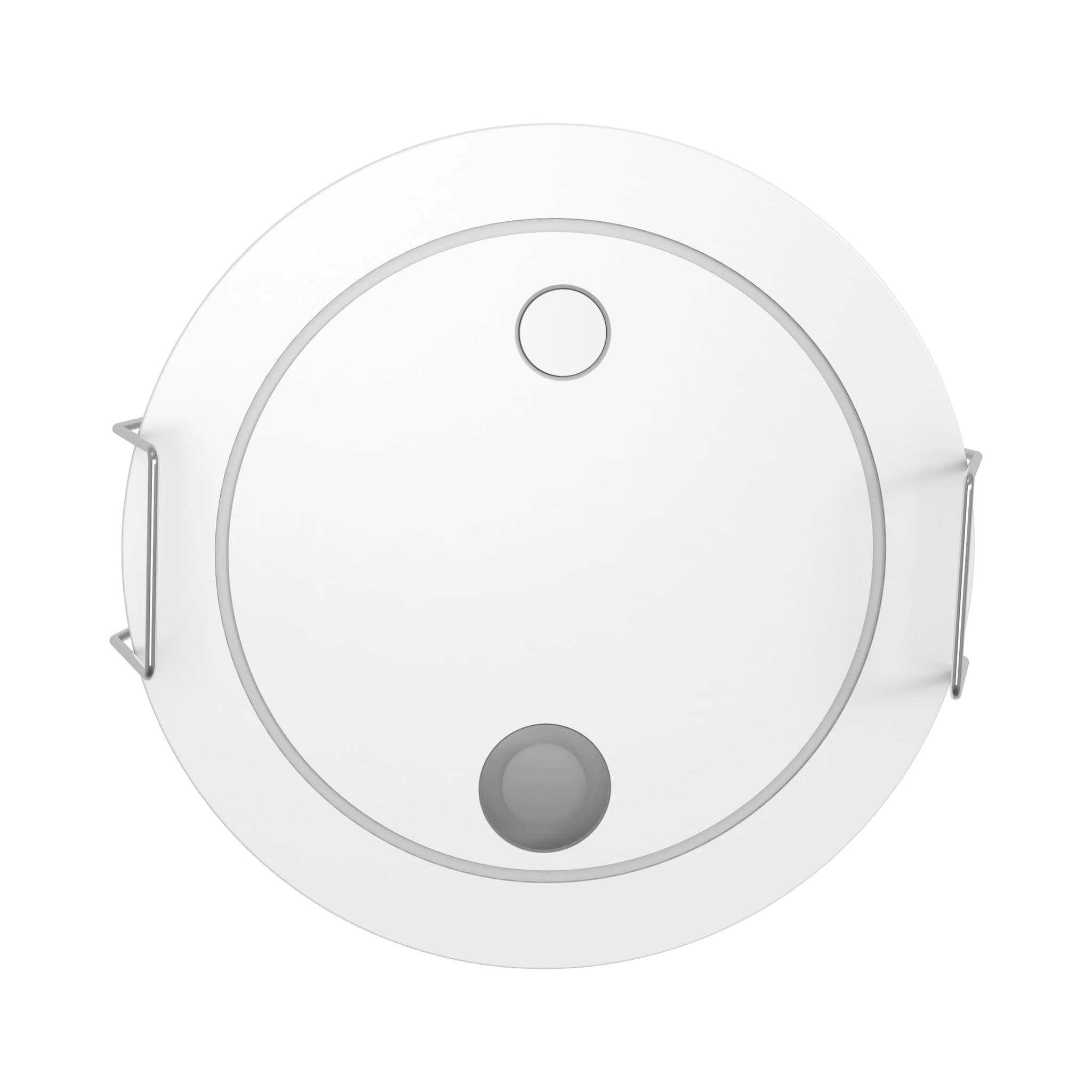

MSA201
Standalone Sensors
MSA201 is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240Vac 50Hz/60Hz
- Rated voltage
- 220V AC
- Operating power consumption
- ≤1W 230V AC
Sensing parameters
- RF operating frequency
- 24G Hz-24.25G Hz ISM band
- Transmit power
- 5mW Max.
- Detection Area
- Serial port protocol setting: 0%-100%
- Delay setting (Hold Time)
- Serial port protocol setting: 3-7200S
- Illumination setting (Daylight)
- When the change in ambient illumination meets the preset illumination difference, the sensor immediately reports the ambient illumination value. The lighting change difference is 10-100lux and can be set through the serial port.
- Illumination detection range
- 0-1200Lux (the product is installed at a height of 3m, and the illumination value reflected from the ground directly below the product is collected)
- Detection range (100% sensitivity, radius)
- Movement/micromotion/existence (3m high): 3.5±0.5m (based on indoor open 41㎡ space test, the sensing distance may fluctuate slightly in different environments)
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 100° (XZ plane)
- 3dB beam angle (YZ plane)
- 100° (YZ plane)
Usage environment
- Inline installation opening size
- Φ55mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
- Warranty
- 5 years (only for product quality issues)
