Standalone Sensors

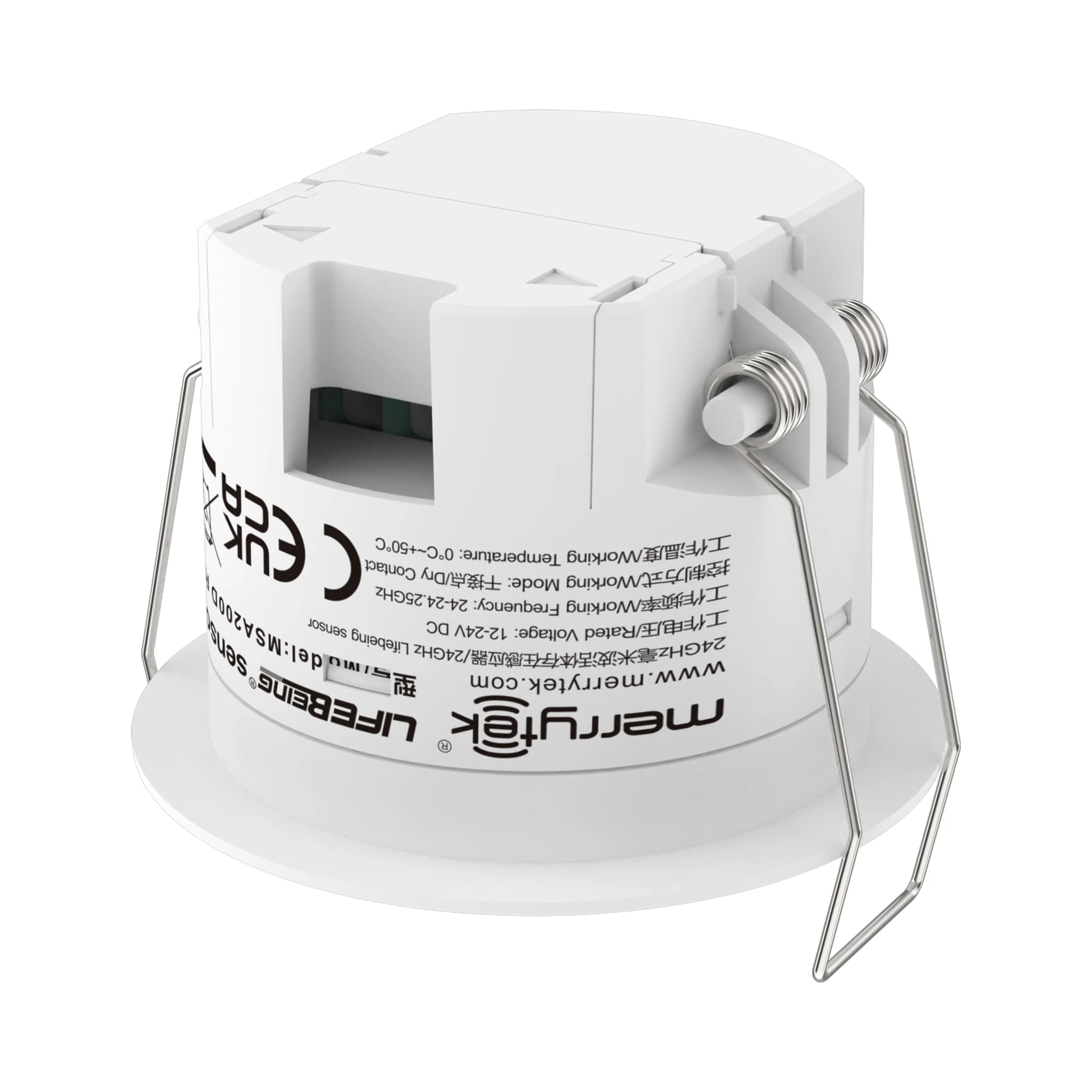

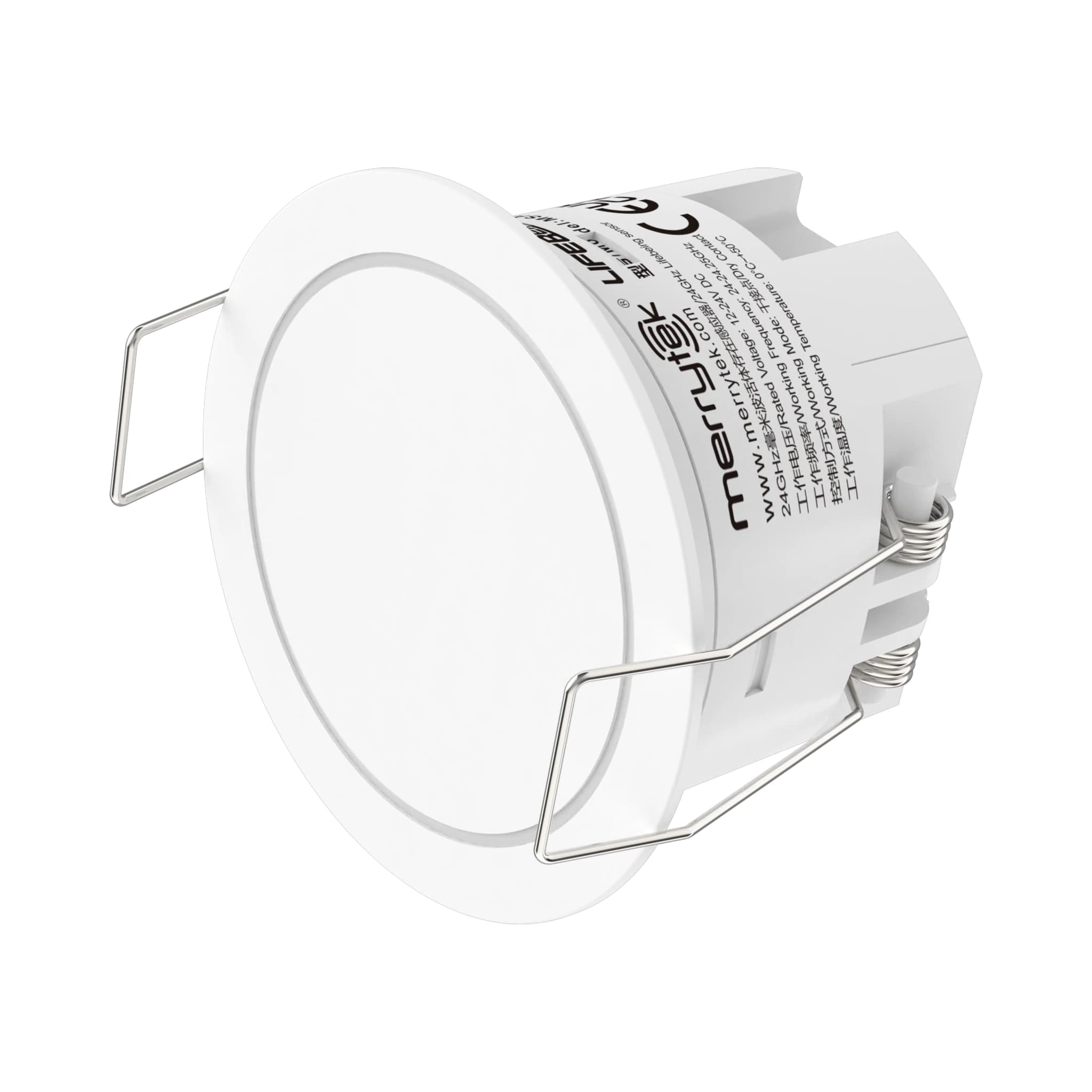

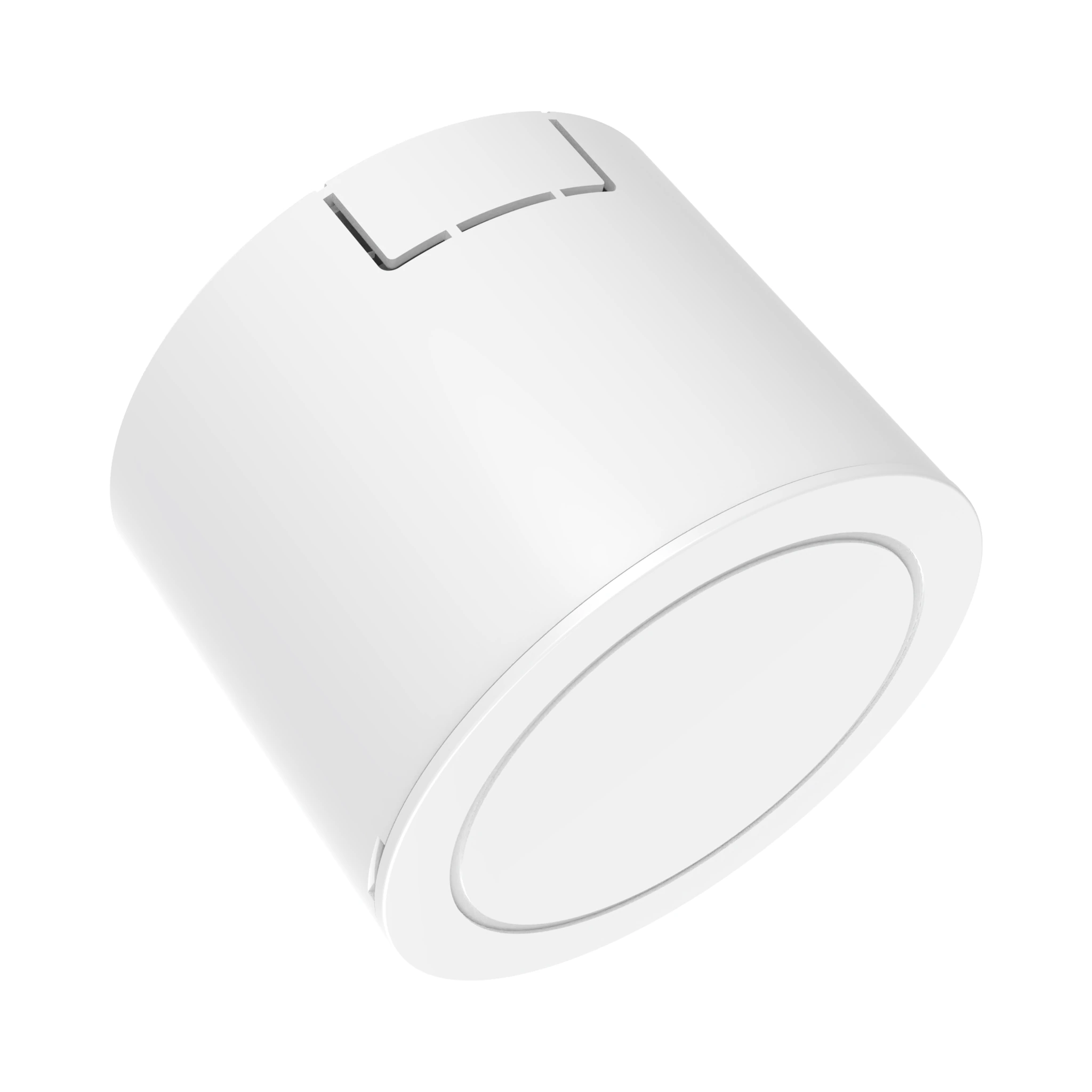

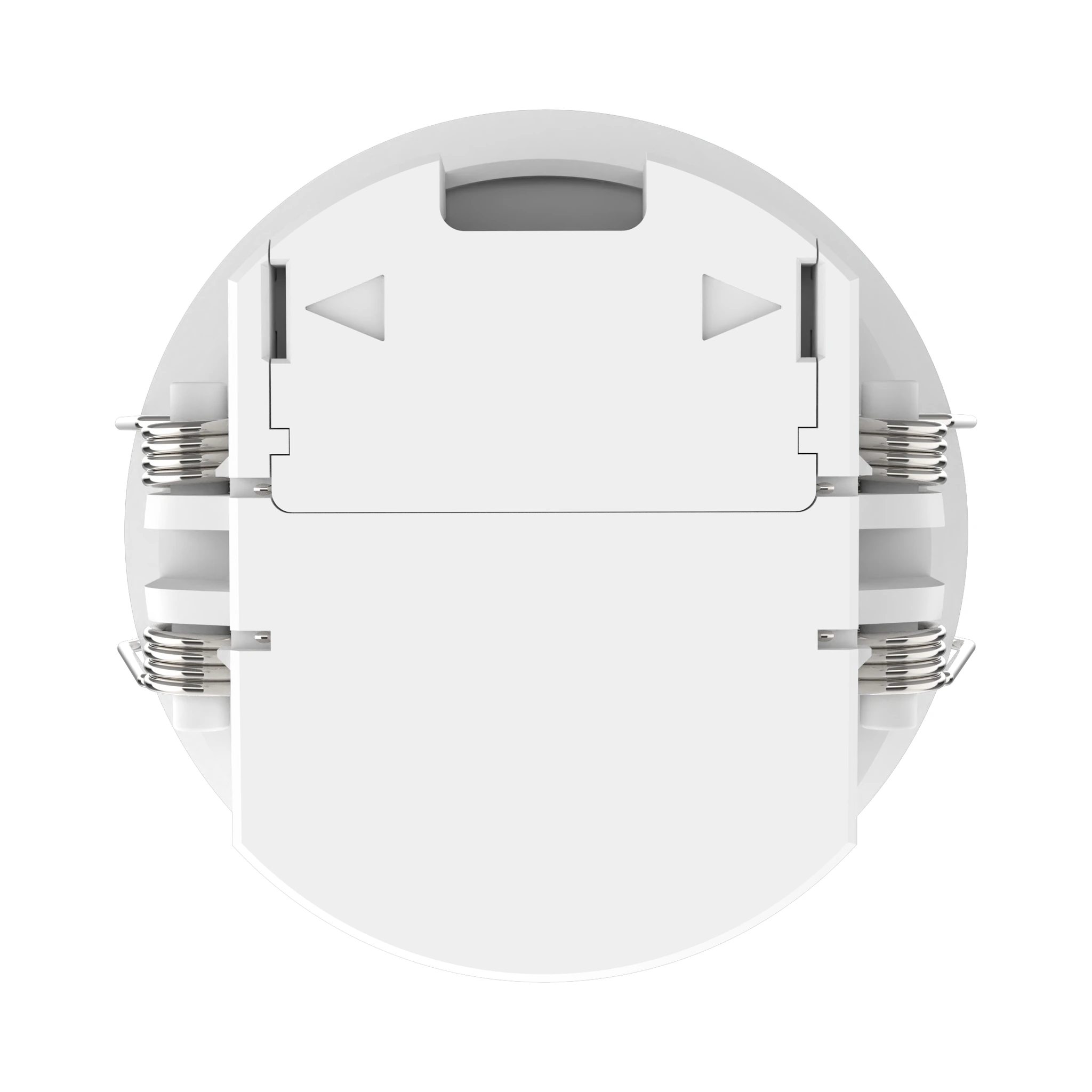

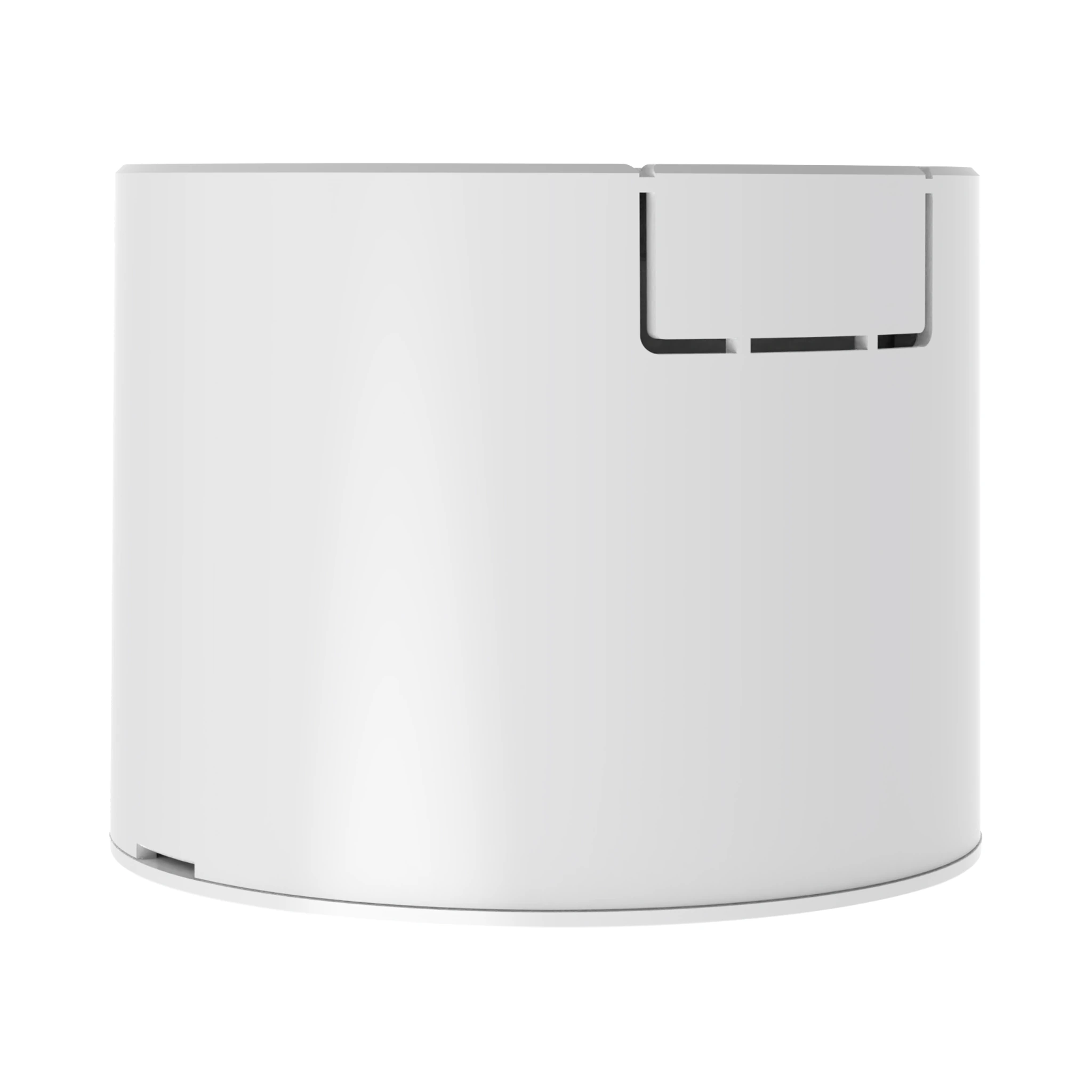

MSA200D RC
24GHz space presence sensor (dry-contact version)
MSA200D RC is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 12-24V DC
- Rated voltage
- 24V DC
- Operating current
- @12Vdc: 50mA max@24Vdc: 30mA max
- Operating power consumption
- ≤1W @24V DC
- Output signal
- Normally open/normally closed dry contact (factory default is normally open)
- Load type
- Resistive, voltage: Vdc≤36V, current: 50mA max
Sensing parameters
- Working frequency
- 24G Hz -24.25G Hz, ISM band
- Transmit power
- 5mW Max.
- Detection Area
- 0-4m (can be set via remote control MH10)
- Delay setting (Hold Time)
- 10s /30s /1min / 3min /5min /10min /20min/30min (remote control MH10 setting) Note: The presence detection function must be set at least ≥30S
- Daylight Sensor
- 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (remote control MH10 settings)
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 100° (XZ plane)
- 3dB beam angle (YZ plane)
- 100° (YZ plane)
Usage environment
- Hole size
- Φ45mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃ Humidity: ≤85% (non-condensation)
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
- Warranty
- 5 years (only for product quality issues)
