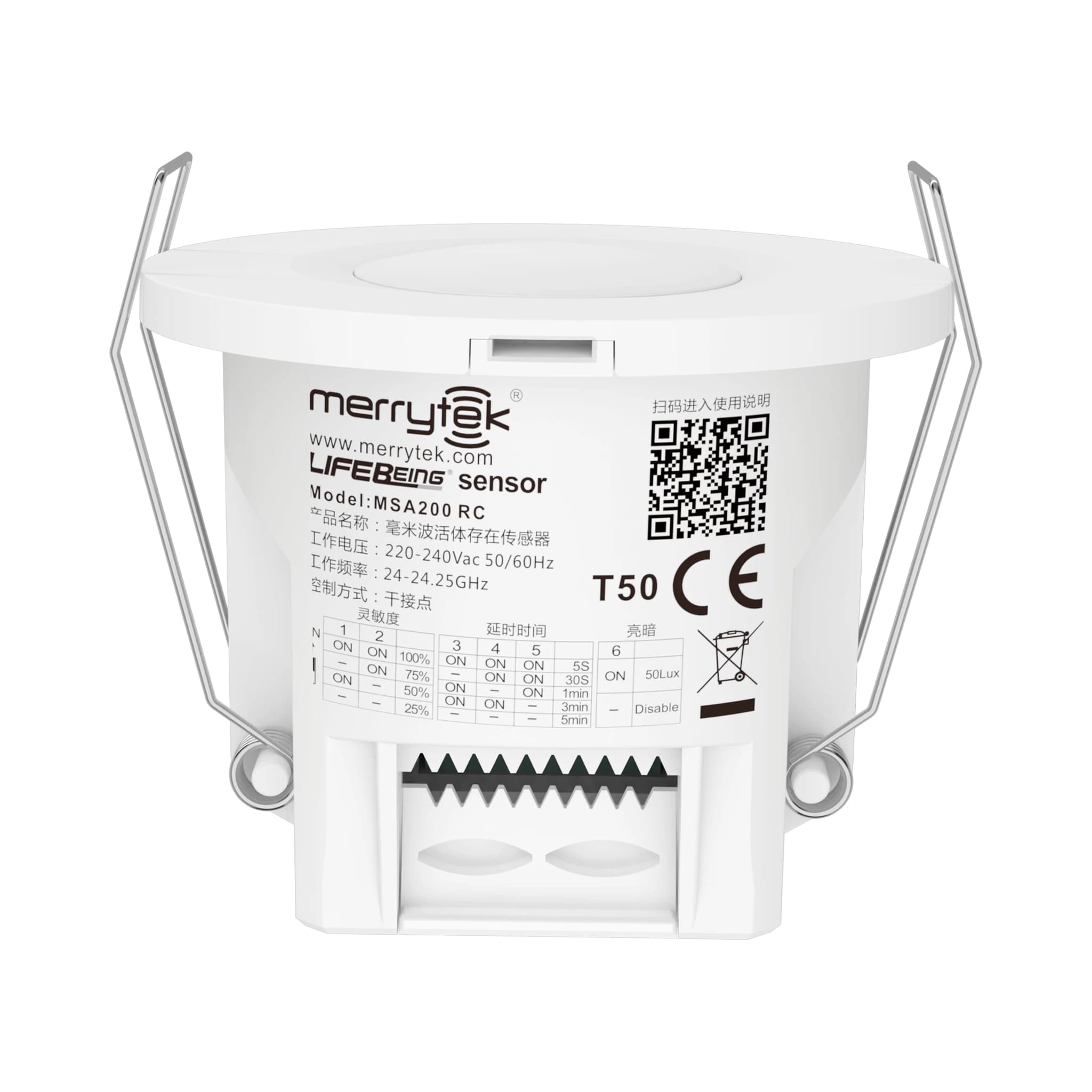

MSA200 RC
24G Hz space presence sensor (dry-contact version)
MSA200 RC is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 220-240V AC 50HZ
- Rated voltage
- 220V AC
- Operating current
- 50mA max
- Standby power consumption
- ≤1W
- Load type
- Resistive, voltage: Vdc≤36V, current: 50mA max
Sensing parameters
- Working frequency
- 24G Hz -24.25G Hz, ISM frequency band
- Transmit power
- 5mW Max. 3dBm Max.
- Detection Area
- 100% 75% 50% 25% (can be set via remote control MH10 or dial code)
- Delay setting (Hold Time)
- 5s/30s /1min / 3min /5min /10min /20min (remote control MH10 setting) 5s/30s/1min/3min/5min (dial code setting)
- Daylight Sensor
- 50Lux/Disable (dial setting) 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (remote control MH10 setting)
- Detection range (100% sensitivity, radius)
- Movement (3m high): 3-4m Micro movement (3m high): 3-4m Presence (3m high): 2.5-3.5m
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 100° (XZ plane)
- 3dB beam angle (YZ plane)
- 100° (YZ plane)
Usage environment
- Hole size
- Φ55mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -40℃...80℃ Humidity: ≤85% (non-condensation)
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- IP20
