Standalone Sensors

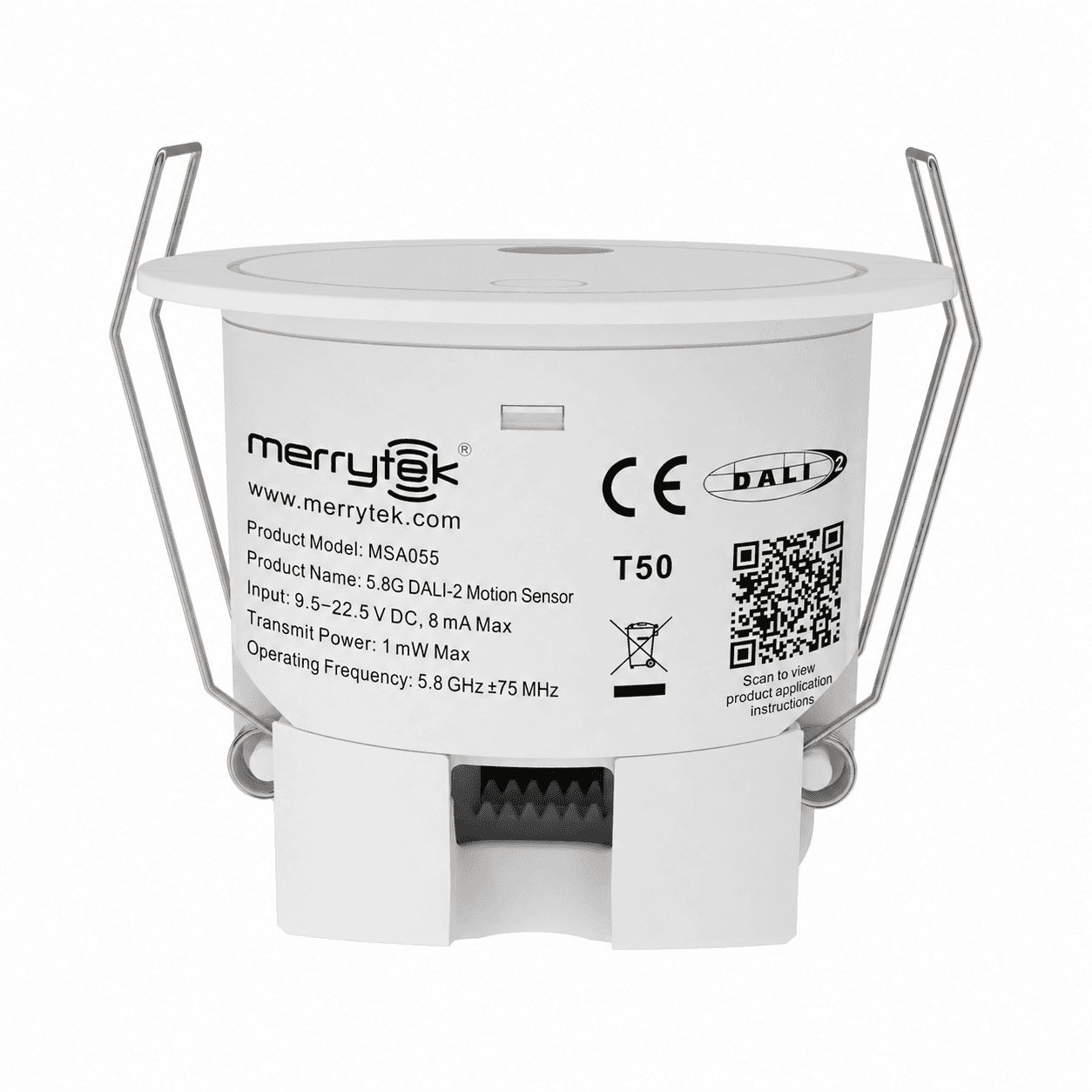

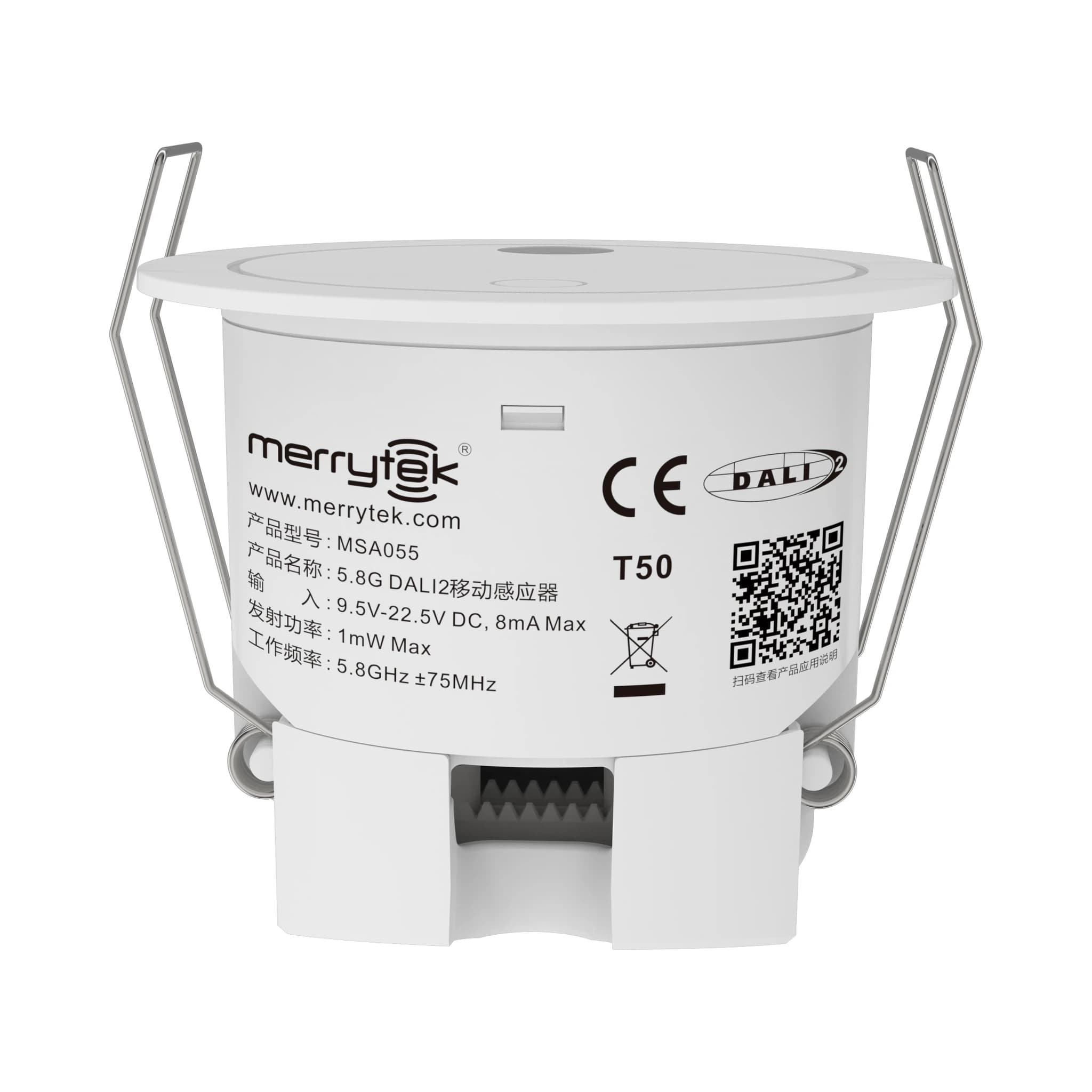

MSA055
Standalone Sensors
MSA055 is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Motion, DALI.
Verified product data
Specifications
Input/Output
- Voltage range
- DALI bus power supply
- Rated current
- 13±1mA
- Communication method
- DALI bus communication
Sensing parameters
- Working frequency
- 5.8G Hz±75MHz, ISM band
- Transmit power
- 5mW Max
- Detection Area
- Remote control MH10 settings: 100% 75% 50% 25%
- Delay setting (Hold Time)
- Dali host settings: 1s -30min (the front end of this product has a fixed delay of 5s, so when it is set to 1s, the actual delay will be 6s)
- Ambient light measurement range
- 0-1200Lux (the product is installed at a height of 3m, and the illumination value reflected from the ground directly below the product is collected)
- Detection range (100% sensitivity, radius)
- Mobile (3m high): 4-5m
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 90° (XZ plane)
- 3dB beam angle (YZ plane)
- 95° (YZ plane)
Usage environment
- Hole size
- Φ55mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -40℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- The whole machine is IP20, the cover is IP44
