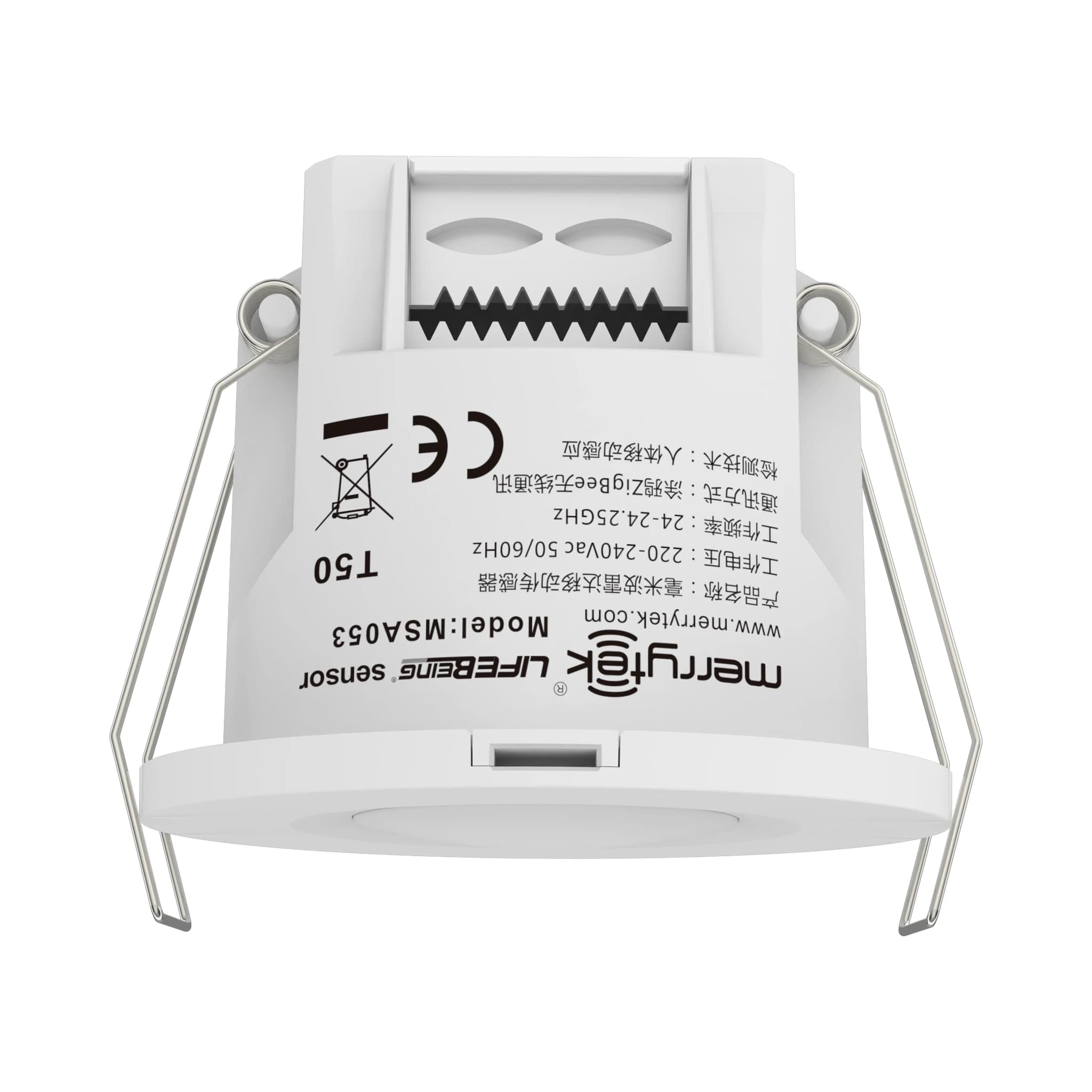

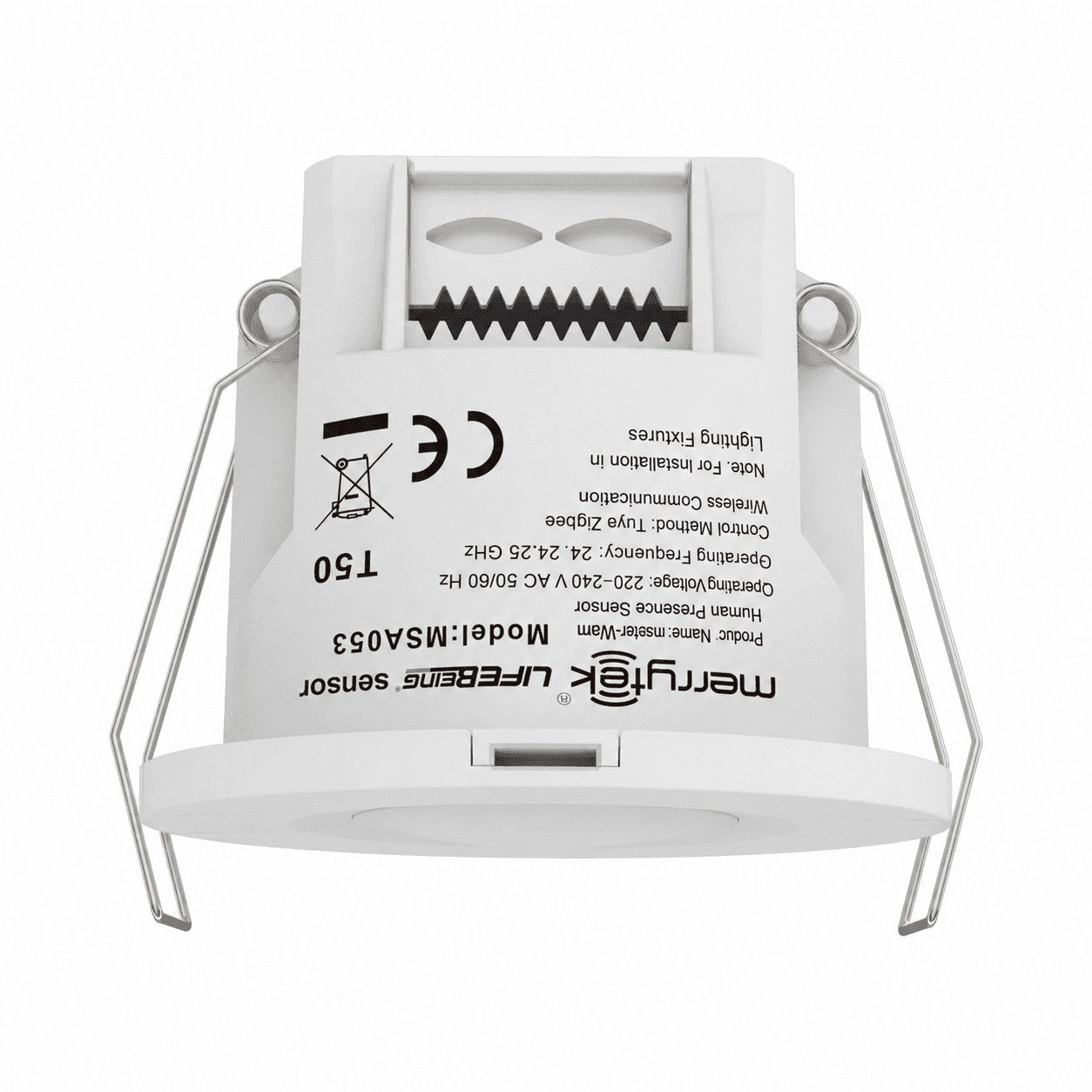

MSA053
Standalone Sensors
MSA053 is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Motion, UART.
Verified product data
Specifications
Input/Output
- Voltage range
- 100-240V AC 50Hz/60Hz
- Rated voltage
- 220V AC
- Operating current
- 50mA max
- Operating power consumption
- ≤1W 230V AC
Wireless module
- Communication module frequency
- 2.4G Hz-2.484G Hz
Sensing parameters
- Microwave radio frequency
- 24G Hz-24.25G Hz ISM band
- Transmit power
- 5mW Max.
- Detection Area
- Serial port setting: 0%-100%
- Delay setting (Hold Time)
- Serial port setting: 5s-30min
- Detection range (100% sensitivity, radius)
- Mobile (3m high): 2-3m
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 100° (XZ plane)
- 3dB beam angle (YZ plane)
- 100° (YZ plane)
Usage environment
- Inline installation opening size
- Φ55mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- IP20
