Standalone Sensors

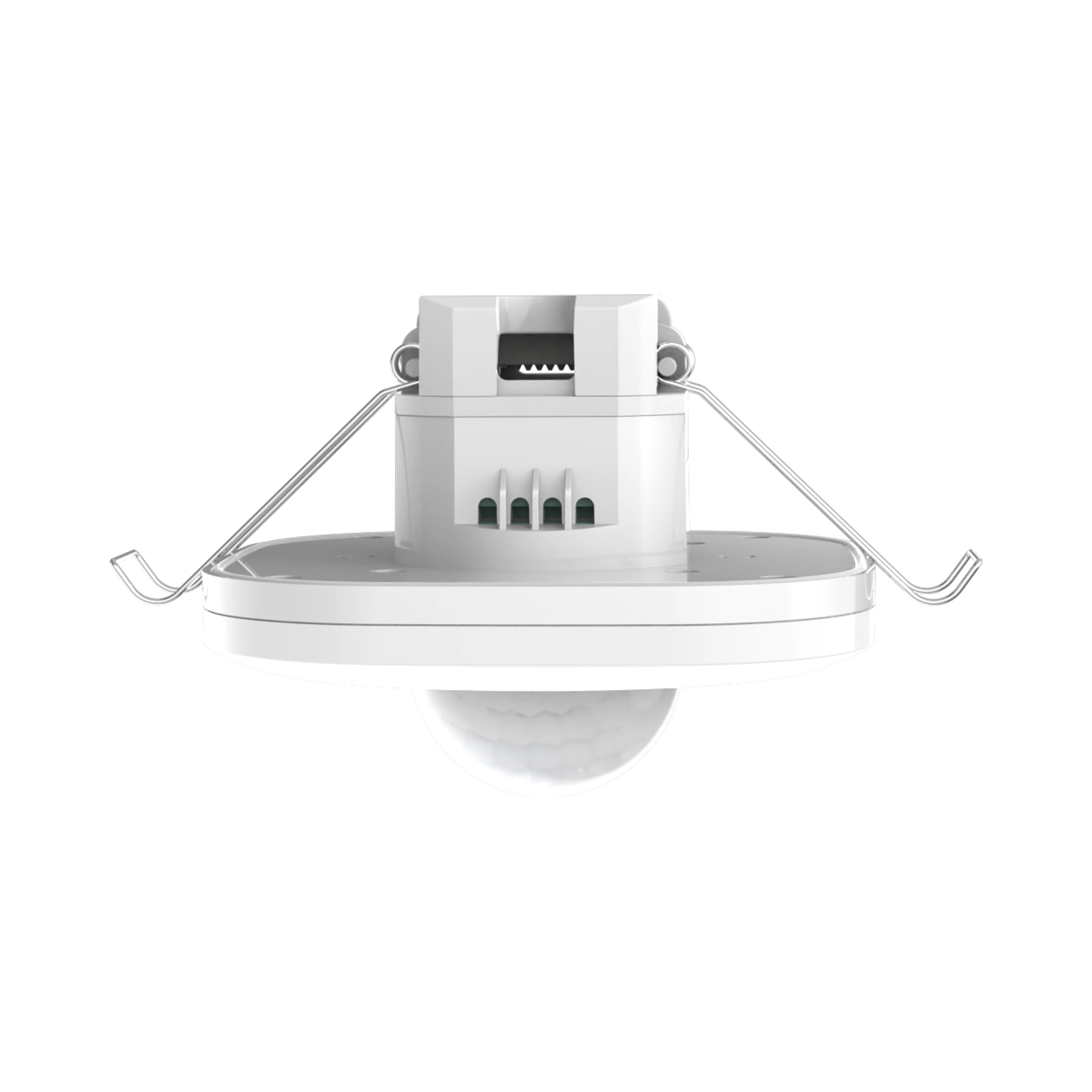

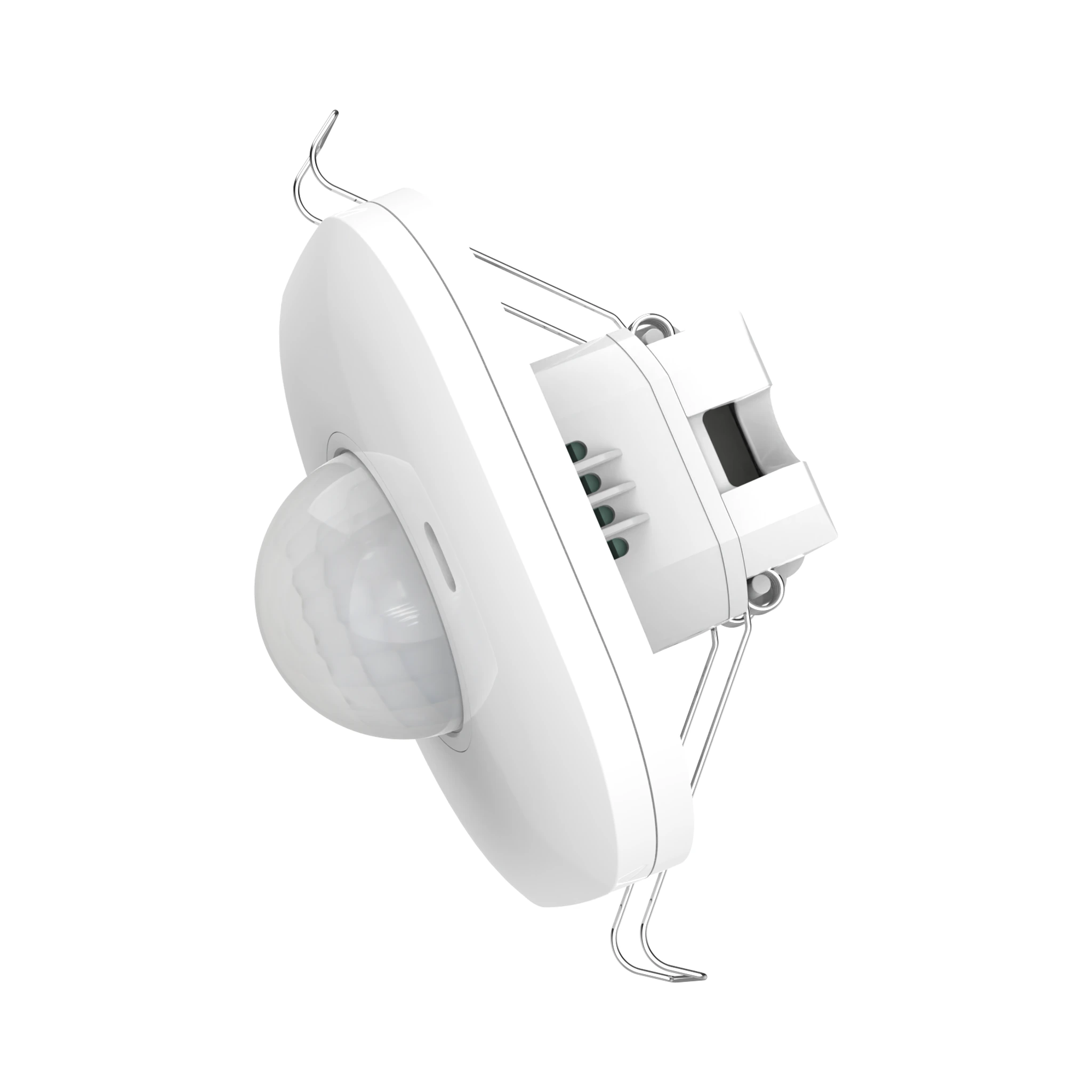

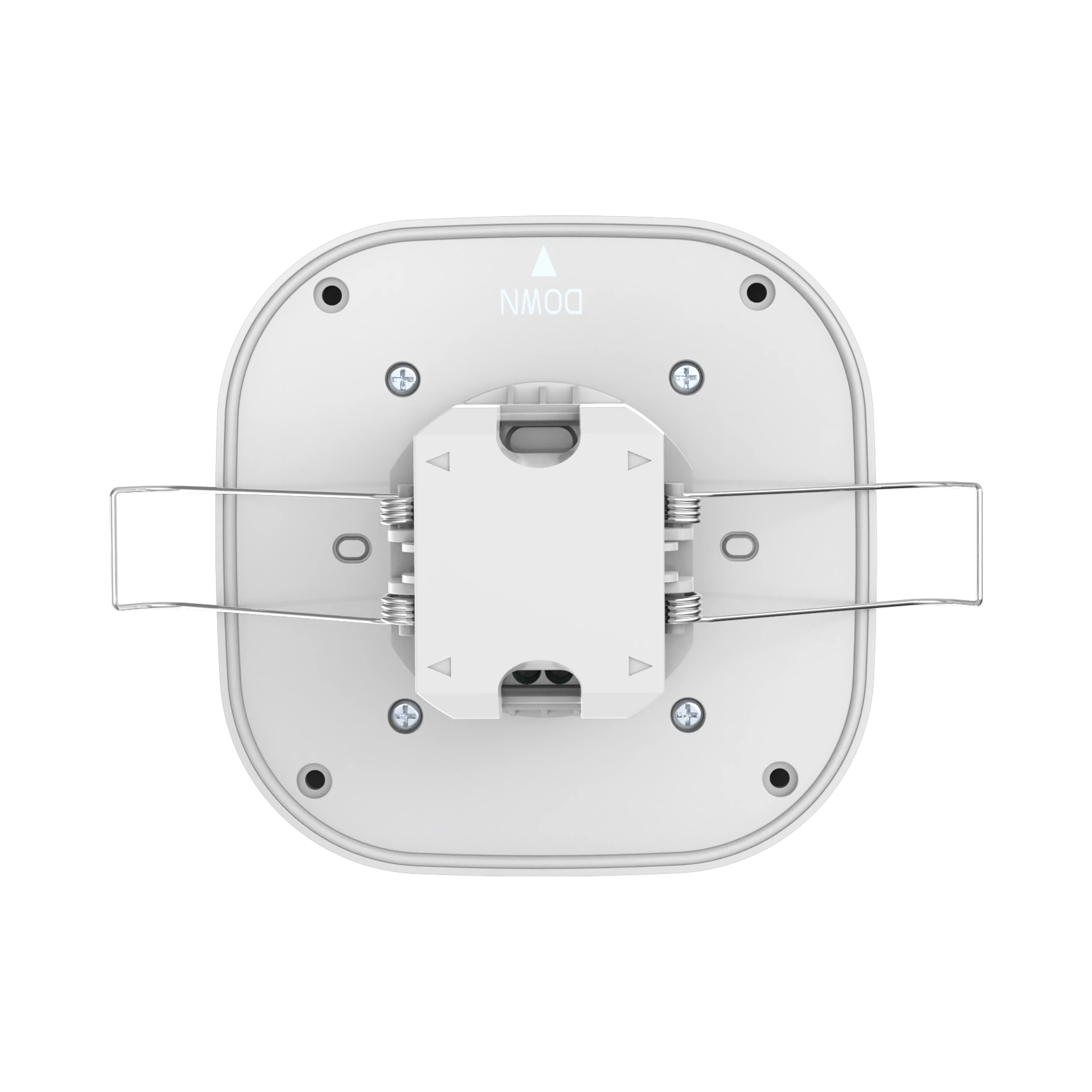

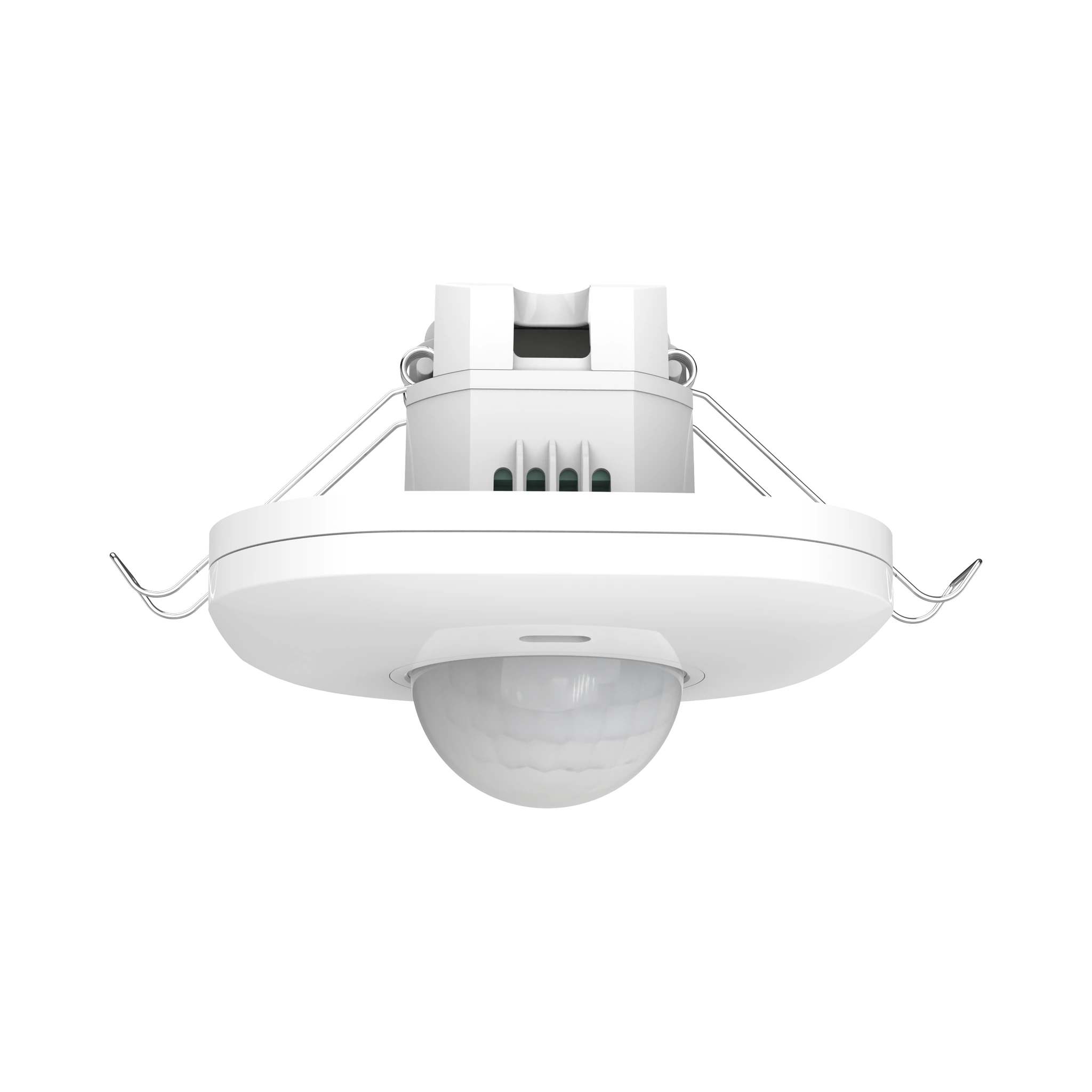

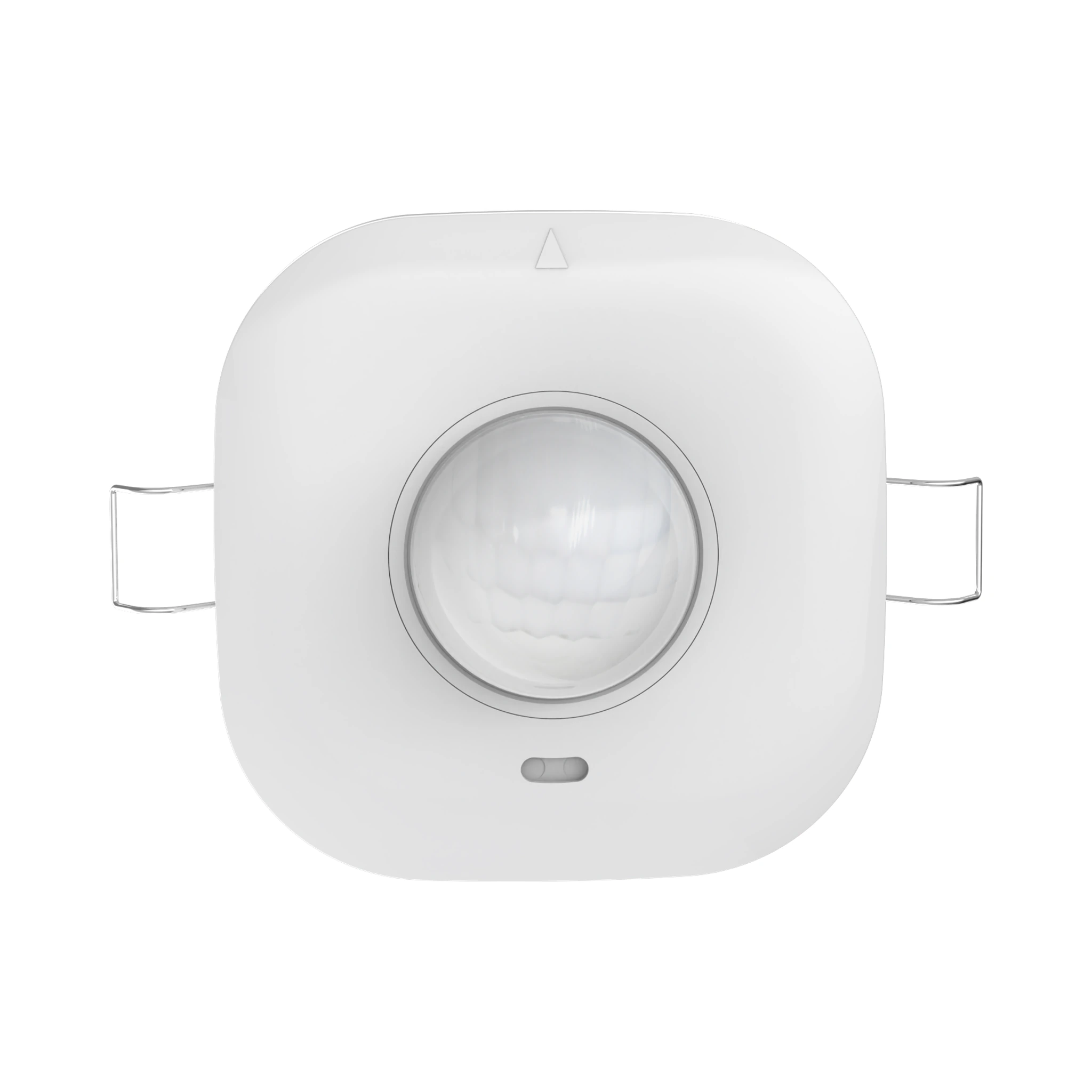

MSA050S IR

Name: MSA050S IR
Brand: Merrytek
SKU: merrytek-1523

Standalone Sensors

MSA050S IR is designed for professional lighting-control and building-automation applications. Supported technologies: PIR, Motion, ON/OFF.

PIRMotionON/OFFIP20

Verified product data

Voltage range: 220-240V AC
Rated voltage: 220V AC
Operating current: 20mA max
Operating power consumption: ≤0.5W @220/230V AC
Output signal: Relay switch
Load surge current: 50A tested at 50% Ipeak twidth 200us @230Vac cold start at full load <<<MT001>>PIR infrared pyroelectric + light detection <<<MT002>>> Dial/MH10 remote control settings: 100%/75%/50%/25% <<<MT003>>> Dial setting: 5s/1min/3min/5min/10min/20min/30minMH10 Remote control setting: 5s/30s/1min/3min/5min/10min/20min/30min <<<MT004>>> Dial setting: 5Lux/15Lux/30Lux/50Lux/100Lux/ 150Lux/Disable (diffusion state) MH10 Remote control setting: 5Lux/15Lux/30Lux/50Lux/100Lux/ 150Lux/Disable (diffusion state) <<<MT005>>> 5 years (limited to product quality issues for indoor applications) <<<MT006>>> Complies with EU RoHS requirements <<<MT007>>>> DALI bus power supply <<<MT008>>>> DALI terminal current <<<MT009>>> Remote control MH10 settings: 100% 75% 50% 25% <<<MT010>>> 5S (fixed delay) + DALI host setting delay <<<MT011>>> Movement (3m high): tangential movement 3-5m @25℃ (the sensing distance will be closer when the human body moves radially than when moving tangentially) <<<MT012>>> Product Category <<<MT013>>> 100° (XZ plane) <<<MT014>>> 100° (YZ plane) <<<MT015>>> Standby power consumption <<<MT016>>> Rated load <<<MT017>>>> Detection Technology

Sensing method: PIR infrared pyroelectric + light detection
Detection Area: Dial/MH10 remote control settings: 100%/75%/50%/25%
Delay setting (Hold Time): Dial setting: 5s/1min/3min/5min/10min/20min/30minMH10 Remote control setting: 5s/30s/1min/3min/5min/10min/20min/30min
Daylight Sensor: Dial setting: 5Lux/15Lux/30Lux/50Lux/100Lux/ 150Lux/Disable (diffusion state) MH10 Remote control setting: 5Lux/15Lux/30Lux/50Lux/100Lux/ 150Lux/Disable (diffusion state)
Detection range (100% sensitivity, radius): Movement (8m high): tangential walking 4-5m@25℃ (the sensing distance will be closer when the human body moves radially than when moving tangentially)
Remote control function: Support
Installation height: 2.5-10m Typical value: 8m

Hole size: Φ55mm
Working environment temperature: -25℃...+50℃ (the lower the temperature, the sensing distance may become farther, the higher the temperature, the sensing distance may become closer)
Storage temperature: -40℃~+80℃
Warranty period: 5 years (limited to product quality issues for indoor applications)
