Standalone Sensors

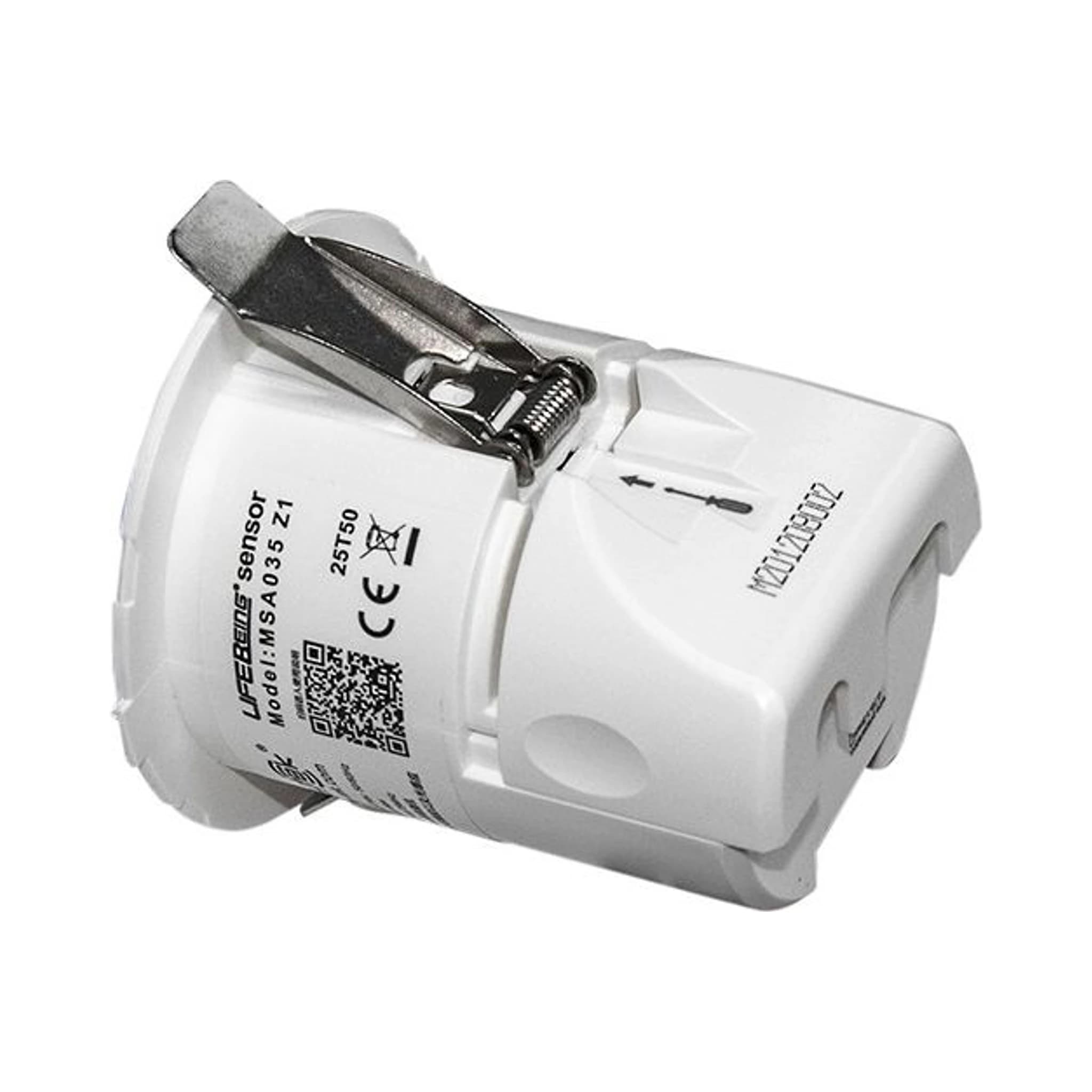

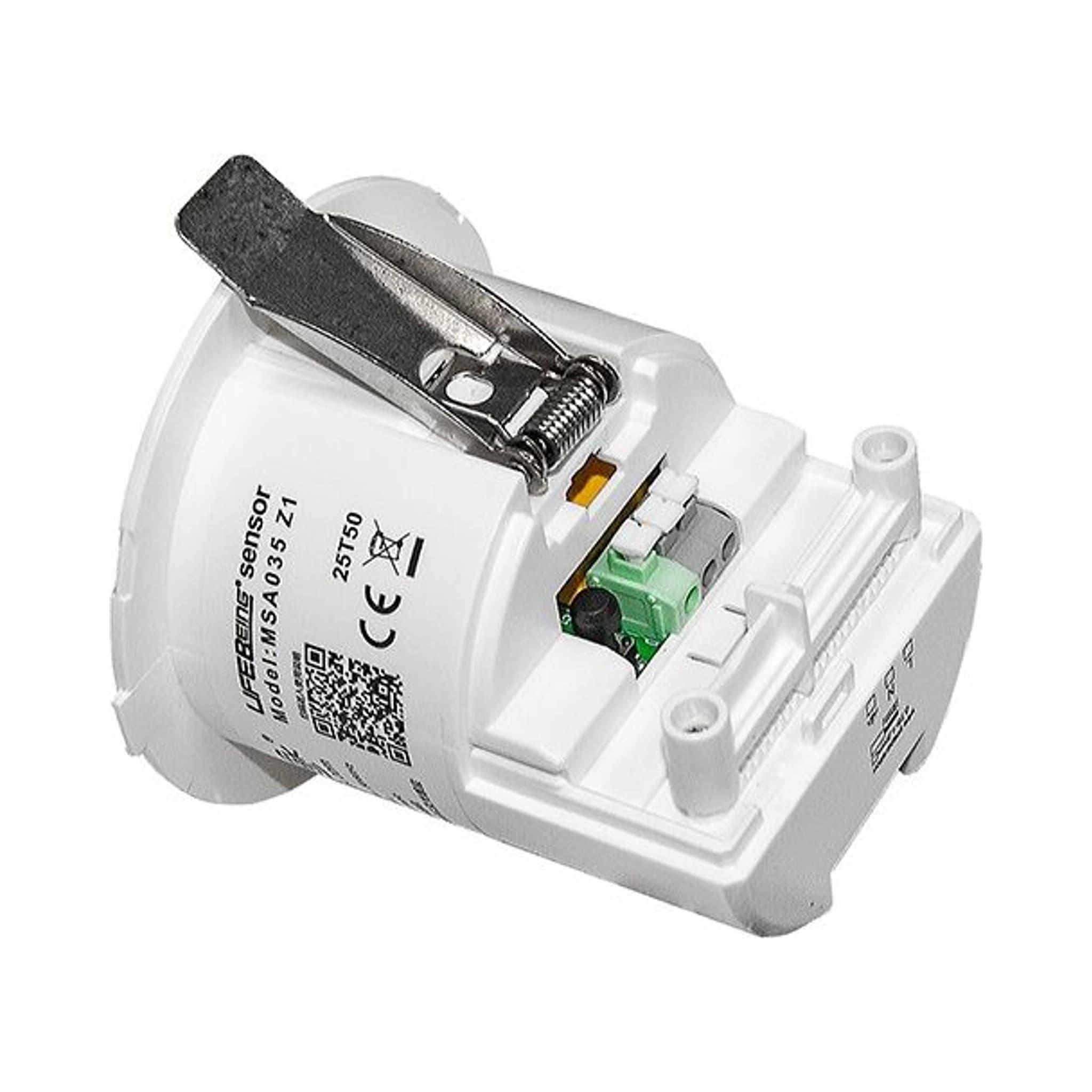

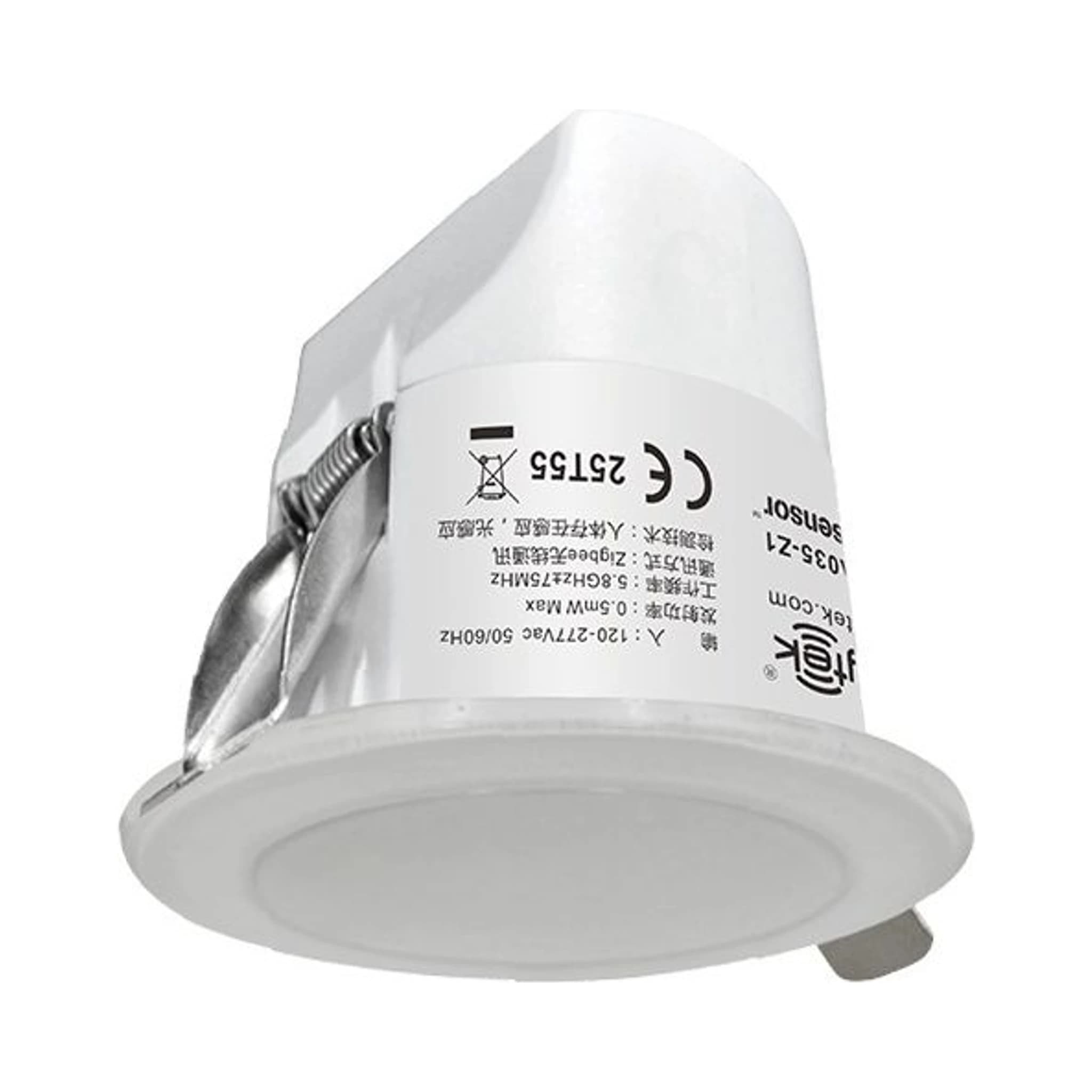

MSA035 Z1
Standalone Sensors
MSA035 Z1 is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Presence, Motion.
Verified product data
Specifications
Input
- Operating voltage
- 100-240VAC, 50/60Hz
- Working current
- <=20mA
Mechanical
- Product size
- Diameter 105 x 85mm
- Cut-out
- Diameter 75mm
Sensor
- Detection radius
- Motion 4m; minor motion 3m; presence 2.5m at 3m
- Daylight measurement
- 0-1200Lux
- Detection technology
- 5.8G Hz presence detection and daylight sensing
Control
- Wireless protocol
- Tuya Zigbee 3.0
Installation
- Mounting height
- 2-4m (typical 3m)
- Installation mode
- Flush mounting
Environment
- IP rating
- IP20
