Standalone Sensors

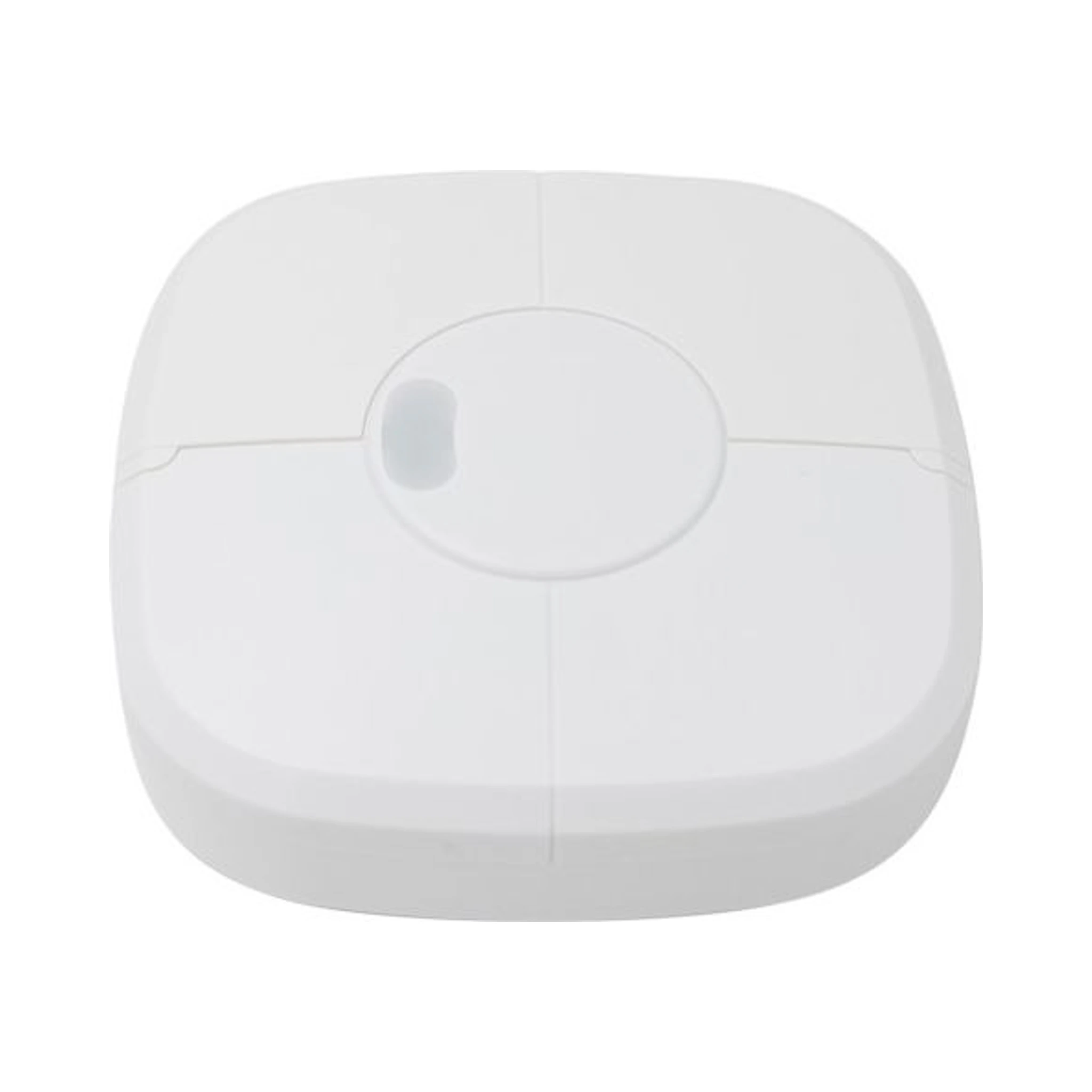

MSA030
Standalone Sensors
MSA030 is designed for professional lighting-control and building-automation applications. Supported technologies: Presence, DALI.
Verified product data
Specifications
Input
- Operating voltage
- 9.5-24V DC via DALI bus
- Operating current
- 40mA maximum at 16V DC
Output
- Working mode
- DALI signal; master / slave
Sensor
- Operating frequency
- 5.8G Hz +/-75MHz, ISM band
- Transmit power
- 5mW maximum
- Hold time
- 5s / 30s / 1 / 3 / 5 / 10 / 20 / 30min
- Detection area
- 100% / 75% / 50% / 25%
- Daylight threshold
- 5Lux / Disable
- Detection radius
- Motion 3-4m; slight motion 3-4m; breathing 2-3m
Installation
- Mounting height
- 2.5-4m
- Detecting angle
- 150 deg wall / 360 deg ceiling
Mechanical
- Dimensions
- 110 x 110 x 32mm
Environment
- Operating temperature
- 0 to +50 C
- IP rating
- IP20
Compliance
- Certification
- CE / RED / RoHS
