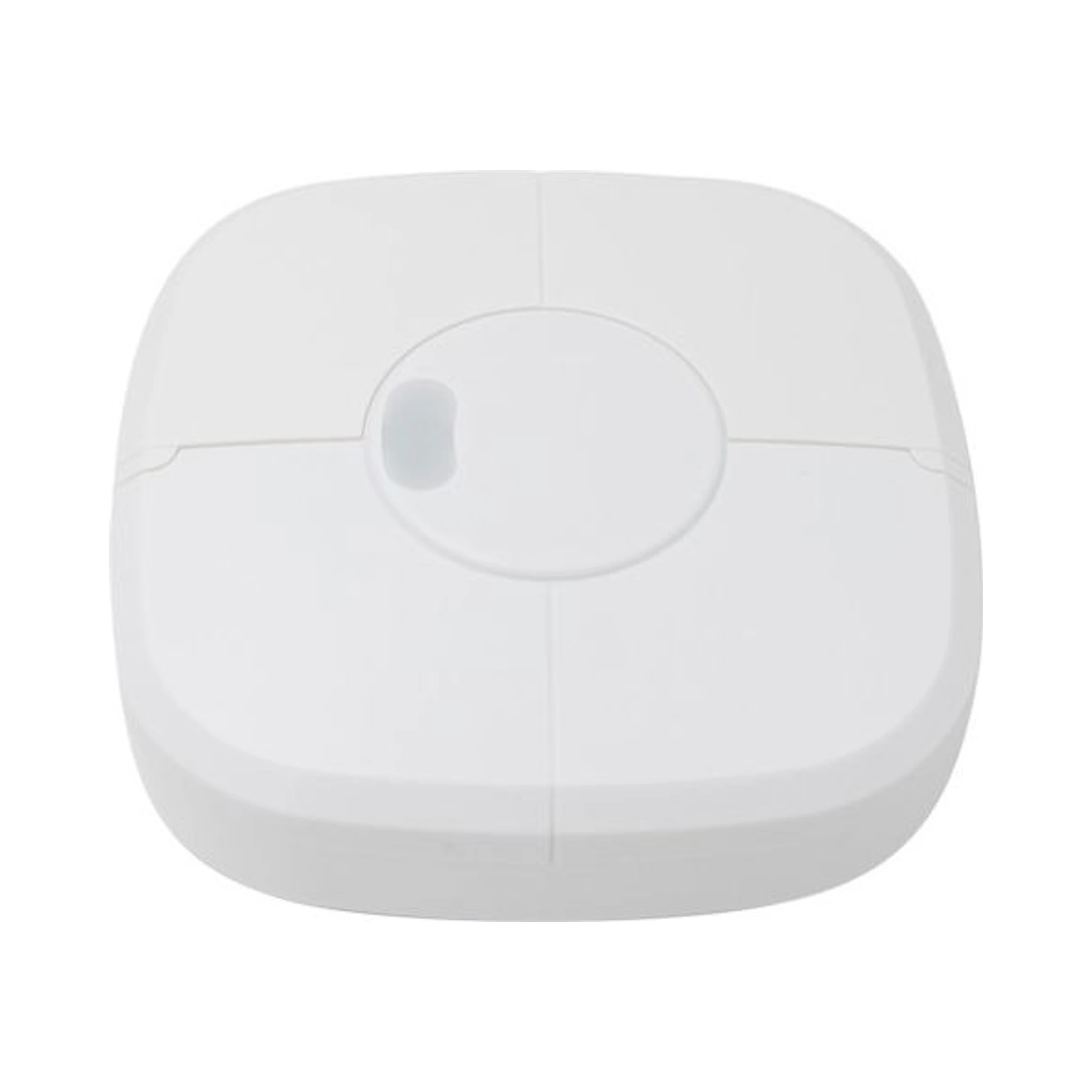

Standalone Sensors
MSA029
Standalone Sensors
MSA029 is designed for professional lighting-control and building-automation applications. Supported technologies: Presence, DALI.
Verified product data
Specifications
Input
- Operating voltage
- 108-305VAC, 50/60Hz
- Rated voltage
- 120-277VAC, 50/60Hz
- Stand-by power
- <2W
Control
- DALI interface
- DA+ / DA-, 200mA maximum, 300m lead maximum
- PUSH interface
- Manual ON/OFF and dimming
Sensor
- Operating frequency
- 5.8G Hz +/-75MHz, ISM band
- Transmit power
- 5mW maximum
- Detection area
- 100% / 50%; remote 100% / 75% / 50% / 25%
- Hold time
- 5s / 30s / 1 / 3min; remote up to 30min
- Stand-by dim level
- 10% / 20% / 30% / 50%
- Stand-by period
- 0s / 10min / 20min / infinite; remote 0s-30min / infinite
- Daylight threshold
- 5Lux / Disable; remote 5-150Lux / Disable
- Detection radius
- Motion 3-4m; slight motion 3-4m; breathing 2-3m
Installation
- Mounting height
- 2.5-4m
