Standalone Sensors

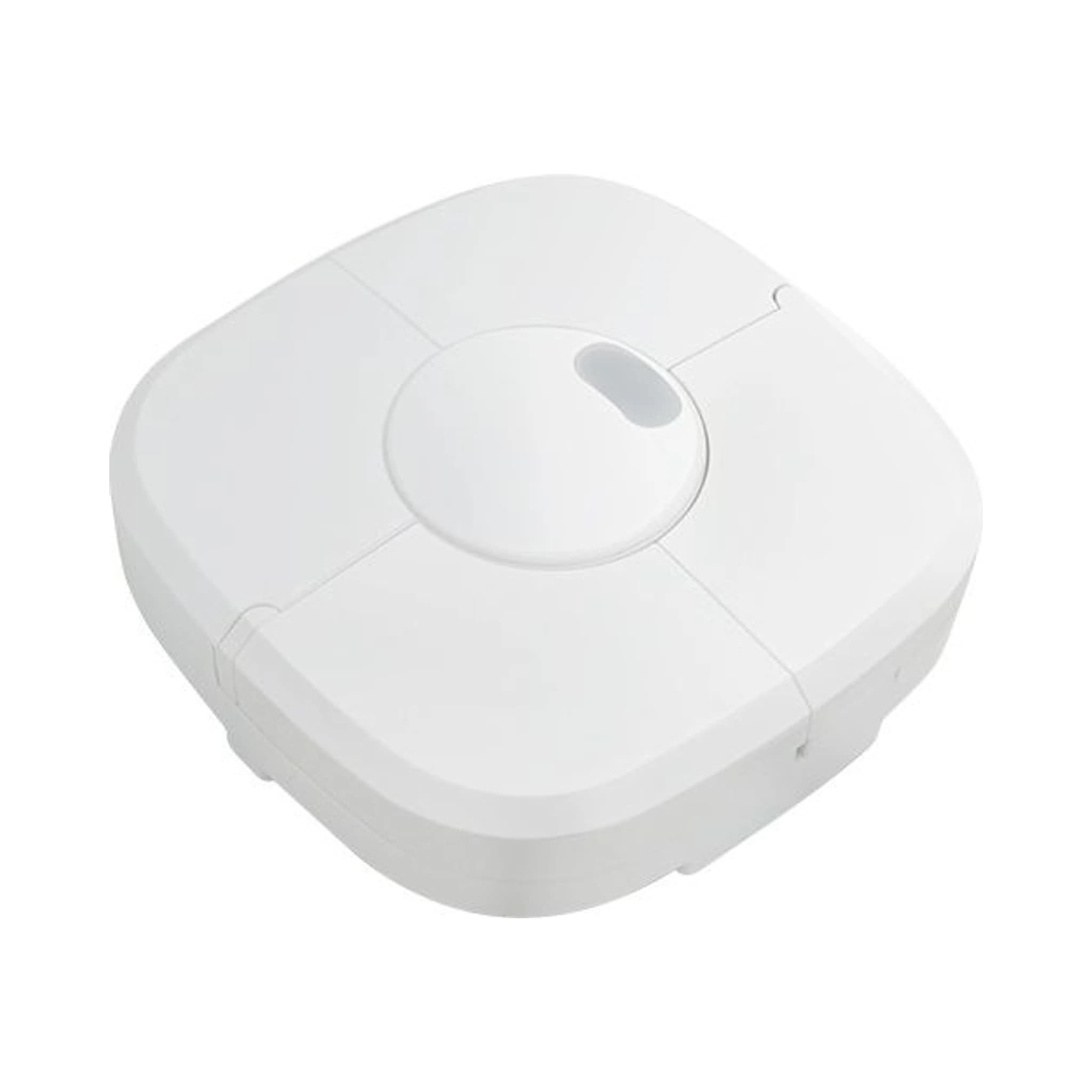

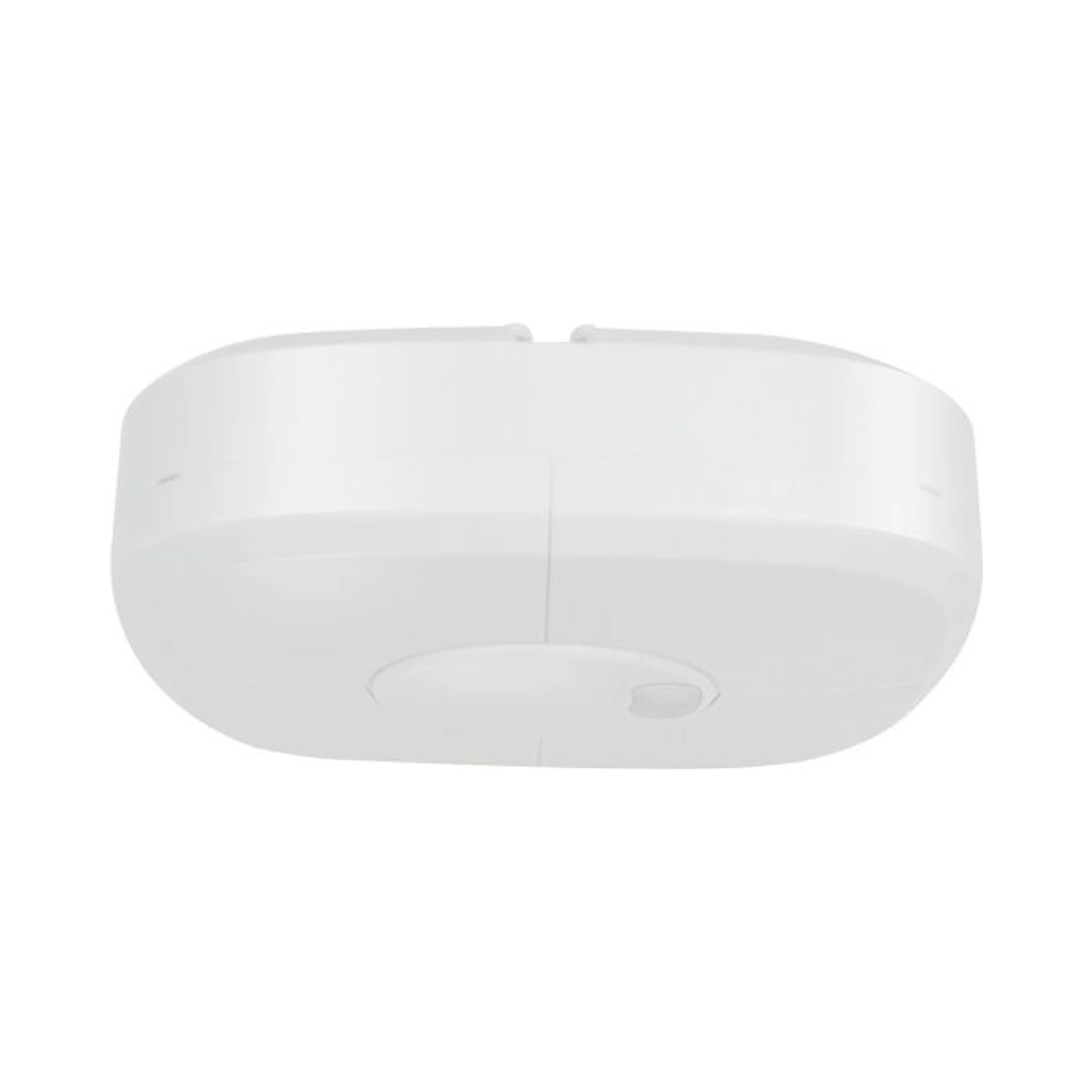

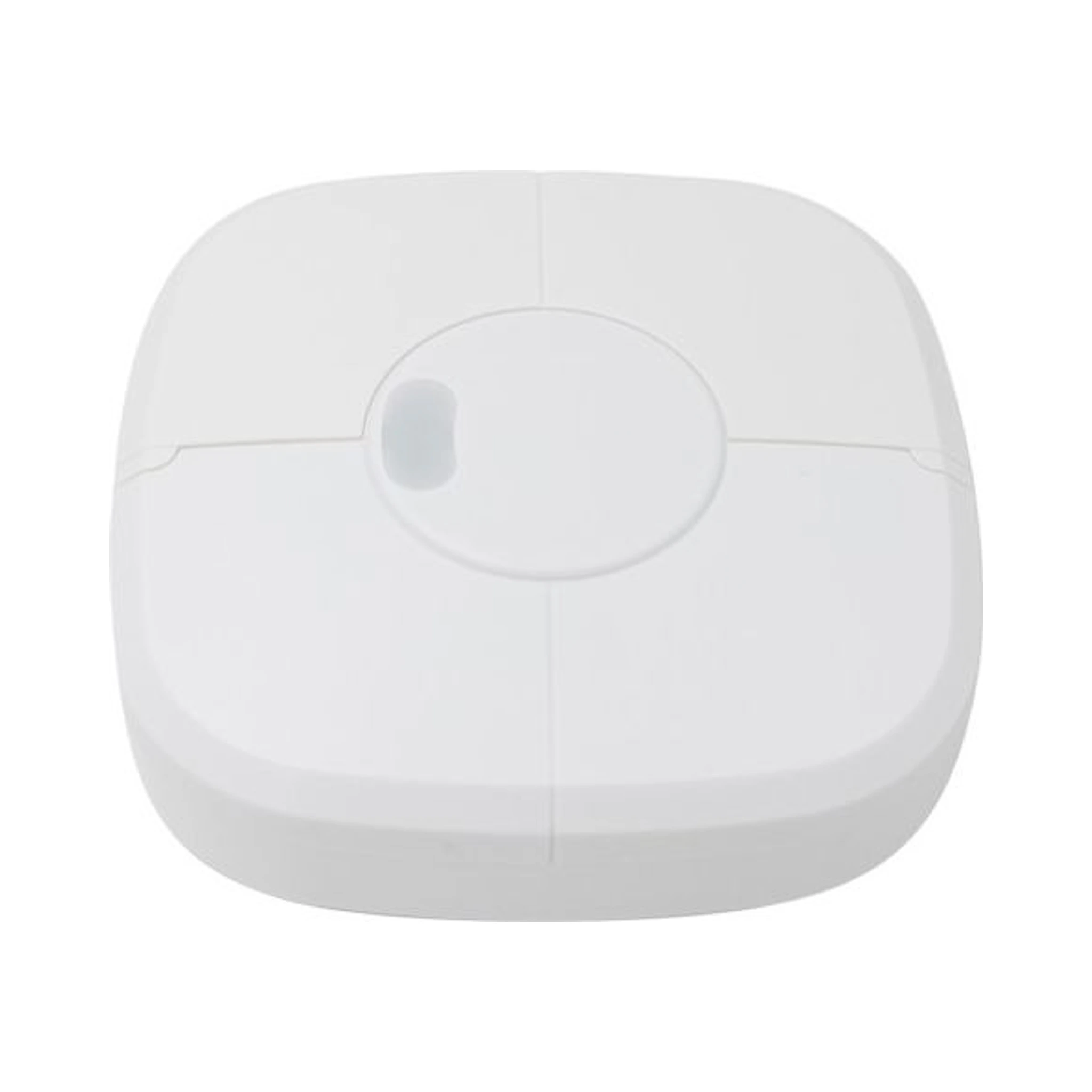

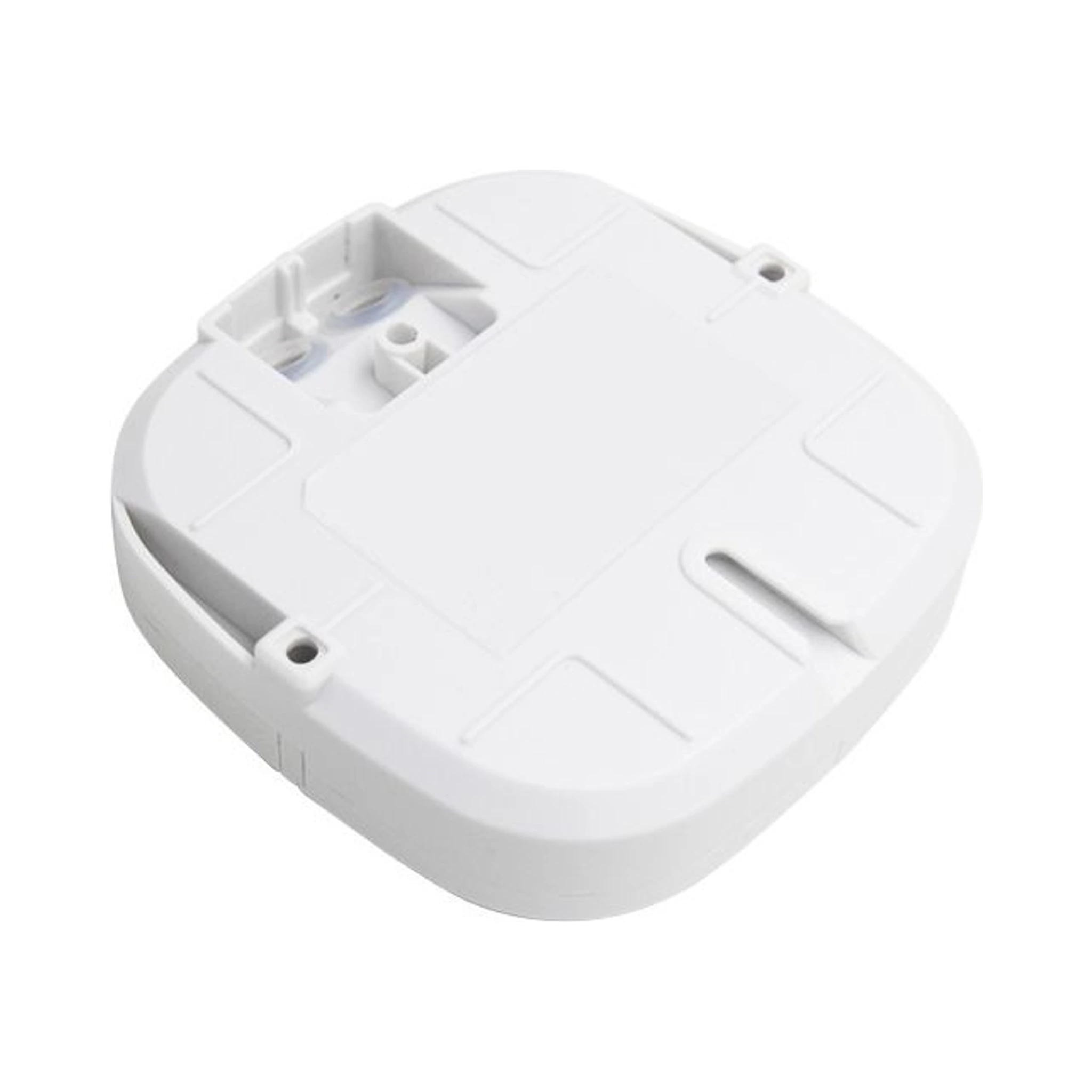

MSA025S
5.8G Hz space presence sensor (ON/OFF version)
MSA025S is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Presence, ON/OFF.
Verified product data
Specifications
Input
- Operating voltage
- 100-240VAC, 50/60Hz
Output
- Output signal
- ON/OFF
- Maximum load
- 400W inductive / 800W resistive
Mechanical
- Product size
- 110 x 110 x 32mm
Sensor
- Detection radius
- Motion 4m; minor motion 3m; breathing 2.5m
- Daylight threshold
- 5-150Lux / Disable
- Detection technology
- 5.8G Hz presence detection and daylight sensing
Installation
- Mounting height
- 2-4m (typical 3m)
- Installation mode
- Surface mounting
