Standalone Sensors

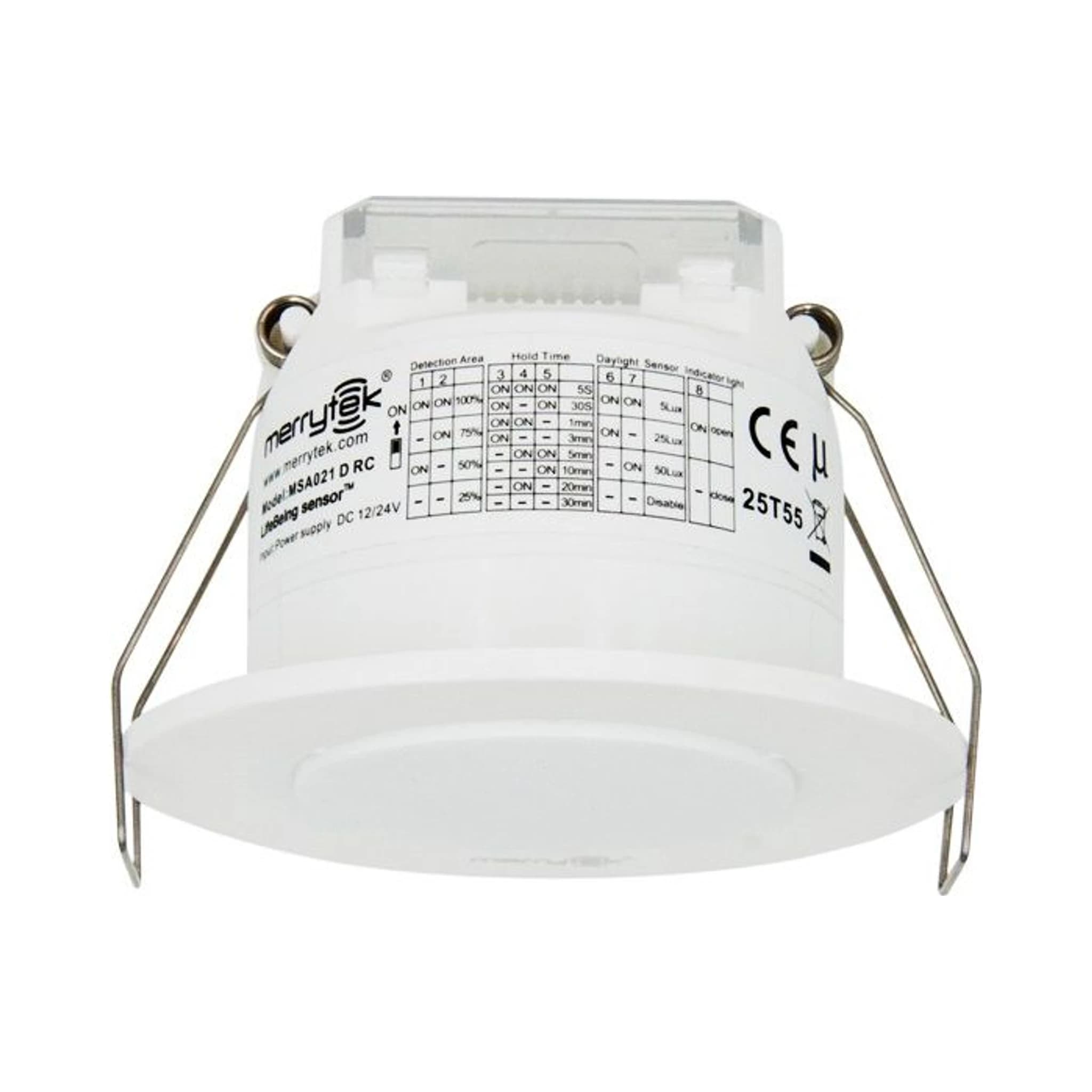

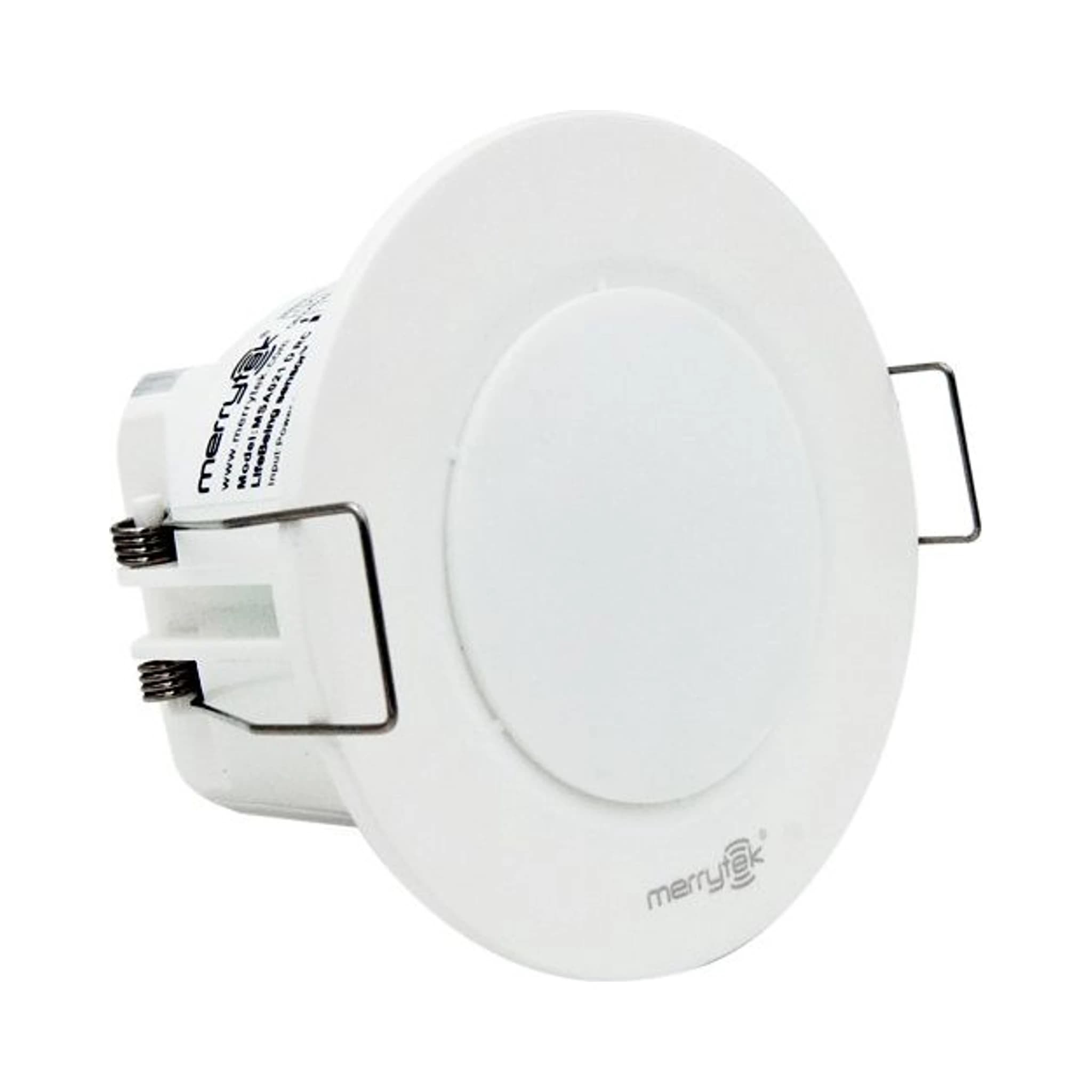

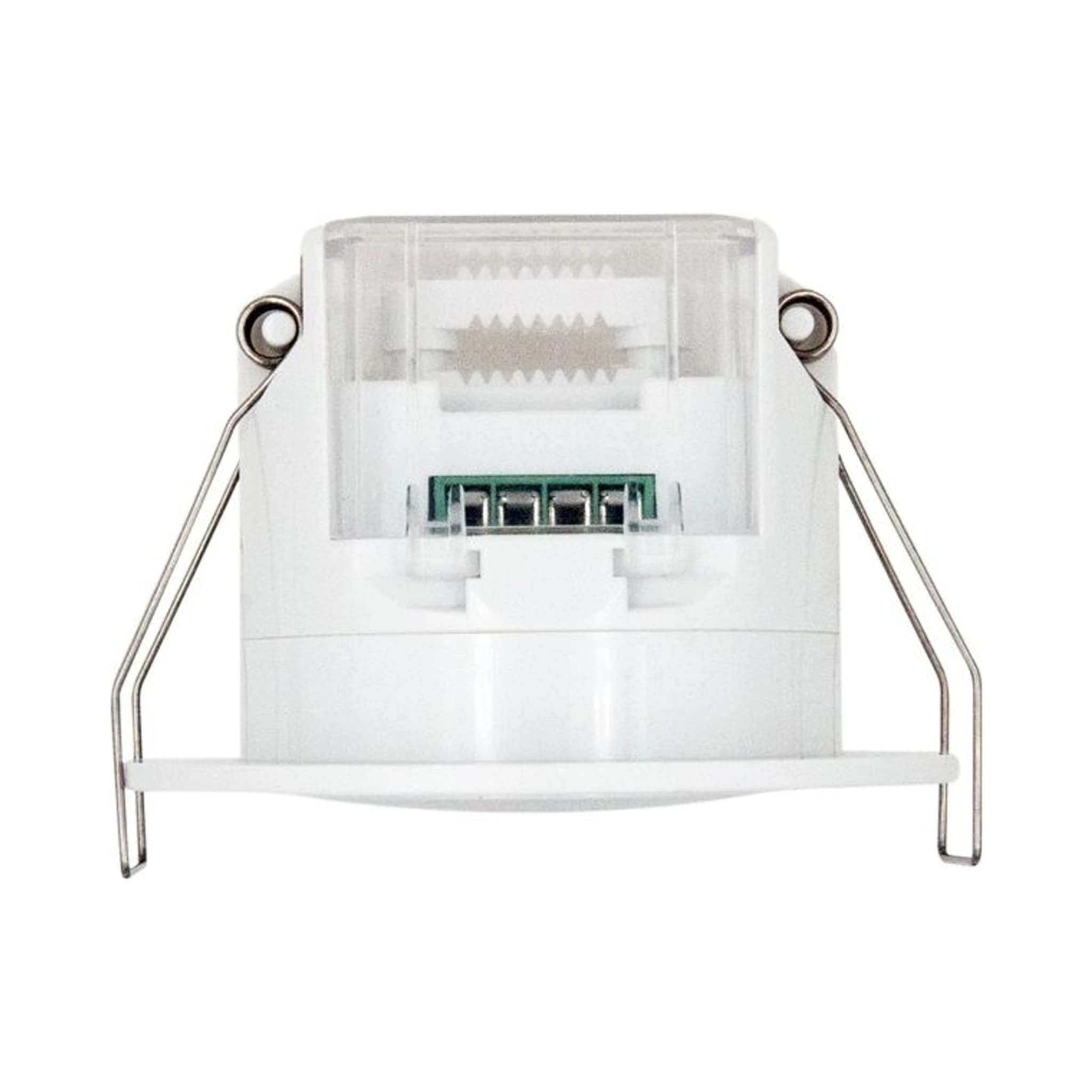

MSA021D RC
5.8GHz
5.8G Hz space presence sensor (dry-contact version)
MSA021D RC is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Presence, Motion.
Verified product data
Specifications
Technical specifications
- Rated voltage
- 12/24V DC
- Standby power consumption
- <0.5W
- Rated load
- 400W (Inductive) 800W (resistive)
- Detection Technology
- Motion/Micromotion/Respiration Mixed Detection
- Working mode
- Dry contact
- Working frequency
- 5.8 G Hz ±75 MHz, ISM band
- Transmit power
- 0.5mW Max.
- Delay setting
- 5S/30S/1Min/3Min/5Min/10Min/20Min/30Min
- Sensing distance
- 100%/75%/50%/25%
- Daylight setting
- 5lux/25lux/50lux/Disable
- Operating temperature
- -25~50℃
- IP level
- IP20
- Hole size
- φ65-75mm
