Standalone Sensors

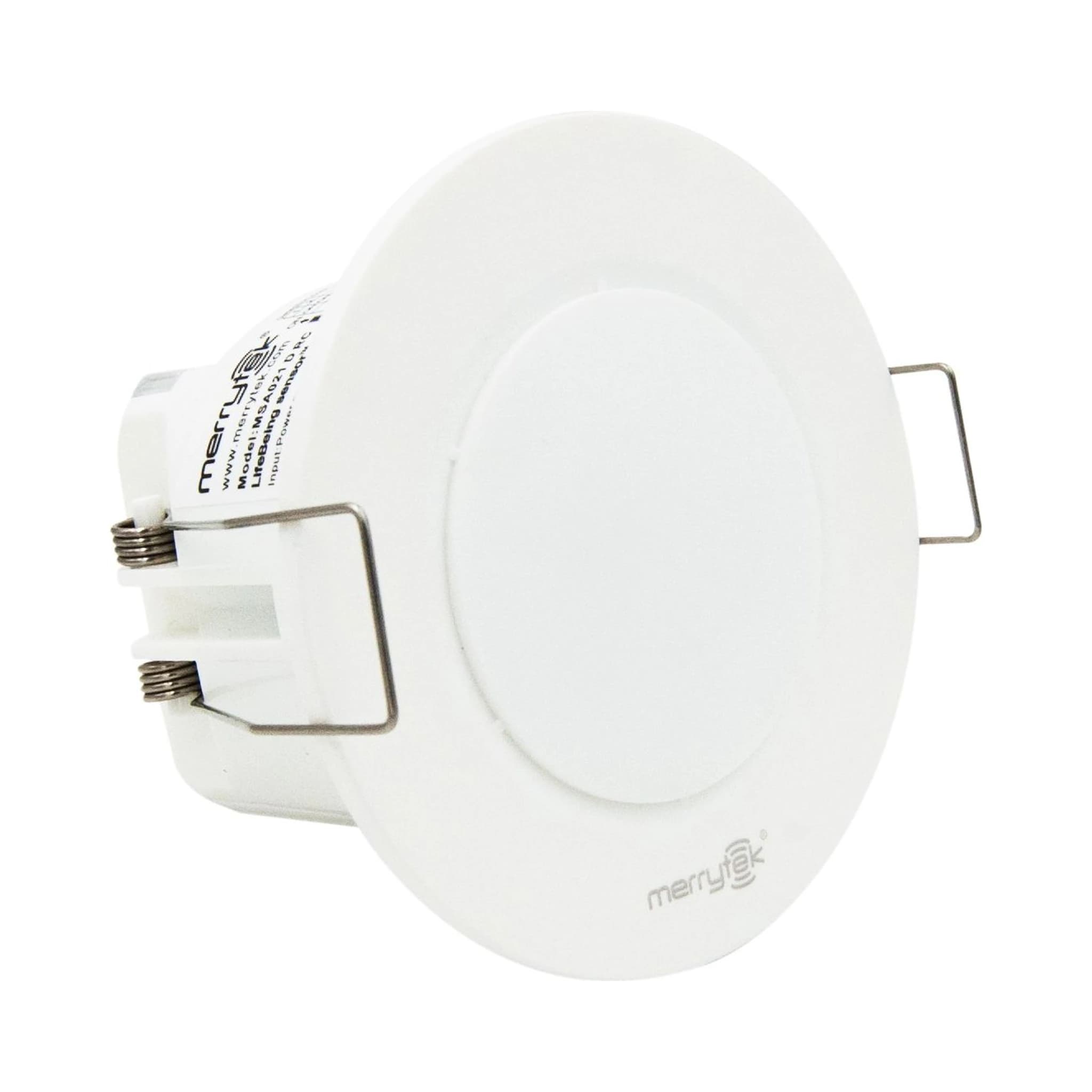

MSA021D RC
24GHz
24GHz space presence sensor (dry-contact version)
MSA021D RC is designed for professional lighting-control and building-automation applications. Supported technologies: 24GHz, Presence, Motion.
Verified product data
Specifications
Input/Output
- Voltage range
- 12-24V DC
- Rated voltage
- 12V DC
- Operating current
- 50mA max
- Operating power consumption
- ≤1W 12V DC
- Output signal
- Normally open/normally closed dry contact (default normally open)
Sensing parameters
- Microwave radio frequency
- 24.125G Hz±125MHz ISM band
- Transmit power
- 5mW Max
- Detection Area
- Dial/remote control: 0-5m
- Delay setting (Hold Time)
- Dial/remote control: 10s-30min Note: The presence detection function is set to at least ≥30S
- Detection range (100% sensitivity, radius)
- Movement/micromotion/existence (3m high): 4.5±0.5m (based on indoor open 41㎡ space test, the sensing distance may fluctuate slightly in different environments)
- Daylight setting
- 5-150lux/Disable
- Remote control function
- Support
- Installation height
- 2-4m
- Sensing angle
- 150°
Usage environment
- Hole size
- Φ65-70mm
- Installation method
- Ceiling embedded installation
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- CE/FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
