Standalone Sensors
MSA017K
Standalone Sensors

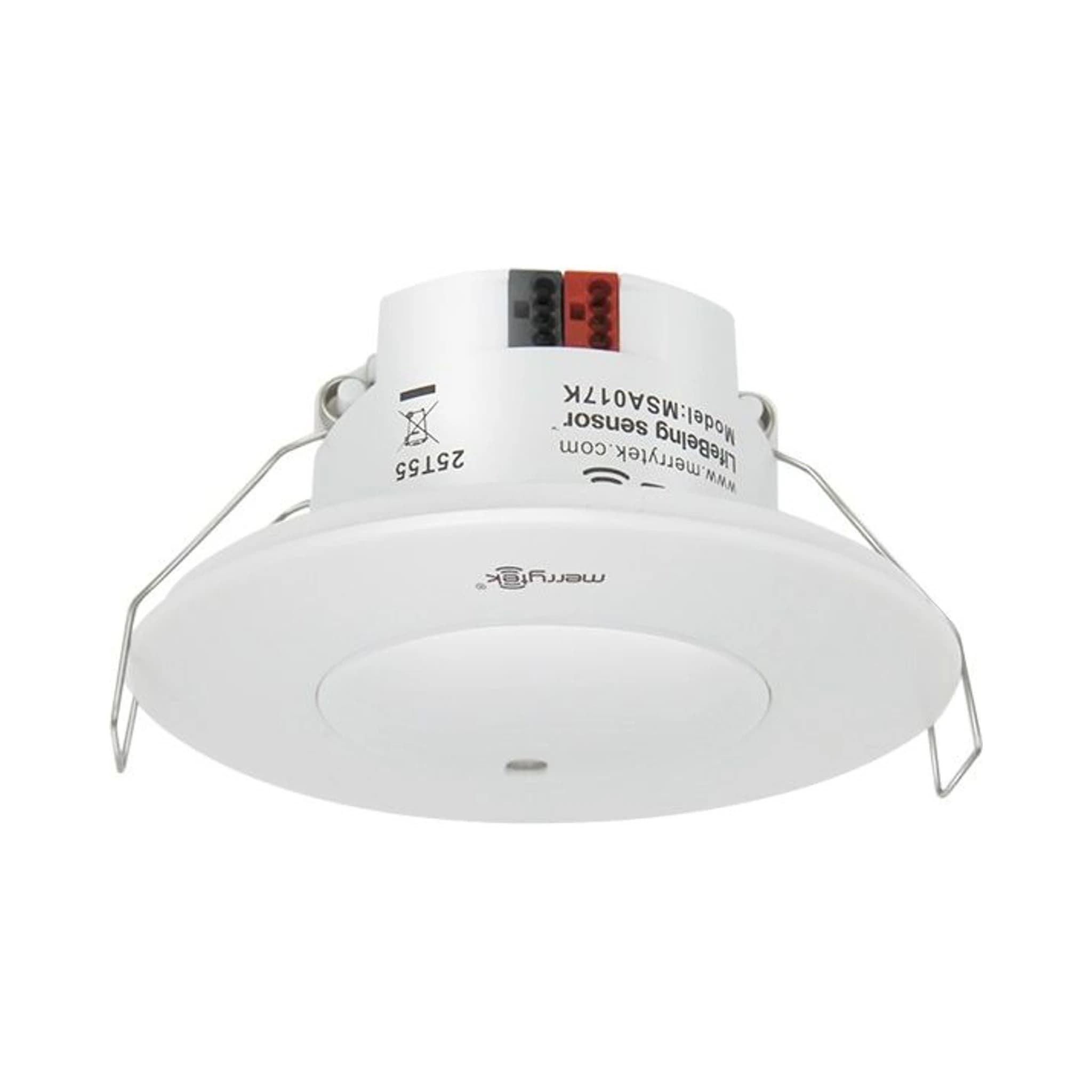

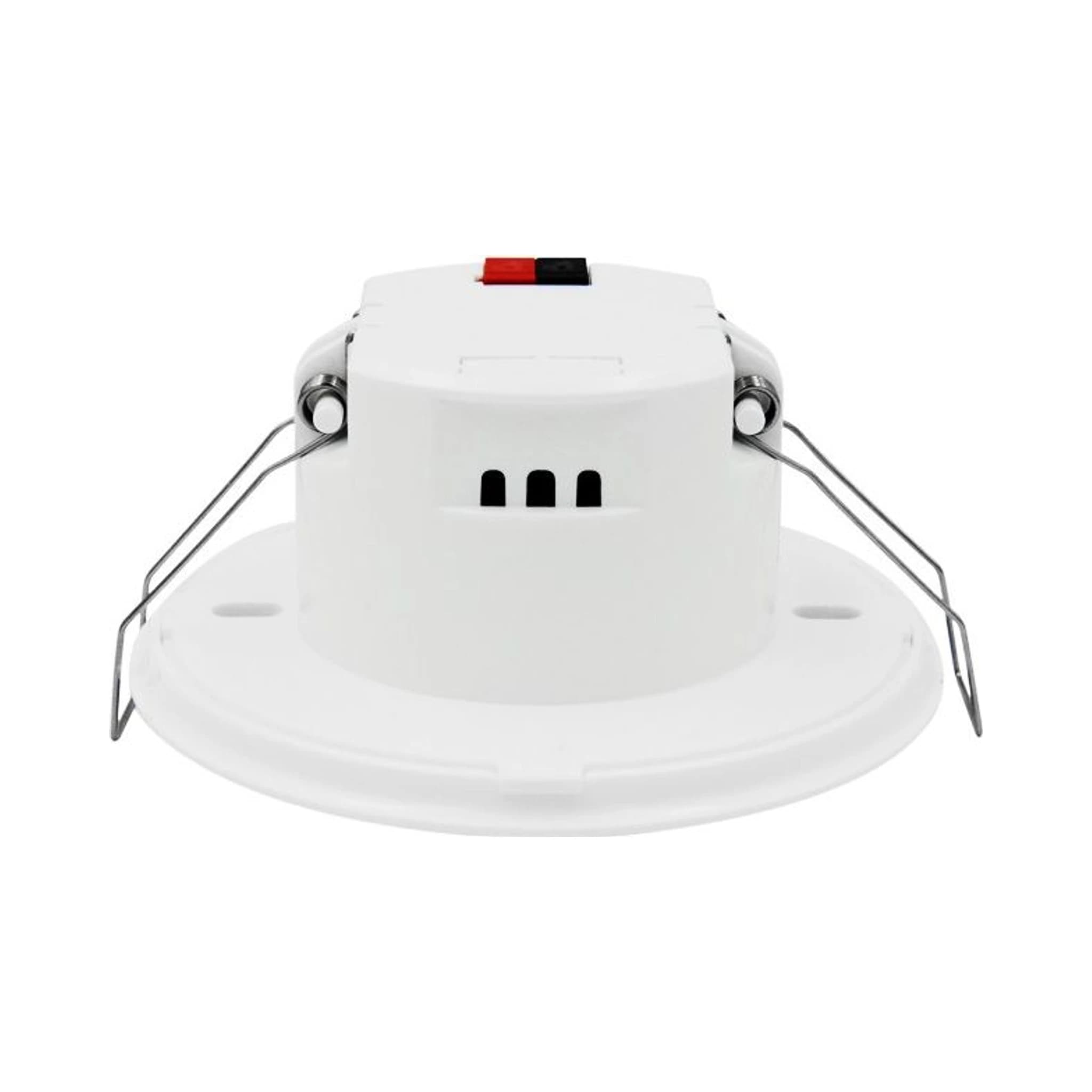

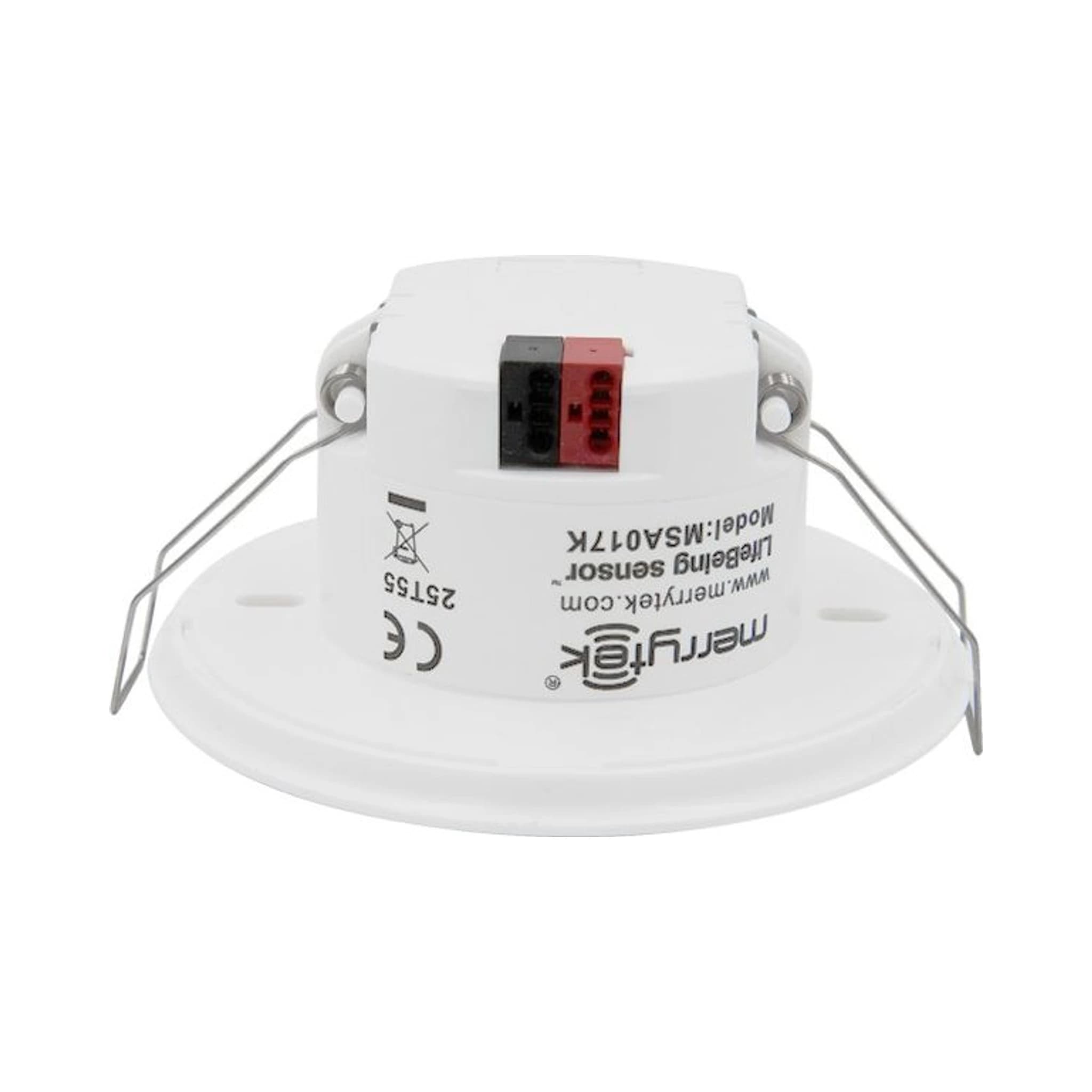

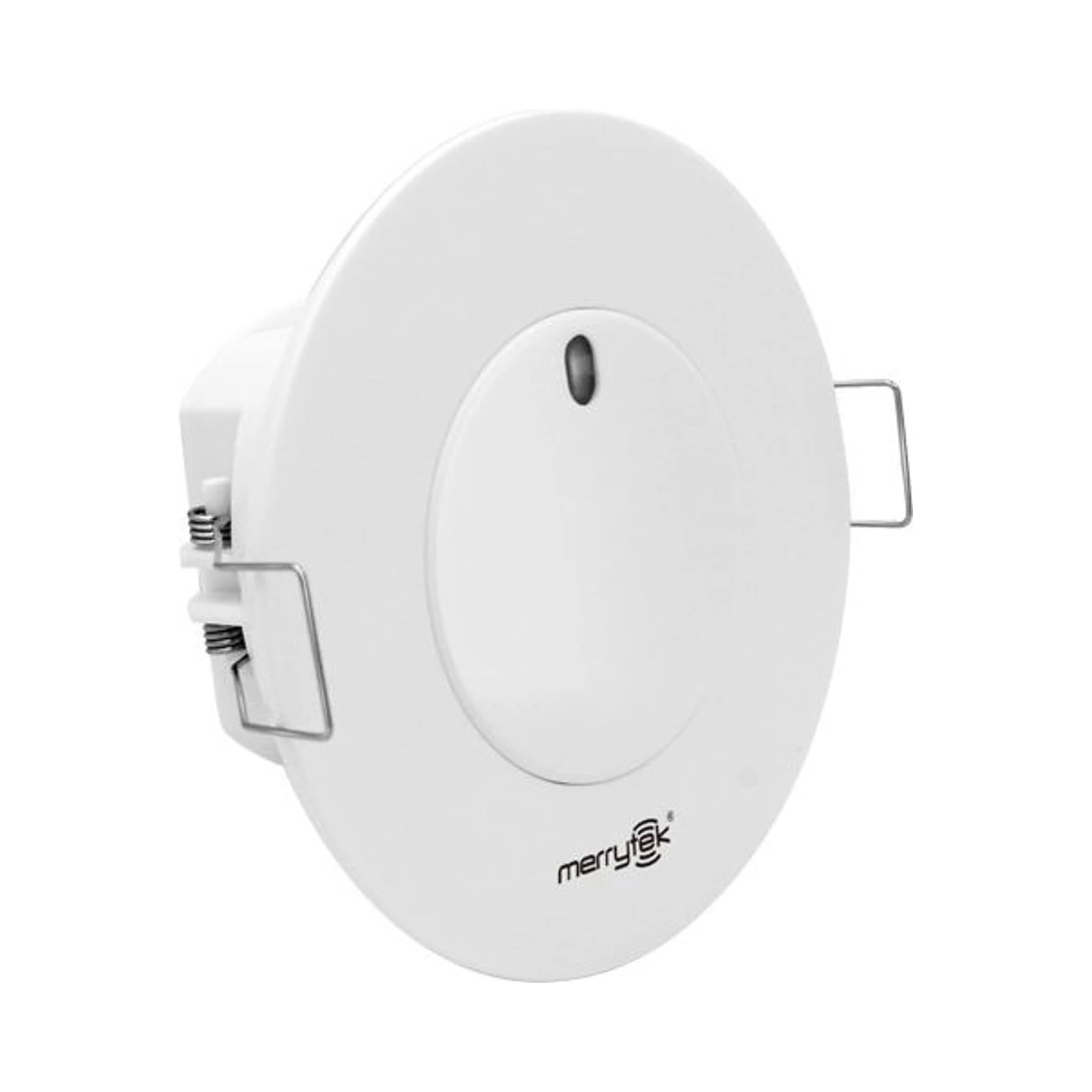

MSA017K is designed for professional lighting-control and building-automation applications. Supported technologies: Presence, Motion, KNX.
Verified product data
Specifications
Input
- Operating voltage
- 21-30V DC via KNX bus
- Working current
- <=15mA
Mechanical
- Product size
- Diameter 89 x 34mm
- Cut-out
- Diameter 60mm
Sensor
- Detection radius
- Motion 4m; minor motion 3m; presence 2.5m at 3m
- Daylight measurement
- 0-65535Lux
- Detection technology
- 5.8G Hz presence detection and daylight sensing
Control
- Output / protocol
- KNX bus
Installation
- Mounting height
- 2-4m (typical 3m)
- Installation mode
- Flush mounting
Environment
- IP rating
- IP20
