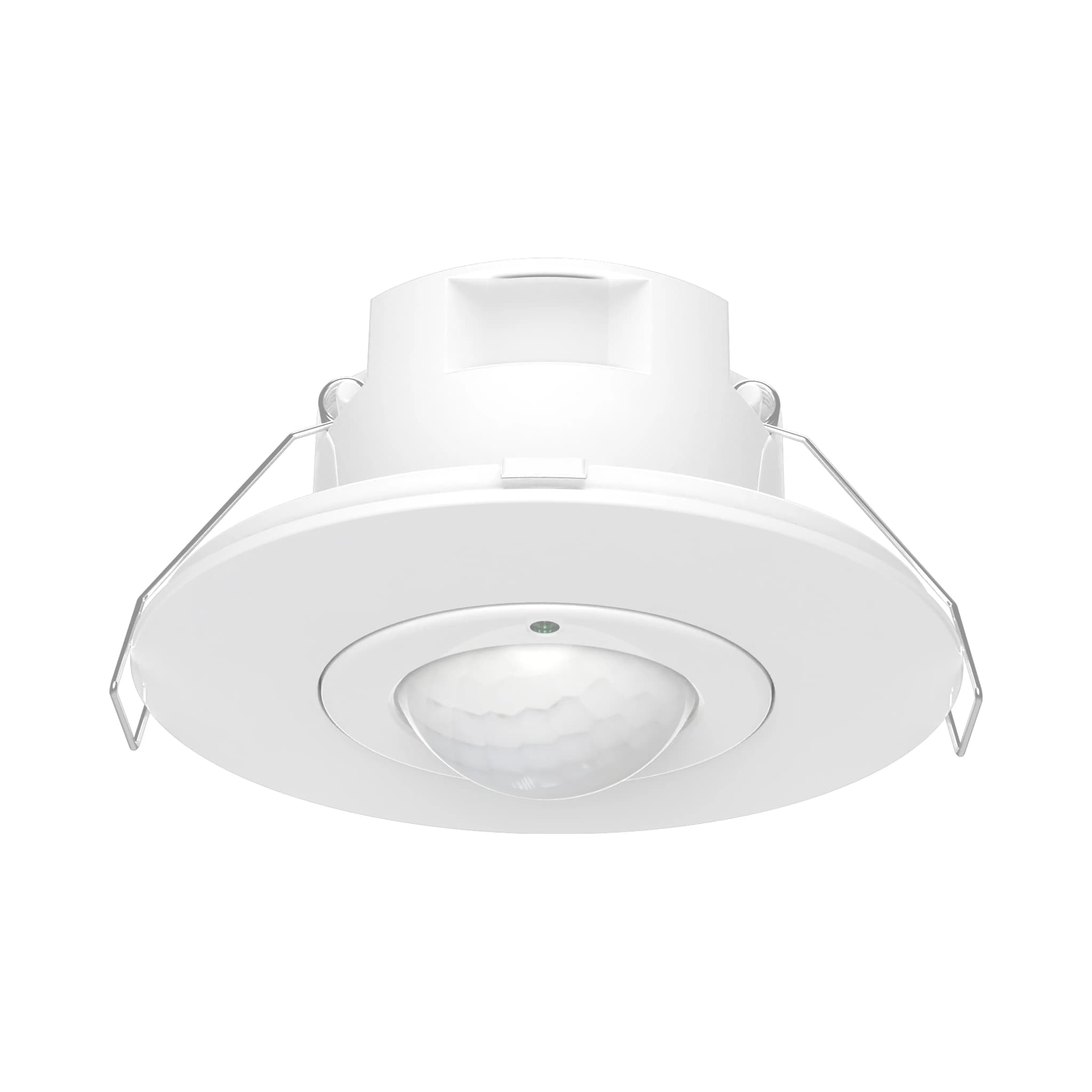

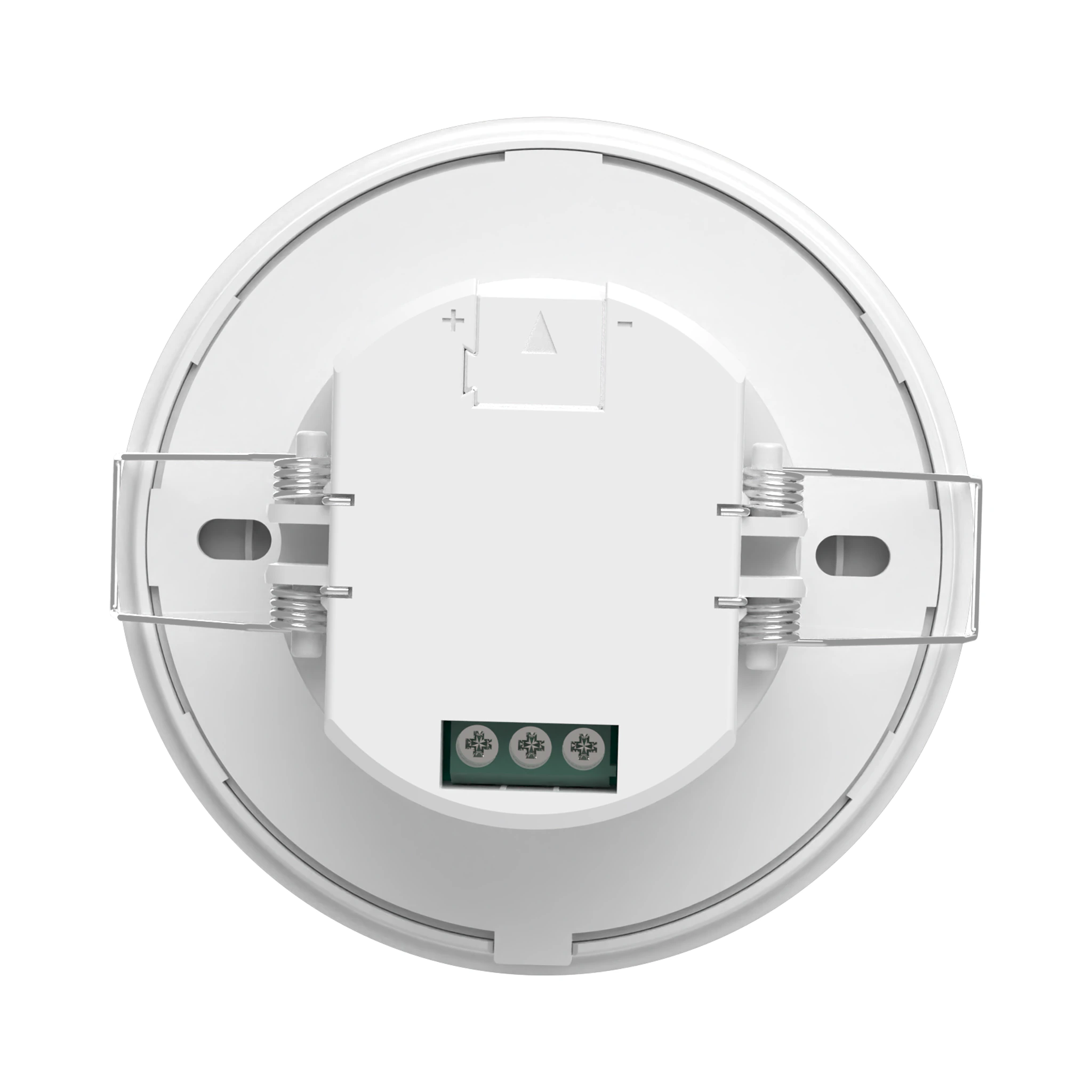

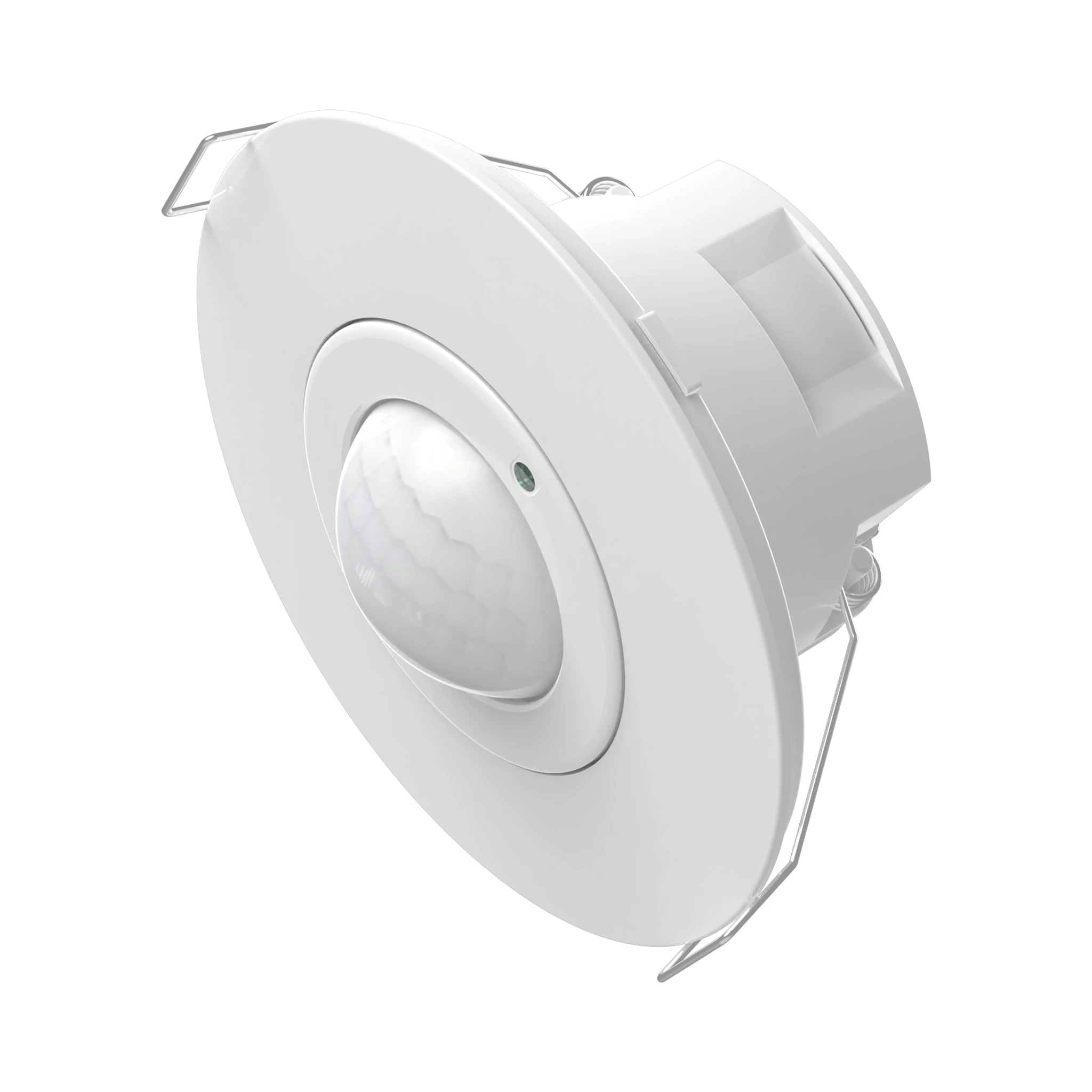

MSA017D IR
Standalone Sensors
MSA017D IR is designed for professional lighting-control and building-automation applications. Supported technologies: PIR, Motion, DALI.
Verified product data
Specifications
Input/Output
- Power supply terminal voltage range
- DALI bus power supply
- DALI terminal current
- ≤10mA
- Operating power consumption
- ≤0.3W
Sensing parameters
- Sensing method
- PIR infrared pyroelectric + light detection
- Detection Area
- Remote control MH10 settings: 100% 75% 50% 25%
- Delay setting (Hold Time)
- 5S (fixed delay) + DALI host setting delay
- Detection range (100% sensitivity, radius)
- Movement (3m high): tangential movement 3-5m @25℃ (the sensing distance will be closer when the human body moves radially than when moving tangentially)
- Remote control function
- Support
- Installation height
- 2-6m, typical value: 3m
Usage environment
- Inline installation opening size
- Φ60mm
- Working environment temperature
- -25℃...+50℃ (the lower the temperature, the sensing distance may become farther, the higher the temperature, the sensing distance may become closer)
- Storage temperature
- -40℃...80℃ Humidity: ≤85% (non-condensation)
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
- Product Category
- N/A
