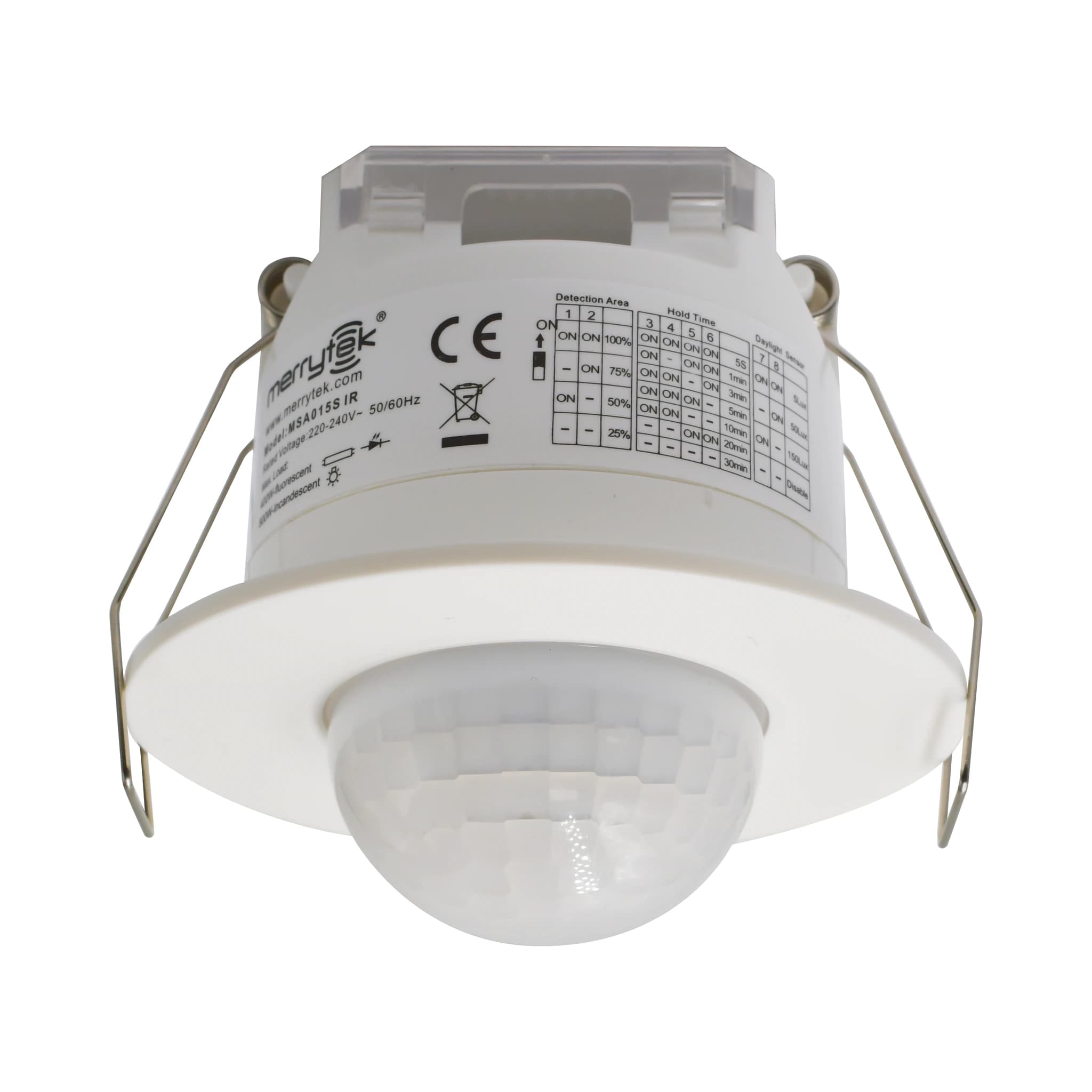

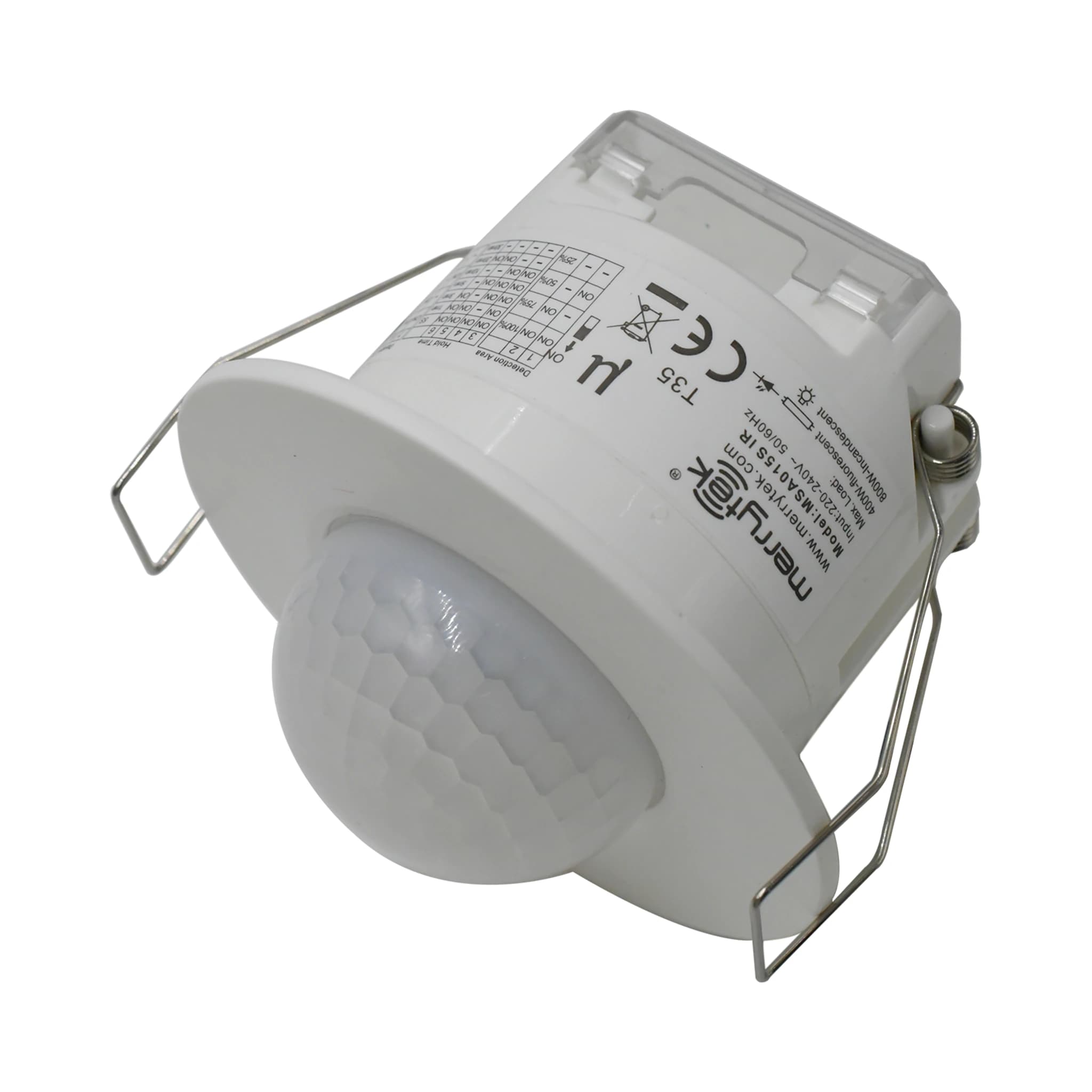

MSA015S IR
Standalone Sensors
MSA015S IR is designed for professional lighting-control and building-automation applications. Supported technologies: PIR, Motion, ON/OFF.
Verified product data
Specifications
Input/Output
- Voltage range
- 100-240V AC
- Rated voltage
- 220V AC
- Operating current
- 20mA max
- Operating power consumption
- ≤0.2W @220V DC
- Output signal
- ON/OFF switch
- Load type
- 800w resistive load, 400w capacitive load
Sensing parameters
- Sensing method
- PIR infrared pyroelectric + light detection
- Detection Area
- Dial/MH10 remote control settings: 100%/75%/50%/25%
- Delay setting (Hold Time)
- Dial setting: 5s/1min/3min/5min/10min/20min/30minMH10 remote control setting: 5s/30s/1min/3min/5min/10min/20min/30min
- Daylight Sensor
- Dial setting: 5Lux/50Lux/150Lux/Disable (diffusion state) MH10 remote control setting: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (diffusion state)
- Detection range (100% sensitivity, radius)
- Movement (10m high): 4-5m (the sensing distance of the human body when it moves tangentially is farther than that of radial movement)
- Remote control function
- Support
- Installation height
- Typical value: 10m
Usage environment
- Hole size
- Φ65-70mm
- Working environment temperature
- 0℃...+35℃
- Storage temperature
- -40℃~+80℃
Certification Standard
- Comply with certification
- CE SAA
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
