Standalone Sensors

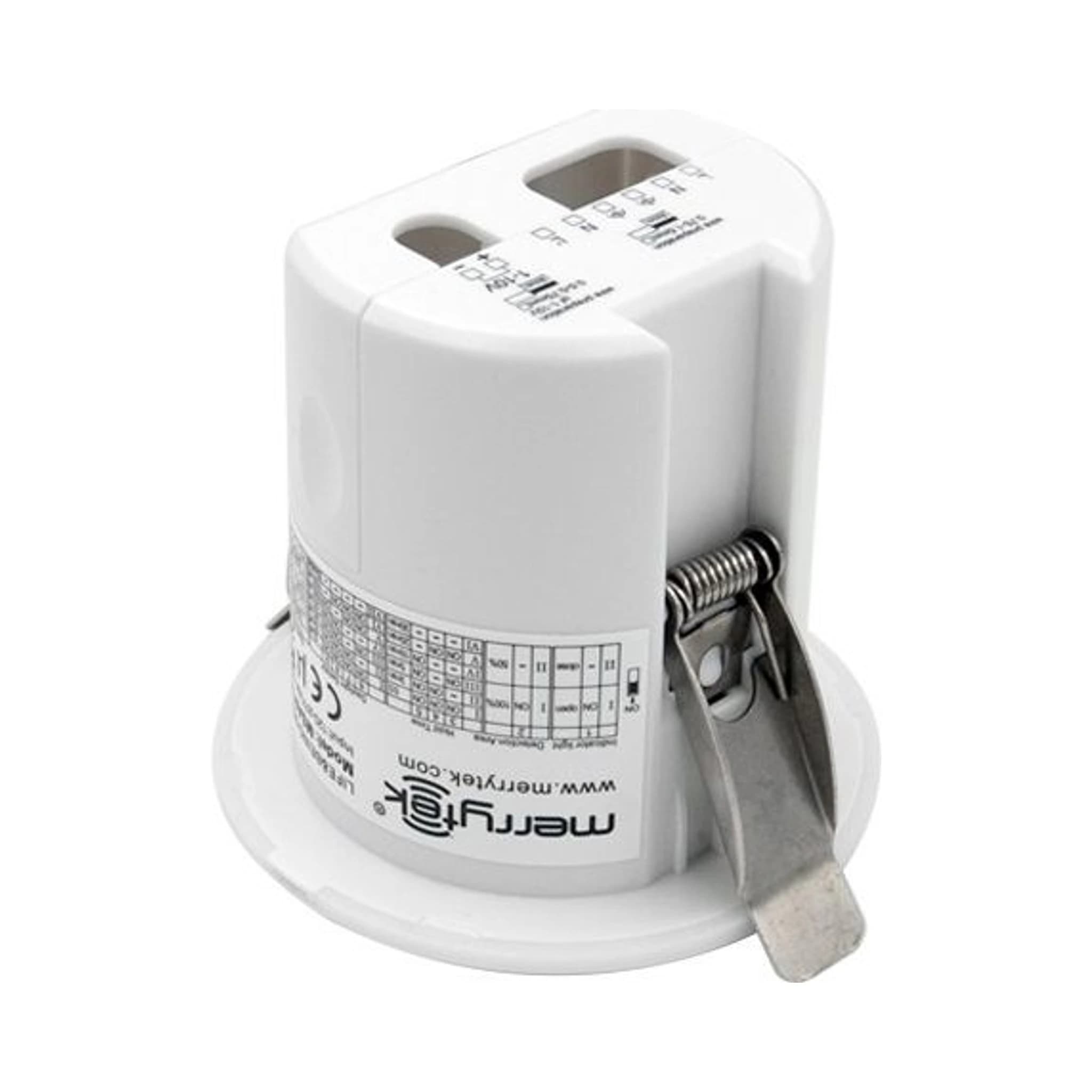

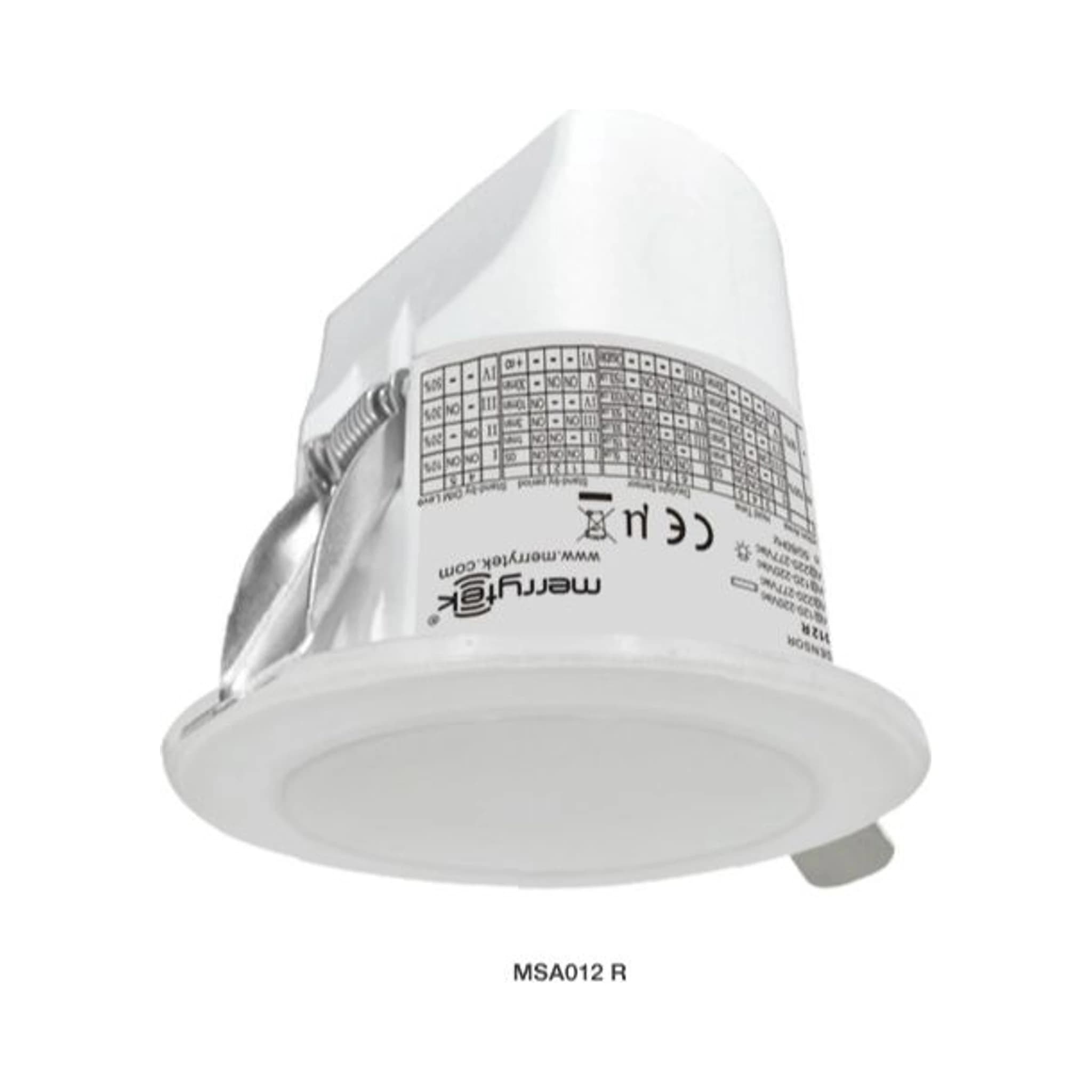

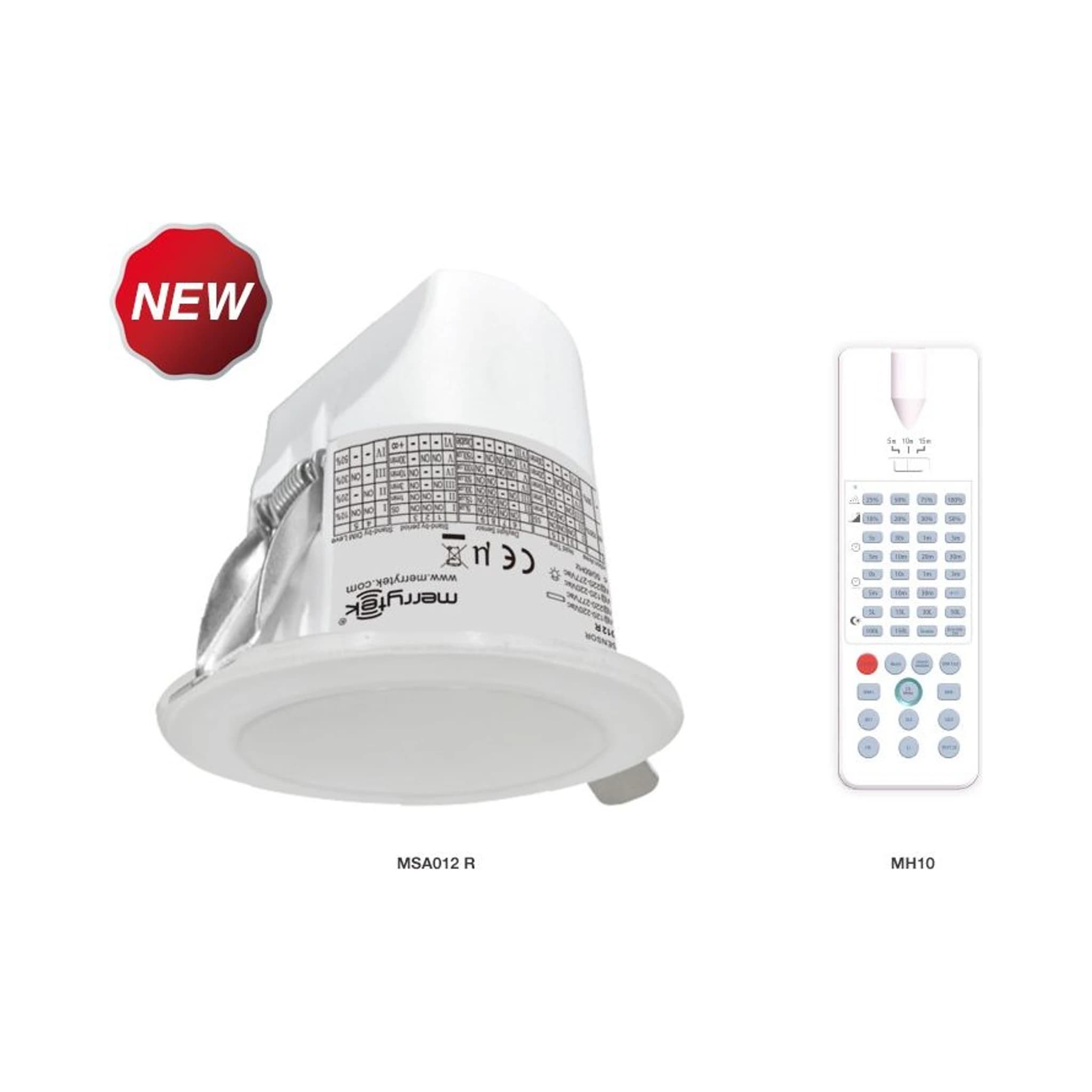

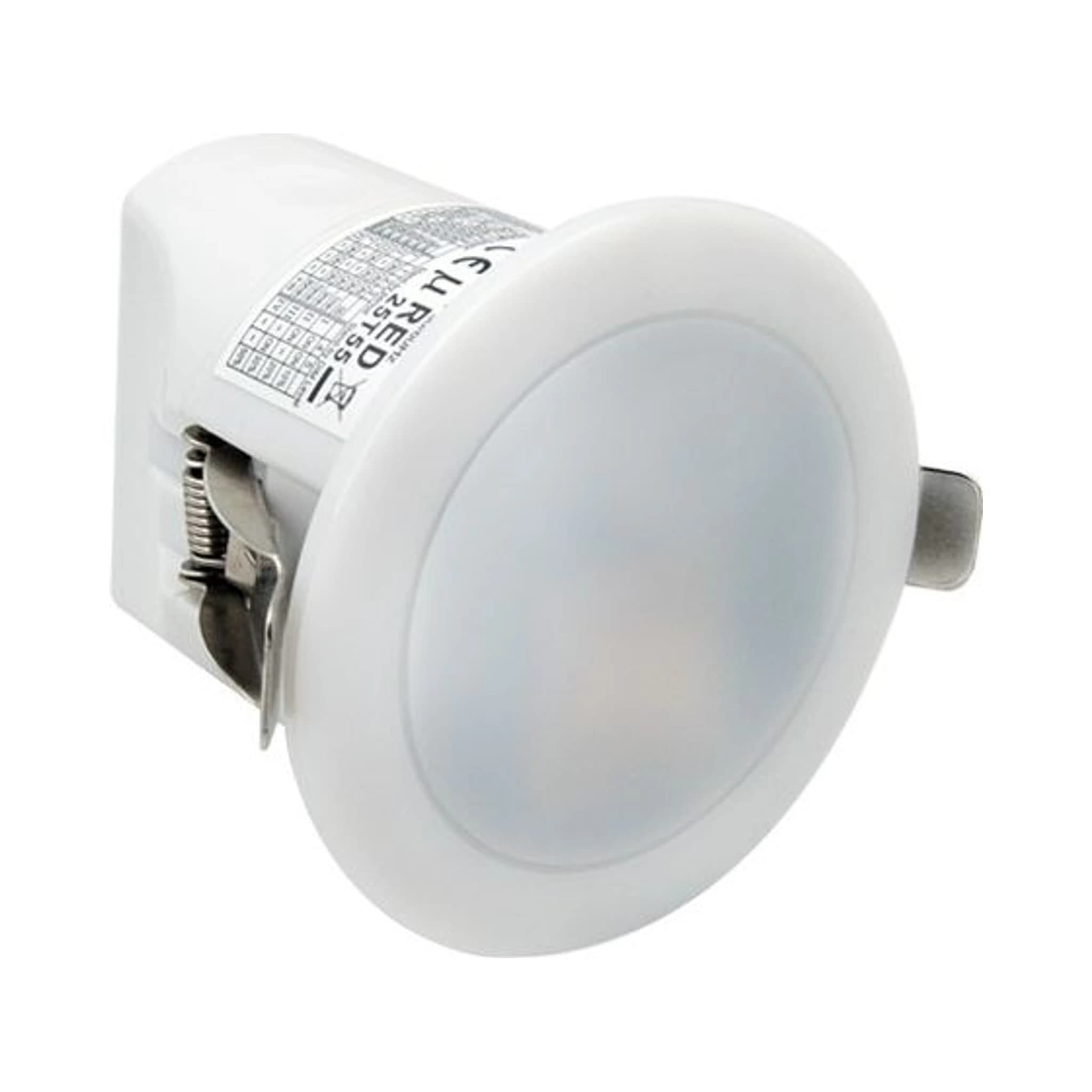

MSA012 R
Standalone Sensors
MSA012 R is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Presence, Motion.
Verified product data
Specifications
Technical specifications
- Rated voltage
- 120-277VAC 50/60Hz
- Standby power consumption
- <0.5W
- Rated load (@120V AC)
- 400W (Inductive) 800W (resistive) @120V AC
- Rated load (@220-240V AC)
- 800W (Inductive) 1000W (resistive) @220-240V AC
- Rated load (@277V AC)
- 800W (Inductive) 1000W (resistive) @277V AC
- Detection Technology
- Mobile/micro-motion/breathing mixed detection/natural light collection
- Working mode
- On-off / step dimming
- Working frequency
- 5.8 G Hz ±75 MHz, ISM band
- Transmit power
- 0.5mW Max.
- Delay setting
- 5s~10min
- Waiting timer function
- 0s~30min
- Daylight setting
- 0-2000lux
- Hole size
- φ70-80mm
- Operating temperature
- -25~50℃
- IP level
- IP20
Sensing parameters
- Waiting for brightness
- 10%/20%/30%/50%
- Detection range
- 100%/75%/50%/25%
