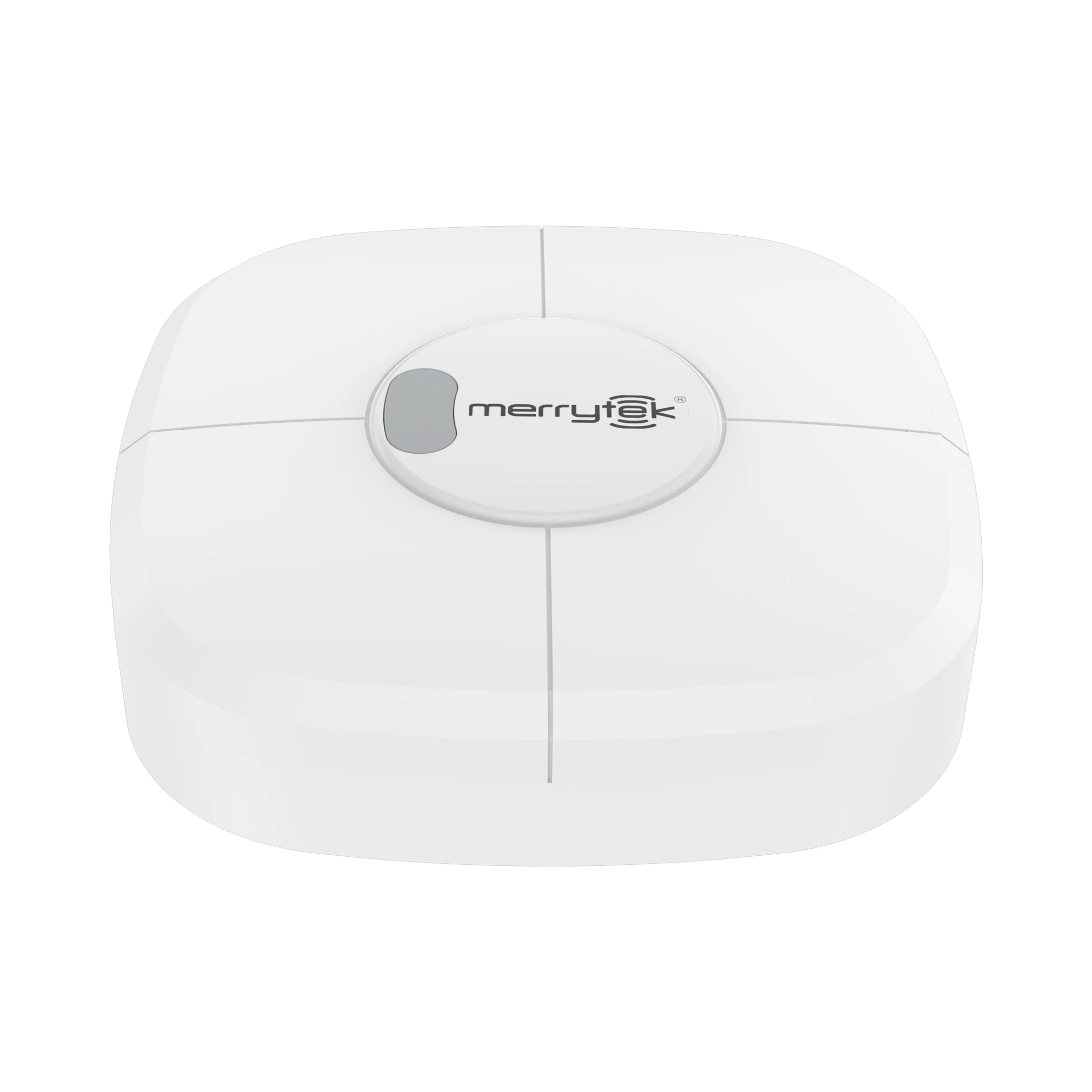

MSA003S RC
Standalone Sensors
MSA003S RC is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Motion, ON/OFF.
Verified product data
Specifications
Input/Output
- Voltage range
- 100-240V AC 50-60Hz
- Rated voltage
- 220V AC
- Operating current
- 50mA max
- Operating power consumption
- ≤1W 230V DC
- Load power
- Resistive load: 800W Capacitive load: 400w
- Load surge current
- 10A relay--30A (test twidth 500us @230Vac at 50% Ipeak, cold start at full load) 60A (test twidth 200us @230Vac at 50% Ipeak, cold start at full load)
Sensing parameters
- Microwave radio frequency
- 5.8G Hz±75MHz ISM band
- Transmit power
- 5mW Max
- Detection Area
- Dial/remote control: 25%-100%
- Delay setting (Hold Time)
- Dial/remote control: 5s-30min
- Detection range (100% sensitivity, radius)
- Mobile (3m high): short side 3m, long side 15m
- Daylight setting
- 5-150lux/Disable
- Remote control function
- Support
- Installation height
- 3-12m Typical value: 3m/12m
- Sensing angle
- 150°
Usage environment
- Ceiling surface mounting
- Support
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- CE/FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
