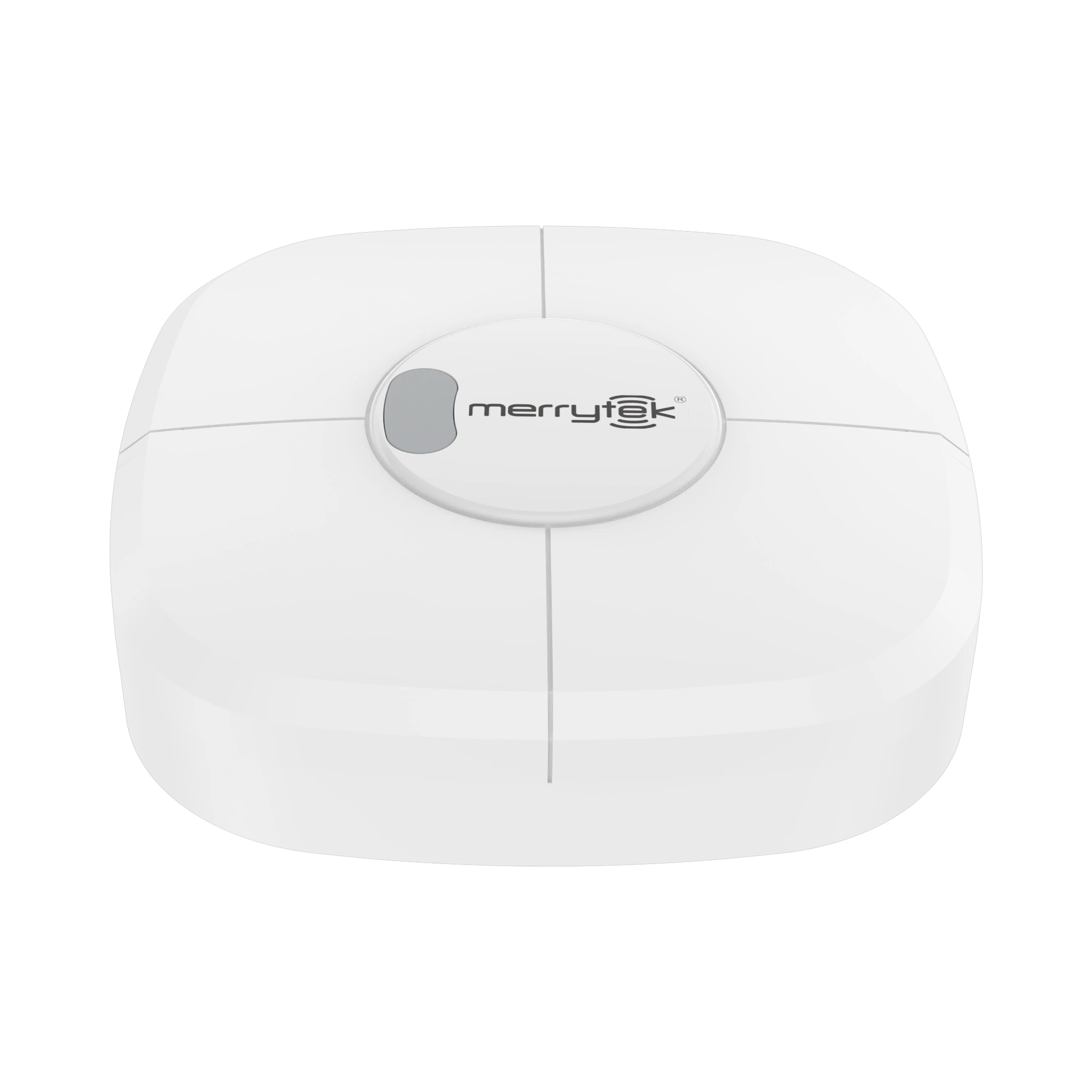

MSA003D RC
Standalone Sensors
MSA003D RC is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Motion, Dry contact.
Verified product data
Specifications
Input/Output
- Voltage range
- 12-24V DC
- Rated voltage
- 12/24V DC
- Operating current
- 50mA max
- Operating power consumption
- ≤1W 24V DC
Sensing parameters
- Microwave radio frequency
- 5.8G Hz±75MHz ISM band
- Transmit power
- 5mW Max
- Detection Area
- Dial/remote control: 25%-100%
- Delay setting (Hold Time)
- Dial/remote control: 5s-30min
- Detection range (100% sensitivity, radius)
- Mobile (12m high): 3-5m
- Remote control function
- Support
- Installation height
- 6-12m Typical value: 10m
- 3dB beam angle (XZ plane)
- 80° (XZ plane)
- 3dB beam angle (YZ plane)
- 96° (YZ plane)
Usage environment
- Ceiling surface mounting
- Support
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -25℃~+80℃
Certification Standard
- Comply with certification
- FCC/RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
