Standalone Sensors
MSA001S 1
Standalone Sensors

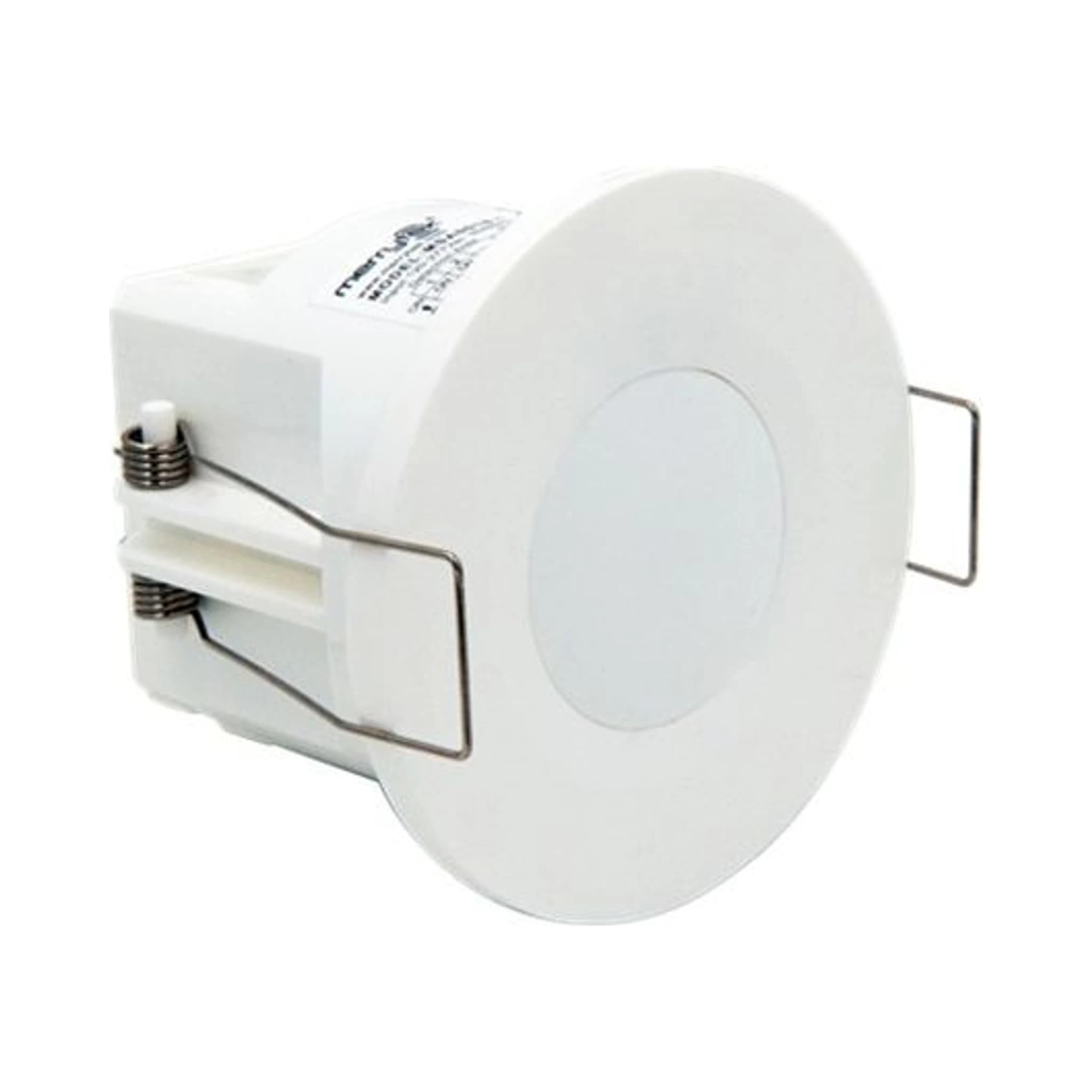

MSA001S 1 is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Motion, ON/OFF.
Verified product data
Specifications
Input
- Operating voltage
- 100-240VAC, 50/60Hz
- Working current
- 20mA maximum
Output
- Output signal
- ON/OFF
- Maximum load
- 400W capacitive / 800W resistive
Mechanical
- Product size
- Diameter 65 x 51.5mm
- Cut-out
- Diameter 55mm
Sensor
- Maximum detection radius
- 4m at 3m mounting height
- Daylight threshold
- 0-150Lux / Disable
- Detection technology
- 5.8G Hz motion detection and daylight sensing
Installation
- Mounting height
- 2.5-4m (typical 3m)
- Installation mode
- Flush mounting or surface mounting with optional kit
Environment
- IP rating
- IP20
