Standalone Sensors

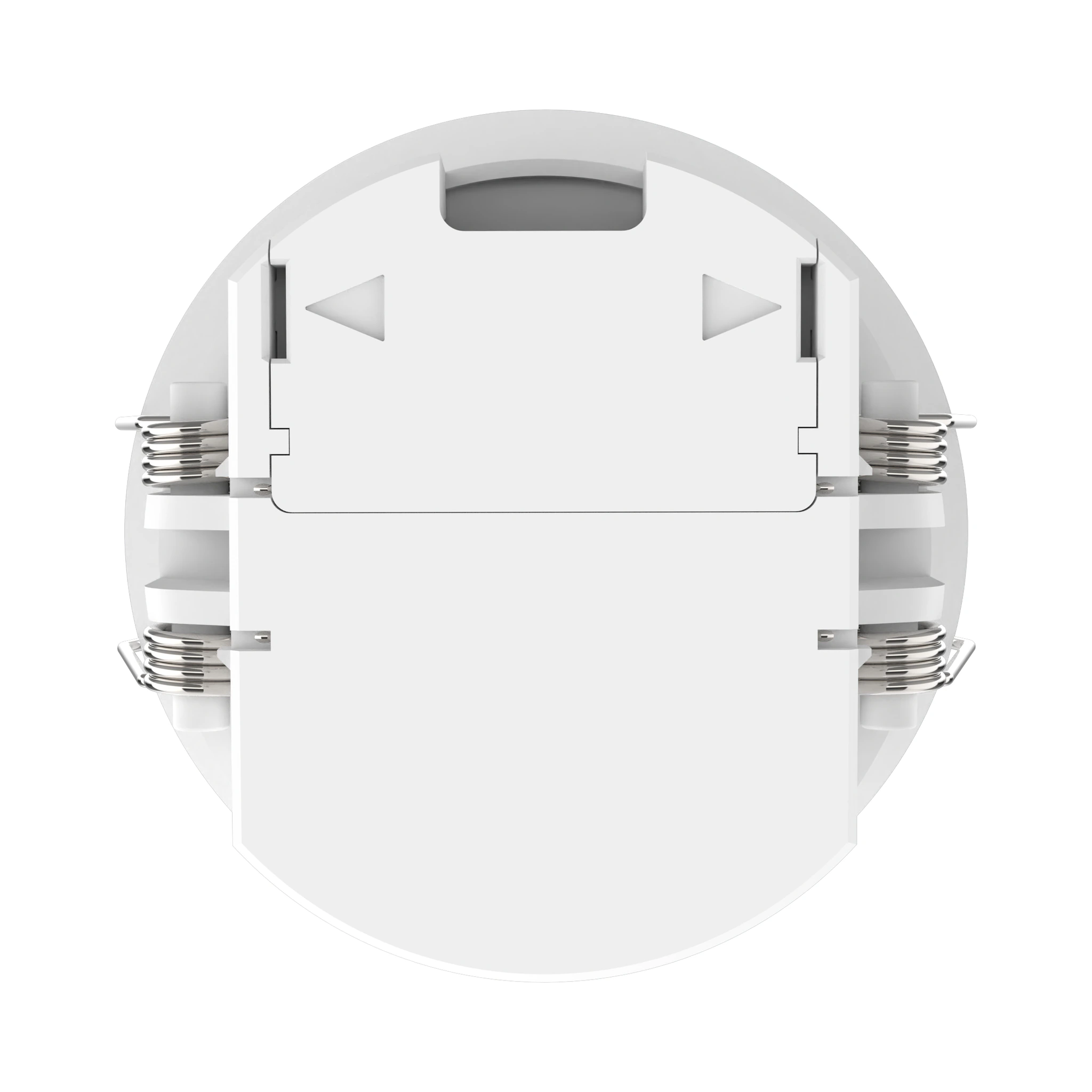

MSA001D E
Standalone Sensors
MSA001D E is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Motion, Dry contact.
Verified product data
Specifications
Input/Output
- Voltage range
- 12-24V DC
- Rated voltage
- 12/24V DC
- Operating current
- 20mA max
- Operating power consumption
- ≤0.5W @24V DC
- Output signal
- Normally open/normally closed dry contact (factory default is normally open)
- Load type
- Resistive load, voltage: Vdc≤36V, current: 100mA max
Sensing parameters
- Working frequency
- 5.8 G Hz ±75 MHz, ISM band.
- Radar transmit power
- 2mW Max
- Detection Area
- 100%/75%/50%/25% (set via MH10 remote control)
- Delay setting (Hold Time)
- 2S/30S/1Min/3Min/5Min/10Min/20Min/30Min (set via MH10 remote control)
- Daylight Sensor
- 5Lux/15Lux/30Lux/50Lux/100lux/150lux/Disable (set via MH10 remote control)
- Detection range (100% sensitivity, radius)
- Mobile (3m high): 3-4m (based on an open test environment of 80m²)
- Remote control function
- Support
- Installation height
- 2.5-4.0m Typical value: 3m
- 3dB beam angle (XZ plane)
- 90° (XZ plane)
- 3dB beam angle (YZ plane)
- 95° (YZ plane)
Usage environment
- Hole size
- Φ45mm
- Working environment temperature
- 0℃...+50℃
- Storage temperature
- -40℃~+80℃
Certification Standard
- Comply with certification
- CE
- Environmental protection requirements
- Complies with EU RoHS requirements
- Protection level
- IP20
