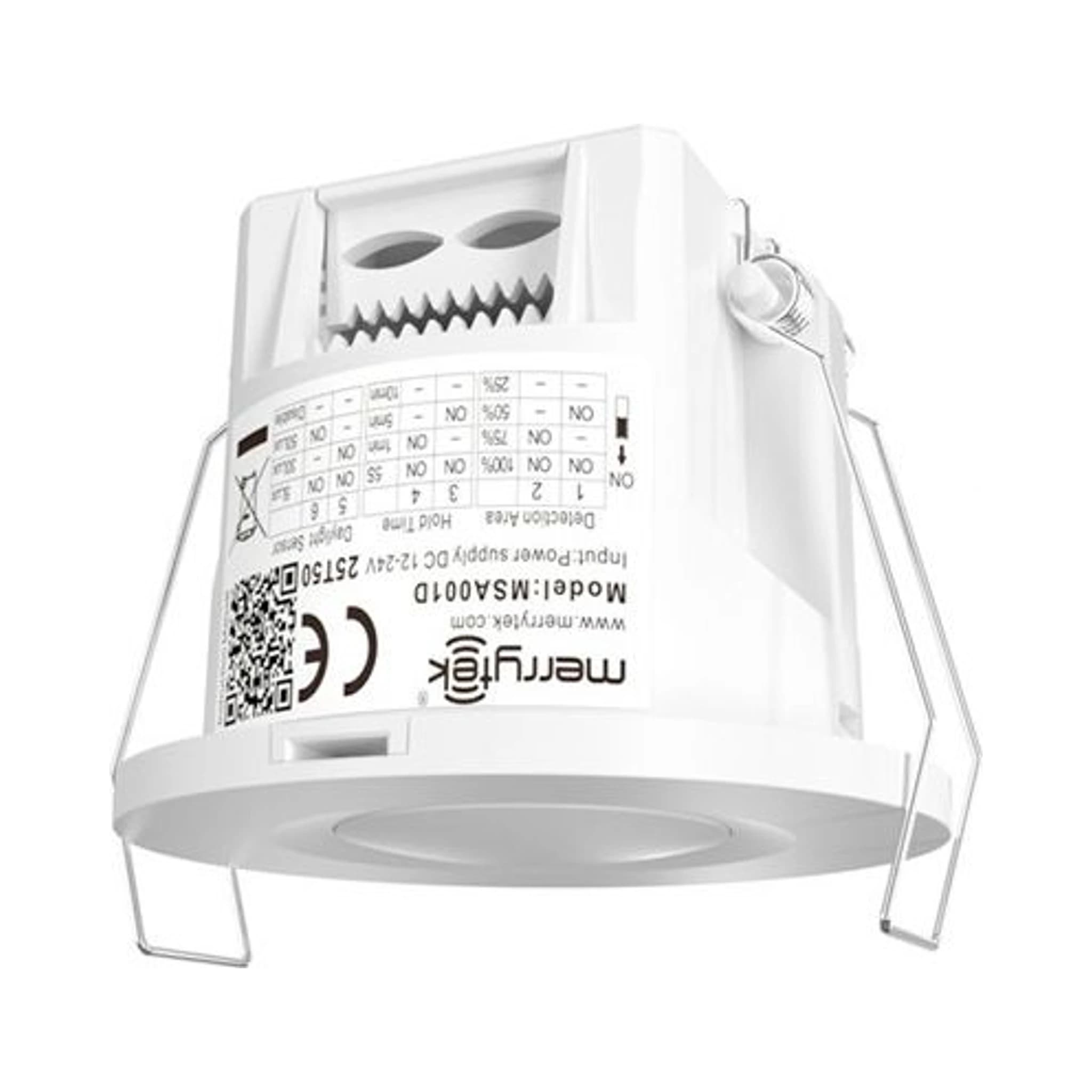

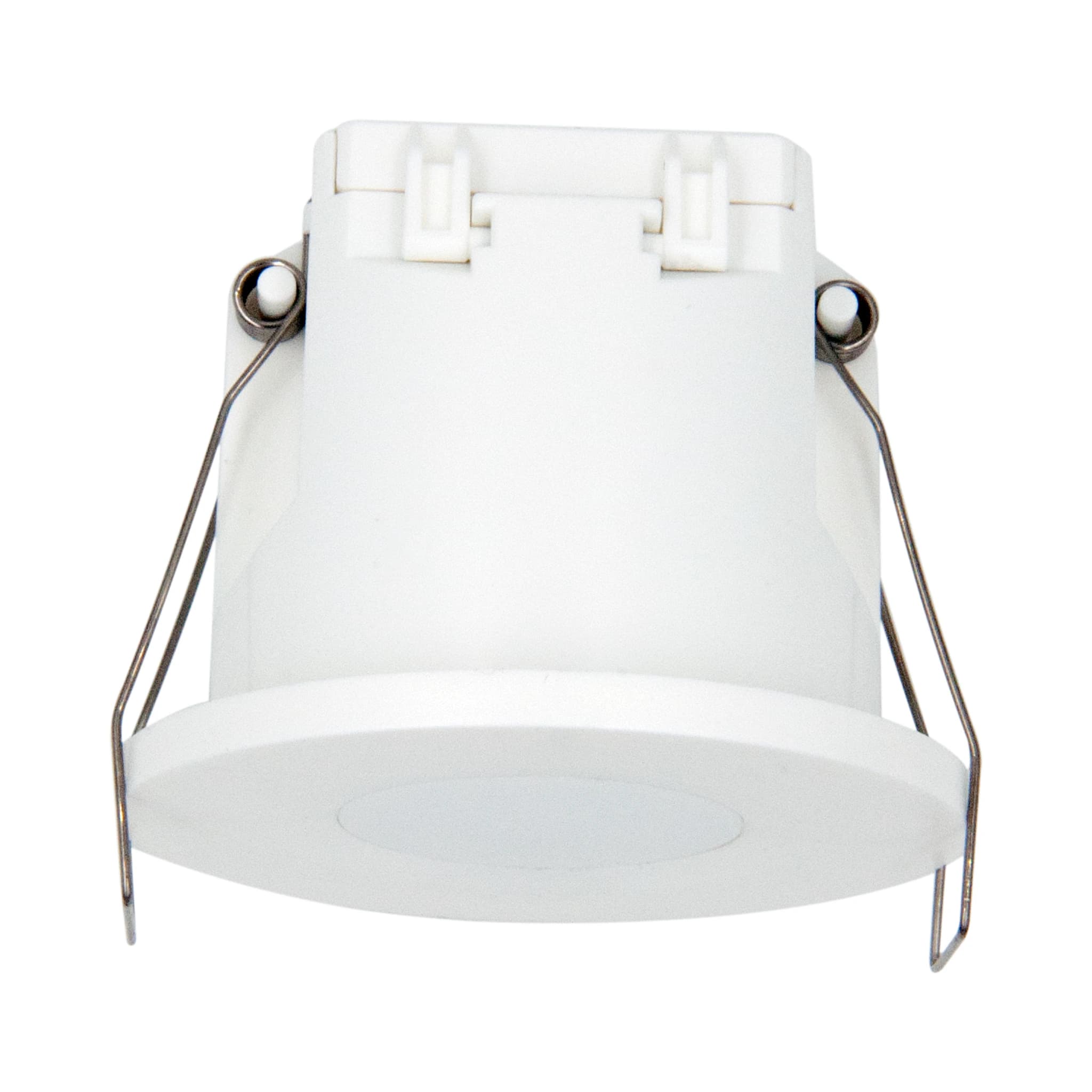

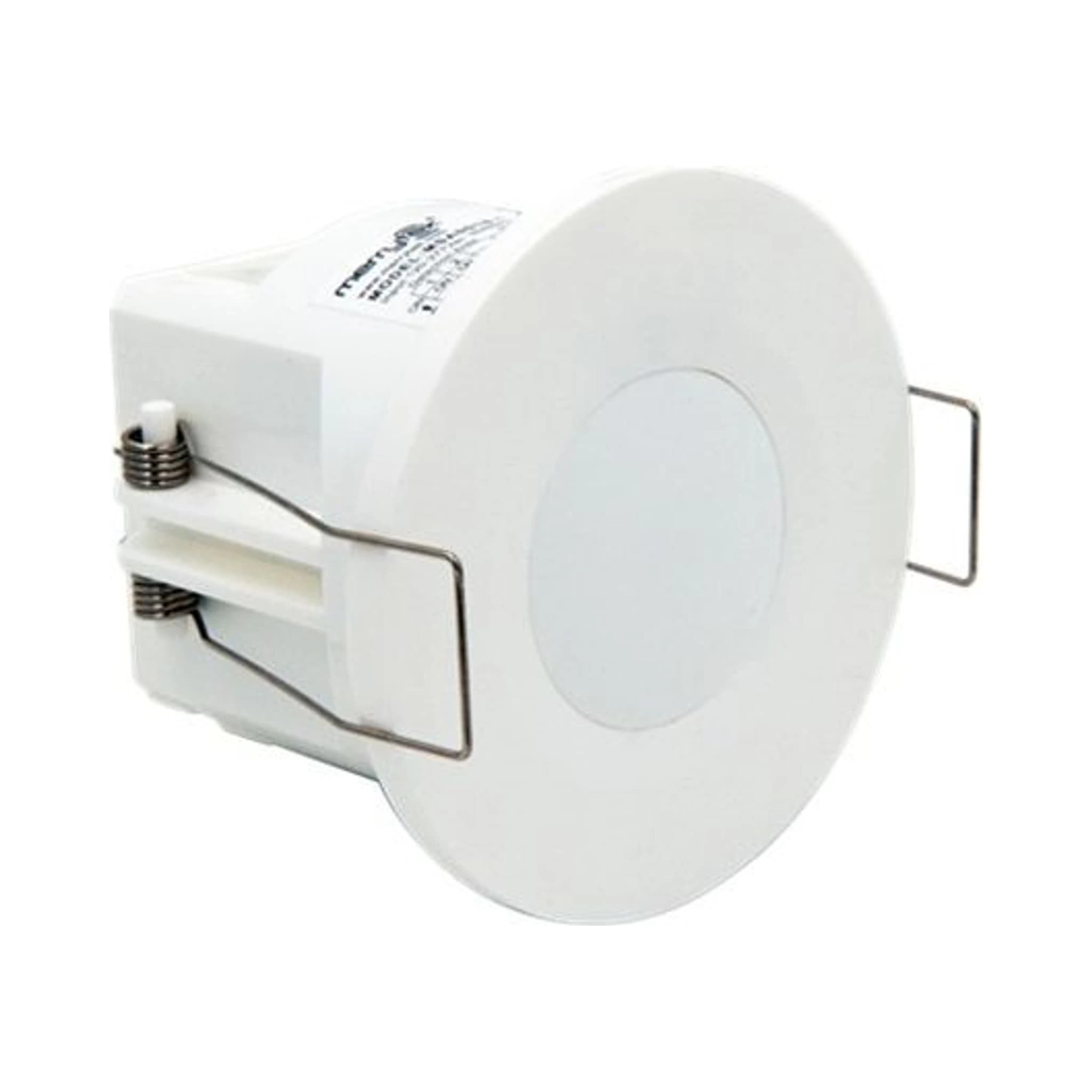

MSA001D
Standalone Sensors
MSA001D is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Motion, Dry contact.
Verified product data
Specifications
Input / Output
- Voltage range
- 12-24V DC
- Rated voltage
- 12/24V DC
- Working current
- 20mA maximum
- Power consumption
- <=0.5W at 24V DC
- Output signal
- NO/NC dry contact (factory default: NO)
- Resistive load
- <=36V DC, 100mA maximum
Sensor parameters
- Operating frequency
- 5.8G Hz +/-75MHz, ISM band
- Transmit power
- 2mW maximum
- Detection area
- 100% / 75% / 50% / 25% via MH10
- Hold time
- 2s / 30s / 1 / 3 / 5 / 10 / 20 / 30min
- Daylight threshold
- 5 / 15 / 30 / 50 / 100 / 150Lux / Disable
- Motion detection radius
- 3-4m at 3m mounting height
Installation
- Mounting height
- 2.5-4m (typical 3m)
- Beam angle
- 90 deg XZ / 95 deg YZ
- Cut-out
- Diameter 45mm
Environment
- Operating temperature
- 0 to +50 C
- Storage temperature
- -40 to +80 C
- IP rating
- IP20
Compliance
- Certification
- CE; RoHS
