MIC36-5GH 99 Series

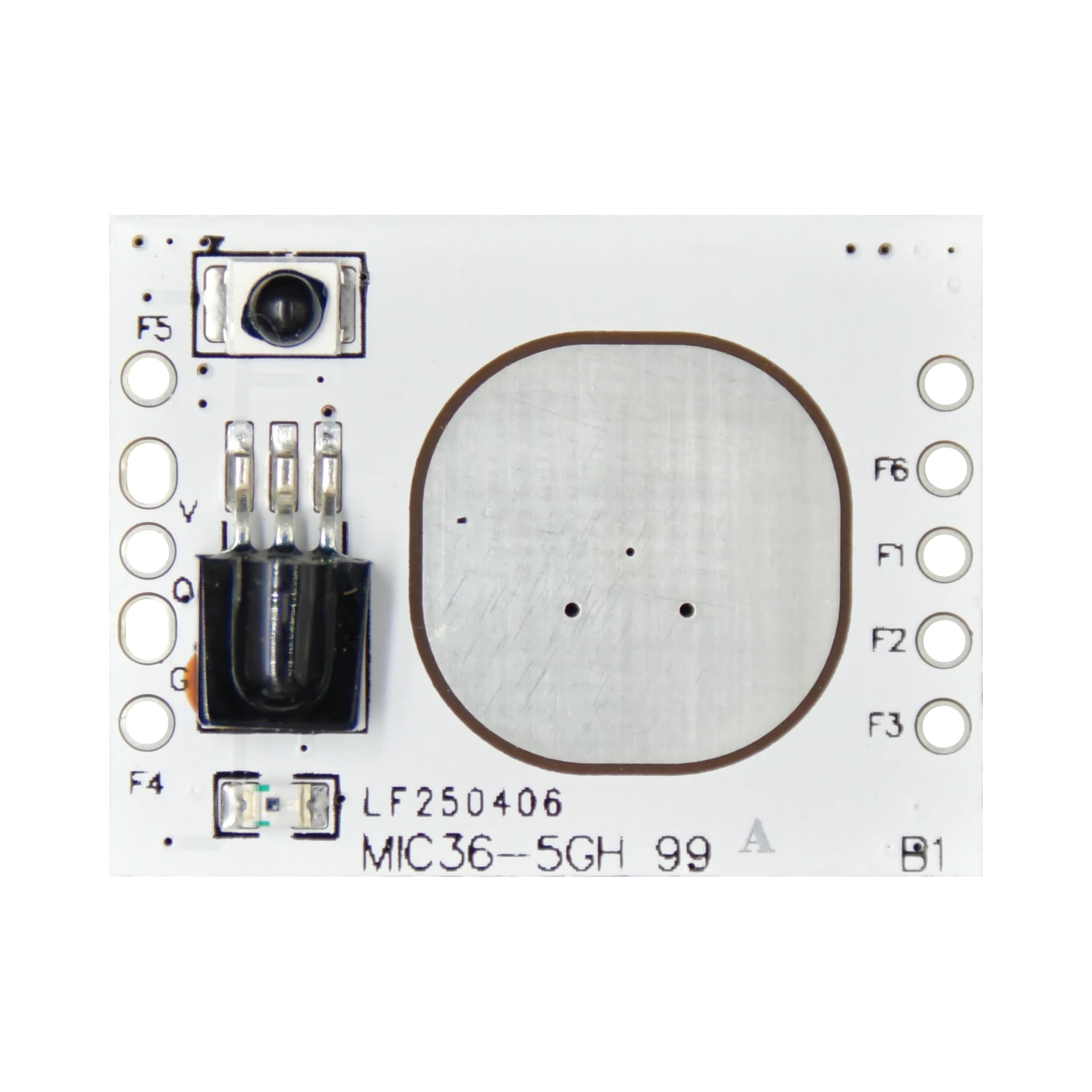

MIC36-5G H 99 Series 5.8G microwave sensing module
MIC36-5GH 99 Series is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, 1–10V, PWM.
Verified product data
Specifications
Input
- Rated voltage
- 5-13Vdc
- Operating current
- 5±2mA
- Ripple voltage
- <120mVp-p
Output
- Output signal
- 3.3V high and low level signals, 1kHz PWM dimming signal
Sensing parameters
- Working frequency
- 5.8G Hz ±75MHz, ISM band
- Transmit power
- 1mW Max.
- Detection range
- 25% / 50% / 75% / 100% MH16, MH10 remote control settings
- Delay setting
- External dialing code for parameter setting: 5s/30s/3min/5min/10min/20minMH16, MH10 remote control settings
- Daylight setting
- Ordinary light control; Light control priority
- Waiting time
- External dialing code for parameter setting: 0s/30s/10min/+∞ MH16, MH10 remote control settings
- Dimming ratio
- External dialing code for parameter setting: 20% / 30% MH16, MH10 remote control settings
- Detection range (radius)
- Ceiling installation 3m high; Human body induction: r≥3.5m@0.3m/s, r≥3m@1m/s; Test conditions: The product sensing range is set to 100%, and the test site is an indoor space of 60㎡
- Installation height
- 3m (6m Max.)
Environment
- Working environment temperature
- -25~85℃
- Storage temperature
- 20℃~30℃, humidity ≤60% (non-condensation)
Certification Standard
- Comply with certification
- CE, RED, FCC
- Environmental protection requirements
- Comply with RoHS 2.0 and Reach requirements
- Protection level
- IP00
Others
- Wiring method
- 4pin+5pin pin header
- Installation requirements
- Built-in installation
- Packaging requirements
- Partition + outer box (K=A)
- Net weight
- 2±0.5g
- Lifespan
- 5-year warranty@Ta
