Microwave Radar Modules

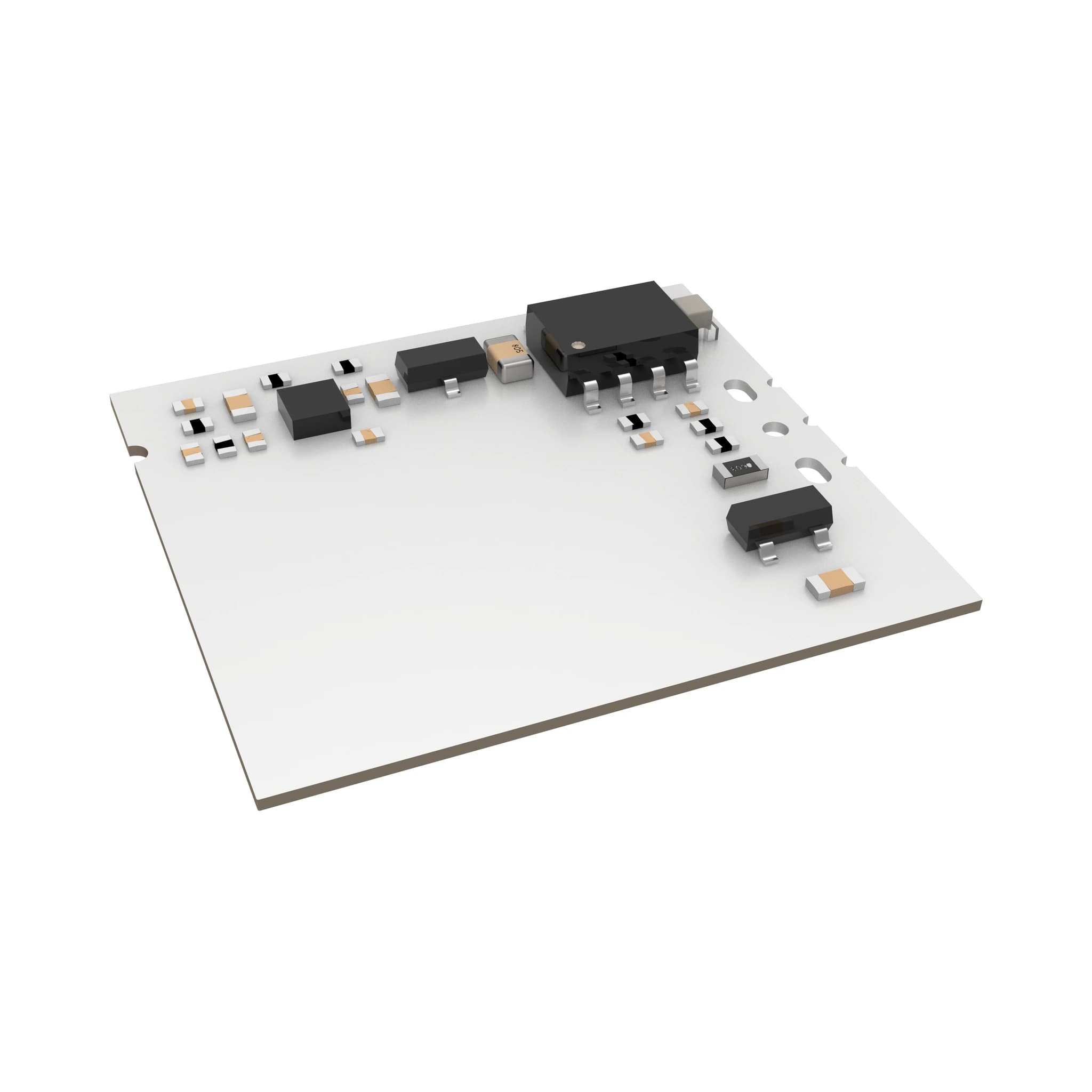

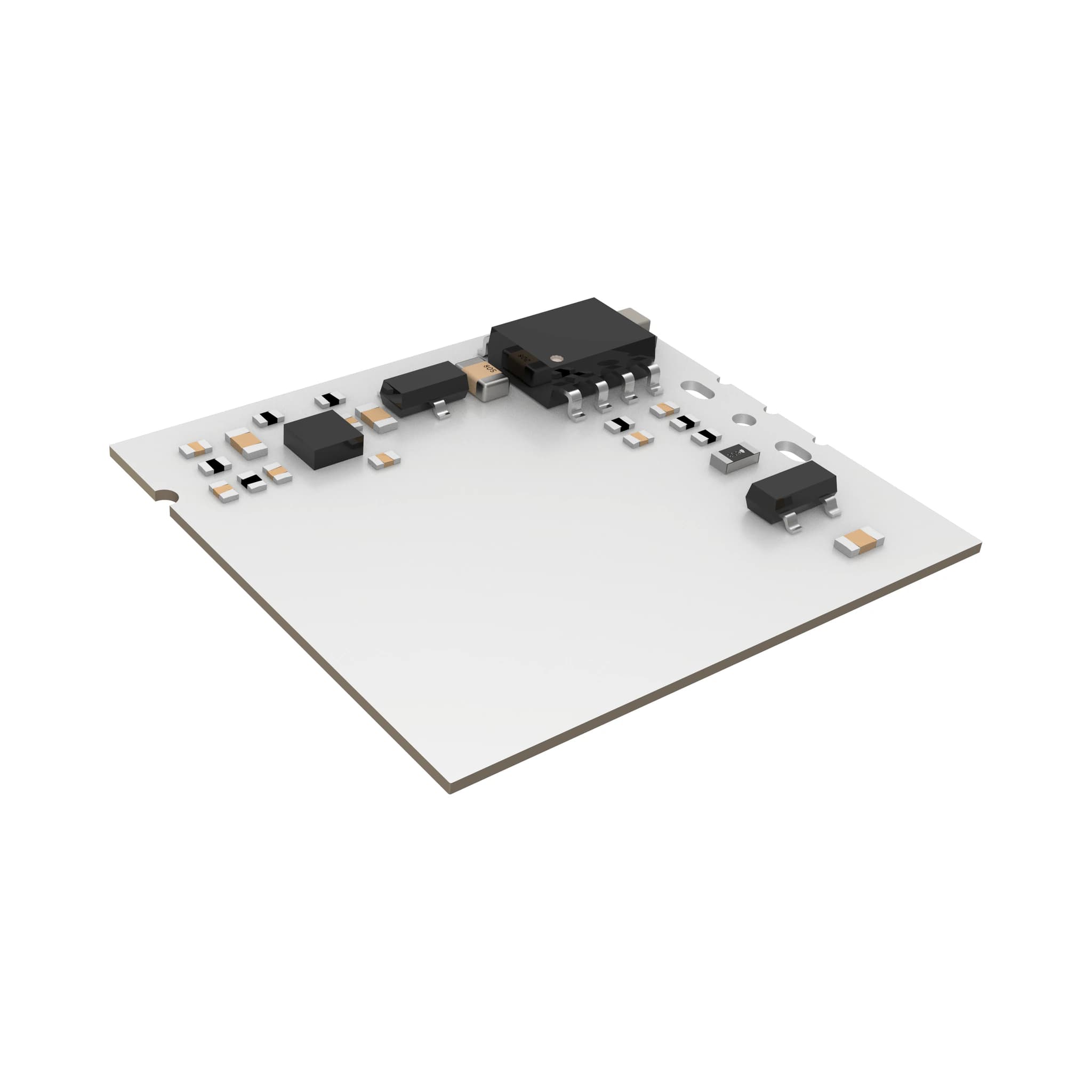

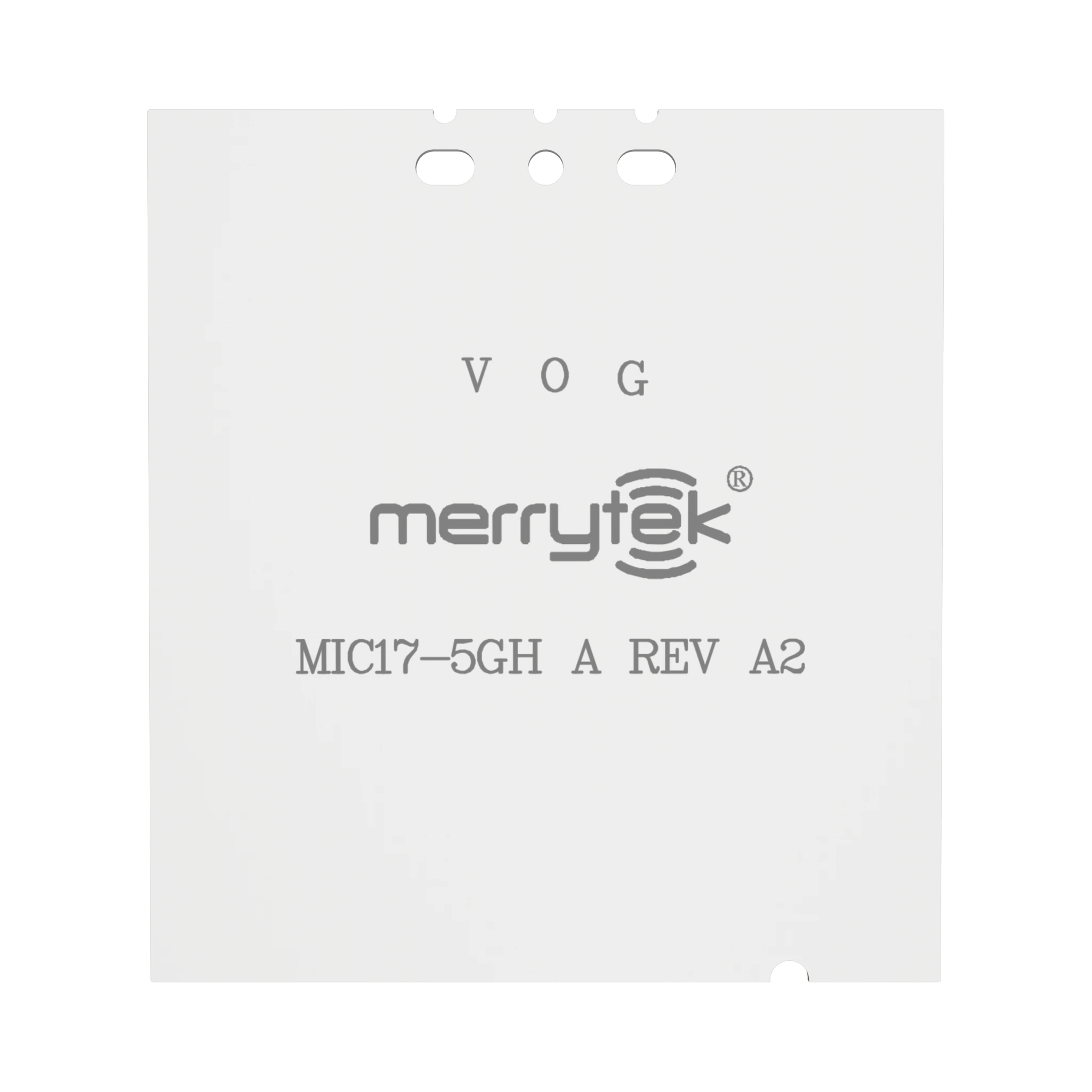

MIC17-5GH
MIC17-5G H 5G sensing module
MIC17-5GH is designed for professional lighting-control and building-automation applications.
Verified product data
Specifications
Variants
- Models
- MIC17-5G H A / B / 99
Input
- Rated voltage
- 5-13V DC
- Working current
- 13mA +/-2mA
Sensor
- Operating frequency
- 5.8G Hz +/-75MHz, ISM band
- Detection radius
- >=2.5m
Output
- Output signal
- 3.3V high/low + 1kHz PWM (A/99); 4.4V high/low + 1kHz PWM (B)
Installation
- Mounting height
- 3m typical / 4m maximum
Mechanical
- Dimensions
- 22 x 20 x 2.1mm
Environment
- IP rating
- IP00
Control
- Parameter adjustment
- Fixed defaults (A/B); MH16 remote (99)
