Luminaire Control Sensors

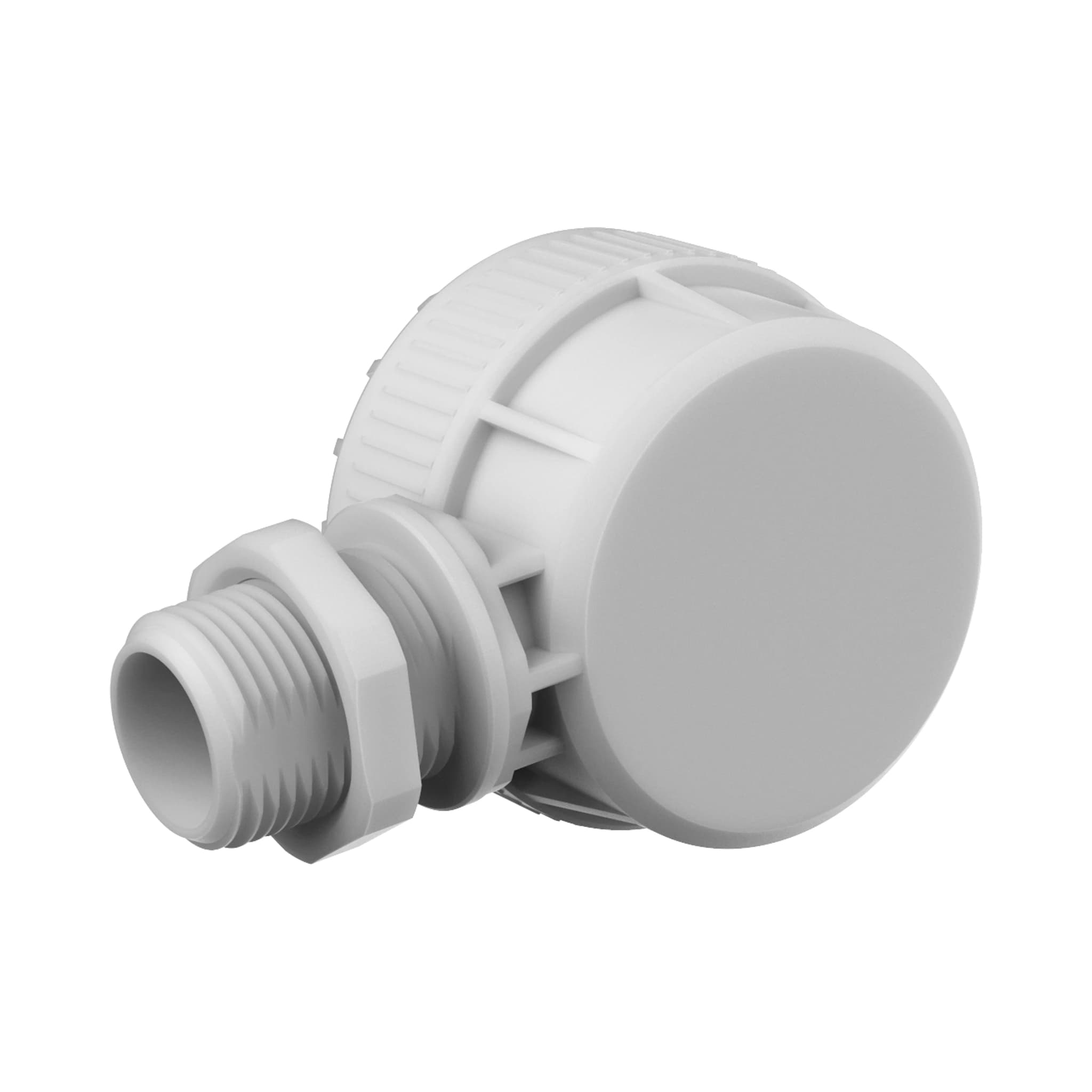

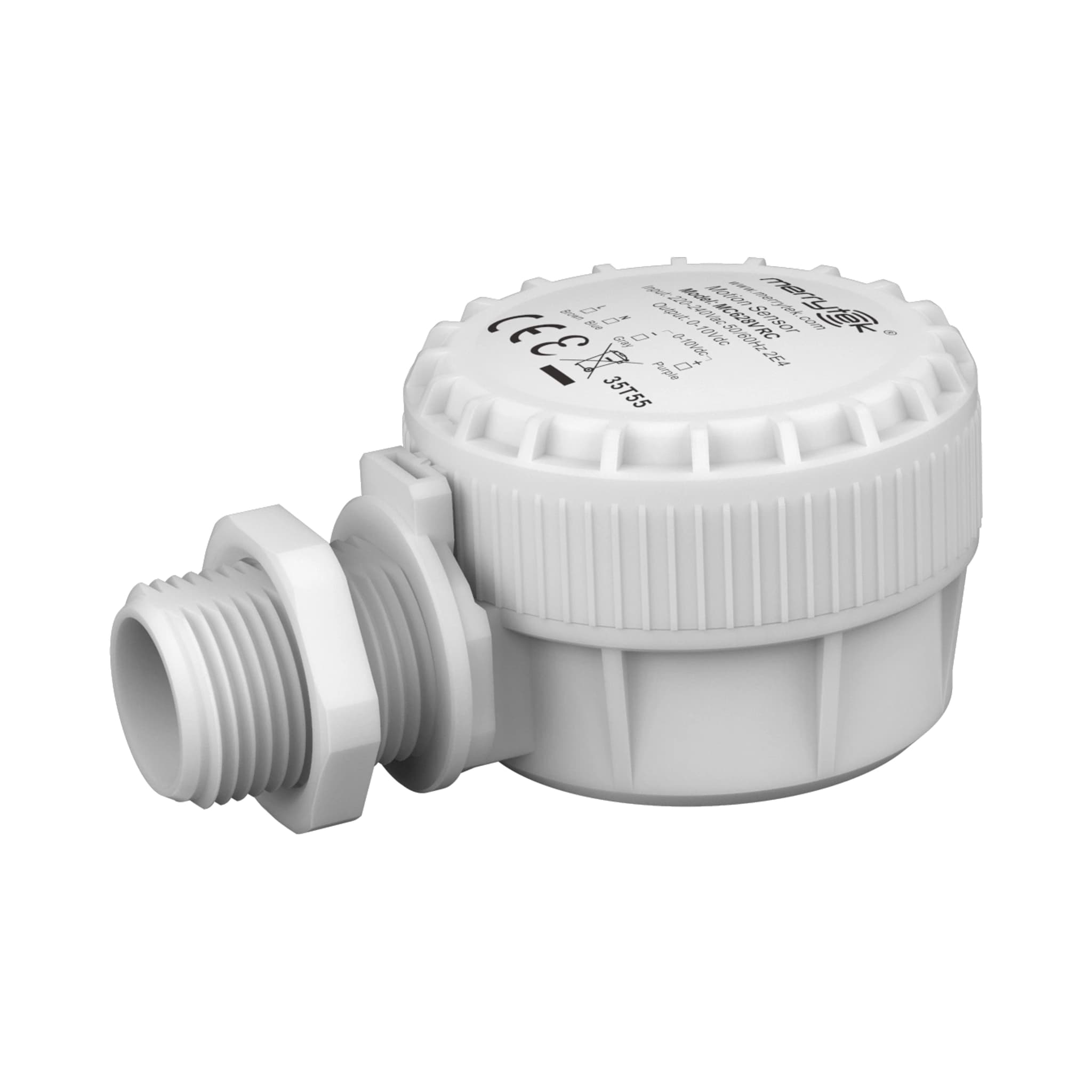

MC628V RC
Luminaire Control Sensors
MC628V RC is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, Motion, 0–10V.
Verified product data
Specifications
Input
- Voltage range
- 108-305VAC 60Hz
- Rated voltage
- 120-277VAC 60Hz
- Standby power consumption
- <1W
- Lightning surge
- L 1kV between N lines
Output
- Working mode
- 0-10V dimming
- Load type
- 0-10V LED dimming
- Interface
- 0-10V dimming terminal / < 50mA (non-constant current source)
Sensing parameters
- Working frequency
- 5.8 G Hz ±75 MHz, ISM band
- Transmit power
- 0.5mW Max.
- Delay setting (Hold time)
- 5s/30s/1min/3min/5min/10min/20min/30min
- Dimming ratio (Stand-by dim Level)
- 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
- Stand-by Period
- 0s/10s/1min/3min/5min/10min/30min/+∞
- Detection Area
- 25%/50%/75%/100%
- Daylight setting
- Light control threshold: 5lux/15lux/30lux/50lux/100lux/150lux/Disable (ambient light diffusion) light control priority: (5lux/15Lux/30Lux/50Lux)/150Lux 100Lux/200Lux 150Lux/300Lux (ambient light diffusion state)
- Detection distance
- See radiation diagram
- Installation height
- 12m Max.
- Detection angle
- 150° (wall installation), 360° (ceiling installation)
Environment
- Working environment temperature
- -35℃…+55℃
- Storage temperature/humidity
- -40℃…+80℃ Humidity: 10%-95% non-condensing
Certification Standard
- Safety standards
- IEC60669-2-1, IEC60669-1AS/NZS 60669.1, AS/NZS 60669.2.1UL60730-1
- Electromagnetic compatibility standard
- EN55015, EN61000-3-2, EN61000-3-3, EN61547AS/NZS CISPR 15, AS/NZS 4268 FCC Part 15C, Part 15BEN 60950-1, EN301489-1, EN 201489-3, EN300440
- Environmental protection requirements
- RoHS compliant
- Comply with certification
- CE
Others
- Lead specifications
- UL1015, 2*18AWG, exposed wire length 810mmUL1015, 2*22AWG, exposed wire length 810mm

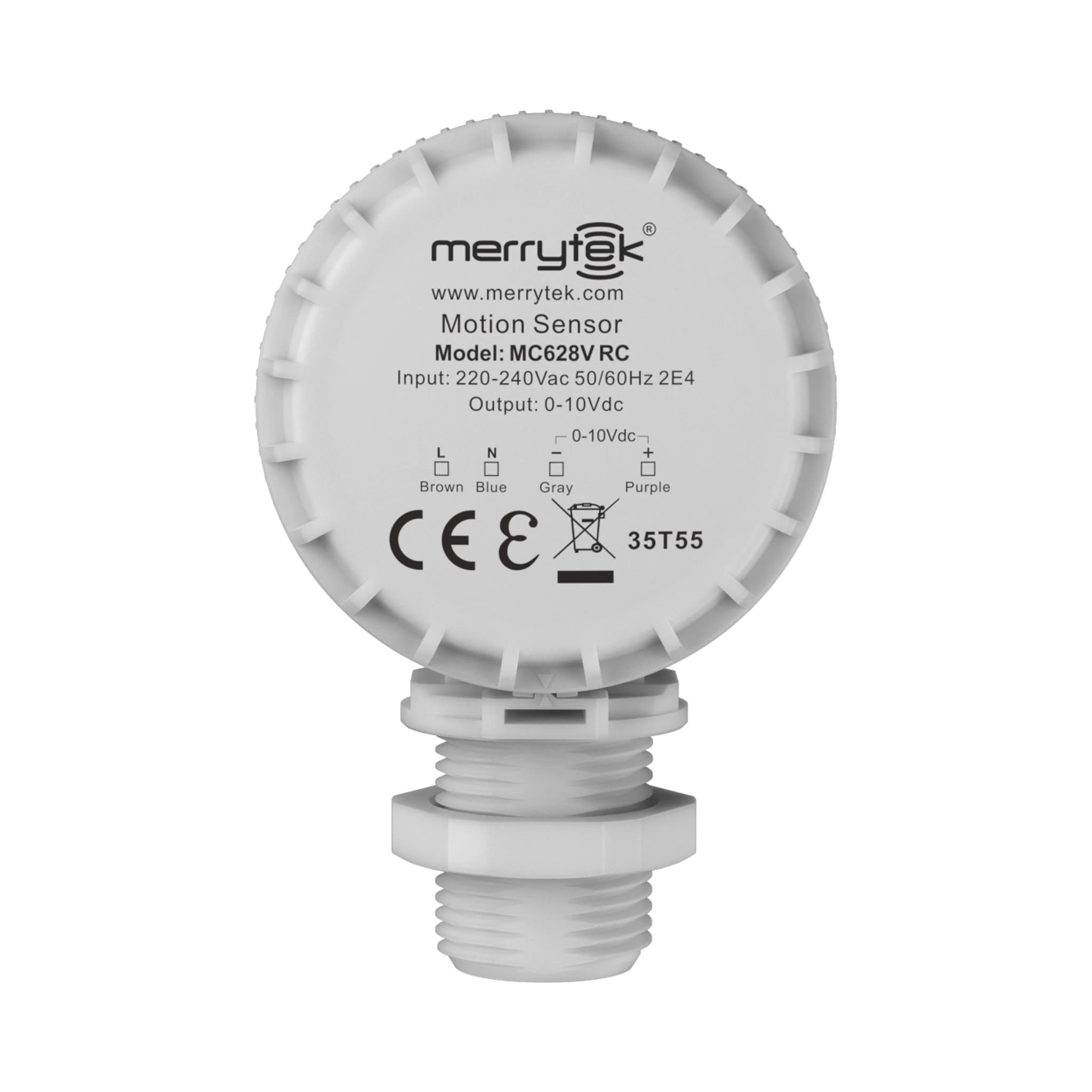

- Lead color
- L brown, N blue, 0-10V+ white, 0-10V-black
- Protection level
- IP65
- Product Category
- Class II electrical appliances
- Installation requirements
- M20 side mounting installation
- Product size
- See product size chart
- Packaging requirements
- White box + outer carton
- Net weight
- 85g
- Lifespan
- 5-year warranty @Ta 230V full load
