Luminaire Control Sensors

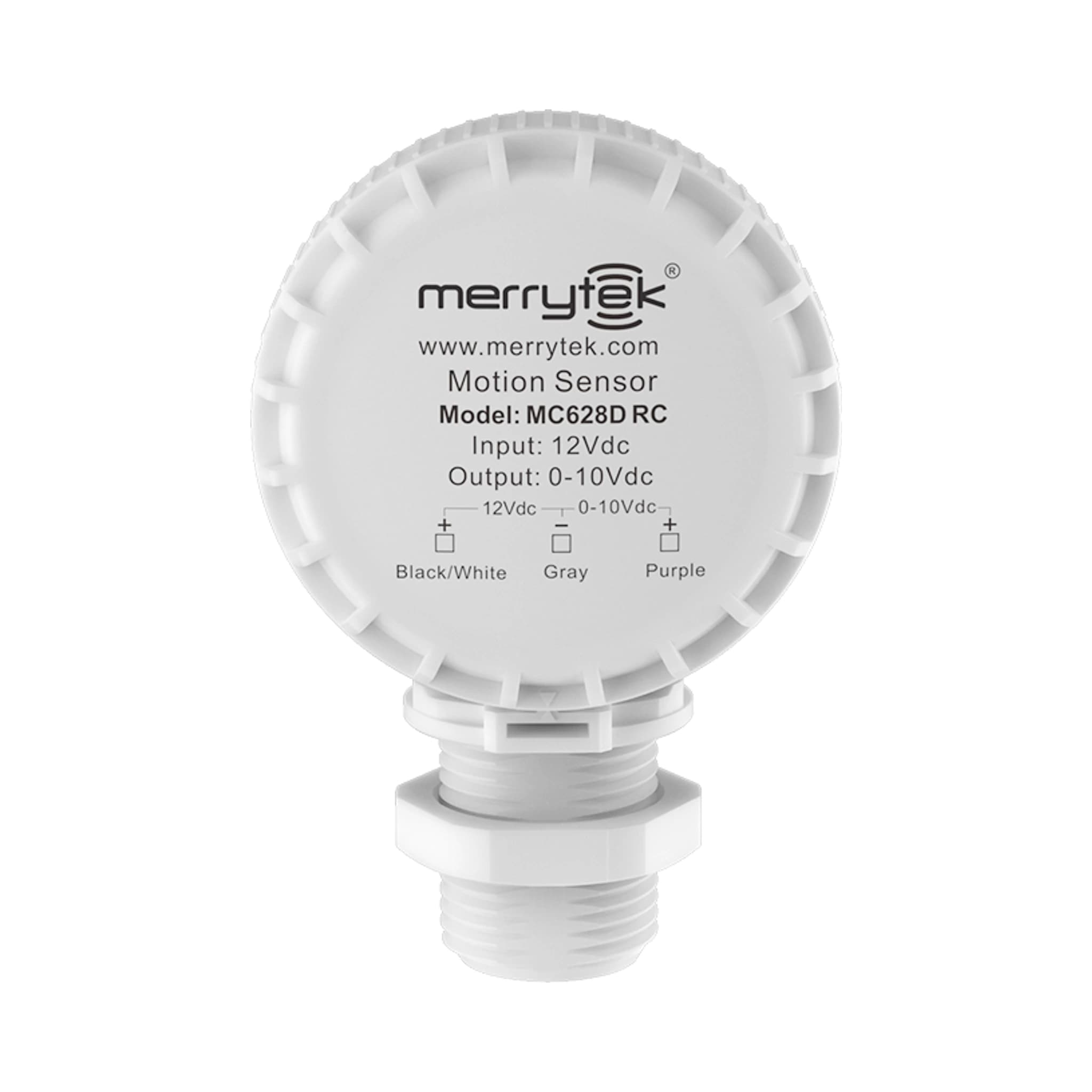

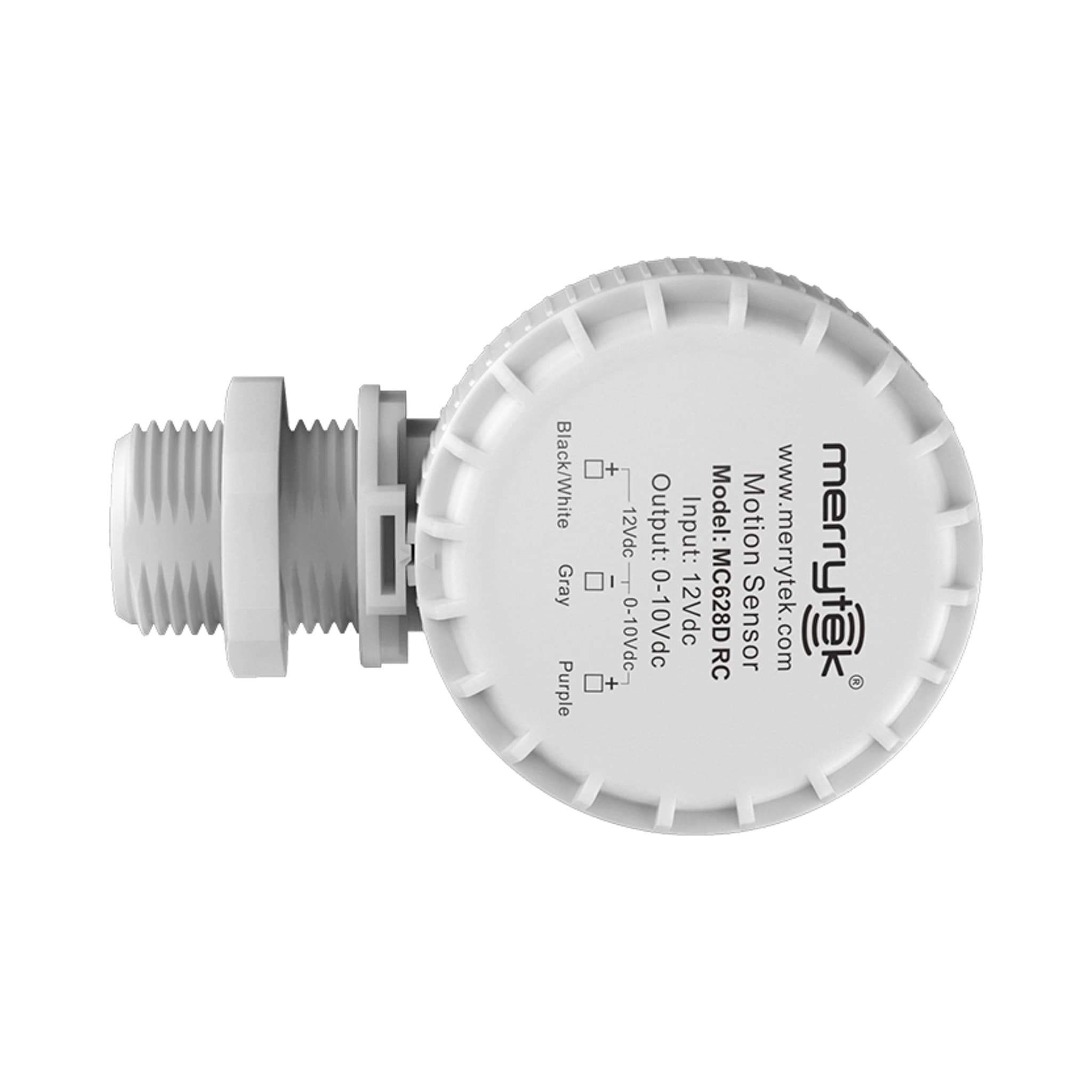

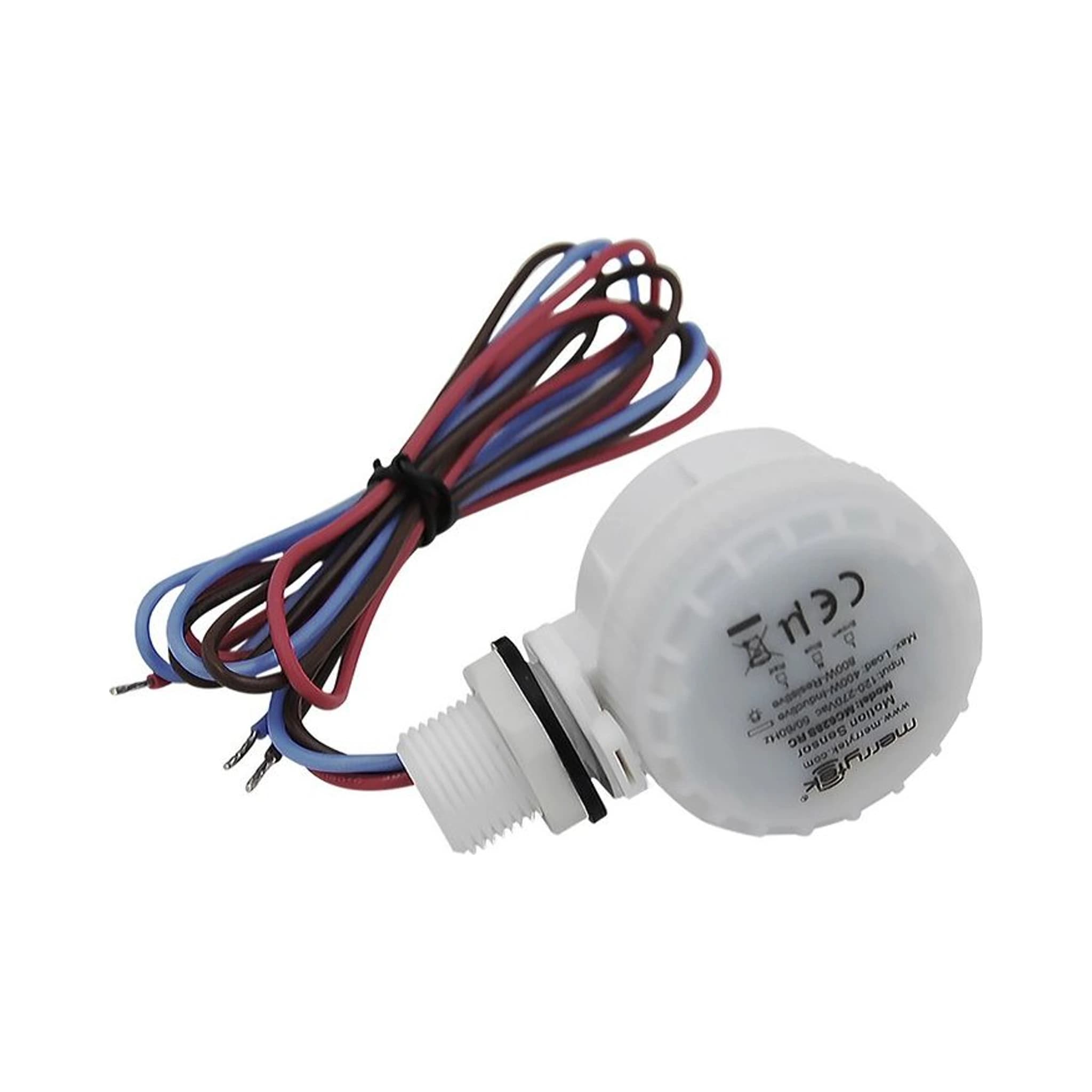

MC628D RC
Luminaire Control Sensors
MC628D RC is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz.
Verified product data
Specifications
Input
- Voltage range
- 108-305VAC 50/60Hz
- Rated voltage
- 120-277VAC 50/60Hz
- Standby power consumption
- <1W
- Lightning surge
- L 1kV between N lines
Output
- Working mode
- on-off switch
- Load type
- Capacitive, resistive load
- Load power
- 400w (capacitive load) 800w (resistive load)
- Load surge current
- 30A (Measured at 50% Ipeak, twidth=500us @230Vac Cold start) 60A (Measured at 50% Ipeak, twidth=200us @230Vac Cold start)
Sensing parameters
- Working frequency
- 5.8 G Hz ±75 MHz, ISM band
- Transmit power
- 0.5mW Max.
- Delay setting (Hold time)
- 5s/30s/1min/3min/5min/10min/20min/30min
- Detection Area
- 25%/50%/75%/100%
- Daylight setting
- Light control threshold: 5lux/15lux/30lux/50lux/100lux/150lux/Disable (ambient light diffusion)
- Detection distance
- See radiation diagram
- Installation height
- 12m Max.
- Detection angle
- 150° (wall installation), 360° (ceiling installation)
Environment
- Working environment temperature
- -35℃~+55℃
- Storage temperature/humidity
- -40℃~+80℃ Humidity: 10%-95% non-condensing
Certification Standard
- Safety standards
- IEC60669-2-1, IEC60669-1AS/NZS 60669.1, AS/NZS 60669.2.1, UL60730-1
