Luminaire Control Sensors

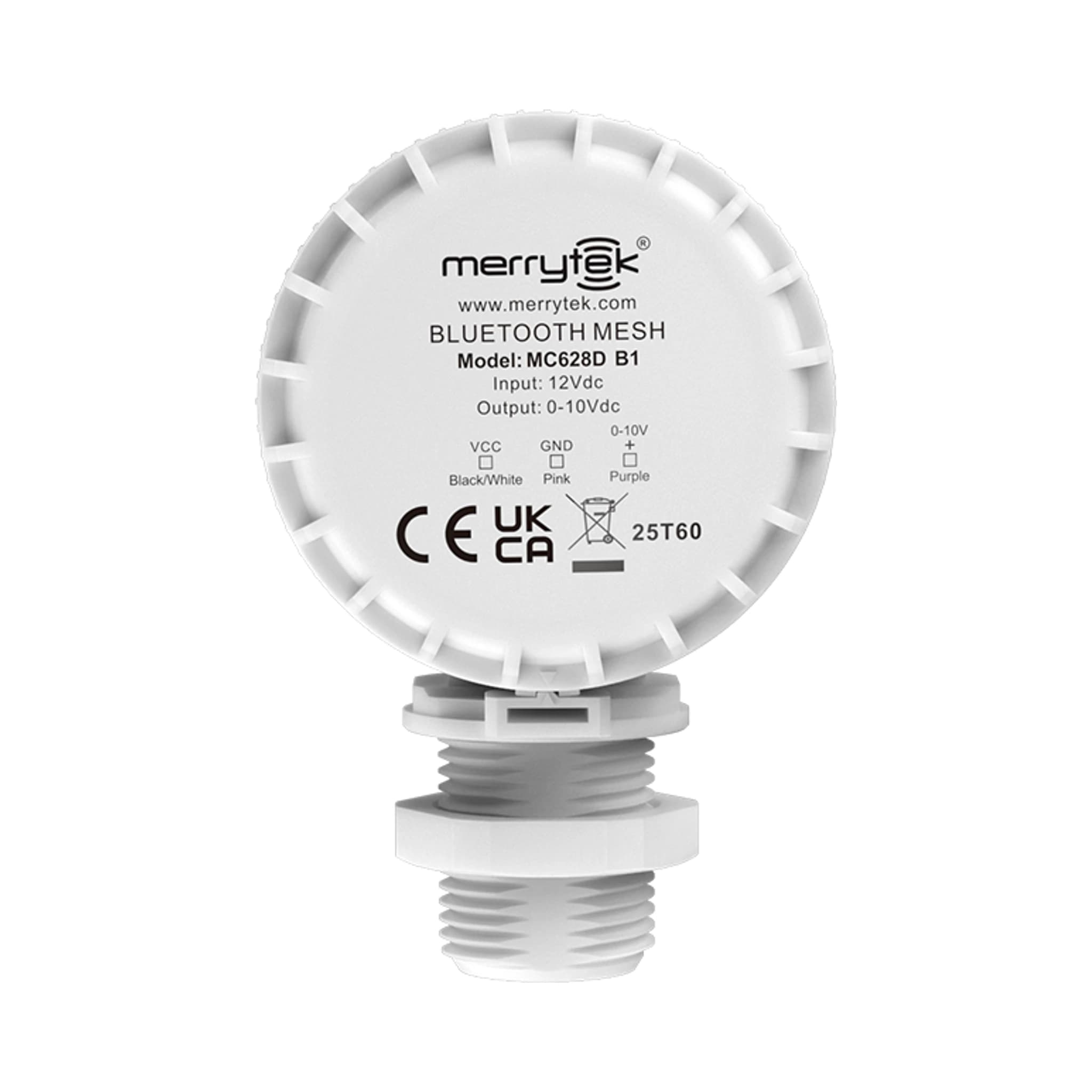

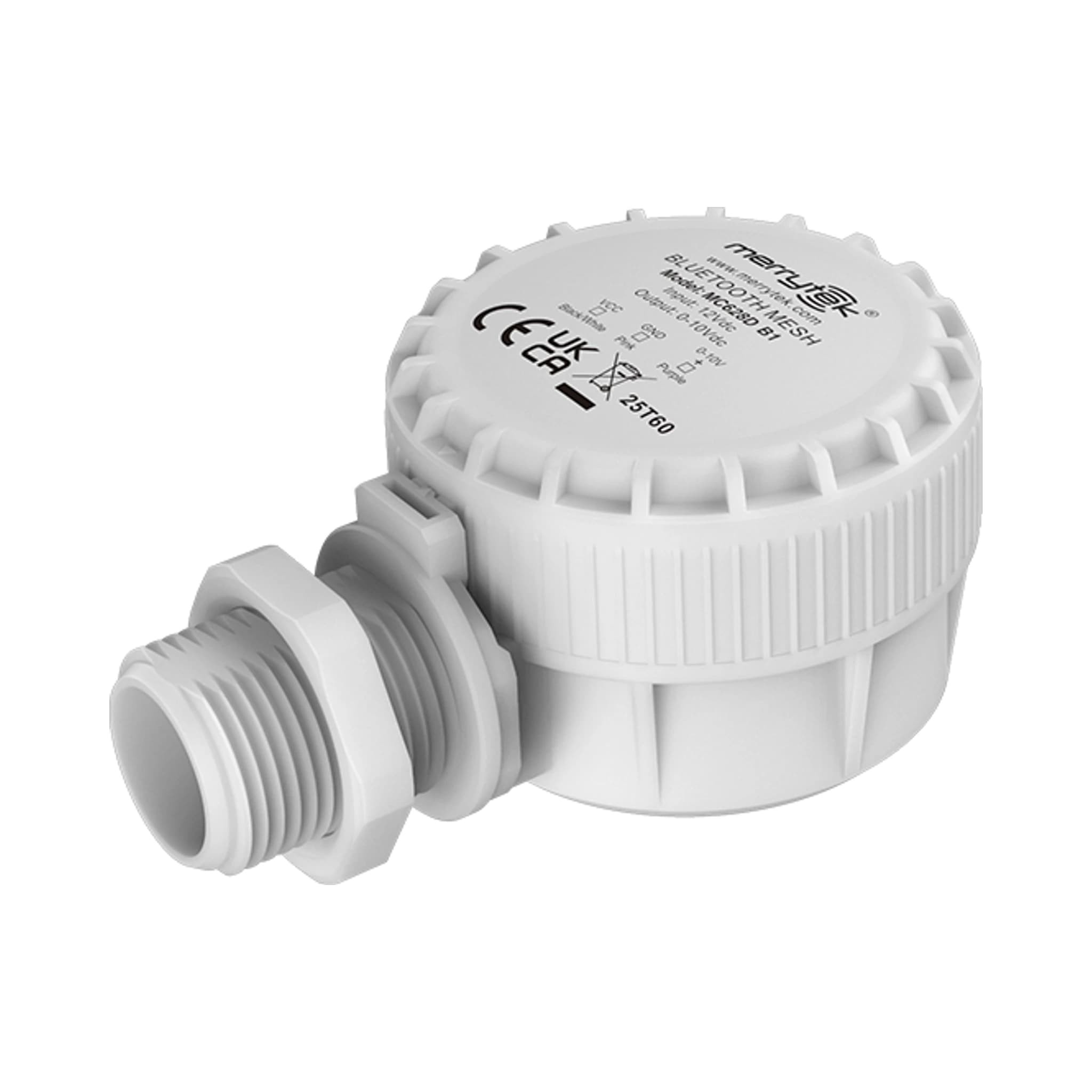

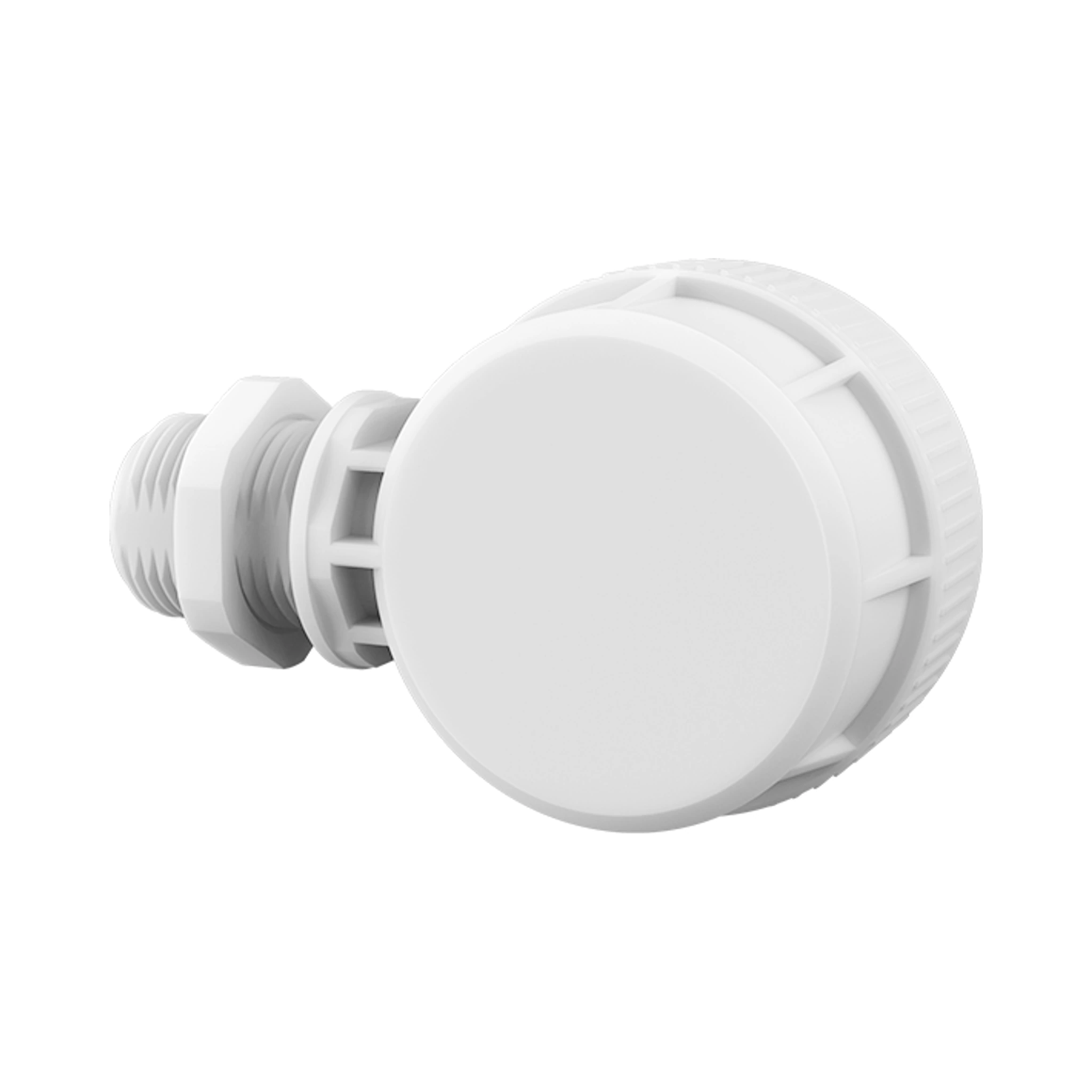

MC628D B1
Luminaire Control Sensors
MC628D B1 is designed for professional lighting-control and building-automation applications. Supported technologies: 0–10V, Tuya, Bluetooth.
Verified product data
Specifications
Input
- Voltage range
- 11-15VDC
- Operating current
- < 15mA
- Rated voltage
- 12V DC
- Ripple voltage
- <100mVp-p
Output
- 0-10VDC dimming signal
- Dual 0--10V dimming signal
Sensing parameters
- Dimming ratio (Stand-by DIM Level)
- 0-100%
- Installation height
- Typical value: 10m (12m Max )
Wireless module
- Module name
- Graffiti Module-BT3L
- Working frequency
- 2.4G HZ ISM band
- Transmit power
- 10dBm (max:10.5dBm)
- Transmission distance
- 30m@visual distance (also related to the coverage distance of the gateway)
- Wireless Standard
- Bluetooth Low Energy 4.2/5.0
Environment
- Working environment temperature
- -25~60℃
- Storage temperature
- -40℃…+80℃ Humidity≤85% Non-condensing
Certification Standard
- Comply with certification
- CE
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP65
- Wiring method
- Lead / 4pin lead
- Installation method
- Independent
- Product size
- See dimensional drawing
- Packaging requirements
- Partition panel + outer box (K=A)
- Lifespan
- 5-year warranty@Ta
