Luminaire Control Sensors

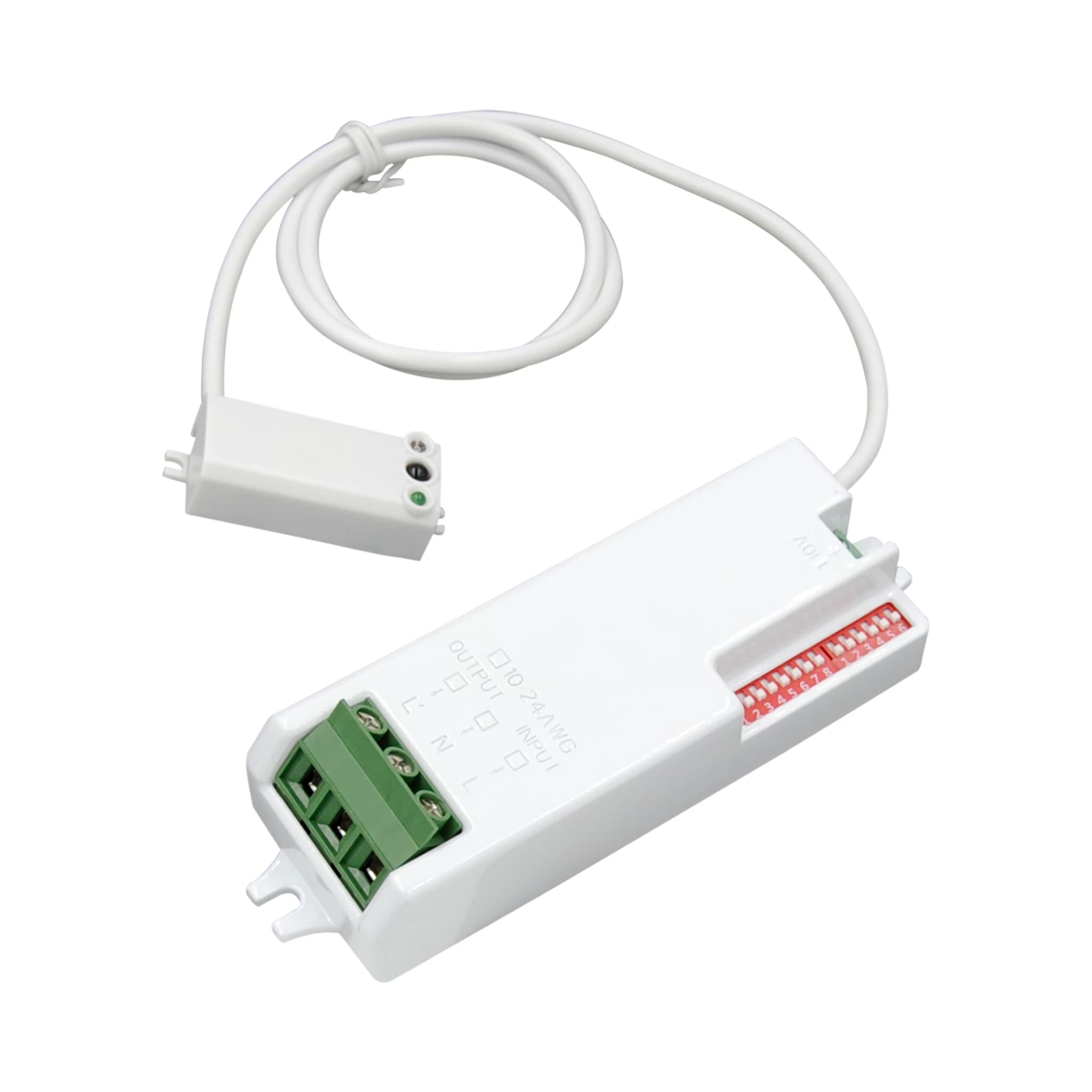

MC613V D 99
AC controller
MC613V D 99 is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, 0–10V, ON/OFF.
Verified product data
Specifications
Input
- Standby power consumption (120/277/347VAC 50/60Hz)
- ≤1W
Output
- Output (1KV (L/N,EN61000-4-5))
- Output
- Output signal (1KV (L/N,EN61000-4-5))
- √0-10VDC dimming signal; √ON/OFF signal
- Interface (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- Interface
- 0-10V dimming terminal (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- < 50mA (non-constant current source) 10% (0.5-1V) 20% (1.9-2.1V) 30% (2.9-3.1V) 40% (3.9-4.1V)
Sensing parameters
- Sensing parameters (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- Sensing parameters
- Operating frequency (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- 5.8 G Hz ±75MHz, ISM band
- Transmitting power (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- 1mW Max.
- Detection range (radius) (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- Ceiling installation 3m high: 1m/s ≥2.5m Horizontal installation 2m high: 1m/s ≥4m Test conditions: Product setting 100% sensitivity, indoor 60㎡ without obvious obstruction
- Installation height (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- 3m (6m Max )
3db beam angle
- 80°@XZ plane (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- 80°@XZ plane
- 96°@YZ plane (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- 96°@YZ plane
Environment
- Environment (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- Environment
- Working environment temperature (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- Built-in: -35~70℃
- Storage temperature (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- -40℃…80℃, humidity ≤85% (non-condensation)
Certification Standard
- Certification standard (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- Certification Standard
- Compliant with certification (50A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load))
- UL, CE, RED
- Product Category (IP20)
- Class II electrical appliances
Others
- Others (IP20)
- Others
- Wiring method (IP20)
- Push-type terminal block, wire diameter: L /N /L’: 18AWG +/- dimming end: 22AWG
- Installation requirements (IP20)
- Built-in installation
- Packaging requirements (IP20)
- Bubble bag + partition + outer box (K=A)
- Net weight (IP20)
- 120±5g
