Luminaire Control Sensors

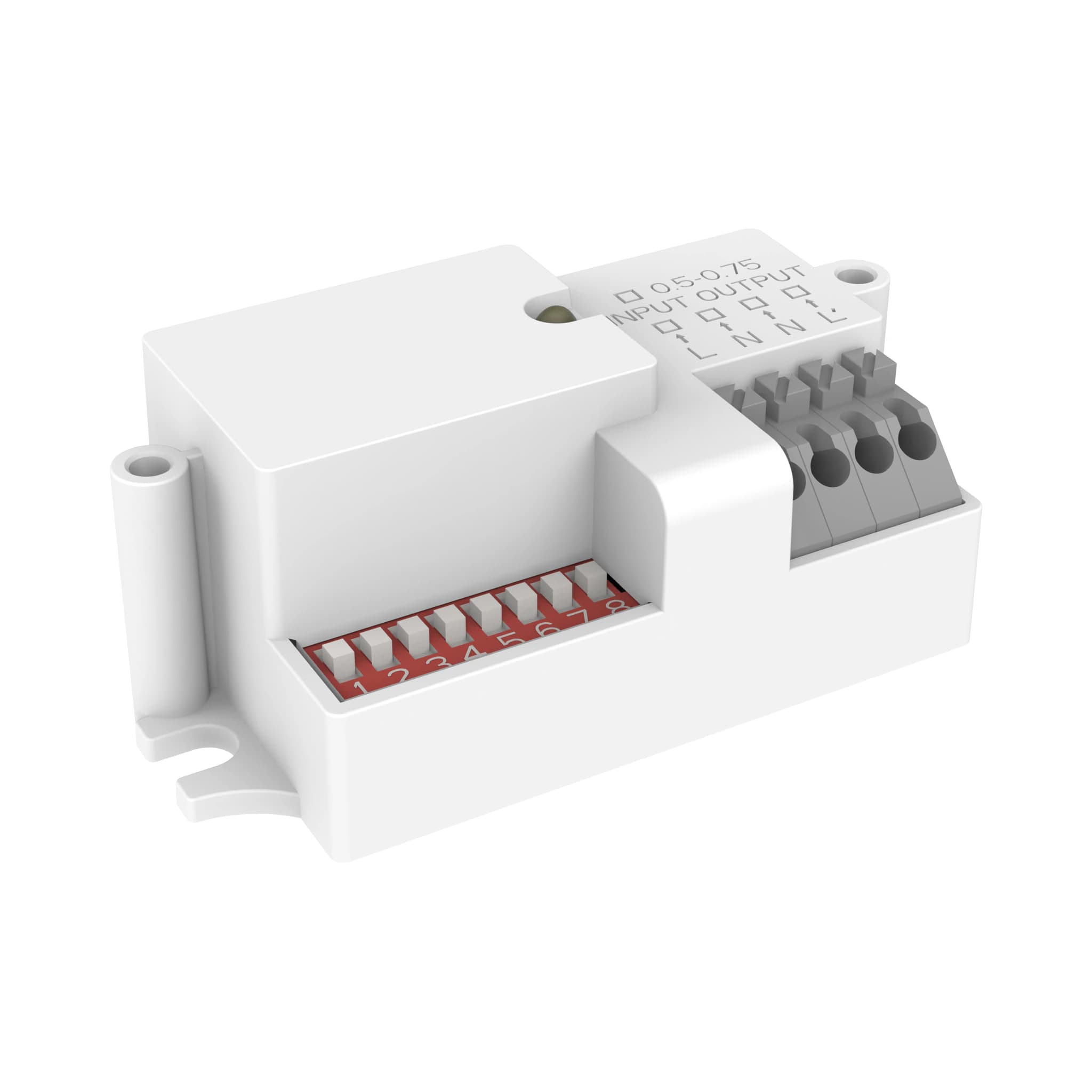

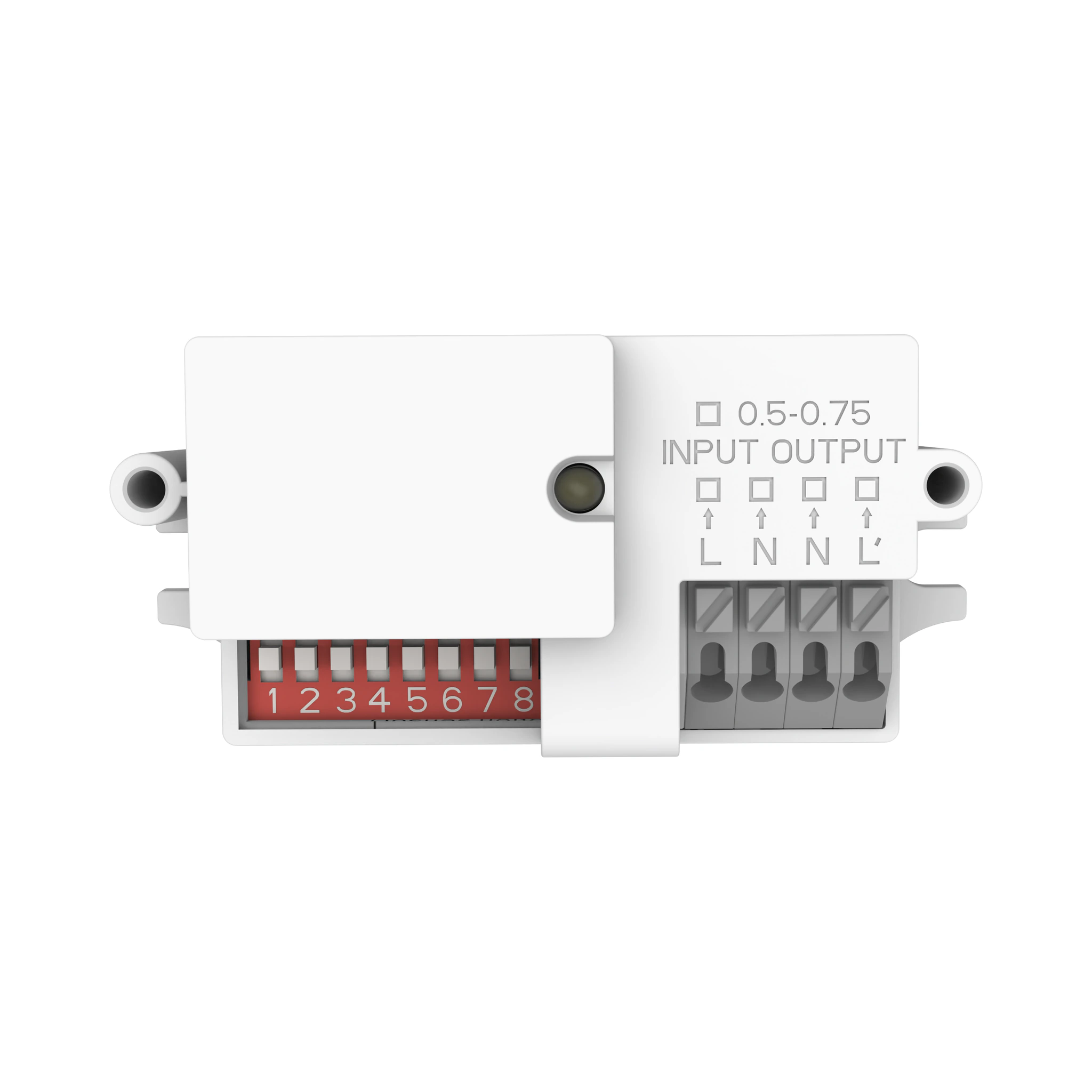

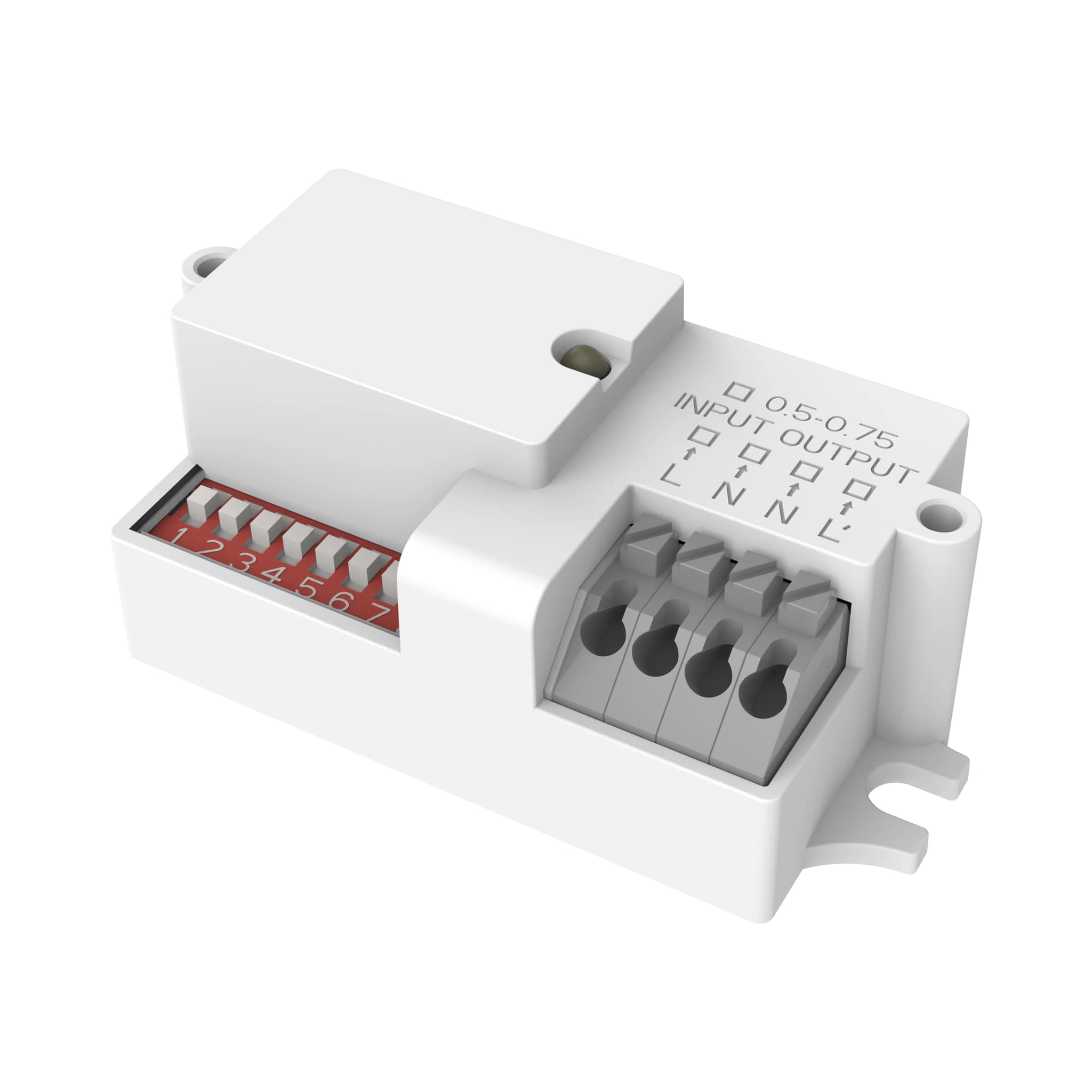

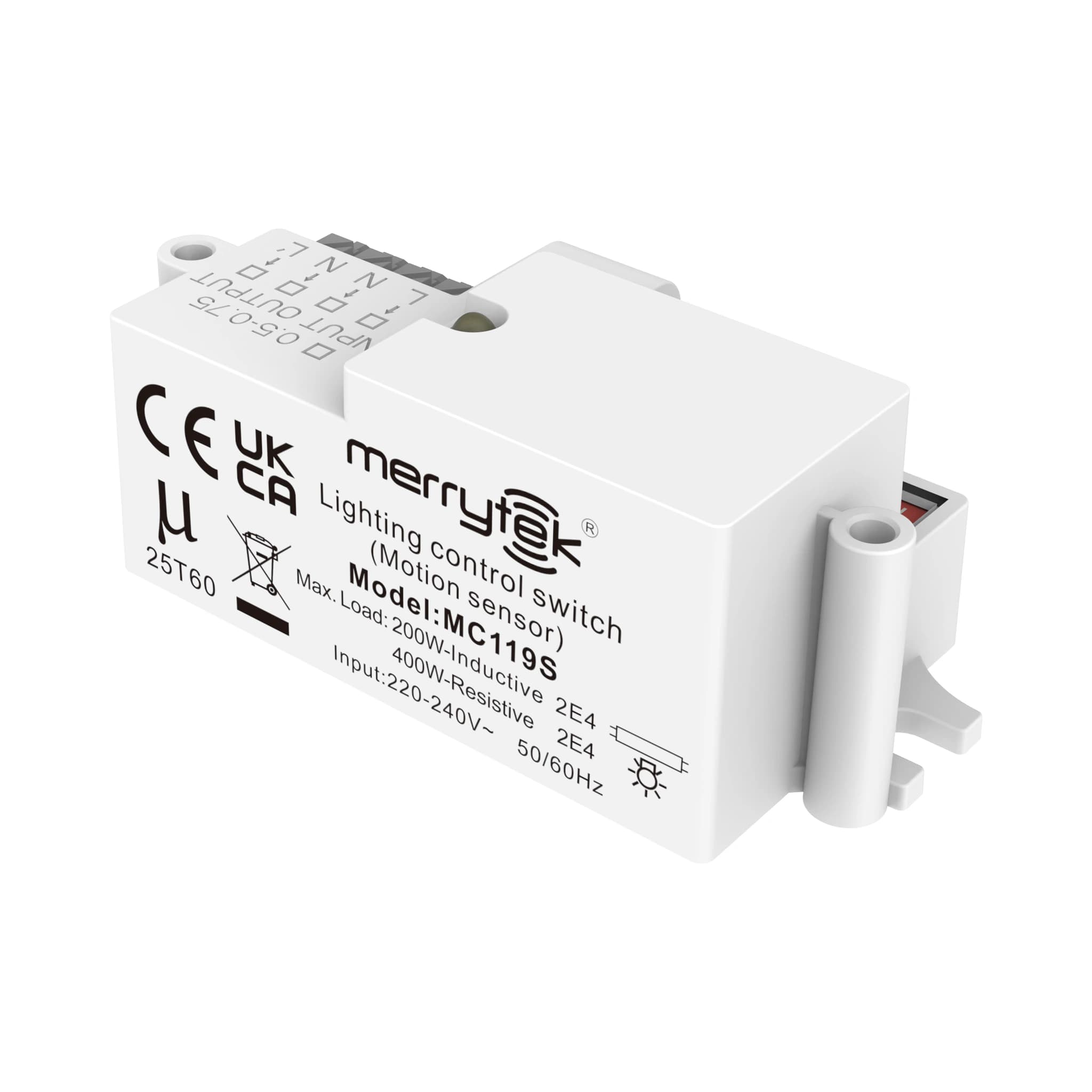

MC119S
microwavesensor
MC119S is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, ON/OFF, IP20.
Verified product data
Specifications
Input
- Voltage range
- 120-277Vac 50/60Hz
- Rated voltage
- 230Vac
- Standby power consumption
- ≤0.1W
- Lightning surge
- 1KV (L/N, EN61000-4-5)
Output
- Working mode
- ON/OFF
- Load type
- Capacitive/Resistive
- Load power
- 200W@230Vac (capacitive load), 400W @230Vac (resistive load)
- Load surge current
- 20A (tested at 50% Ipeak, twidth 500us @230Vac, cold start at full load) 40A (tested at 50% Ipeak, twidth 200us @230Vac, cold start at full load)
Sensing parameters
- Working frequency
- 5.8 G Hz ±75 MHz, ISM band
- Transmit power
- 1mW Max
- Delay setting (Hold time)
- 5S/30S/1min/3min/5min/10min/20min/30min
- Sensing range (Detection)
- 100%/75%/50%/25%
- Light and dark settings (Daylight)
- Ordinary light control / 2Lux/10Lux/25Lux/50Lux/Disable (diffuse state)
- Detection range (radius)
- Ceiling installation 3m high: 0.3m/S ≥3.5m, 1m/S ≥2.5m Horizontal installation 2m high: 0.3m/S ≥8m, 1m/S ≥4m
- Installation height
- Typical value: 3m (4m Max)
- Detection angle
- 150°
Environment
- Working environment temperature
- -25℃~60℃
- Storage temperature/humidity
- -40℃~80℃ Humidity: ≤85% (non-condensation)
- Maximum shell temperature (Tc)
- 80℃
Certification Standard
- Safety (LVD) standard
- EN61058-1-2, EN61058-1
- Electromagnetic compatibility (EMC) standard
- EN61058-1, EN61000-3-2, EN61000-3-3, EN62479EN301489-1, EN55015, EN300440
- Environmental protection requirements
- Comply with EU RoHS requirements
- Comply with certification
- CE, RED, TUV
Others
- Input/output (terminal/lead) specifications
- Push-type terminal block, wire diameter range: 0.5-0.75mm2
- Protection level
- IP20
- Product Category
- Category II
- Installation requirements
- Built-in installation
- Shell size
- 61.0*29.0*23.0mm
- Packaging requirements
- Bubble bag + partition + outer box (K=A)
- Net weight
- 25.2g
- Lifespan
- 5-year warranty @Ta 230V full load
