Luminaire Control Sensors

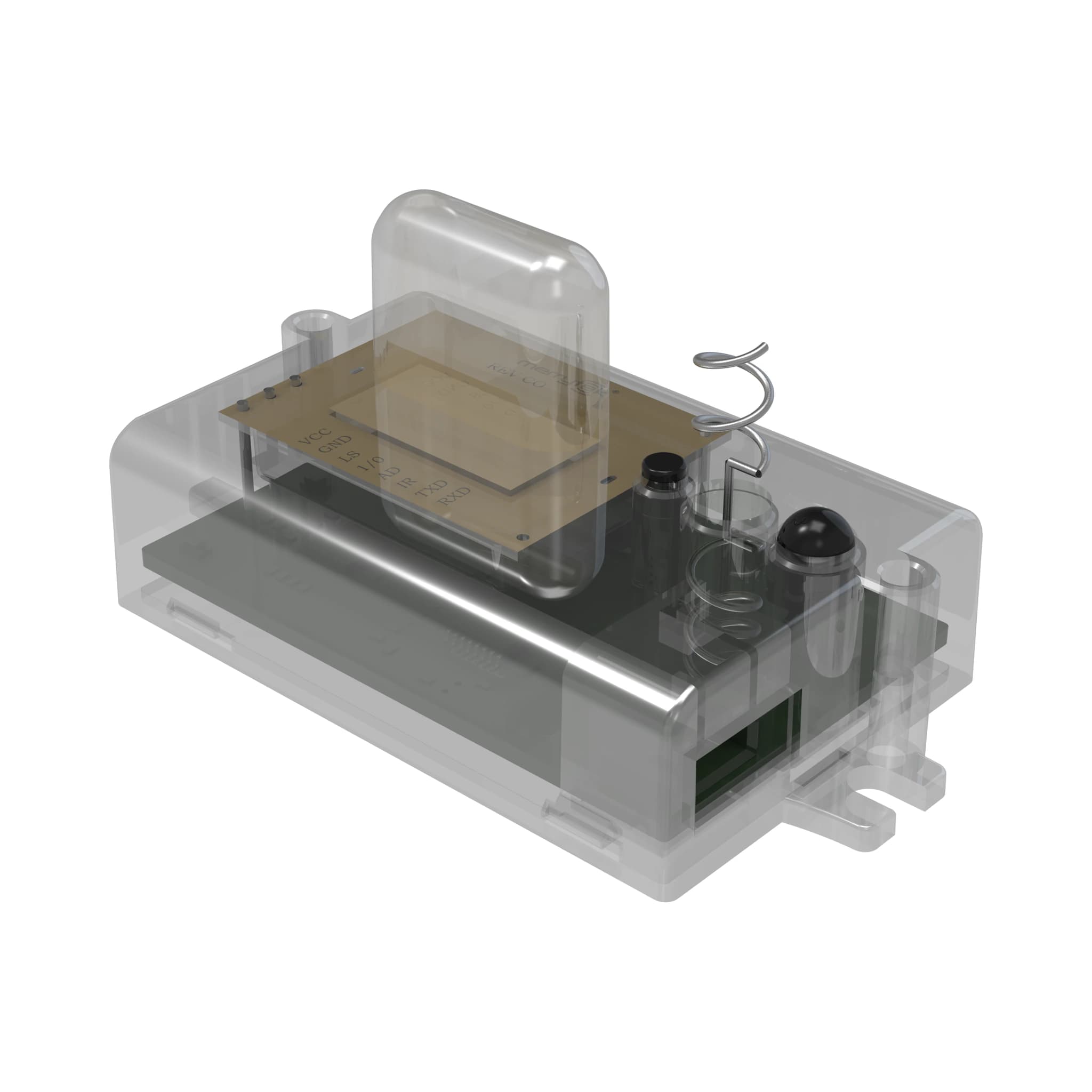

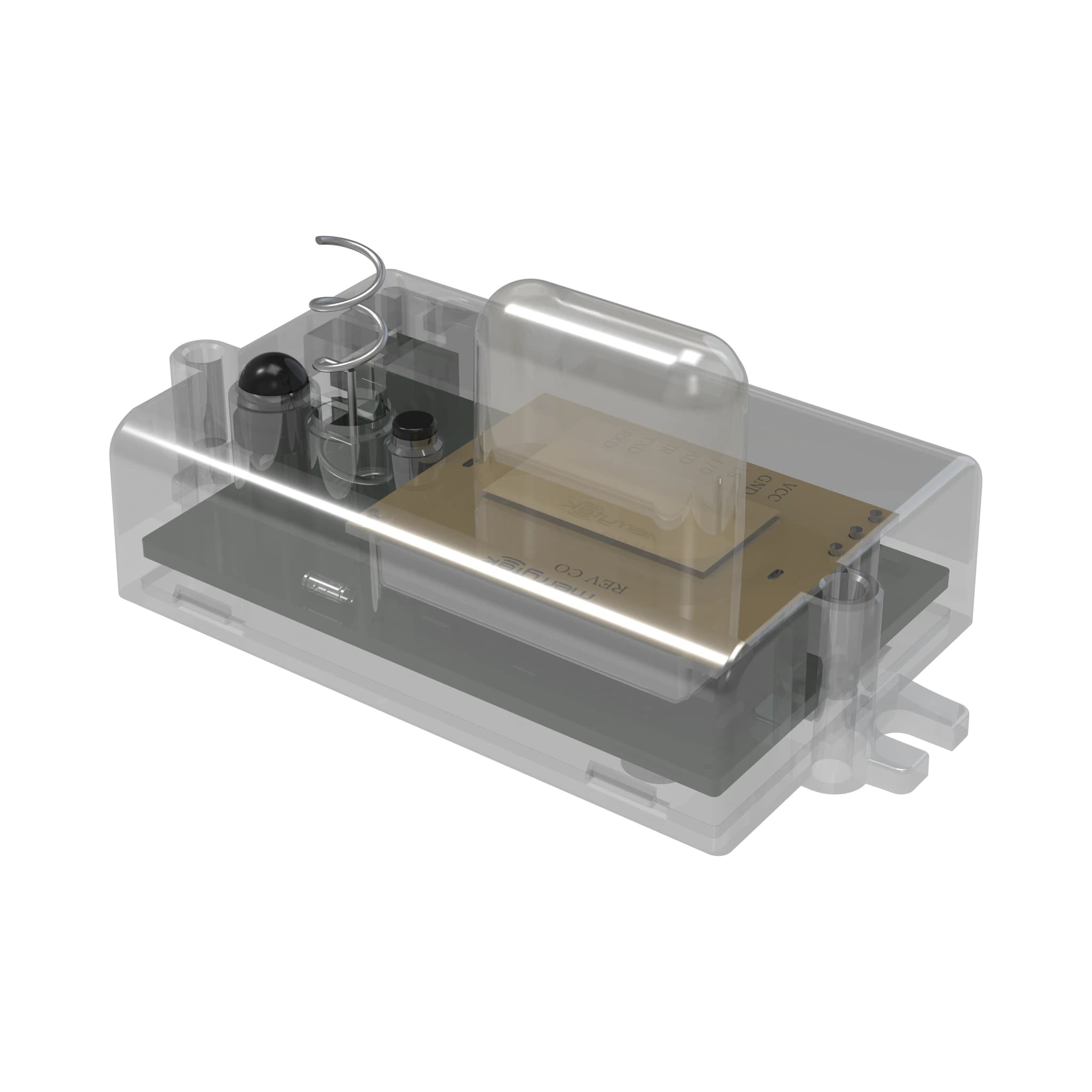

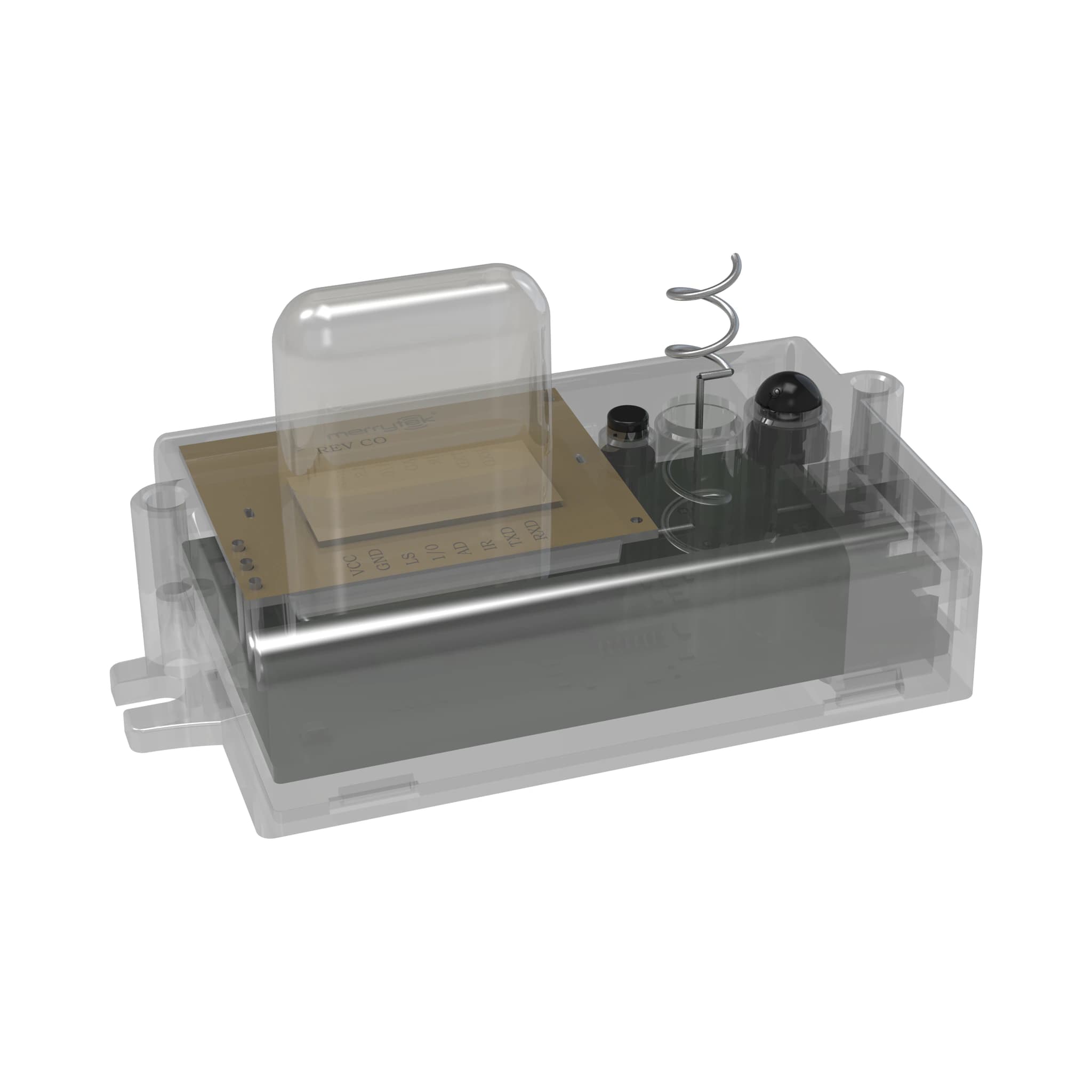

MC116D RC
Luminaire Control Sensors
MC116D RC is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, 0–10V, PWM.
Verified product data
Specifications
Input
- Rated voltage
- 12±1V DC
- Operating current
- 55±5mA
- Ripple voltage
- <100mVp-p
Output
- Output signal
- ○0-10V dimming signal / ○PWM dimming signal
Sensing parameters
- Working frequency
- 5.8 G Hz ±75MHz, ISM band
- Transmit power
- 1mW Max.
Light control priority
- On
- 15Lux (Low) / 50Lux (Med) / Disable (High)
- Close
- 100Lux / 150Lux / Disable (High)
- Dimming ratio
- < 50mA (non-constant current source) 10% (1.4-1.6V) 30% (2.9-3.1V)
- Detection range (radius)
- Ceiling installation 3m high: 0.3m/s ≥ 4m, 1m/s ≥ 2.5m Horizontal installation 2m high: 0.3m/s ≥ 8m, 1m/s ≥ 4m
- Installation height
- 3m (6m Max )
Wireless module
- Working frequency
- 2.4G Hz
- Transmit power
- 6dBm
Wireless parameters
- Transmission distance
- Point-to-point transmission 15m Max (with lamps)
Environment
- Working environment temperature
- -25~60℃
- Storage temperature
- -40℃~80℃, humidity ≤85% (non-condensation)
Certification Standard
- Comply with certification
- CE
Others
- Others (IP20)
- Others
- Installation requirements (3pin 2.0mm terminal)
- Built-in
- Packaging requirements (3pin 2.0mm terminal)
- Partition + outer box (K=A)
- Net weight (3pin 2.0mm terminal)
- 16.5±3g
- Lifespan (3pin 2.0mm terminal)
- 5-year warranty@Ta
