Luminaire Control Sensors

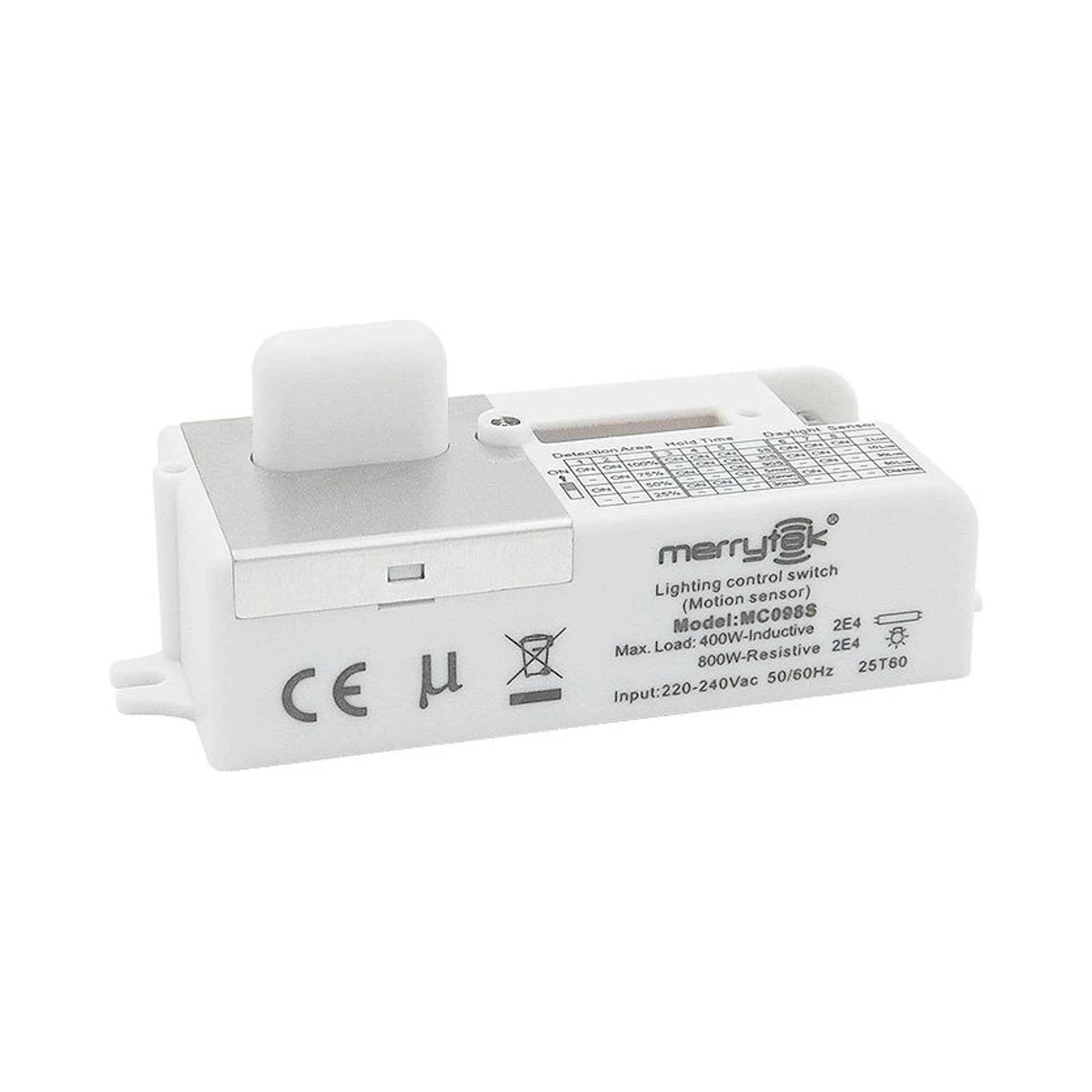

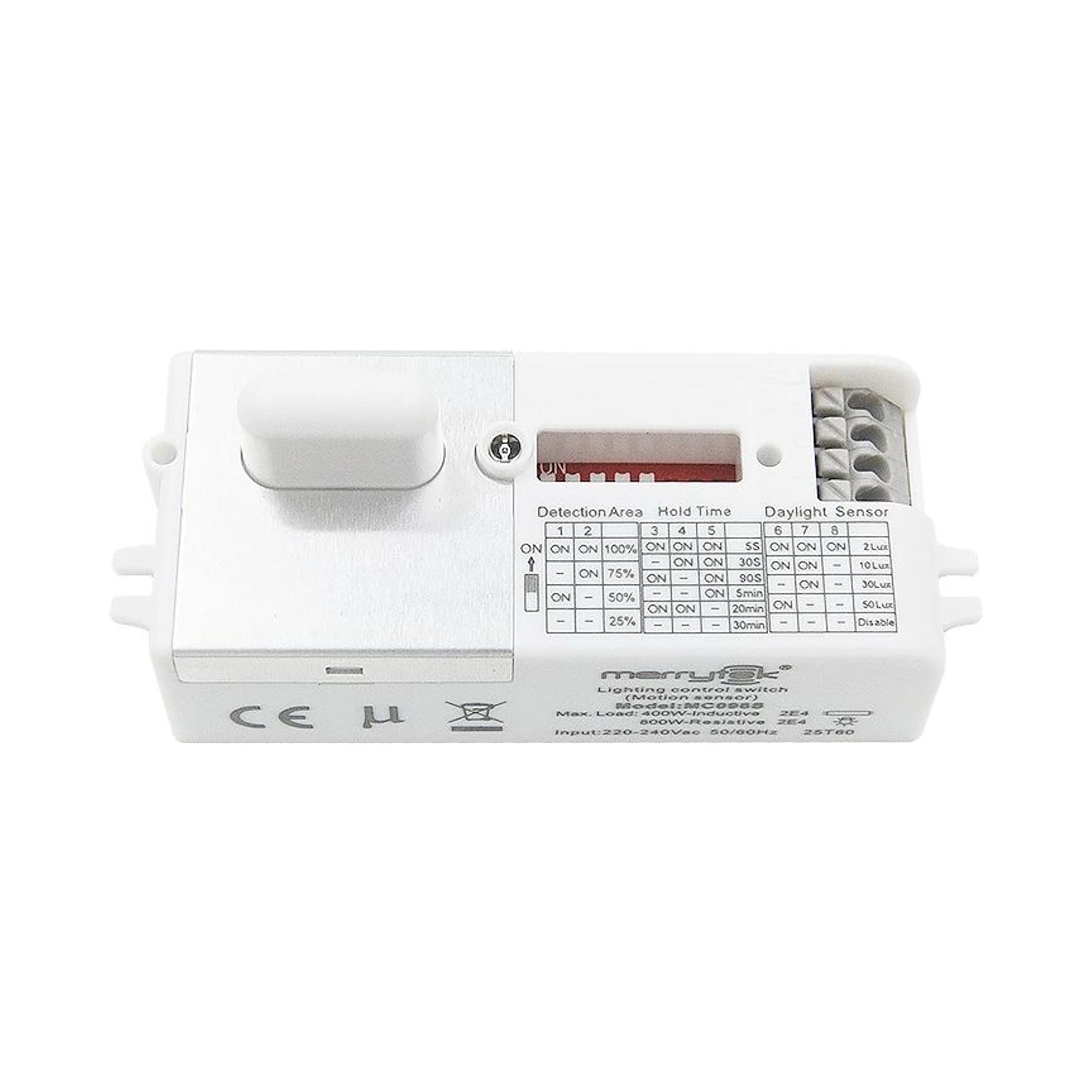

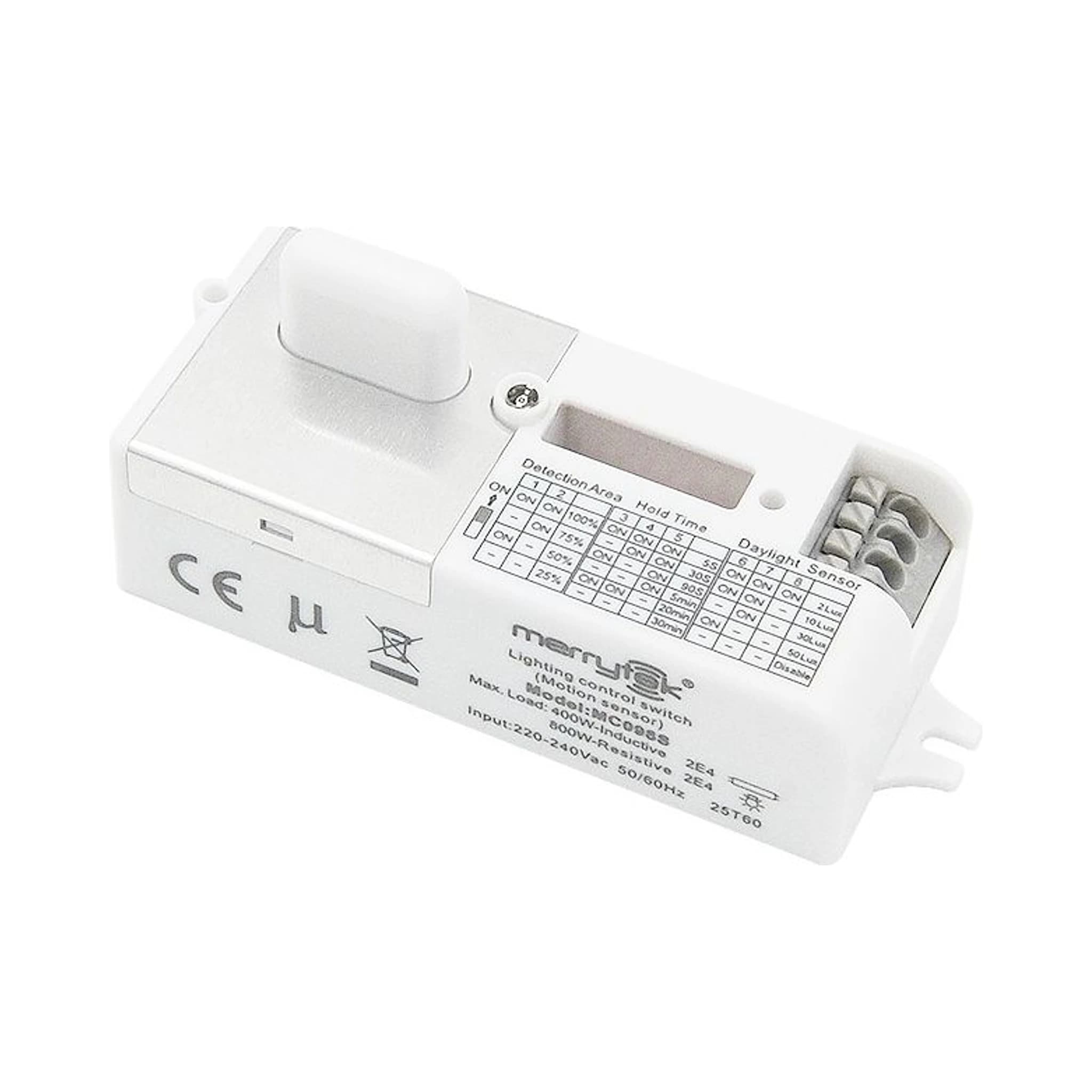

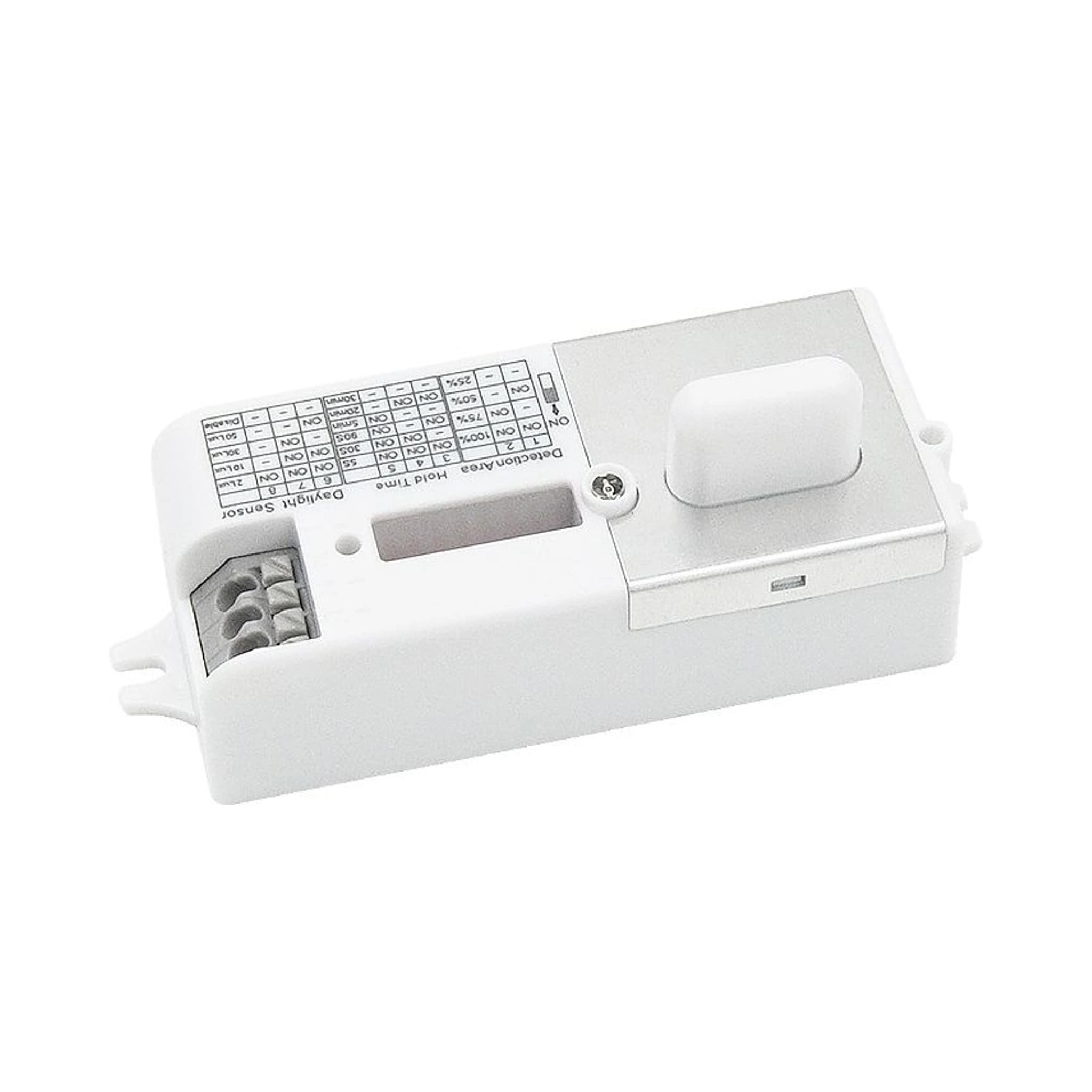

MC098S
Luminaire Control Sensors
MC098S is designed for professional lighting-control and building-automation applications.
Verified product data
Specifications
Input
- Operating voltage
- 198-264VAC, 50/60Hz
- Rated voltage
- 220-240VAC, 50/60Hz
- Stand-by power
- <=0.5W
Output
- Working mode
- ON/OFF
- Load capacity
- 200W inductive / 400W resistive
Sensor
- Operating frequency
- 5.8G Hz +/-75MHz, ISM band
- Transmit power
- 0.5mW maximum
- Hold time
- 5s / 30s / 90s / 5 / 20 / 30min
- Detection sensitivity
- 100% / 75% / 50% / 25%
- Daylight threshold
- 2 / 10 / 30 / 50Lux / Disable
- Detection radius
- 3-10m at 3-4m height; 2-8m at 6m height
Installation
- Mounting height
- 6m maximum
Mechanical
- Dimensions
- 77.5 x 34.5 x 22mm
Environment
- Operating temperature
- -25 to +60 C
- IP rating
- IP20
Compliance
- Certification
- CE / RED / RoHS
