Luminaire Control Sensors

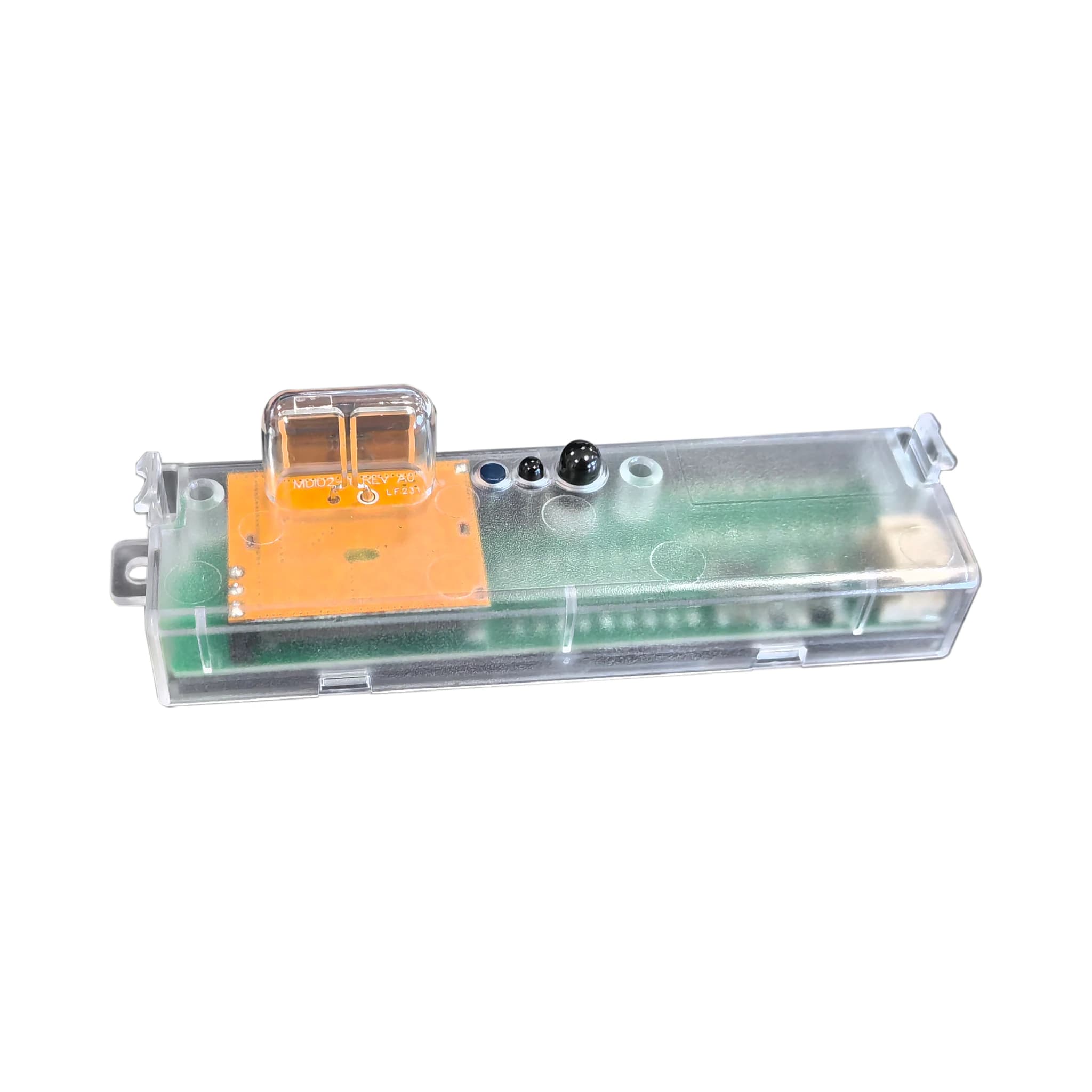

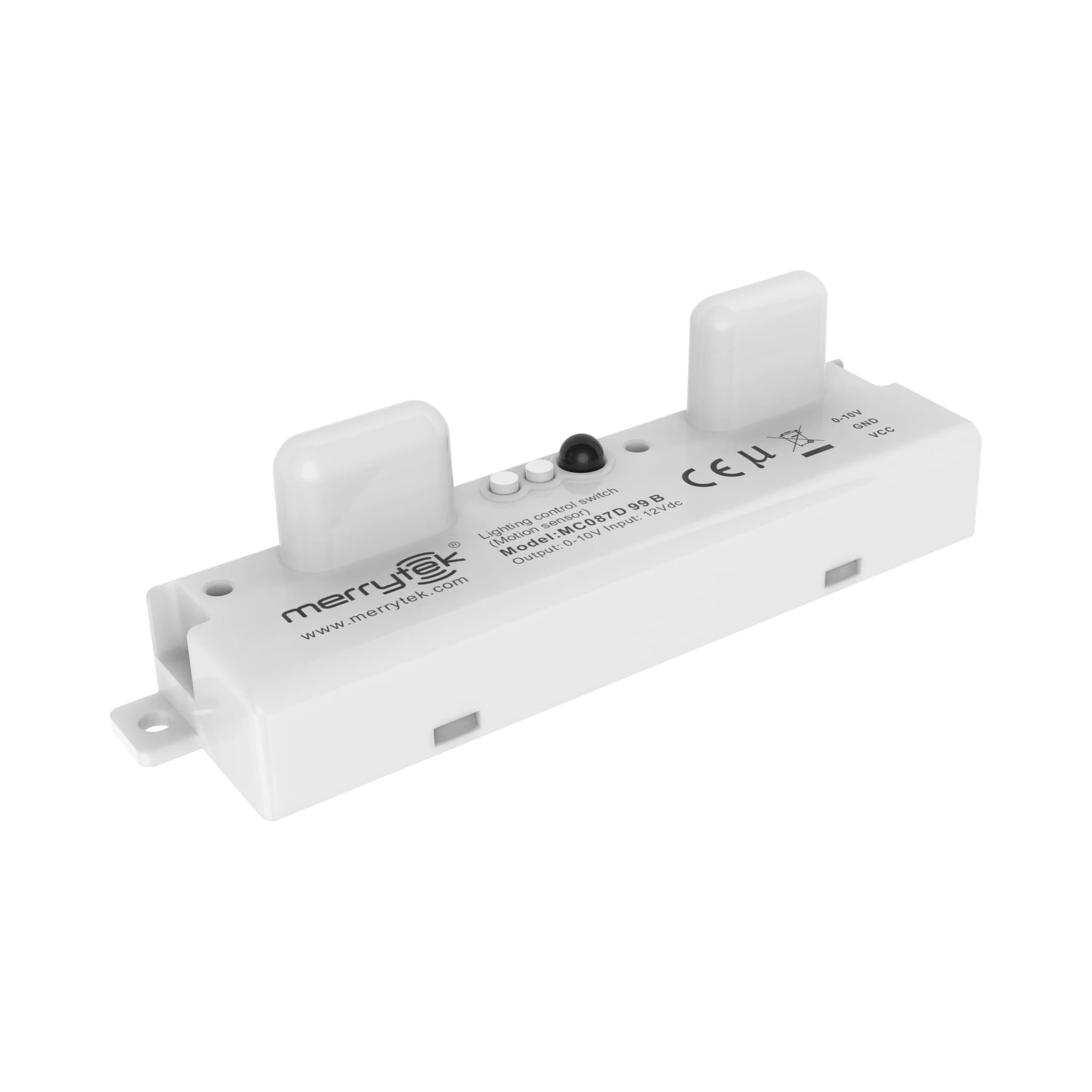

MC087D 99 Series
DC controller
MC087D 99 Series is designed for professional lighting-control and building-automation applications.
Verified product data
Specifications
Input
- Rated voltage
- 12V DC +/-1V
- Working current
- 20mA +/-3mA
- Ripple voltage
- <100mVp-p
Output
- Output signal
- PWM and 0-10V DC dimming
Daylight
- ON thresholds
- 5 / 15 / 30 / 50 / 100 / 150Lux
- OFF thresholds
- 150 / 200 / 300Lux
Sensor
- Operating frequency
- 5.8G Hz +/-75MHz, ISM band
- Transmit power
- 1mW maximum
- Detection radius
- Ceiling at 3m: >=4m at 0.3m/s, >=2.5m at 1m/s; wall at 2m: >=5m at 0.3m/s, >=3m at 1m/s
Installation
- Mounting height
- 3m typical / 6m maximum
Environment
- Operating temperature
- -25 to +60 C
- IP rating
- IP20
Compliance
- Certification
- CE; RoHS 2.0; REACH
